Mac/Windows user here. There is no interactive tutorial for any platform for escribe v2. Your best bet would be to watch a more current tutorial on youtube from djlsbvapes or pbusardo. V1 and V2 are pretty much identical for your non colour mod. It works fine, out of the box as is. Your mod already came with a profile on it from Rebel. After watching a video or 2, you can interrogate what they setup, then change to your liking. There are 8 individualized profiles you can fine tune to your liking. Welcome

System 10.13.3, all the latest updates. Install completed fine. Then mouse semi froze. ~5 second delay. Tried to open 'Activity Monitor' to diagnose what was taking CPU, and it couldn't even paint the application icons. Finally rebooted itself. Escribe ran fine and loaded SP6. Wake up this morning, fire up Esribe, and device appears in Main window, but getting error. 1 more reboot initiated by me and working so far. Mod res - Thank you, Thank you, Thank you. How low will it go?

@James Boost works well using the MacOS version. This was not the cleanest install for me (1st time ever). I have only tested with SS .5 ohm coil from 20-60 watts @ 5 and 11 just to get a feel, without pushing any boundaries to find where the constraints are. I take it "... can be configured on-device" strictly means as a profile setting in escribe, and not changeable on mod itself.

Excellent photos. I'd open a ticket with Evolv. Not only do they do warranty work for LV, they also stand behind their board. You'll work out fine. They usually turn around repairs very quickly. Board looked really clean, and they should have replacement board holders and screens. EVOLV HELP DESK - https://helpdesk.evolvapor.com/?a=add

Hey Jack, might I suggest you upgrade to Escribe v2.x I've been running v2 SP9 without any issues at all. Recovery Charging is really only for internal Lipo batteries, where the internal cells are out of balance. Yours are both showing 4.16v I haven't seen those gaps before on pack voltage, mine are a solid line. Your screen cable, if not pinched, could just be soaked in juice, in sorta crooked, or even the hold down tab not fully closed. If you rip it apart, in the datasheet there's a picture of it and what's right and wrong. OR, you could open a ticket with evolv.

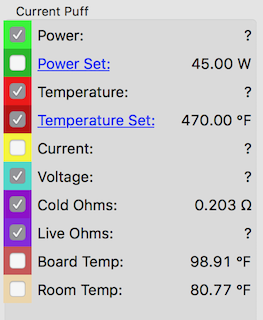

Can you do a full Printscreen of Device Monitor, showing that

If you go into escibe, Help, click the teardrop in the logo 7 times and it will put you into debug mode. About 2/3rd of the way down on the left hand side is a 'scree disconnect' field. It should be zero, but if it's increasing, it's the screen.

Hey @Armorgod make sure to use proper electronic solder/flux as well, not the copper pipe stuff.

I'd suggest you try to find a teardown video of your mod, and watch it. I find it hard to believe you'll find ANY wire behind the fire button. You'll find a screen cable and a loose button that depresses an actuator on the board. That screen cable might be pinched, or the board holder might be faulty. Screen cables are like $12 USD. Oh, watch an escribe tutorial while you're at it. In Device Monitor, it'll show if any buttons are depressed.

It's under Battery in escribe v2.x

Wire sizes (min, max, recommended) all in the datasheet. Check over at dripp3d.com for a diagram

For each of the 8 profiles, are there any commands to see or change material, Preheat - Power, Punch, or time? And while I'm here, as I can see the watts set, can I add watts, say 'current watts' + 10 watts OR even 'current watts' + 10% ?

https://forum.evolvapor.com/topic/69483-help/?do=findComment&comment=923451

Go look up the Turnigy 1300mAh size, and that's in mine. Compare the dimensions to the maxamp. Not a mm to spare anywhere.

Not sure what you meant by 'both' there, but in order to check/test the 18650's, you'd need to also change the # of cells from 3 to 2, which must be done via escribe.

Sure do, YES! Whenever you wanna drop by my place in Canada I'll be ready.

I could swear I've seen this asked and answered before for the 'C' board, and IIRC it was always theme related. You have a few options .... interrogate the theme yourself, send a message to the theme designer, wait for someone who's more familiar on where to look, or use the search function here. Unfortunately I don't own a 'C' board.

Your batteries could've run out of juice. Charge 'em up till you get to a PC and look at Device Monitor. You running the 18650's or Lipo?

And you used the thick ground pad right beside your positive from the 510?

RAW ohms live it would range from 0.386 - 0.405. <<-- Yeah, AA will fire 1 watt intermittently, and that's where you might be seeing that jump.

I don't think so. Your second 'firing' in the last printscreen already showed 2.68v with a dip even lower. Usually, or in my case, at that wattage on a single battery DNA75, not color, I've seen around .6-.8 voltage drop, all depending (like retird) said on battery and connections. I don't think the mod is too advanced for you at all. Especially not in wattage mode. By 'advanced' it has actually helped you/us to identify where the problem may lie, instead of just being blind. Please keep us informed with your dealings with them.

How high is it? Have you checked in AA on another DNA mod? or tried a different rda? Check your grounding, and solder joints.

Did you ask Boxer if this was normal for their mods? That Black line shows your battery is sagging from ~3.7v to your 2.5v CSC, and the internal temp has risen 100F. Volts are way better than %'s to diagnose issues.

@Toffi69 I'd download the dna datasheet, and the back pages are the board measurements/details. I'd measure the actuator placements first and screen dimensions to get an idea of what you could be getting into

Do you already own the Hugo Boxer Mod?
