No, 2 battery minimum. 6V input minimum. https://downloads.evolvapor.com/dna250color.pdf
-
That would be the third digit (thousandths) of an ohm. I'd say it's stable. As your mod and atty both come back to the ambient temperature they sync up. On mine, if it's near the midpoint (like .284Ω) it might fluctuate from .28Ω to .29Ω.
-
Those numbers should be decreasing while you make a snug connection. Then you should watch the values. It'll be noticeable when the mod applies low power to the coil. It can be dirty threads on your mod, atty or something with the coil. Hotspot, coil not actually centred under the holdown and shifted a bit.
-
Sounds like your coil. Maybe a small hotspot has developed. You can run Atomizer Analyzer to look at the stability of the coil. It should fluctuate a few thousandths of an ohm once it's cooled down.
-
That's NOT an Evolv component, board or issue. Either measure an integrated flushnut connector and work backwards or reach out to BBV.
-
There's a reason there's a USB standard. Check the micro standard for pins. And ......... if it's sitting in a dock, you won't be using on-the-go.
- 6 replies
-
- charging dock
- usb c
-
(and 3 more)
Tagged with:
-
Rereading what I've written, I'd suggest you open a Help Desk ticket. There's already a battery management chip in there. Link in my signature.
- 6 replies
-
- charging dock
- usb c
-
(and 3 more)
Tagged with:
-
You'll wanna use page 13 and 14 of the datasheet. Probably leave the usb micro exposed for while you're not home. And they need to be done on the board no matter what. https://downloads.evolvapor.com/dna250color.pdf
- 6 replies
-
- charging dock
- usb c
-
(and 3 more)
Tagged with:
-
No mods being recognised- MacOS
Wayneo replied to Conanthewarrior's topic in EScribe, Software and Firmware
We all have blonde moments, glad you got it working 🤙 -
Early Firmware and EScribe Suite Discussion Thread
Wayneo replied to David Campbell's topic in EScribe, Software and Firmware
@alsk1 Just spam, I removed the link. 😂 Normally we Just remove the entire post and ban them -
That might work for now, but you should really dismantle and wipe off the board with isopropyl alcohol. The buttons on the board are 3 piece buttons that are easily dismantled. The outer silver with the rubber pointy sticking out. The outer steel can be removed with a flat screwdriver, which exposes the rubber portion, below that is like a silver wafer. Below that wafer is the hard plastic portion soldered to the board. Once you get escribe working, the bottom line in Device Monitor displays when a/if a button is pushed.
-
Hotcig DX200 with 18650 adapter showing battery as fully empty
Wayneo replied to Conanthewarrior's topic in DNA 200 and 250

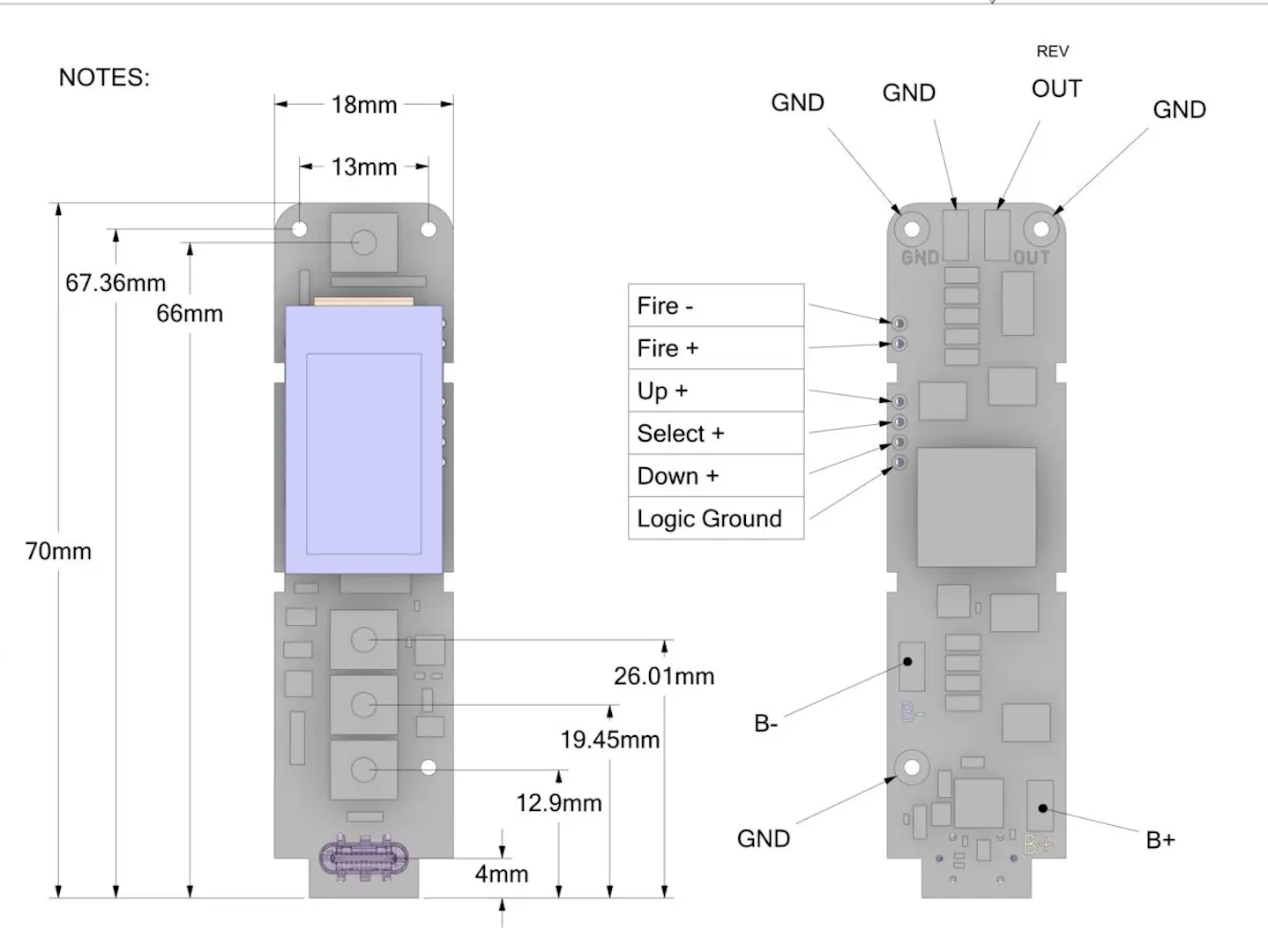

Hope you have a voltage meter. If they're both at 4.2V then you need to check and clean all the connections. Both the XT30/60 and the balance cable connector ends starting at the battery side. IIRC pin 0 (-)&1(+) would be cell 1, pin 1 (-) @2 (+) would be cell 2. Each should show 4.2V PIN 0, on the board is the tiny hole at the left when you're seeing the 2 inductors (or no visible buttons). This diagram is for the 250, you would not have pin 4 The photo below the diagram actually shows a DNA200, face/buttons up -
Hotcig DX200 with 18650 adapter showing battery as fully empty
Wayneo replied to Conanthewarrior's topic in DNA 200 and 250
At least 1 of the two batteries might be below ~2.8V. -
No mods being recognised- MacOS
Wayneo replied to Conanthewarrior's topic in EScribe, Software and Firmware
@Conanthewarrior please try and remember to update this post when you finally get your devices to connect. -
No mods being recognised- MacOS
Wayneo replied to Conanthewarrior's topic in EScribe, Software and Firmware
Then I have no idea. You can open a 'Help Desk' ticket and ask them. Link in my signature line. -
No mods being recognised- MacOS
Wayneo replied to Conanthewarrior's topic in EScribe, Software and Firmware
I only have native C ports on my Air. I plug in to my hub an A to micro cable. You might try turning your dongle 'C' cable around. Do you have any micro devices that pass data with your setup? -
No mods being recognised- MacOS
Wayneo replied to Conanthewarrior's topic in EScribe, Software and Firmware
Yes, that's the latest. I just tested both a 75 & 200 on my M1 Air and both worked. It was the only thing plugged into my hub. Perhaps try different cables. -
No mods being recognised- MacOS
Wayneo replied to Conanthewarrior's topic in EScribe, Software and Firmware
Start escribe, click 'about escribe', post screenshot. -
Open a Help Desk ticket with Evolv. Newer versions of the 40 came with a ZIF connector for the screen cable. Or you can get replacement boards from Stealthvape in the UK. No idea about drivers for any board. Link in my signature line.
-
Is there DNA60C stealth mode? or manual?
Wayneo replied to tomas lee's topic in Manuals, Instructions, and Tutorials
I was not aware of the Lore using a DNA60C. Does it have any USB input? It does not sound like a 'stealth' issue, more like a brightness setting, or a dead screen. -
Is there DNA60C stealth mode? or manual?
Wayneo replied to tomas lee's topic in Manuals, Instructions, and Tutorials
What device? Was it bought new? When did this start? How do you set your watts if you can't see anything? -
Insert a black and white image. Choose color by clicking on bottom right box called 'Logo/Welcme' and change there.
-
@emaahh Only the Evolv 'Help Desk' might answer that. Link in my signature line. I will say, as a moderator and using their products for nearly 10 years I'd prefer a few minor changes, but I'm more than happy with what has been produced and in use now for over a year.
