IMHO you've gotta meter out all your connections. For the USB-C you know it has worked outside the box. I'd lift that off and see if it connects, then lift at the board end if it still didn't connect. What else could it be? Same thing for the battery. Using 1 battery, measure it externally then in each slot at all the connection points to the board. Then do the other battery slot. Same thing for the fire button and up/down.

Great news. 👍 Let us know the final outcome if you remember 🙂

Well, if that was after i said then open a Help Desk ticket. ⬇️ Link in my signature line. ⬇️

I'm too tired to guess what Device Monitor shows

B- and G ground is cell 1 negative. Pin 1 is cell 1 positive and cell 2 negative. Yes, Pin 2 is cell 2 positive and needs to be bridged to 2-4 plus B+ like you have. But you need to clean it up. I also worry about all that exposed wire on the red. When you're done, use your multimeter and measure Ground + Pin1 (cell 1 voltage), then Pin1 + Pin2 (cell 2 voltage).

DO YOU SEE ME POST %'s IN MY POSTS? Now look at your cells. You really need to redo that soldering or clean it up so solder is only each pad from ground, pin 1, and pin2. I'll tell you from now, if I see a single % in anymore of your posts, someone else can help you.

Yes

Right now it's stuck uploading that file you chose. Follow my first post.

Exit escribe, restart PC and escribe. Try to upload again if it does not automatically restart the upload by itself.

You're seeing the 'batt' warning because you're hitting the 'low voltage' warning because the battery is sagging down to ~2.9v. Look at your Room vs. Board Temp at 150°F. A lot of heat is being generated internally trying to give you that 60watts. Isn't that the solder/wire free mod where everything is just screwed down? If it is, see if any are loose and can tighten them up. P.S Screenshot instructions in my signature line for the future.

Restart your PC and escribe. Use the cable that worked. No image shown. Don't drag and drop, just choose and upload image (do not insert image). Is it the evolv USB-C board?

The bottom of the board has like a little longer section. Is there a white (JST) connector there, or are there some thin wires directly attached to the board? Just a photo or 2 of that area would be good.

Definitely not a bug, not a board problem. Wiring or connector problem. Do you have a multimeter? I have never seen the innards of a Riva, but you could check the voltage shown for cell 2, and what the board sees.

Thank you. There's all sorts going on there. You need to change your battery specs back to normal. For 'size class' that should be back at 'normal', and 'cell soft cutoff' 2.75 volts. Then 'upload settings to mod' From 'Device Monitor', look at your 'cell 2' it's showing 1.1v. That is the problem. Unplug mod, physically swap your battery positions in the mod. Plug mod back in restart esribe -> device monitor. If cell 2 still shows a low voltage it is your mod wiring or connection. If cell 1 is now low it is a dead battery.

OK, then also (in escribe) click 'mod' -> 'battery' and do another full screenshot

Did you ever click 'Restore Defaults' in escribe? I need you to go into escribe (with mod plugged in), then start 'Device Monitor' and do a full screenshot. No need to take a puff.

Follow these steps and report back. In escribe (with mod plugged in), check you are in a 'profile' that has 'use replay on this profile' checked. Make sure for coil material it is 'watts' or something like that. (Not SS) Remeasure the resistance of your coil on the mod. Take a couple puffs and see if you can enable replay. If you cannot start replay, post an escribe screenshot of that profile. Start Device Monitor. On the left, click these checkboxes only. Power, power set, temperature, cold ohms, live ohms. And a full screenshot after taking a puff and pausing the screen.

Screens do die from time to time, but not usually in your way. If it were me, I'd remove the screen, clean the connectors on the zif connector and the screen area that touches. See if it's any better. You can purchase new screens from protodiy.com Also this has been moved tp the 250C area.

It's all done on ONE page, under the Display tab. You should also read this post. -> https://forum.evolvapor.com/topic/72254-theme-editor/

We don't know of any major plans or updates. I guess you could turn the screen brightness down to its lowest setting but the don't draw much power as is. You should open a Help Desk ticket about any planned updates or your feature request. Link in my signature line.

Glad you're all set and working fine. Your Profile 8 might have the 'enable replay' box checked. Many well intentioned Theme Designers allow Replay to work when a TC material is chosen which causes crazy shit for unsuspecting users.

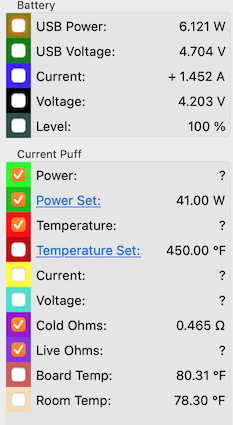

Can you post a FULL Device Monitor screenshot showing only the 5 fields in the image below. 2 puffs, 1 before Replay, and 1 when the problem occurs. Also a full screenshot of the profile you're using. I might as well ask what theme is on your mod? Thanks

What's with this estimating? How can you prepare your coil properly, ensuring there are no hotspots, burning off oils and salts on your fingers, firing properly from the center out? At a minimum you need a coil tab/build station/ another mod. Something. AIO's can be the most finicky for anything other than straight watts. Even at that SS is much easier to use in Replay and even that requires proper preparation. Here's a video of Todd building the Psyc. He surprisingly misses after he builds the coil to put the cap and chimney on top to check for any shorts or stray wire. https://youtu.be/rPWxFhBXsd4?si=L6QjCS2q-wKnj-pg&t=390

That part is usually due to an ohm mismatch or an unstable coil. How are you getting your current coil ohms and how much is it different from the mod display usually? Without a computer, pull the battery for 5/10 minutes for a fresh read. Nichrome will always be hit and miss. It is not a regular TC material. You need a long puff to get the 'ready' and it should be fine afterwards. Also, go into settings, click those 3 dots up at the top and let me know the firmware on it. Just saying, my Psyc (not in a San) with a fully threaded flushnut like you is within .01 or 2 from the external mod.
