Always_Jonezen Posted July 21, 2015 Report Share Posted July 21, 2015 VapingBad said:[QUOTE=Always_Jonezen]Here is my first try Hammond 1590g, I messed up on the Usb hole. I will be making some more, I have 5 more boards coming tomorrow hopefully.Well done, but it looks like you have the thin & thick wires in the wrong places, the thickest is normally for the output not the battery.[/QUOTE] Thank you, the battery came with 14ga and I used what I had which was 20ga. I'm working on 5 more this week and I will take your advice. Link to comment Share on other sites More sharing options...
speedometerman Posted July 22, 2015 Report Share Posted July 22, 2015 Thought I would try Lexan........ Link to comment Share on other sites More sharing options...
Always_Jonezen Posted July 23, 2015 Report Share Posted July 23, 2015 speedometerman said:Thought I would try Lexan........ Those are nice and interesting, buy or make those lexan cases Link to comment Share on other sites More sharing options...
Wick Posted July 23, 2015 Report Share Posted July 23, 2015 asg said:I posted this over on ecf in the dna200 thread, but figured it belonged here as well:Finished this mod a few days ago, just got around to taking a few pictures. Meet the lego200: Wiring inside is 12 gauge to the 510, 16 to the battery. The extra XT60 in there is between the dna200 and the 510, since I wanted things to be modular (this being lego and all). The 510 is from fasttech, basically a varitube clone. Battery is a Turnigy nano-tech 1000mah 3S 25~50C. Everything else is lego including the button actuators, chip holder, screen mount. No glue, only a small bit of double sided tape to hold the screen. The only cut into the lego was for the 510 (a hole for the threads, and a recess for the top plate.The style plates attach onto the side. So far I've made the two seen in the pictures, but I will likely make a few more. And I need to find some mounts in black. The grey ones stand out when the plates are off (they are completely hidden when they are on though).Been using it at about 50W mostly, 410F - 430F, preheat set to 200W 1sec. Vaping great. Now I just need to keep myself from ordering more dna200's. The Lego build is RAD!!!! Link to comment Share on other sites More sharing options...
KTMRider Posted July 23, 2015 Report Share Posted July 23, 2015 Link to comment Share on other sites More sharing options...
speedometerman Posted July 24, 2015 Report Share Posted July 24, 2015 JoneZen, I made the Lexan enclosures. 1 Link to comment Share on other sites More sharing options...
pittsme Posted July 24, 2015 Report Share Posted July 24, 2015 Link to comment Share on other sites More sharing options...
pittsme Posted July 24, 2015 Report Share Posted July 24, 2015 Link to comment Share on other sites More sharing options...

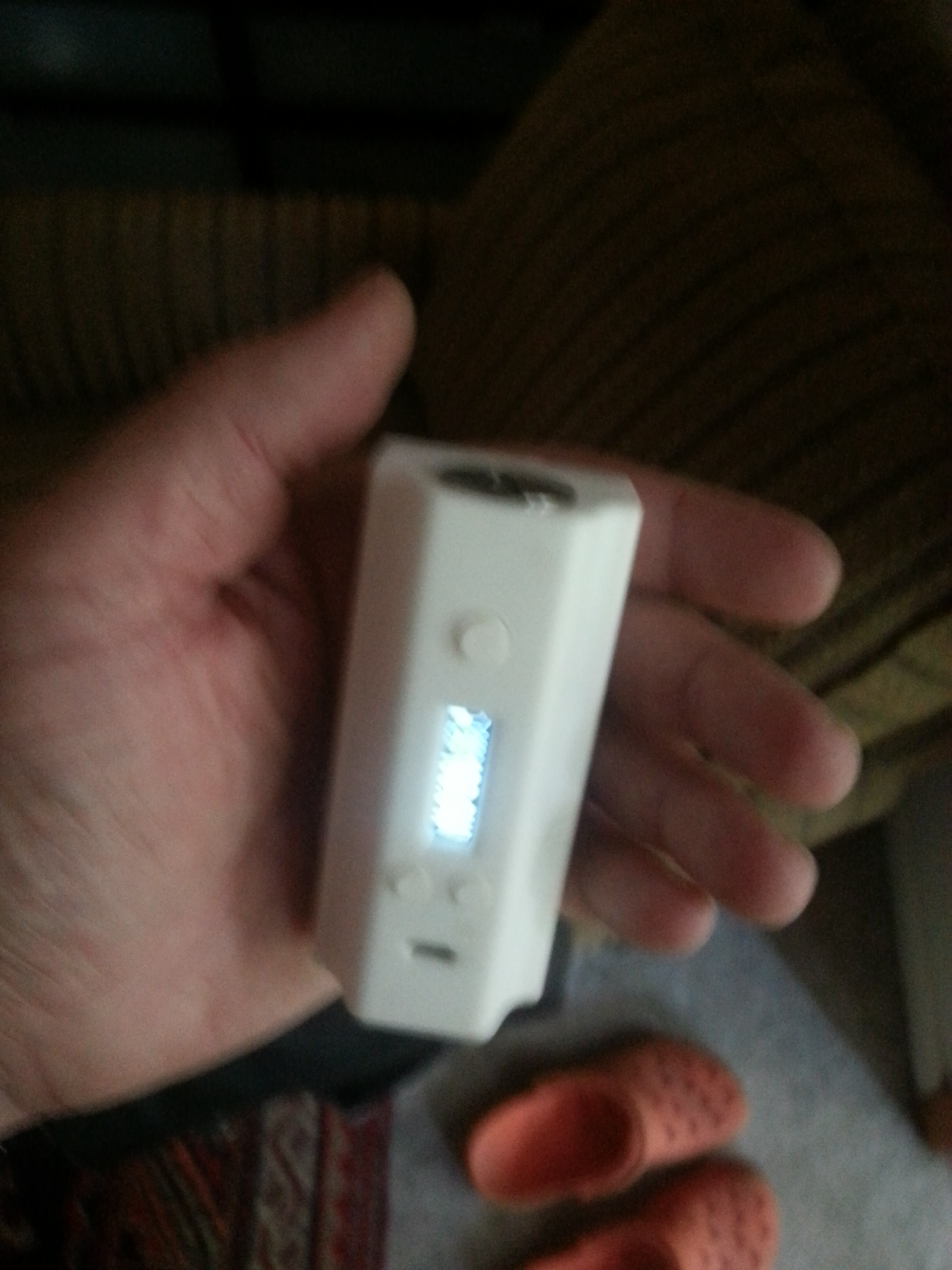

Cotay Posted July 25, 2015 Report Share Posted July 25, 2015 Here is my first print design that has been shared on ECF. It is designed to work with the Hyperion G6 900mAh. With 3mm-4mm walls it is very solid and nice to hold. I will be switching out the flat buttons for rounded ones on Monday. I haven't finished the build yet, so here is a pic of it powered up via USB next to an SX Mini S-Class. Here it is next to a Roku remote before I fit the board and screen: Link to comment Share on other sites More sharing options...
blueridgedog Posted July 25, 2015 Report Share Posted July 25, 2015 Assembly of a test shapeways print: Link to comment Share on other sites More sharing options...
blueridgedog Posted July 25, 2015 Report Share Posted July 25, 2015 Always_Jonezen said:I used what I had which was 20ga. I'm working on 5 more this week and I will take your advice.I had to use 20ga for the atomizer as well for now as I am waiting on additional wire (literally on a slow boat from China). To deal with that I set the pre-heat wattage to 80. I will open it up once I solder in the correct wire, though with a 1 second punch, theoretically I could go more, but there is no reason to push it. Link to comment Share on other sites More sharing options...
Always_Jonezen Posted July 25, 2015 Report Share Posted July 25, 2015 blueridgedog said:[QUOTE=Always_Jonezen]I used what I had which was 20ga. I'm working on 5 more this week and I will take your advice.I had to use 20ga for the atomizer as well for now as I am waiting on additional wire (literally on a slow boat from China). To deal with that I set the pre-heat wattage to 80. I will open it up once I solder in the correct wire, though with a 1 second punch, theoretically I could go more, but there is no reason to push it.[/QUOTE] I have the cover off and chain vaped at 500° 200watts and the wire seems to be fine but I will change it out also on Tuesday when my wire comes in. Link to comment Share on other sites More sharing options...
mejcf Posted July 25, 2015 Report Share Posted July 25, 2015 My DNA200 ;-) Link to comment Share on other sites More sharing options...
speed4mee Posted July 26, 2015 Report Share Posted July 26, 2015 I think this is a ModMakerBox 846024 Link to comment Share on other sites More sharing options...
RickAdair Posted July 26, 2015 Report Share Posted July 26, 2015 My 2nd box. Nothing special. Link to comment Share on other sites More sharing options...
Vape_Like_A_Boss Posted July 27, 2015 Report Share Posted July 27, 2015 RickAdair said:My 2nd box. Nothing special. How's the Velocity with temp control builds and this DNA200? Is it one of your favorites?I'm getting ready to get an RDA or two that will be used mostly for NI200 and Titanium Gr. 1, and I'm trying to decide which ones, leaning towards the Velocity, Dot Mod Petri, and derringer. But I haven't decided which one I'll get for sure and which one I'd place second in case I can manage to buy a second one.It's a nice looking box by the way, and its yours, and I think anyone having a DNA 200, and especially have 2 of them, is special Link to comment Share on other sites More sharing options...
RickAdair Posted July 27, 2015 Report Share Posted July 27, 2015 Vape_Like_A_Boss said:[QUOTE=RickAdair]My 2nd box. Nothing special. How's the Velocity with temp control builds and this DNA200? Is it one of your favorites?I'm getting ready to get an RDA or two that will be used mostly for NI200 and Titanium Gr. 1, and I'm trying to decide which ones, leaning towards the Velocity, Dot Mod Petri, and derringer. But I haven't decided which one I'll get for sure and which one I'd place second in case I can manage to buy a second one.It's a nice looking box by the way, and its yours, and I think anyone having a DNA 200, and especially have 2 of them, is special [/QUOTE] Thanks! I love the velocity. It has been my go to RDA. Running quad Ti in it right now. The derringer is good for temp control also. It's my number 2 right now. Link to comment Share on other sites More sharing options...
dwaindablane Posted July 27, 2015 Report Share Posted July 27, 2015 The Velocity seems to be one of the most stable attys I have in my collect, Love the screw posts they seem to not cut through the NI200 wire. I have only tried NI200 worth buying IMHO. Link to comment Share on other sites More sharing options...
RexBrown Posted July 28, 2015 Report Share Posted July 28, 2015 My first 200 Link to comment Share on other sites More sharing options...
monster92 Posted July 29, 2015 Report Share Posted July 29, 2015 mandro said:Finished my build today only to find that I made the display aperture too small. I might make a new front panel in the future. Is it possible mandro to have a mitec switch and tactile buttons in an enclosure that small? Link to comment Share on other sites More sharing options...
combatwombat Posted July 29, 2015 Report Share Posted July 29, 2015 Nothin like some truck bed liner. I have a lot of room so I could switch to a large lipo if needed, running lifepo4 1050 atm. Link to comment Share on other sites More sharing options...
mandro Posted July 29, 2015 Report Share Posted July 29, 2015 monster92 said: Is it possible mandro to have a mitec switch and tactile buttons in an enclosure that small? I haven't looked into mitec switches but there is a minimum of 10mm space between the battery and the board. The main fire switch would need to go in front of the board because there isn't any space above or below. Link to comment Share on other sites More sharing options...
Wick Posted July 29, 2015 Report Share Posted July 29, 2015 Shapeways DNA200 Reference Case printed in blk. Just playing with plastic!! Link to comment Share on other sites More sharing options...
FireBALL Posted July 29, 2015 Report Share Posted July 29, 2015 My take on a mod, as you can see it's a BOXER inspired design. It's off to Shapeways, let's see how good it turns out Link to comment Share on other sites More sharing options...
Wick Posted July 29, 2015 Report Share Posted July 29, 2015 FireBALL said:My take on a mod, as you can see it's a BOXER inspired design. It's off to Shapeways, let's see how good it turns out Looks GREAT Man!! I like!! Link to comment Share on other sites More sharing options...
