Wayneo

Found the cheat sheet for non color mods. The only thing missing is the boost punch feature (like pre-heat for any wire type not used in a TC mode) which is on the latest dna60 firmware. https://bit.ly/323Wigr

There is an evolv default SS316 material type already on there that should work fine. You can assign it to any of the 8 profile names

OK. So no idea why it's not recognized as every board type I own is recognized up to macos 10.15.X The 60 like all others come with 8 profiles and ~4 material types like your 75. Luckily, there are key(button) combinations to move between them, but you won't be able to add new material or change the wording. To switch between profiles on the device, put the DNA60 into Power Locked mode by pressing and holding both the up and down buttons for two seconds. From power locked mode, to cycle between profiles, double click the Up or Down button. To select the displayed profile, press the fire button. To switch between material type within a profile on the device, put the DNA60 into 5x (fire button) Locked mode. Then by pressing and holding fire, up and down the material name will show up. Up or down to cycle through them, then fire button to select the chosen one. It's much easier than it sounds. While you're trying that, I'll hunt for a credit size graphic for you.

Yes escribe works with the 60 on a Mac. Are you sure it's an Evolv board? I thought the 'Rus' meant Russian, and I thought they were a different board

Here's me injecting one note. When you're all done figuring out what batteries you're gonna use, use the 'watt hour calculator'. Yours currently shows 9Wh, and that's usually about right for 1 new high quality battery

What firmware are you now running? I hope you read the release notes for what each subsequent release changed/addressed. So if you're all fine now, great, enjoy your mod. Do not read any further If you're still having issues, post a printscreen of 'Profile 1', and what material (wire) are those coils. From the word 'delay' are you saying from when you push the fire button nothing at all happens on the mod? because your puffs are barely 2 seconds long?

Can you describe your coil AND post a printscreen from escribe of the profile you're using I'm understanding that every time after sitting for a few minutes, only the first puff seems delayed, but subsequent puffs are fine. If so, have you used Replay?

After changing pretty much anything mod related in escribe, always 'Upload settings to device'

Nah. Escribe came out with the 200 in 2015. Then in 2016, the 75, 250 and 60. All working with escribe

@Madzz Inquiring minds need an update. What kind of mod is that white Delrin? Did you try the test theme? If it didn't work did you open an official Help Desk ticket for that firmware fix? Hope you had a great Father's Day

Well, my bad. Sorry.

I don't even know how you can ever see the firing button, but whatever. Your firing starts blue for like ½ a second then that red for like ½ a second. Repeats the red then back to blue. Put together it would appear as 1 solid second of each. If the 'normal' isn't blank, my question is: After making these changes did you 'upload settings to mod'?

@Sn00n00 The Evolv default will work fine. Having an accurate CSV file for your batteries will only make your battery gauge and % more accurate. Battery life will not change. There are two settings that affect battery charge life and they are Cell Soft Cutoff and Charge Mode. Many use 2.75 volts for round cells and 4.2 volts for charge mode. This pretty much gives the most puffs from each charge. Maybe you can explain more the big NEED.

There are many different ways to set up a Temp Protected vape. Your (those) settings will work after just enabling/clicking on that box above 'Temperature' that says 230°C We all vape differently, so if you vape at 100 watts normally, you can adjust the temp up or down until you get the same 'heat' but with smaller clouds.

That was NOT a true statement. Even if you setup your profiles as @dwcraig1 has suggested, YOU will still need to change to that profile.

I'd suggest you update your version of escribe first. Link is in my signature for the latest.

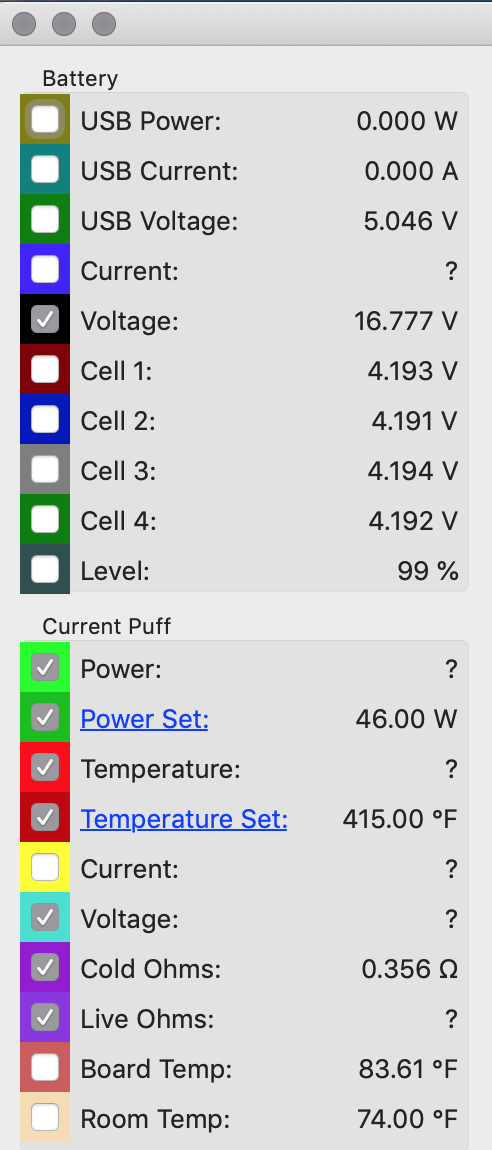

Can you post a full printscreen of Device Monitor with the mod attached. Thanks

What are the individual (battery) cell voltages right now? Unplug mod, swap battery positions. Now, after swapping positions, what are the individual cell voltages? If you can't find the info using the theme start escribe -> Device Monitor. It's on the left hand side near the top

By design these 2XX boards only 'buck'. Those others must 'boost' and 'buck'. Here's the Designer/Engineer comments https://forum.evolvapor.com/topic/69940-dna250c-wont-give-me-11-volts/?do=findComment&comment=926591

Lower the coil resistance if you want more. Yes, the 3 battery mod will output more power than a 2 battery mod based on your current battery voltages.

No more ideas. You may as well open a Help Desk ticket. https://helpdesk.evolvapor.com/index.php?a=add&category=1

Right now do you have any other 200 series boards where if you click on the 'load csv' it will actually open the window to choose a file? Have you tried rebooting your PC? What OS are you running?

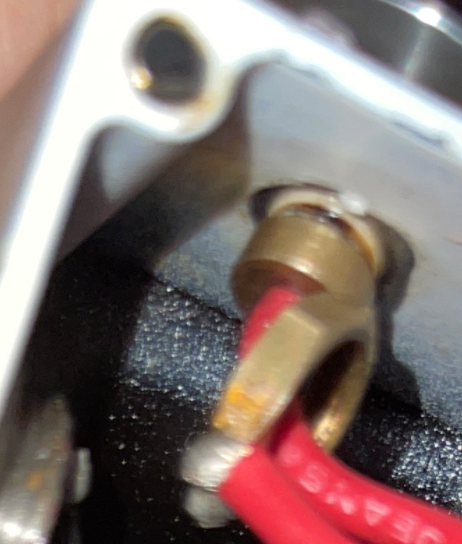

Whew. Glad you solved it. I also have an OG BB. Right down to those fancy aftermarket painted/anodized screws (threading) holding in the battery connector can cause problems. I only know a few other BB users that even use TC. I build mine (exocet or insider) quite often with Ti01. I have a clone Haku, but never even unpacked it.

Damn, you have thrown me. I just don't know.
