Wayneo

Post a picture of Device Monitor while firing. Post a printscreen/snap afterwards. On the left side, have the following 8 boxes ticked.

Sure, a couple different ways. There's a whole page setup for pulsing the LED while charging in Theme Designer. Drill a tiny hole in your enclosure so you can see the on-board LED while charging, or use a clear fire button Create a toggle (or field) in Theme Designer. Look at the field below the highlighted one.

Welcome, There are numerous youtube videos on the workings of these boards. DJLSB vapes has some good ones. Here's a link to the manual. https://downloads.evolvapor.com/dna75.pdf 1. No, but there are different states of sleep. You can't turn them off, but they do power down to a very low draw, listening/waiting for a button press. 2 Also different ways/things to lock, like your fire button while in your backpack, but your screen will come on, then fade or go off, unless you're in stealth mode. All those (Brightness/Fading) are in escribe -> screen. Button presses in Theme Designer. Most features and operations are the same between board type (color and non color), with only a few differences such as display items while charging on the 75. AND the search feature works here 👋

Read this post (below). Thatguyswain is/was an evolv employee. https://forum.evolvapor.com/topic/68884-therion-bf-always-hot-drains-batt

Open an official help desk ticket and explain problem https://helpdesk.evolvapor.com/index.php?a=add&category=1 Point them here as it might be useful for them to see what has been tried. Here is this link. https://forum.evolvapor.com/topic/71510-้how-to-fix-eeprom

At this point I have NO CLUE what version(s) of escribe you have installed. Delete all copies drom your PC so you can start fresh. That was not for color mods Download and install the link below. https://downloads.evolvapor.com/SetupEScribe2_SP19_INT_ServicePack.exe Make sure to open the proper folder for your mod board type.

Just install SP19 (link in my sig) and then the most current for your mod. Edit: 'Punch' is a term used for both TC and non TC material (wire) For TC it's "how much" to preheat before quitting preheat parameters. For non-TC it's "how much" to Boost (increase) the wattage before dropping back to the set watts

Great news. Now go make your changes one at a time, and after each change do an upload to mod. Although you can make many changes at a time, something is wrong. When you find the offending change, let us know. Personally, I'd do them in this order. Escribe/Firmware then mod/materials, then theme. 👍

Under the 'Help' menu, down at the bottom, the mod has been creating backups for you. See if you can restore to a time before you attempted your changes.

What were you doing beforehand that made you want to upload to the mod?

What were you doing beforehand that made you want to upload to the mod? Have you connected to this mod before and uploaded or upgraded the firmware?

None of us moderators are evolv employees. evolv has an official 1 year warranty on the board, but has been seen to go above and beyond. 5 minutes of your time and you’ll have an official answer within a business day or two

Your battery management chip appears blown. You could open an RMA with the Help Desk. Link in my signature. Friendly advice: You don't need to create duplicate posts here. 👋

That's your 510 connector that has come undone. Won't this nut r Fit on that threading If not, you'll need a new 510 connector

⬆ This, right there. Or just turn off preheat What do you consider high-ish watts? I think he's talking about temps, not puffs. I don't believe any board has ever had a room sensor. There is a board sensor however. The 'room temp' is calculated/derived by looking at the mod state. Plugged in/not, charging, etc. There's more details if you hover over those 5 Case values.

When you 1st start Theme Designer you're shown 3 wallpapers. If you click 'none' it deletes what's there. If you saved the VA wallpaper, just go find it, and hit load. Then apply. You're welcome. I'm the least nice of us mods. 🤣 Enjoy you mod 👋

In escribe 'general' tab (not theme designer), one 'profile' will show Nickel and .47 ohms, 25 watts and 420F. Those values are then used to display on your screen. Here's how to change your theme. Plug in Mirage. Go into theme designer, Save that Mirage theme. You'll get a .ecigtheme file. Disconnect and plug in VA mod. Go into theme designer, Save that VA theme. When theme designer 1st came up, you can save that VA wallpaper if you want to use it elsewhere. Now load theme (with VA still plugged in) using Mirage file. Swap wallpaper if you want. Save theme. Now, looking in theme designer up near the top left 'apply' theme.

Theme creators can do whatever they want in their themes. On that Main Screen if you highlight that .47Ω field, you'll see what that represents, probably 'coil cold ohms' (measured). Because I see nothing else, you could add a new field (or change an existing field), with 'coil temp' and update while firing option. OR you could just copy over your Mirage theme to this mod. * Misc ... See all those squiggly horizontal lines through the 250 numerals in your pic? Those are all different fields, etc. depending on your profile or mode or conditions. That 'Nickel' is picked up from one of your Profiles (out of 8 in escribe 'general' tab as the material type, same as the watts, coil ohms, etc.

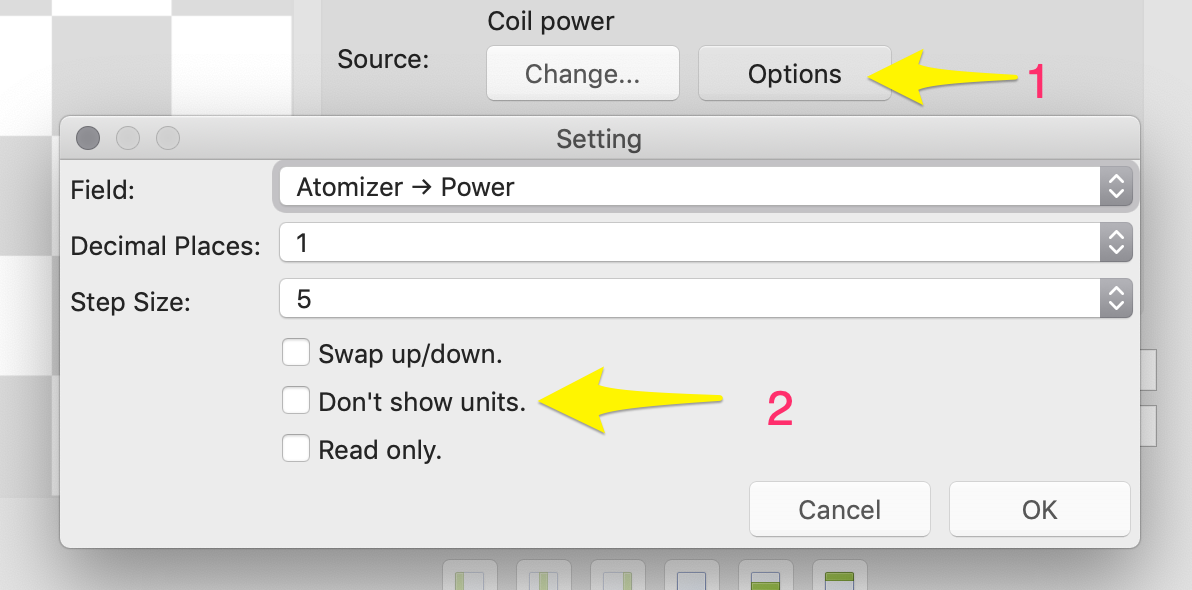

@dabberbid Find the field you want to keep being updated in your theme, and make sure that option is enabled

@rainbowtoast mod was set at 3 batteries. Now resolved. Device Monitor, shows Profile 8 (Nickel TC profile), probably due to that Restore Defaults. Change that to a non TC Profile (maybe 5)

Batteries have 3 dimensions (only 2 mentioned) and a connector (not mentioned) or wired directly to the board. Many will use an XT30 or XT60 connector. Using that link provided by @dwcraig1 you should be able to find a suitable replacement. OR perhaps a local shop that sells drones or remote controlled cars if you take in the original.

Your post fell through the gaps. Sounds like you need a replacement screen. Here's a link for you. https://www.stealthvape.co.uk/product/dna-75c-250c-screen-replacement/

Charging from PC is fine but slower. A 4S Lipo is 4 individual cells. So if you're PC is 1Amp charging, or 2A, divide that by 4 for each cells charging rate. A dedicated external Lipo charger can charge them much faster than the built-in balancing (on-board) 2A charger, even if it's connected to an external USB wall charger. Single cell DNA mods can charge at 1A. But anyhow, I don't understand how the comment below fits in with your charging and safety concern. I do know that battery fits in your enclosure.

Ask the custom modder or company the name and specs of the battery OR Open the mod, note battery markings and connector and try to replace. If you can't find that exact replacement, measure the dimensions yourself, and note the connector. Ask at an RC store if they can source one for you. When you plug in/install the new battery the voltages will be much higher that you can charge till full.

You can get TFR files or the TCR profile from steam-engine. BIG but, some places that '70' refers to the Nickel content, and some places it refers to the Iron content. Good luck 🙂
