Wayneo

You're very welcome 🙌 Enjoy your mod.

Yes.

The only way to get boost on the 60 is if you load the intl. firmware Boost Punch (1 - 11) is a 1 second proportional extra watts before settling back to your set watts. Any material.

@Bendude For a few dollars more you might want to use the 250C board which is buck only, no boost like the 75C and has the passthrough capability natively. You should check out http://analogboxmods.ca/Box-Mod-Kits who has complete kits and videos of builds Xbox PSU "Vapestation" Build - https://youtu.be/RoKaZ_iHiX0 DIY 636W 4x12v Output "VapeStation" Build - https://youtu.be/0K1PaMRnhsA DNA 200/250 DIY Box Mod (Passthrough) Build - https://youtu.be/NwDIzz7SxFg

The Evolv help desk should be able to help you. There's a link in my signature line.

You'll only be swapping out portability for cables and cables. Yup, at least 2. Edit: On the 75 there's a 'this mod uses an external charger' option I don't remember being there. That disables charging via USB. But it shows the lightning bolt when connected.

The latest evolv default is always available when you start escribe theme designer. That works with both versions (US and Intl) You also need the intl firmware on your mod. You can start escribe -> 'device monitor' to see the version on your mod. Edit: At the top of this page you should also see a 'downloads' option which will take you to the 'theme park' with over 1100 different themes.

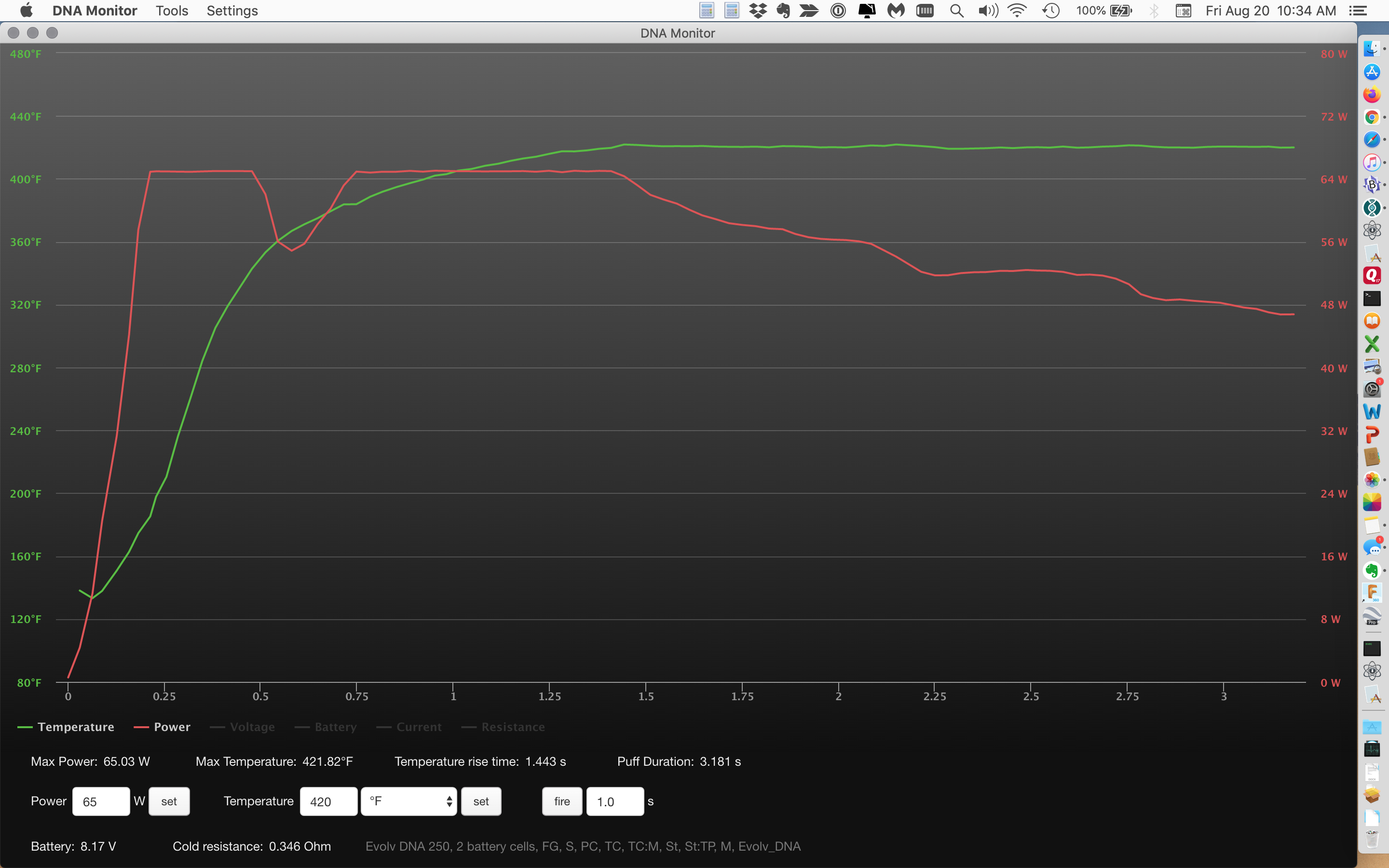

A 0.03 drop is nothing to worry about at all, especially with a Kanthal coil in power mode. Surprised you could even see that on the screen, but next time if you're concerned, you can Post a screenshot like above while firing, showing that behavior 🙌

YOU have proven your mod works in Replay, successfully with your boro. YOU have proven this same material works in TC in your BB, and here in your boro. Where does that leave you? What's left to check? EDIT: Quoted from the datasheet itself. Check Atomizer: The DNA has detected a large resistance change during operation, the atomizer has shorted out, or the atomizer resistance is incorrect for the power setting.

You've proven your wire (material) in your BB, remember. Do whatever you want, how you want, when you want. If you decide to do what I asked lemme know. 🙌

Thank you. 👍 This leads me back to the beginning, your 'check atomizer' error, which means just that. Check there are no loose or stray wires around the deck, the coils can't touch (each other or the cap) while firing, your coil is secured well, and the bottom positive pin is secure. After you've done that, put it back on your mod and measure the ohms in your SS316 profile, before trying TC only, no replay. EDIT: I hope you have that ability in your theme, OR you can do it in escribe and as always 'upload settings to mod'. Hope that helps. Let me know.

Nope, not gonna go there. I need clear answers to clear questions. Your answer is confused. If that Yup! is in response to that one question I asked "So above 40W on your boro you get 'check atomizer'?" Then "Boro build passed with flying colors on both TC SS316 and Replay (SS316 setting)." makes no sense. Which is it?

OK. So above 40W on your boro you get 'check atomizer'? * Just gotta mention in passing I don't do that Replay TC (SS316) either, and won't help with that. Not even mentioned in my 2 tests. PS And you just couldn't wait (like I asked)

Gotcha 👍 I'd suggest you start with this same wire (material) as a single coil in an RDA or RTA on your Thelema. Then we/you can test in 2 different ways. SS316 for TC only NO REPLAY REPLAY mode with 'watts' selected as the material ONLY. If you're up to that I'll give more specific instructions before you begin. 😀 You really ought to watch a video or two on TC as well as Replay. These color boards are different in many ways to your dna60.

Is this your first DNA Color Mod? What do you mean? It is available right here, the Evolv official site. You mean actual Nickel wire, or Kanthal wire. Earlier you mentioned Titanium. OR are you saying you're using this SS coil with profiles where those materials are selected. Sorry, those 3 questions are just me trying to wrap my head around this strange situation

You gotta use the force Luke. Volcano was one of the good mfgr's back in the day where they actually did populate the mfgr settings, rightly or wrongly. But it never beats doing your own. 🙌I commend you. That 'any' option is the default, but in this case 'all' is the way to go

@ zark I have no input or clue on decisions made internally at Evolv, BUT from a moderator perspective, there was a damn good reason it was hidden in the manufacturer settings. Between Wh's and curves many who should never change them would buy a new mod, and without the slightest bit of understanding want to change things up, and incorrectly. Then come here wondering WHY. I wonder how many tickets were opened internally. I imagine Evolv thought the mods would have been non removable 3S Lipo's, so the Wh calculation would always be more accurate, but with round cells and the ability to mix and match, and battery aging for all, it just made more sense to go by standing voltage. Hell, I've even been reported for being '... rude, arrogant SOB! no help just rude AF! ' for a post I really should have hidden. Go look at the csv yourself. And to think, another user actually 'liked' the authors post. https://forum.evolvapor.com/topic/70797-vtc6-full-csv-battery/

Good job, now you can figure out if it's the cell itself or the sled.

Your image does not show up. I've seen that before on my Mac. I usually delete that link and hit the return key once. The image should still be in the box below. By clicking the + sign in the image it should appear. 👍 Yes, it could be your soldering. I'd start down at the JST connector area (where you would have bridged those pins). Welcome.

@gwyar So back on July 25, 2019 @ zark commented "... But, I'm wondering why you use Temp sensing detect in the conditions of enabling Replay (Main profile screen), it seems to me that it is more interesting to use Temp sensing material." And the reply from @ SirTimmyTimbitwas "... You can still turn replay on / off by going into Atomizer Profile screen, provided you have a temp control material assigned to that profile . ..." https://forum.evolvapor.com/files/file/946-digital/?do=findReview&review=510 I knew I had seen that before 😄

@JamesCan you answer the above?

Preach my friend. There are only a few of us that have been saying that FOR YEARS. But back to this thread ............. and then when a user has a problem with a 'remix' of an original, the 'remixer' (in this case) can't even answer or take the time to investigate. #excellent

What battery error, and what diagram? Are you trying to build a mod?

Sorry, no can do. There is no variable voltage mode on the dna 60.

Great job. On page 10 of the datasheet, it shows screen installation. You know it's in right when you hear/feel a click on the latch. https://downloads.evolvapor.com/dna250color.pdf Edit: Now or when you're all done, go show off your handiwork in this thread (you don't have to show the screen, but we all like seeing innards) https://forum.evolvapor.com/topic/69677-my-dna-250c-build/
