What were you doing just before that happened?

En Escribe 'Device Monitor' en la esquina inferior derecha, se muestra el firmware del dispositivo. O En alguna pantalla de tu mod dependiendo del tema. In Escribe 'Device Monitor' in the lower right hand corner the firmware on the device is listed. OR On some screen on your mod depending on the theme. Qu versin de firmware est ejecutando? Nmeros, por favor. O Puede abrir un ticket de la Mesa de Ayuda (enlace a continuacin) What version of firmware are you running? Numbers, please. OR You can just open a Help Desk ticket (Link below)

Yes, you are right.

Datasheet/specifics for each board available here https://www.evolvapor.com/ The 60 does not have integrated charging, but you can get/use an Evolv 1A data/charging board.

Specific discharge curves are NOT MANDATORY. You can use the default if you want, just fine. ALL batteries are NOT created equal. BUT if you want the most accurate battery icon and %, be able to fine tune parameters for your vaping style, you have the ability to do that. Depending on the board, Wh settings are not required.

1 amp maximum, diminishing as it gets closer to being full. The 75 uses a different/lesser Battery chip (BMC) and only the options shown in 'Screen' Charging are available

No. N80 does not change enough for it be used in TC. SS3xx increases around 20% (in our vaping temp range) and that's about the lowest TCR material. Hohm mods in the past claimed they could do it (even kanthal), but they're longer in the mod business Not that I'm aware of. And it just won't work. You could if you want, find the specs for N80, and IIRC if there's a Mechanical section they might post the rise in ohms at diff temps, and from that craft a TFR file if you understand what you're doing, but it would still not work IMHO. Even the DNA250C board (flagship) will struggle with it, (dubious coil) in Replay and not supported.

No csv file required. N80 is not a TC material (wire). Just use watts.

As long as you credit the original designer, most won't have an issue. Welcome to the forum

No, not really. The easiest way would be to find a theme you like (icons), and then build your own logic behind them. Many creators have spent countless hours creating their own and downsizing/upsizing afterwards, they won't look as crisp. BUT if you really want to, I'd suggest as part of their filename if you harvest icons from other themes, to include their dimensions (I use it as a prefix) like 4x80_battery full. User @zark has posted a zip file of icons from other themes a couple times.

As a moderator, I cannot delete your account. Either just never sign on again (we do not spam you), or open a Help Desk ticket and ask if they will remove it.

So, just checking. You're saying your cold/ambient coil which reads 0.077 ohms, fluctuates +/- 0.03, which would put it at .107 ohms high in AA, just sitting there? On the other hand, that second puff in the second pic actually hit temp, but it was a brief puff. Did it seem too hot? Now that you're back to dual coils with more mass, you do need more watts, but something just feels off to me. How many watts can you use without TC with that coil (safely that you like) <- You can just leave the temp as is and turn down preheat to say your 80, and slowly just increase the Power (watts) while staying in this profile.

@Drughugs Can you describe the coil that's in there now, and If you use Atomizer Analyzer (bottom of the profile page), is the resistance value relatively stable. One last thing, you might want to move the Punch value up to 11 and retry if it all looks good. Like @dwcraig1 mentioned, your coil resistance should almost be double the cold ohm value. No, I don't think the build is too low.

@Drughugs Without the details of the whole Printscreen, I can't tell whats up.

Thanks greatly for those. You can't find anything, because there's nothing really to find. TC (or material type) doesn't care about coil ID, or number of wraps. Just the material. The numbers are identical because the wraps are pretty much just along 'for the ride'. The material file (values) looks fine. Your profile numbers are all backwards. Quick answer: Swap the 75 and 200 watts. Upload to device. Longer answer: 'Settings -> Power is the HARD MAXIMUM you want the mod to use, Ever. So if your TC is wonky, or not the right something, you won't get 136 watts blasting your lips. 'Preheat -> Power is the maximum you want the mod to use while it is getting your coil up to the temp you've set. Punch says how close to the set temp it gets before ENDING the Preheat values. The higher the value for Punch (max 11) the closer it goes to your set value. SO, you should always set your preheat value higher than the power value. BTW, I hope you can vape that atty at 75 watts comfortably. If you now post a Printscreen from Device Monitor while taking a puff, we can try to decipher more. (Tick/check the cold ohm/live ohm (2) and power boxes (2).

I assume you're using it in TC mode based on the above? What are the settings in the profile for Power/watts, and preheat? (Printscreen of the Profile works) Did you read the coil resistance when cooled to ambient temperature? Post the csv or a Printscreen of it from the material tab, but I've never heard of a corrupt csv.

@JaI Haze IIRC you (and at least one other person) mentioned this MONTHS ago. Did you ever open an OFFICIAL ticket at the Help Desk? Link in my signature line.

If it is new, you might still be within your warranty at place of purchase. Failing that you can open a trouble ticket at the Help Desk and explain the problem Link in my signature.

YOU need to read and set the resistance in each profile you're using that coil. New coil, or not That alone might fix the majority of your issues.

NO Datasheet posted. HxWxD(mm): 29(including protruding usb) x 10.2 x 5 Hit up the Help Desk (link in my sig) they should be able to answer your questions.

Myfreedomsmokes has replacement squonk bottles

Can you post a Printscreen of Device Monitor, like the one shown in the other thread you posted in.

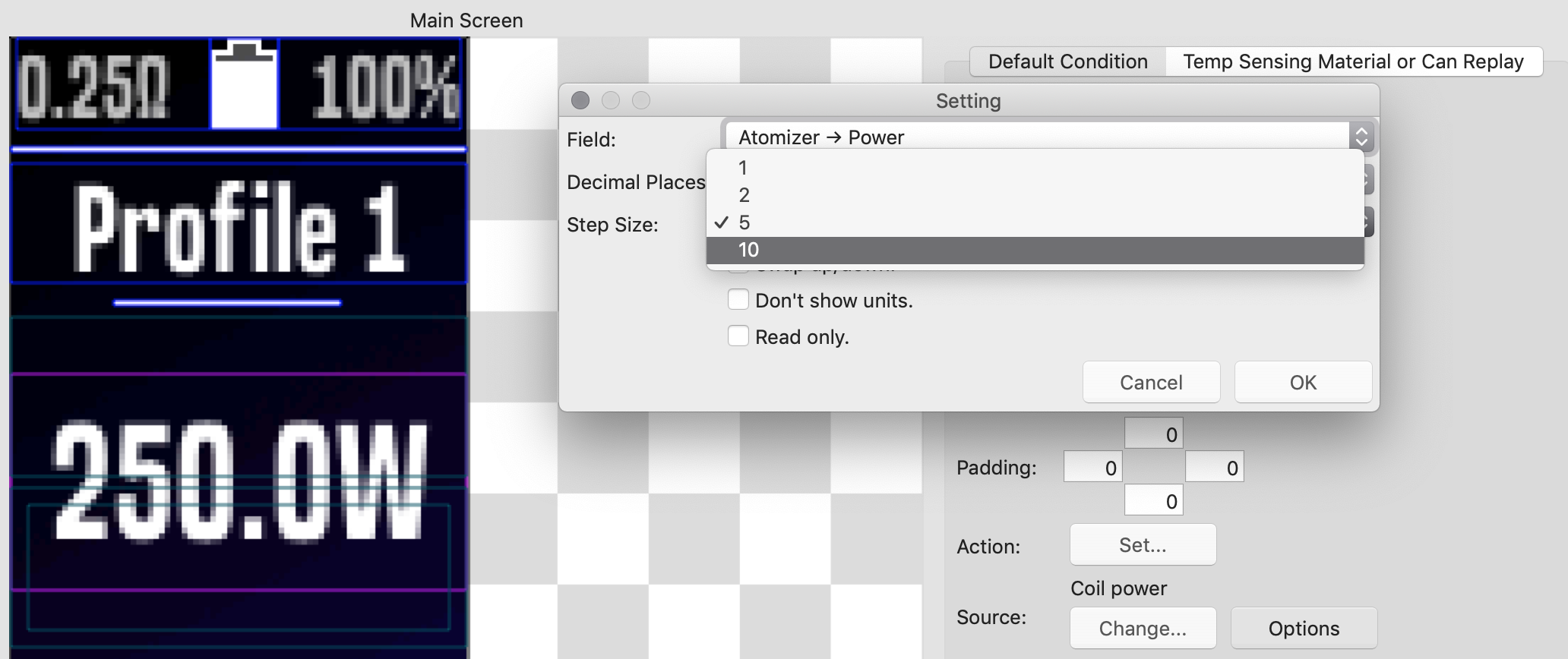

YES, if the author included a Status line. NO if the author did not. YES, if you go into Theme Designer and save it beforehand, OR restore from a backup. YES, at the bottom of the 1st page (Appearance/Wallpaper) in Theme Designer. Remember to always 'Upload settings to Device' if you make any changes.

Hate to be the bearer of bad news, but the Orion Q is not a DNA device. Escribe will not work for you.

@vapedoctor DJLSB has done a tutorial on theme designer for sure (YouTube), that I used in the beginning. Or, you can find an already created one, that jives with you and use it as a base for your own. So looking at the Evolv defaults, Profile 8 has "Use replay on this profile" enabled. The Evolv default theme (in Theme Designer) 'Main Screen' shows the conditions. Temp sensing, Can Replay, Can Replay now. - So if you load and use that, you can follow along with the behavior. For the Can Replay Now, you'll notice it's a 'toggle' (On/Off) with a different graphic for each. Hope this helps.
