  1. Wayneo
    Exactly what settings are you worried about? Do you have a problem? If you have a look under 'Help' you should see backups from the day you bought your mod and first plugged it in to escribe, you could restore from the very 1st one. But that will put back the original theme as well. That 5 year old file you keep mentioning will bring back settings, including firmware and default theme from 5 years ago.
  2. Wayneo
    Just start escribe (with your mod plugged in) and on that startup 'General' page, click on the 'restore defaults' button/option. And voila. Everything default.
  3. Wayneo
    Why do you want to do that? What type of mod do you have?
  4. Wayneo
    @alsk1 I do not believe there is a bug (I could be wrong), and I am going to move these posts about this to their own topic. Since you have cleaned up the issue there is nothing more I can check. Nothing will be removed, just moved. Feel free to create new topics at your leisure in the relevant forum.
  5. Wayneo
    I don't see the shortened filename on the right or the left. Or the duplicate file on the right side Everything else is normal. No issue. If you post THAT screenshot (short name), do not write text on it.
  6. Wayneo
    Alrighty then, here's the info required to help you. What board type are you using. Color or black and white. What do you mean by this? ⬇ Where do you see it. What do you mean by this? ⬇ It might be easier if you post a couple screenshots for me to see.
  7. Wayneo
    NO, not necessarily. The USB data/charging board is not integrated. It's a company manufacturing decision. You could rip the mod apart and permanently or temporarily install the board yourself for escribe access.
  8. Wayneo
    My bad, man. I have led you astray. Normally a new feature would have been identified with the corresponding SP release. The unlock sequence is shown here in escribe And you've already seen this information/warning @James Can you please explain how to use the new 'Special Usage' screen 'Power Lock' and the relevant Theme Designer fields
  9. Wayneo
    Considering everything is locked unless it's first highlighted and then selected, seems like an option for the overly cautious. Anyway, I'd set it up as a toggle, aka on/off.
  10. Wayneo
    Does it fire? Have you tried different cables? Plug it in, and let it sit for a minute. The board does not start charging immediately after being plugged in. Down in the bottom left hand corner (Device Manager) where you see stealth, locked ....... you'll also see charging (if it is).
  11. Wayneo
    I have already written what I thought 2 days ago in my initial post in this topic. 😄 And yes, peak is the highest.
  12. Wayneo
    Go into escribe, start Device Monitor, and do a full Printscreen/screenshot
  13. Wayneo
    Printscreens that show the full data(I don't mean they have to be enabled) are always much better than just that view you posted. That 190°C you see in Red is probably your 'Temperature Set' value, which is on the left hand side of the screen. On your box/mod, I believe those 2 values on the right hand side (watts and temp) are the averages for that puff.
  14. Wayneo
    More information about ""
    I understand Zeb. Calling @aMirS
  15. Wayneo
    More information about ""
    I'll answer, but only this time. You should try to only post theme specific questions here. Yes. Just as the mod starts at 0 watts on its way to its set power level, the coil starts heating towards it's limit. There is only Power and Preheat Power, both should be changeable in every theme. There is no concept of a holding power in TC. If you don't want your set Power to drop, you need to NOT hit the temp you set.
  16. Wayneo
    More information about ""
    That's not the 'desired' temp. That's the max temp. A limit that your coil should not exceed. That's how it works. I hope that 200° was °C.
  17. Wayneo
    I looked at that .csv file, and in that 1st second the change was only .001Ω's. After 2 seconds only .005Ω's. And at nearly 11 seconds only .037Ω's, or less than 10% change in resistance. All decreases Even if that were reversed to say those were increases it's just not enough for the board to control it.(from my understanding) Let us know their official answer.
  18. Wayneo
    None of the standard materials (wire) we use experience a decrease in electrical resistance when their temperature is risen. None at steam-engine either. Do you have a datasheet for that product showing either its electrical properties or mechanical properties, showing that decreasing TCR? OR Just open a Help Desk ticket and ask. Link in my signature line.
  19. Wayneo

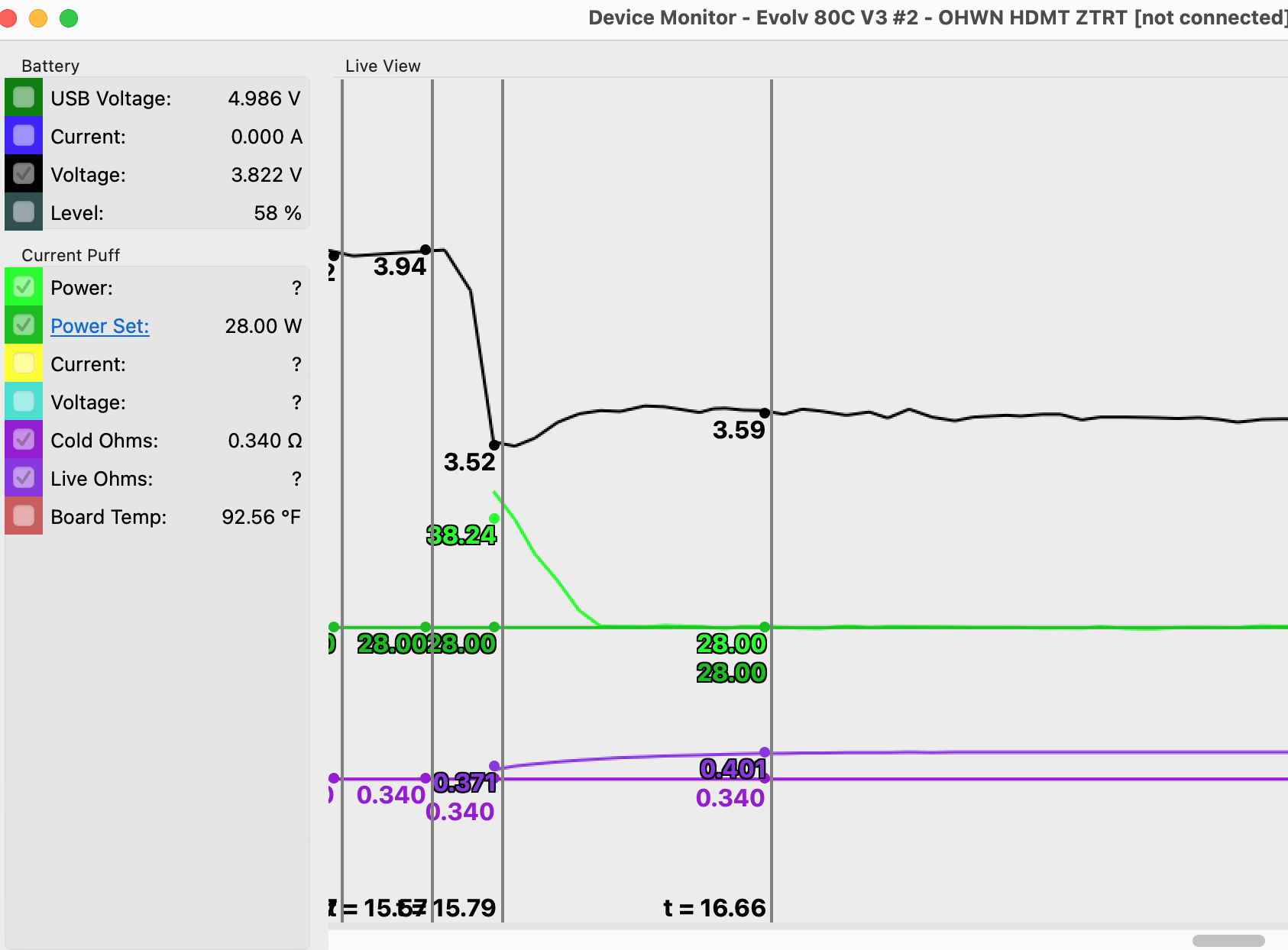

    Unclick ALL that you enabled in Device Monitor, only enable/click cell 1 and cell 2. Plug in mod, start device monitor, let sit 30 seconds and post screenshot like your 1st picture Unplug mod, swap battery positions in the mod itself, Plug in mod, start device monitor, let sit 30 seconds and post screenshot like your 1st picture Post 2 screenshots. If you look at your 1st picture, there were many voltage dips with cell 1, I wanna see if cell 2 (after your swap) shows the dip behavior
  20. Wayneo
  21. Wayneo
    You can always open a Help Desk ticket with Evolv (link in my signature) line. They will guide you. I know in the past some HOGs had issues with the bottom bracket breaking (and they sold replacements), but I don't know what that's like on your version. Good luck
  22. Wayneo
    If you use escribe -> device monitor and click on cell 1, cell 2 and take a puff you'll see just how much sag there is. The board cutoff is 3.0v standing voltage (just sitting there) for each cell. That can drop below 3V during a puff down to the hard cutoff, which no one can change. I was hoping you did that earlier. The less watts you use, the longer they'll last, and leave those old laptop batteries for flashlights 😂
  23. Wayneo
    Looks like there's a problem with your wiring or board. If you look, cell 4 is showing 4.5V. What were you doing before this happened? Is it still under warranty from your place of purchase?
  24. Wayneo
    Yup, sounds right. You're blowing right through the 'weak battery' message. IMHO you'd be better off setting your cell soft cutoff to 3.2-3.4V so you'll see that 'weak battery', and have that 2nd pair charging in the mean time. BTW, what is each cell voltage right now?
  25. Wayneo
    This is the full version. After a bit of time if there are no major errors this/it will be pushed to the masses when they start escribe. If there are problems, a newer SP will be released.
×
×
