Wayneo

YES! Every theme that is posted will for sure load on the 100C and 250C, and nearly all will load on the 75C. Not every feature a theme has will work on the 75C or the 100C. A good theme designer wll not even show a feature if it won't work on your mod. EDIT: will for sure <- Should really change to if it can load on the 250C it can load on the 100C

Good luck with your mod 🙌 They've gone above and beyond. When you get it back, ask or search here first.

since yesterday?

Did you ever get it to connect to escribe? No comment on what they thought was wrong? On the topic of warranty, it's always been 1 year on the board (not screen) to the OG purchaser https://www.evolvapor.com/warranty

Have you heard back from the Help Desk, and if so, what did they say?

All 250C's are wired serial. You just don't see the long ass wire used to have both batteries pointing in the same direction EDIT: You may as well just send the Help Desk that first photo

OR in my signature line, there's a link to the Help Desk, you could open a ticket with them

IIRC in that drone, both batteries go in, pointing in the same direction. Or restart your PC and try again. No use getting pissed off, that doesn't help anyone. 👍

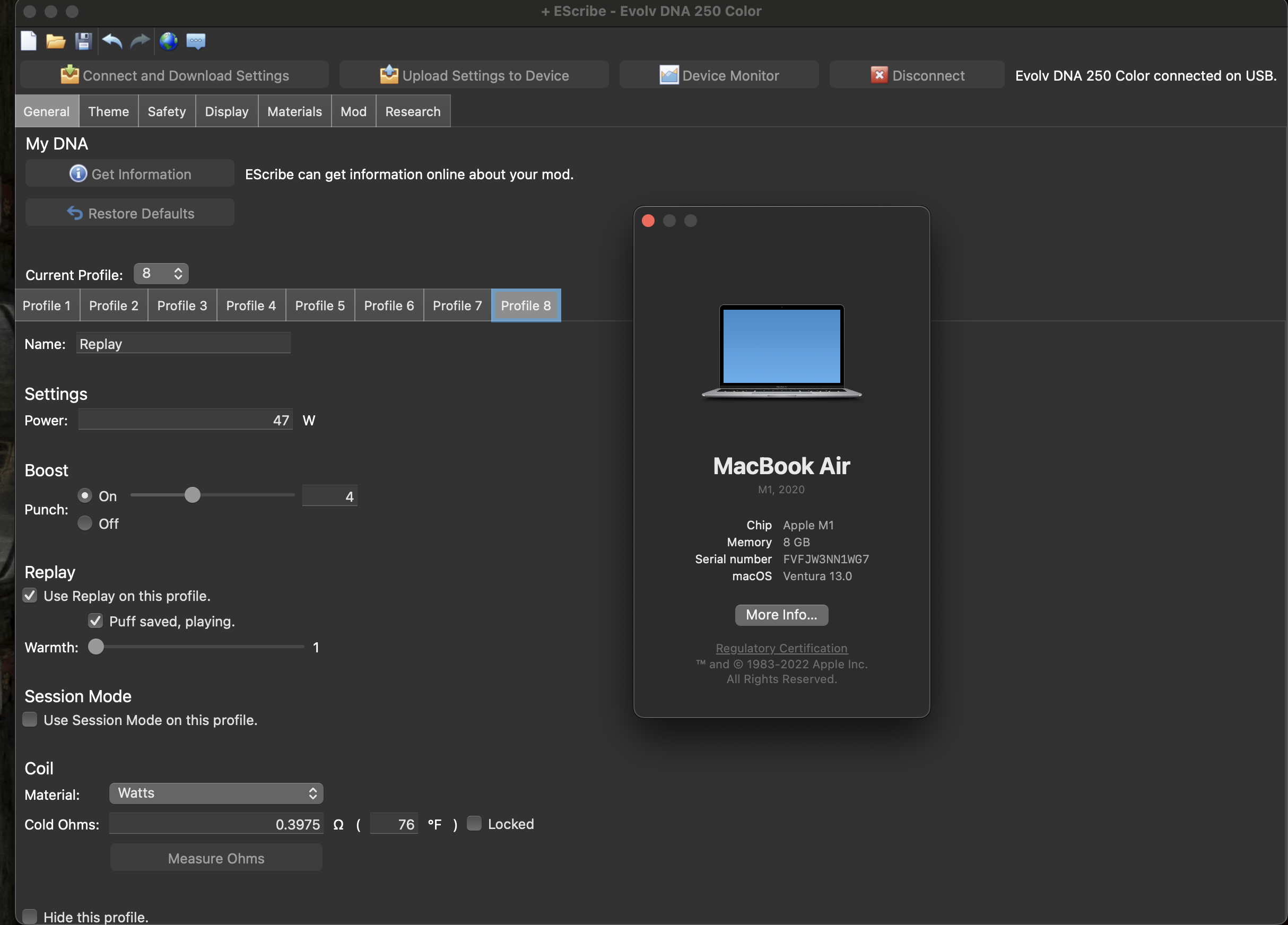

Sadly, I can't see a full screenshot. It should show everything like that first picture including the bottom corner which would also show the current firmware on your mod.

I can wait for a full screenshot like I asked before, when you get home. That photo cut off the firmware information I don't see any puffs at all, I don't see any batteries in there. Are you saying those 400 puffs disappeared during a firmware update? Was it working fine for those 400 puffs, then just stop, or what did you do shortly before? EDIT: At this point hoping to see the latest firmware installed

Can you post a full screenshot from Device Monitor. I imagine one of your 2 cells is showing a low voltage That is usually a shitty theme error, and for now you should reinstall the default. Or even (one of the very few times I've ever recommended) a full Restore Defaults in escribe. You should also update to the latest Service Pack (link in my signature line)

Ummm, the DNA250C does NOT have a 'USB-C' connector. 🤷‍♀️ Something's off here, are you sure you have a 250C product

If you did not understand the djlsb video, try finding one in your native language. If you do not understand something we say, ask us to rephrase our comment. These quotes make no sense if you go back and read prior posts

@IcyFridge It will not be accurate, so no. Plus, that would not fix {in any way} the discrepancy you see between the mod and charger display

Weak watts is not a DNA warning. Maybe weak battery which would mean your battery is too low (in volts) to apply 85watts. Normally fixed by charging the battery or using a higher amp battery.

You should look through this datasheet and also pick up some silicone sheathed wire and jut rewire it completely. Ideally you have an electronics store nearby, or maybe even stealthvape. You'll only need a max of 4 wires about 6 inches of each (max) https://downloads.evolvapor.com/dna75color.pdf

Yes

Brought to you by the same people that do not recommend firmware updates. 🙃 They missed the word (externally, about that 3A max) I'll quote what I said 6 days ago elsewhere "That simple swapout to charge means you’ll be using a Lipo charger. Depending on how you vape you might get away by just plugging your mod into 2A charger during the day. Remember it’s really 4@1600 mAh cells, each charging at 2A/4(cells) or .5A each. Your mod comes with a great balance charger for th batteries." You can use your 3A charger (I use a much more powerful laptop charger) because your mod will only ever draw 2A max.

That's the same distance as the 100C, so the buttons should line up. It might be tight in there. Here's the drawing of the 100C if you want to check even more. https://www.stealthvape.co.uk/product/evolv-dna100c/ Good luck.

What is the distance in mm from the middle of the bottom actuator to the middle of the USB connector? on the cyborg

So if you have a 4 cell (battery) mod, if one or more cells is lower than the highest it can appear very slow as it's a balance charger. It would be much quicker to charge externally (even if it's just that once cell), to get them balanced again. escribe Device Monitor will show the volts of each cell, or maybe the theme on your mod EDIT: The DNA250C balances the charging for every cell count. 2-4 cells. Added for clarity.

Device Monitor uses that battery curve voltage value for the Level % after the 4 cell voltages BUT If you're gonna follow the screenshot @dwcraig1 showed, see that label in his pic that says 'Maximize puffs', that MUST be changed to 'Maximize recharges' for charging to stop at 4.10Volts

Two things @illogik Do you remember what volts (or %) your batteries showed when you finally put it down? Do you remember what volts (or %) your batteries showed when you first picked it up? Looking at the datasheet, there's a Quiescent Current (while you were sleeping) of 10 mA

Boost - A 1 second proportional increase from the set watts for any coil when not used in TC. Punch - How many extra watts will be used during that 1 second Kanthal and N80 are watts mode only materials. The word temperature is not used with non TC materials. Words like hotter or cooler are used to keep a clear distinction between TC and non-TC materials For TC material (NiFe, SSxxx, Titanium, Nickel200) using TC. Preheat - Maximum watts allowed at the start of a puff Punch - How close to the 'set temp' before quitting the Preheat watts Alternatively if you hover many fields in escribe you'll get official definitions

Here's a great video tutorial on the board and Theme Designer. The main reason anyone would compare this to minikin is due to the same shape and size. The video lingo, or escribe will get you familiar with DNA words You cannot create your own vape curve. (wattage) DJLSB vapes - Evolv DNA 75 C Full Review with eScribe and Theme Editor Tutorial - https://youtu.be/1dvBpTm-FQM
