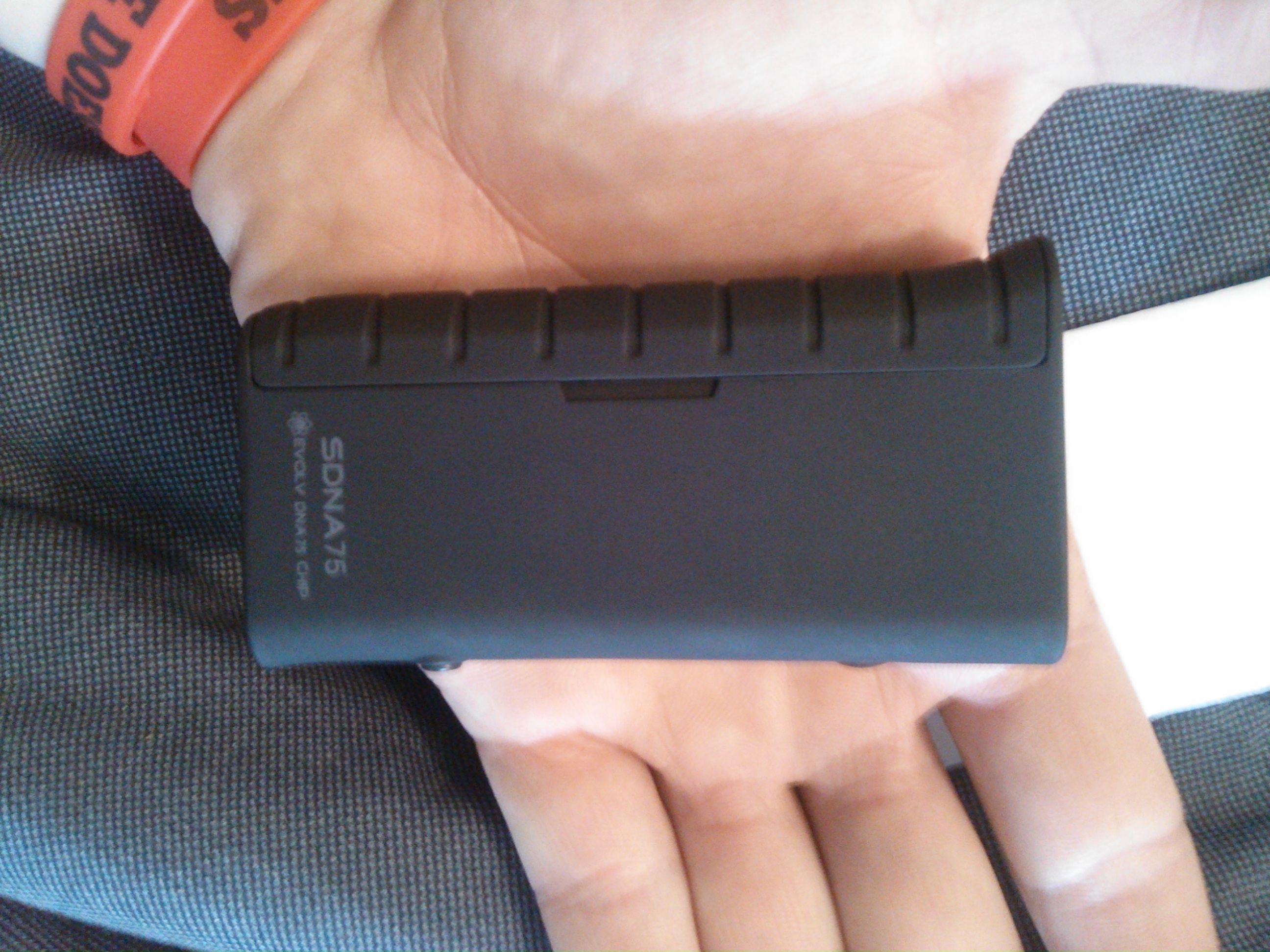

dwcraig1 Posted May 26, 2016 Author Report Share Posted May 26, 2016 Here's what mine's going to look like if they ever (FT) decide to ship it. Link to comment Share on other sites More sharing options...

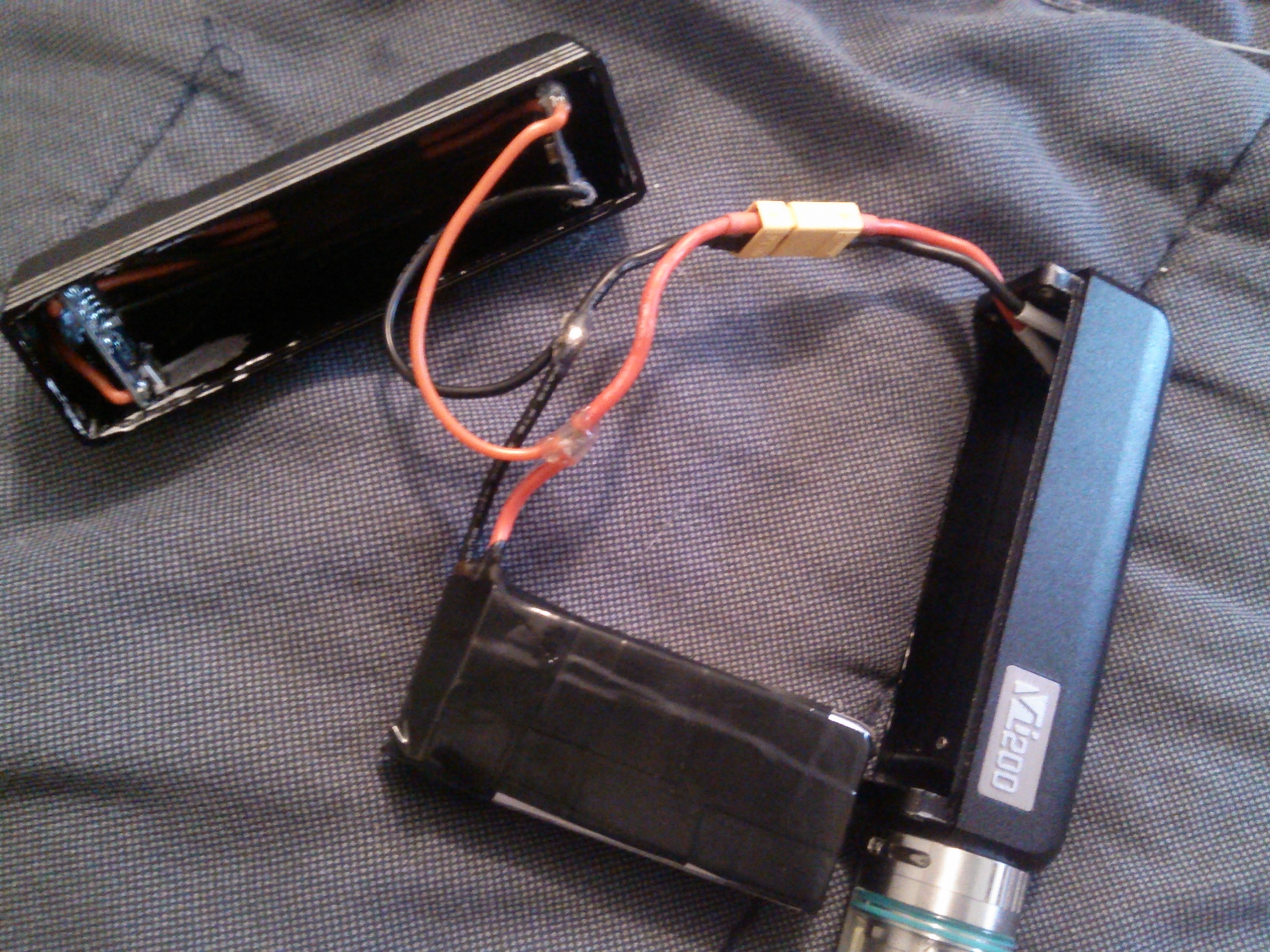

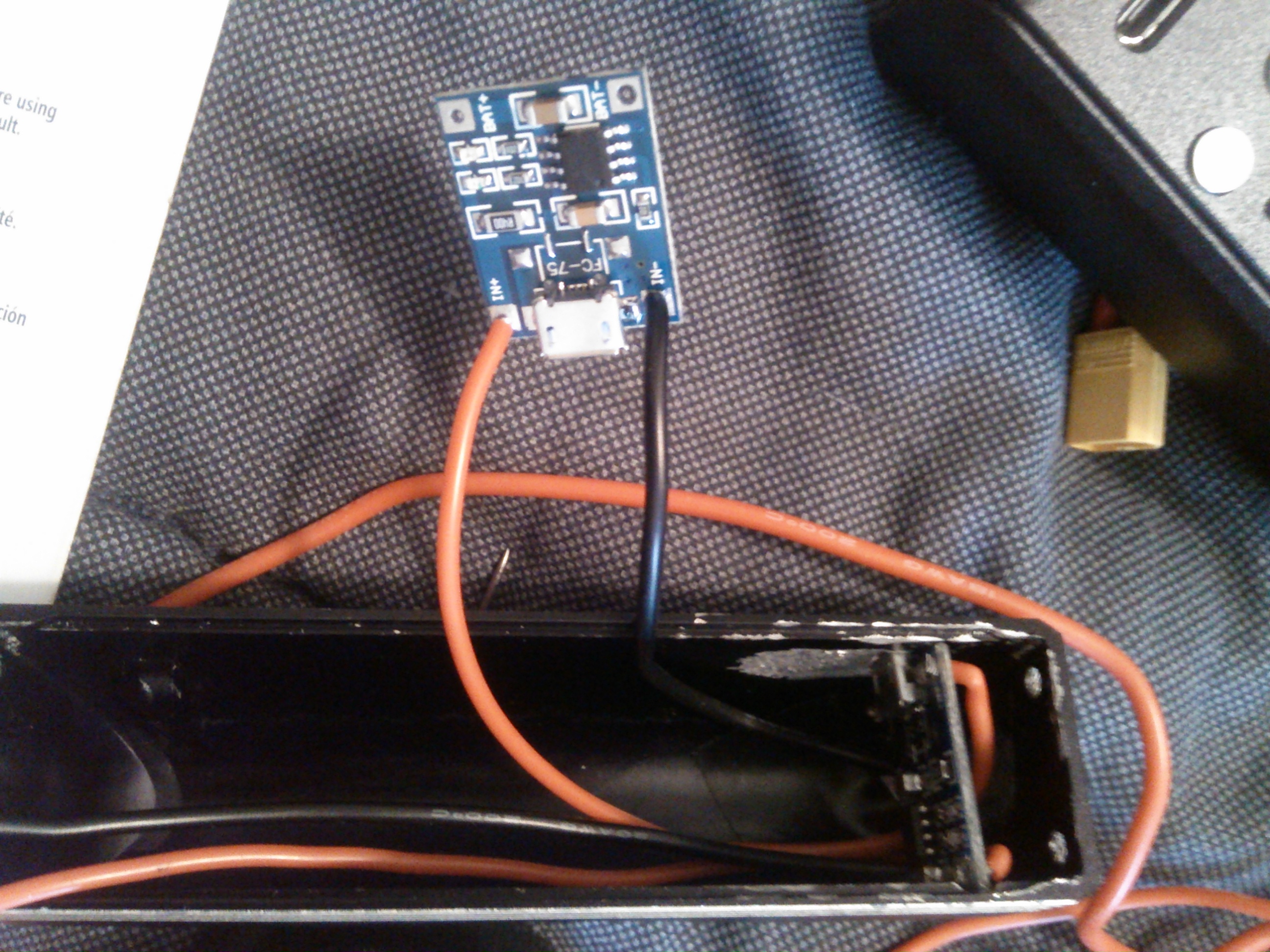

Spector NS5 RD Posted May 26, 2016 Report Share Posted May 26, 2016 nice, an official dna 75 build thread. thanks dwcraig1! i hacked open a dead vt200. sent the dead board to evolv for replacement. rather than putting the replacement board back in i decided to put the 75 board inside. modifications required to install board are : chop off plastic oled screen stand offs (dna75 board components get in the way of it sitting flush), rewired/re-soldered stock 1300 mah 3s lipo for 1s 3p config (2898 mah according to battery analyzer). i'm bypassing the onboard usb charging ic for a higher (2) amp combo i put together. i dremeled/installed the usb socket on the side of the mod (limited space for it). my dremel skills are.........not great. that's about it. really enjoyed building this. plenty of current available to the board with this batt and the 3p lipo charges fast at 2 amps. 2 Link to comment Share on other sites More sharing options...
VapingBad Posted May 26, 2016 Report Share Posted May 26, 2016 As usual I want a small and tough mod with tool less battery changing. I used the same 3" x 1.5" alu box section I have used with DNA 30 and DNA 40s since this board is 5 mm shorter than the 200. I brazed the alu together and filled the front of the board mount holes with it instead of using epoxy.There is no room to use any off the shelf battery connectors so I mad some from a Provari V3 spring and some circuit board, I bridged the circuit board the -ve spring is soldered to to the Evolv 510 connector. I had to make a spacer for 510 from a thick ss washer to get clearance on the inside, not the prettiest, but I just can't get the box section in the required size. I tapped a thread in the box to hold the 510, again there is just no room for a nut in there.+ve is a thin bit of Cu on some more circuit board.I also soldered the board mounts I made from Cu tube to the board to improve cooling, grounding and make fitting easier.I made the buttons from shelf pins and all the wiring is 14 AWG silicone insulated.Finished dimensions are 82 mm x 38 mm x 22 mm including the 510, the main box is 75 mm high.TBH it was a little bit of a rush job and the 510 is about 0.5 mm out, it still took days of labour with the basic tools I have. 2 Link to comment Share on other sites More sharing options...
awsum140 Posted May 26, 2016 Report Share Posted May 26, 2016 Nice work, VB! I like the battery holder, excellent solution. Link to comment Share on other sites More sharing options...
mikepetro Posted May 26, 2016 Report Share Posted May 26, 2016 Nice and short.... Thumbs up! Link to comment Share on other sites More sharing options...
Car147 Posted May 28, 2016 Report Share Posted May 28, 2016 Very Nice VapingBad. Link to comment Share on other sites More sharing options...
msamuelson99 Posted June 2, 2016 Report Share Posted June 2, 2016 Meh, why not... I feel bad posting a non-custom box though. Link to comment Share on other sites More sharing options...
twages88 Posted June 4, 2016 Report Share Posted June 4, 2016 133 kit in parallel. .alpine g 1 Link to comment Share on other sites More sharing options...
BillW50 Posted June 4, 2016 Report Share Posted June 4, 2016 twages88 said:133 kit in parallel. .alpine gAwesome! Link to comment Share on other sites More sharing options...
dwcraig1 Posted June 7, 2016 Author Report Share Posted June 7, 2016 So it arrived, took me a bit to get it set up (sorry Daniel). Using HE4's while the HD2's charge (might not even use them with this).For starters the mod's not stainless steel only looks like it.Except for the horned top it's smaller than a ERM, really strong spring in the 510. I wish the 510's body was higher than the mods top by a hair but oh well.Really liking it so far, I can't believe how small it is.EDIT: So I switched to the LG HD2's from the HE4's after comparing the sag during firing using the same atomizer 40/50 watts) and full charged batteries.Both batteries are new also. The HD2 dipped to 3.75 volts and the HE4 dipped to 3.56 volts . No sign of "weak battery", even put on my Aromamizer with dual clapton's @ 75 watts but of coarse the battery was full charge. It's going to work for the "test" Link to comment Share on other sites More sharing options...
BillW50 Posted June 7, 2016 Report Share Posted June 7, 2016 Looks awesome! Link to comment Share on other sites More sharing options...
Spector NS5 RD Posted June 8, 2016 Report Share Posted June 8, 2016 i think the glossy SS body looks good. look at you, making sure your diy kangxin sqounker gets in on some lovin as well!my black smy dna75 just processed through isc new york. Link to comment Share on other sites More sharing options...
dwcraig1 Posted June 8, 2016 Author Report Share Posted June 8, 2016 If only they made a 75 with the foot print of a 40...LOL Link to comment Share on other sites More sharing options...
Spector NS5 RD Posted June 8, 2016 Report Share Posted June 8, 2016 dwcraig1 said:If only they made a 75 with the foot print of a 40...LOLtake the 75 board and snap it in half. then it'll be half the length and work for your needs, trust me Link to comment Share on other sites More sharing options...
BillW50 Posted June 8, 2016 Report Share Posted June 8, 2016 ChunkyButt200 said:take the 75 board and snap it in half. then it'll be half the length and work for your needs, trust me Link to comment Share on other sites More sharing options...
KTMRider Posted June 9, 2016 Report Share Posted June 9, 2016 Silo cases. Black and red are DNA75 and the blue is a DNA200. Link to comment Share on other sites More sharing options...

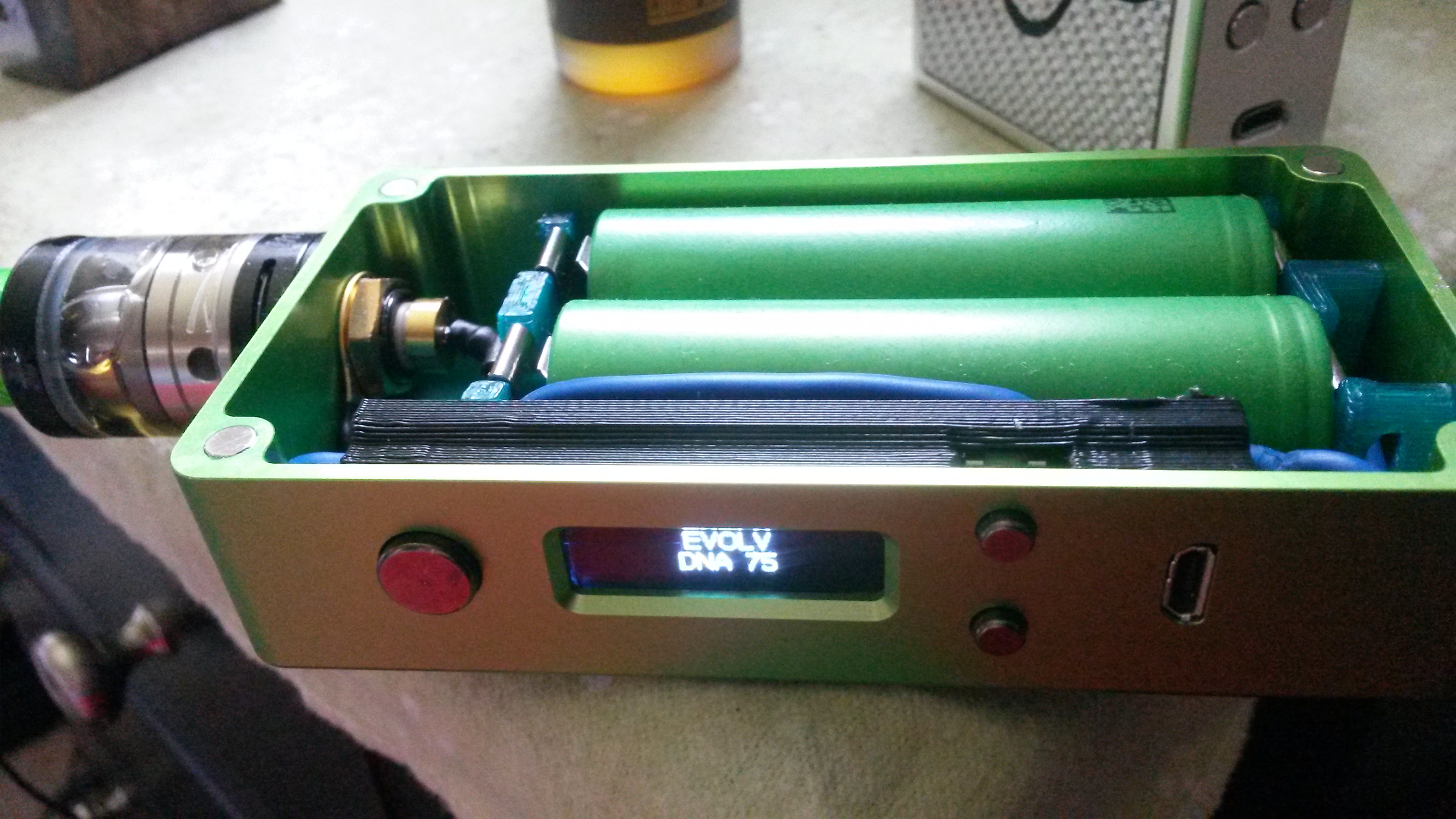

thef0nz Posted June 9, 2016 Report Share Posted June 9, 2016 Got a Hammond box mod built up. First build ever. Link to comment Share on other sites More sharing options...
Rapidmind Posted June 9, 2016 Report Share Posted June 9, 2016 JMFD Mods DNA75 Prototype Link to comment Share on other sites More sharing options...

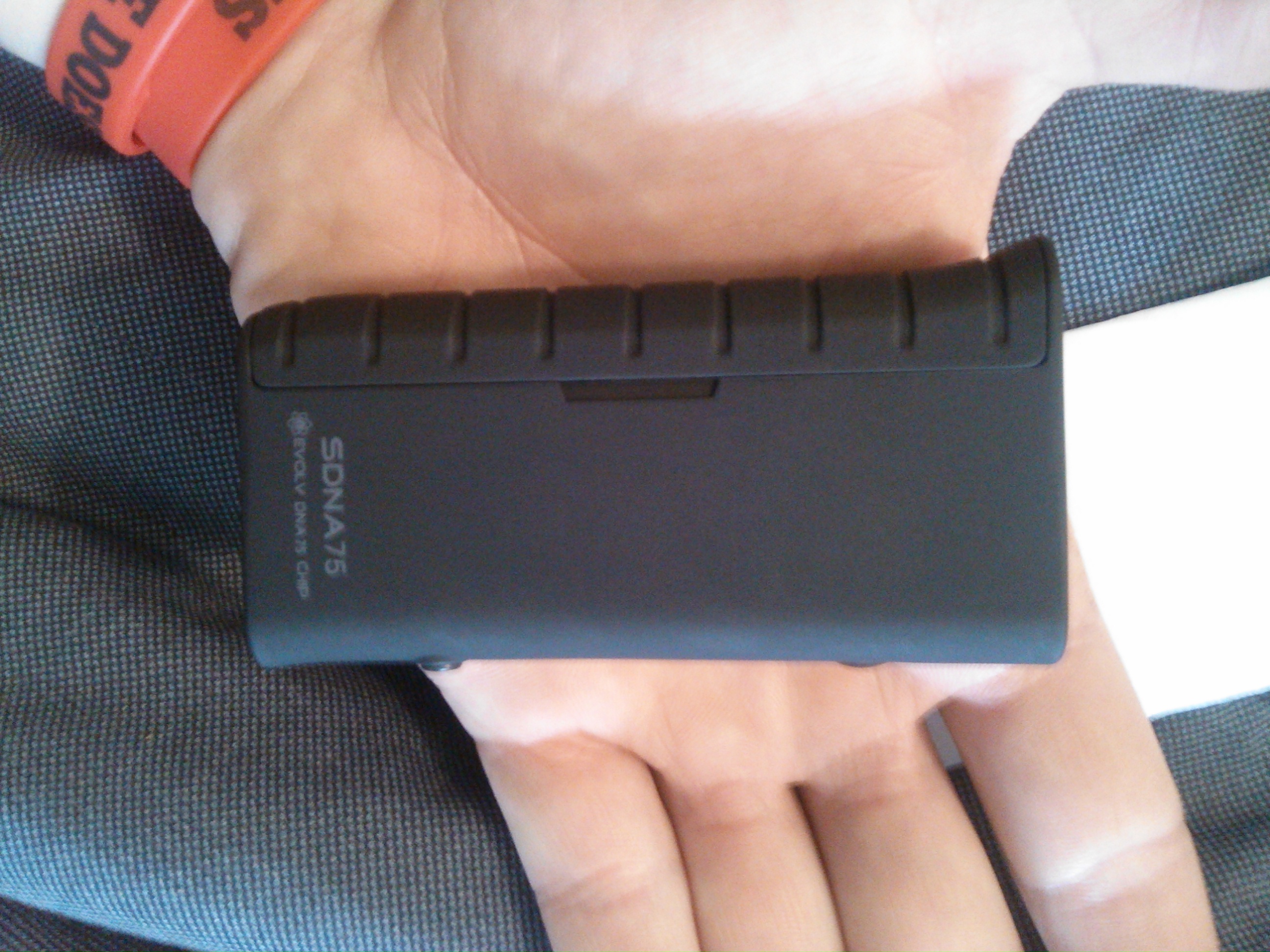

Spector NS5 RD Posted June 11, 2016 Report Share Posted June 11, 2016 man is this thing tiny. the black finish feels just like a VS. i'm willing to bet this finish will hold up better though. my screen is a hair crooked. not a prob, can be fixed easily. 3.5v sag on 75 watt preheat at 11 punch and 1.5 seconds. that is on my recently purchased, freshly charged LG HD2C batts. battery sled contacts are VERY tight. no weak battery message yet. 25mm tanks do overhang on three sides. came all set up - mod res, case thermals, wires and on this mod the profiles are used as different ramp ups. the included usb cable is a puny 9" lol. nice mod all around for $66. Link to comment Share on other sites More sharing options...

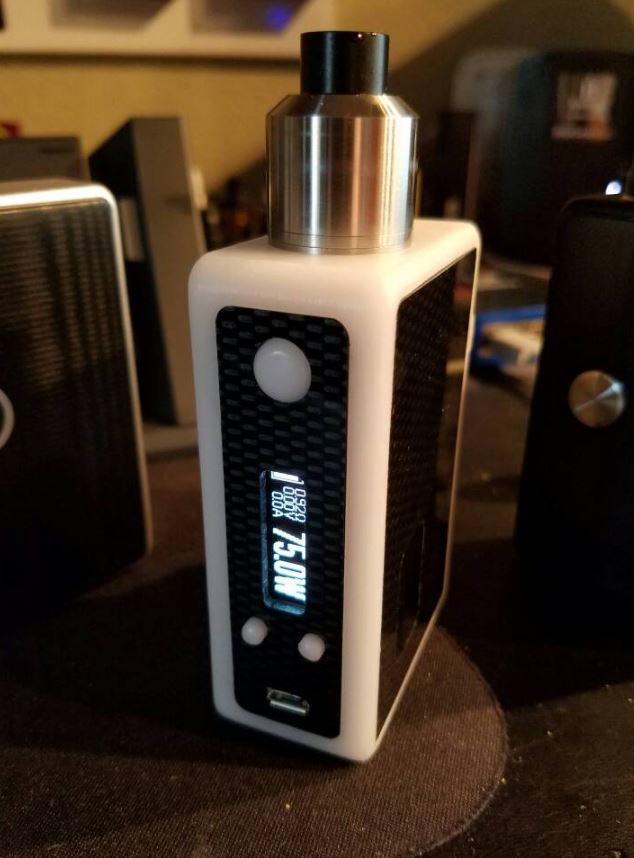

lewisss Posted June 12, 2016 Report Share Posted June 12, 2016 Here's mine with a matching atty stand and spare 18650 case Link to comment Share on other sites More sharing options...
RickCain Posted June 12, 2016 Report Share Posted June 12, 2016 First DNA75 and loving it. 1 Link to comment Share on other sites More sharing options...
DNA Papst Posted June 12, 2016 Report Share Posted June 12, 2016 Link to comment Share on other sites More sharing options...
soulseek Posted June 13, 2016 Report Share Posted June 13, 2016 lewisss said: Here's mine with a matching atty stand and spare 18650 case Really like the case. Where did you get it printed? Link to comment Share on other sites More sharing options...

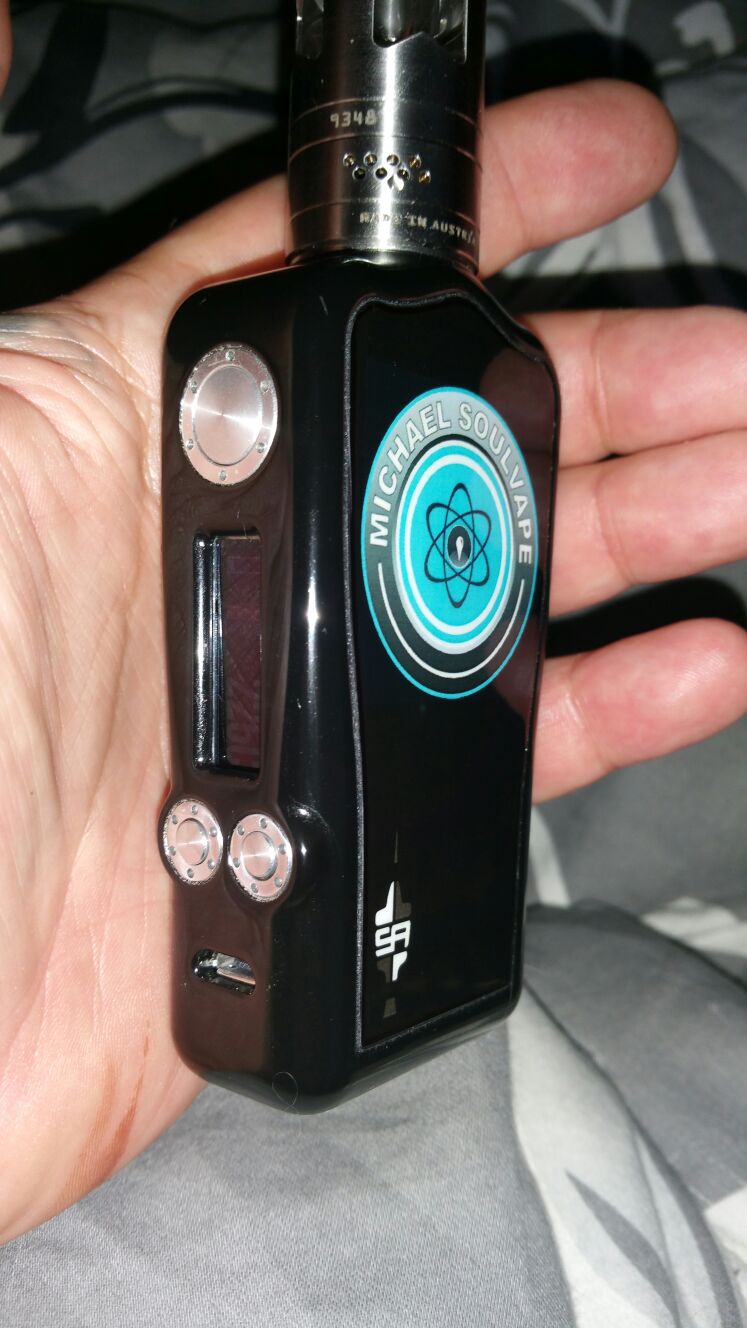

SF0059 Posted June 13, 2016 Report Share Posted June 13, 2016 VT75. Nothing fancy, but I love it. Will get a wrap for it soon... Link to comment Share on other sites More sharing options...
smallcaps Posted June 14, 2016 Report Share Posted June 14, 2016 Hi all. First time posting. Picked myself up an Elfin DNA 75 and loving it so far. Quite a change lugging around my Smok Cube ll. Googled DNA 75 and found this wonderful place. Now I want to build my own! Link to comment Share on other sites More sharing options...
