Evolv is proud to announce our new DNA 60 board. It is a DNA 40 sized board with the added functionality of EScribe. The boards are available now in extremely limited quantities to enable our customers to have products on the market before the FDA August 8th deadline. Because of component lead times, volume availability is not expected until October of 2016. As a result customers will be limited to 1 board per device that they plan to release plus one board as a spare.

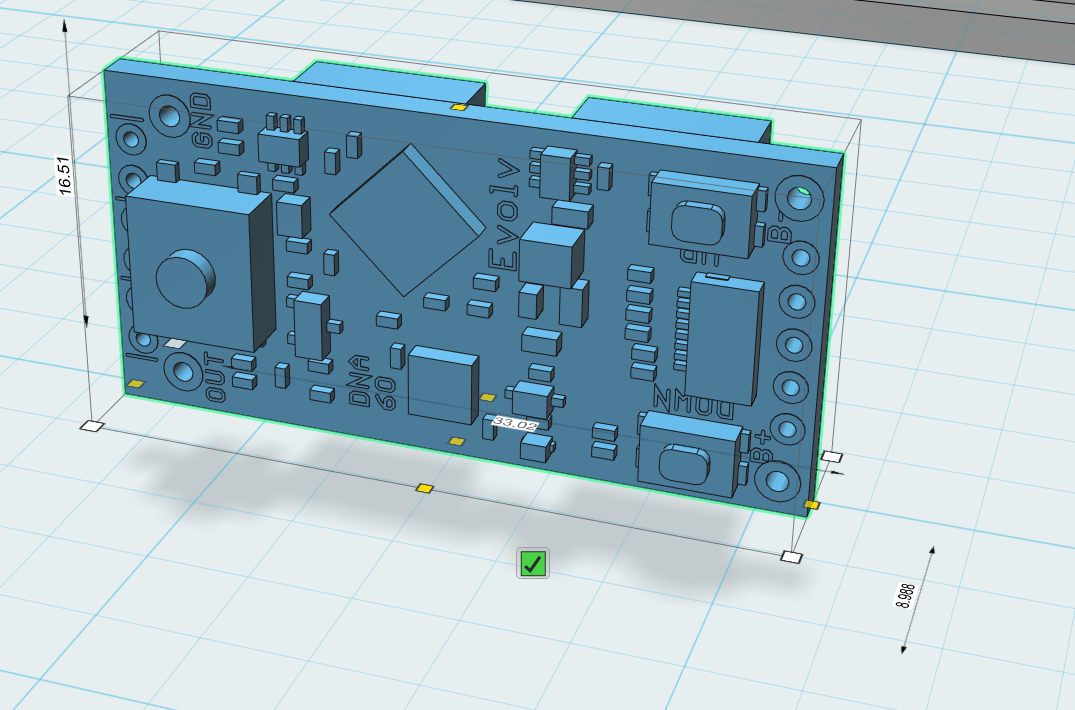

Attached is a solid model of the board. It is largely the same dimensions as the DNA 40 with the following exceptions.

-The inductor on the back of the board is 4mm high like the DNA 20 & 30 not 3.5mm like the DNA 40.

-The fire button is the green fire button from the DNA 75 & 200 not the 3.1mm tall button from the DNA 40.

-The adjust buttons are new, taller and clickier than the previous buttons but still waterproof.

- The board has 5 through holes on the bottom for data and charger. Our 1 amp charger has been updated to include USB data pins.

Individual quantity pricing is as follows:

$59.99 with charger
$49.99 without

DNA60.pdf

DNA_60.zip

1 person likes this

Share this post


Link to post
Share on other sites
i just had a look at the cad files, and noticed i dont see those break off mounting rails like on the dna40,,, whats going on with that,,

Share this post


Link to post
Share on other sites
i could be wrong but i don't think it comes with them like the 40. would be nice to have them for added mounting options tho.

Share this post


Link to post
Share on other sites
i cant see why they wouldn't be added. so many people use them.. come to think of it, most of all the regulators for vaping i know of have holes for mounting.

Share this post


Link to post
Share on other sites
I see that the charging port is separate. Would this fit in a Hana Modz V3 DNA 40 chassis? I will just file down the screen hole, if it requires the larger screen.



Share this post


Link to post
Share on other sites
I have a Hana V4D that would be a perfect candidate for a 60w board :D

Share this post


Link to post
Share on other sites
txmonkey214 said:

I see that the charging port is separate. Would this fit in a Hana Modz V3 DNA 40 chassis? I will just file down the screen hole, if it requires the larger screen.



Yes would fit just fine. And you could use your existing charger.

Share this post


Link to post
Share on other sites

txmonkey214 said:

I see that the charging port is separate. Would this fit in a Hana Modz V3 DNA 40 chassis? I will just file down the screen hole, if it requires the larger screen.



https://db.tt/M4ZqL728

Share this post


Link to post
Share on other sites
Thanks. But, I would rather pay the $10 for a 1 amp charger upgrade. I was planning to switch it out with a DNA 40D chip. This is a much better option. Brandon, Please let me know when and where to pay!
