dwcraig1

Id say bad pack, I was thinking just not matched well perhaps but that's too much.

Are you seeing sag like that in normal use?

Here's my way of setting watt hours when using 18650's instead of 3S lipo pack, I use 87.5% of the rated mah. My reasoning for this is the lipo packs get their mah rating from approx 3 - 4.2 volts while the 18650's are rated from 2.5 to 4.2 volts. The calculator built into Escribe is meant for the lipo pack. Just my way though.

I had to look in Escribe.........twice...LOL

Isn't this a DNA75? I don't see these battery settings on my 75 like I do on my 133/200

Is this it? "{0} can be used to analyze your atomizer's resistance stability." or "Atomizer Analyzer"

I've not heard that for a 133 DNA75 max I believe is 6.2 volts

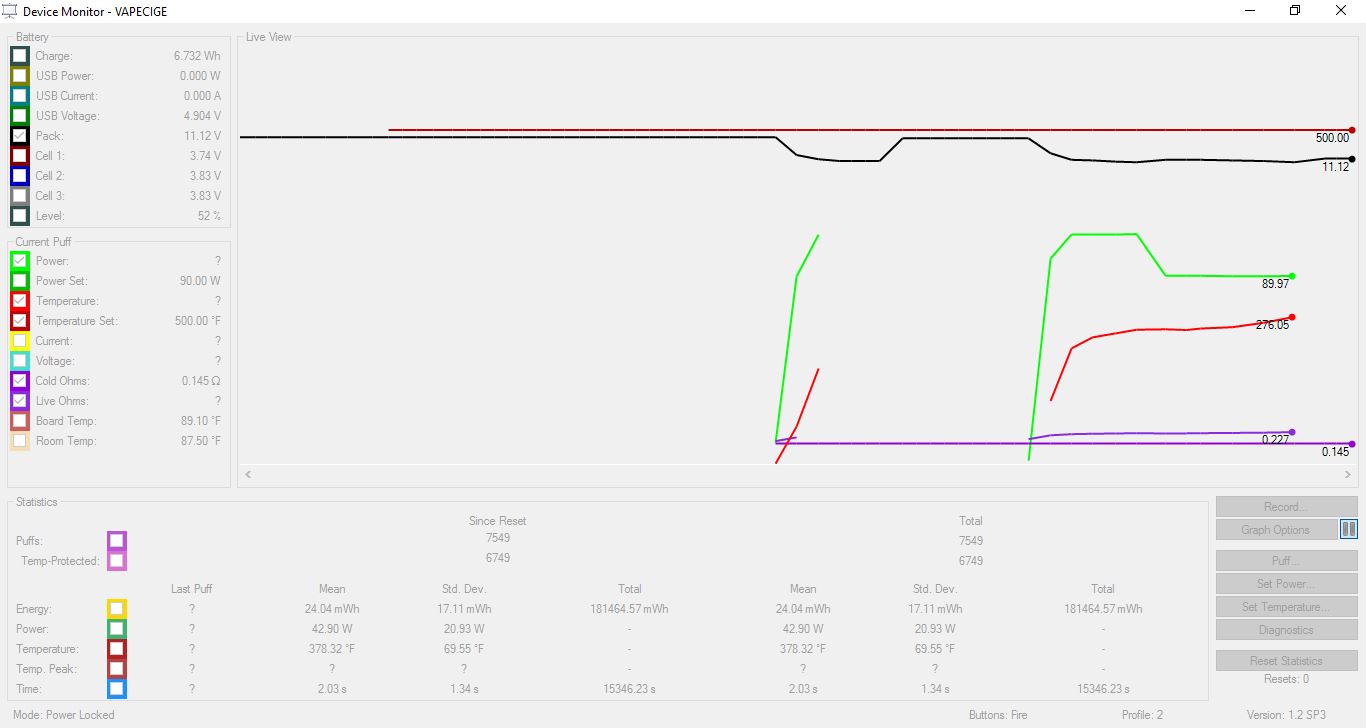

If you get the cells balanced and put it into EScribe's device monitor and if the one cell is bad I think you will be able to see that as I suspect it will have extra sag compared to the other two cells.

This reminds me of when I got juice between the balance connector and the board but mine was a standard board.

0.41? to 0.46? is around 12.5%, it should have remembered it.

I think I'd be checking the mod's 510's connection to the the atty using atomizer analyzer, this sounds like maybe a poor connection between the mod's positive pin and the atty's positive pin. Or poor ground on the mod's 510. What mod is this?

Well it appears not to work, I can get it to only display 0's, thought a first it was full charged so I ran it down some and still 0's

Gee I had to look, it's there under the screen tab in the charging fields. It took a moment to switch from temp to current on the mods's screen but it works. It does't show device monitor though only on the mod's screen.

Cell #1 is really too low for a recovery charge, surely the battery is damaged. A recovery charge will take many many hours, I see that you said that you tried that. Contact seller or Vaporshark

I like this question......a lot.

Try a different computer and/or a different cable. Get these things eliminated and let us know the results.

That 3rd cell reading is normal I would set the soft cell to 2.9 volts and subtract about 10% from your watt hour calculation. (about 20 watt hours) The 28.51 sounds like what 3 cells would be. Why less watt hours? the battery was rated between 2.5 - 4.2 volts, you will be using 2.9 - 4.2 volts.

Is there any possibility that there's e-liquid on the balance connections on the bottom of the board?

Just one example: the cable may be defective

A couple things besides something wrong with the board. Have you tried using a different cable? In EScribe, device monitor, diagnostics tab there is the ability to set, turn on/off charging...can you check that it is set to charge? Also is battery set to LiPo and not power supply?

LOL

Gee I thought I did this on my 75, I couldn't get it to work earlier today on my 75. I see I posted a live view of it a few posts back. Hmm

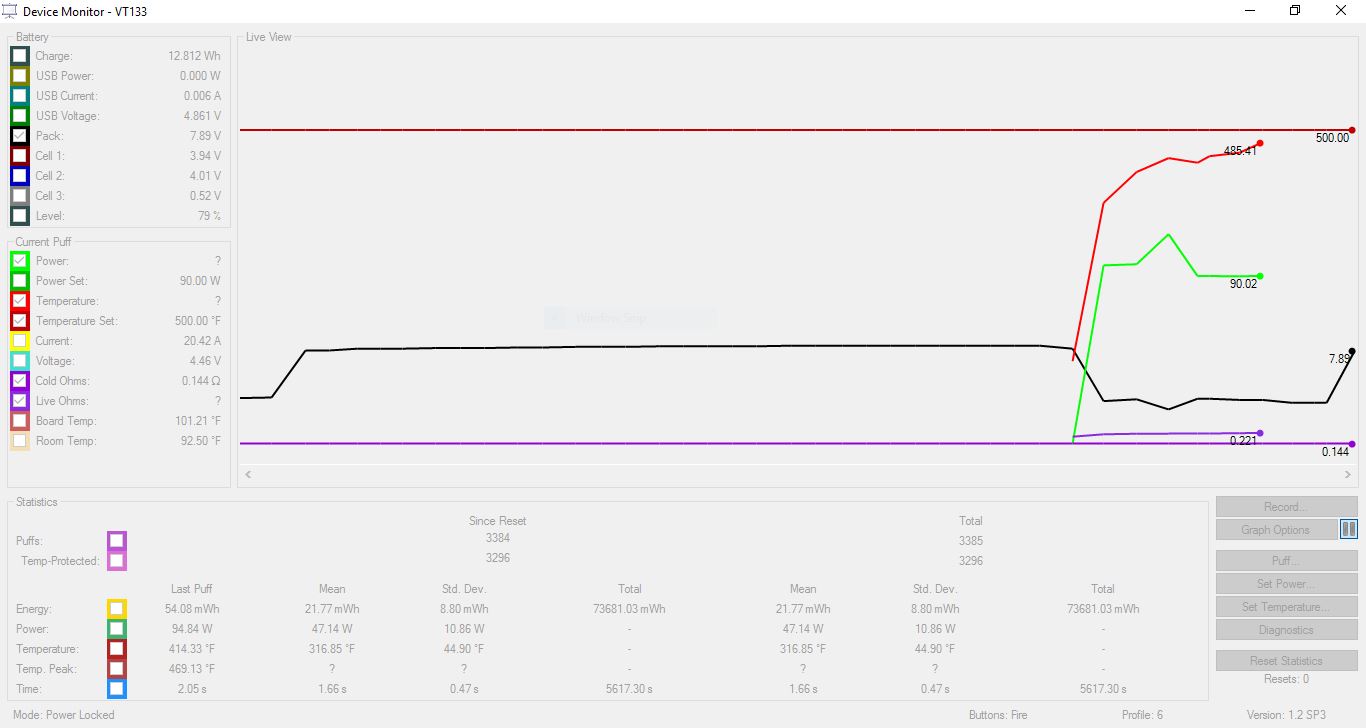

This is using a Vt133, single core 26 gauge Kanthal wrapped with 34 gauge Kanthal (dual coils) in Aromimizer v1. Firing at 70 watts, 110 preheat.

OK give me a minute, I'd say that the temp is way out of whack though.

Credit and kudos to gorman
