Wayneo

Running the US version is crippled compared to the INT version. The SP45.1 INT is the latest as shown in device monitor. I'm on a Mac and suggest you download the INT version. Edit: If you don't see the 100C listed with the INT version post a printscreen of that window

@MrZero48 I only commented on what I quoted. I am/was not the OP (original poster). Focus. The datasheet with wiring diagrams and sizing is here https://downloads.evolvapor.com/dna250.pdf

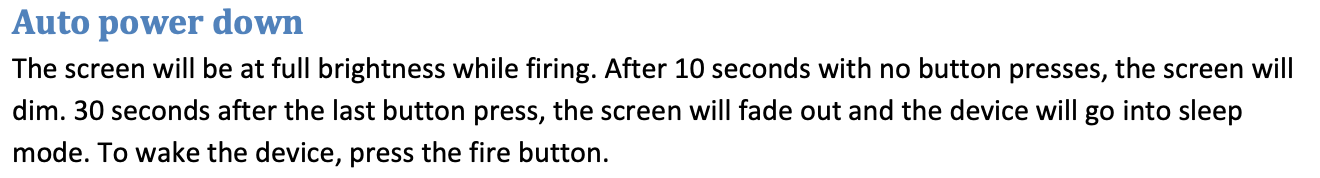

That's pretty much the timeout right there. If you want the exact time, use a stop watch and see how long it takes for the little * to disappear on your screen when your mod is locked. There is no csv, but themes can be used to manipulate nearly all mod parameters like escribe. Most field names are relatively descriptive and you could take screenprints of what's available in Theme Designer. I stitched 3 of these together onto 1 page.

Yeah, that will work 👍

You can get 1.5A easily with most cables USB to USB C. But for full 3A charging .......... From Copyman in this post. The entire post is good. https://bit.ly/3qAW2SD 'Problem found its solution. Charging with 3A requires a USB-C power adapter according to the PD standard and USB-C to USB-C cable. To clarify - not some adapter with USB-C, but just one that supports the full PPC protocol. The maximum current in this case for me became 2.72A'

Follow the second entry in this thread. And if you have problems, read 5.

That all depends on the USB-C data and charging board you purchase to use which can be all in/on one board. The initial picture you showed was just a copy/paste 😋

All good news to hear. Glad they're working fine. 👍 Thanks for reporting back.

Yes and yes.

Here's the datasheet pinout, and you should NOT need any extra board.

My dear friend @Willy, what would you like the title to be? Post it below and I'll delete this and your answer (as well as your comment above) after I change it 😋

You might want to try out Replay mode with your NiFe48. As long as your material is TC capable (which it is), no material file is even required. Just go to the Replay profile (with 'watts' material) dial in the watts and puff, and 'save' that puff. NO TEMPERATURE WILL BE SHOWN, but you get a fuller puff and no dry hits

Yup, sounds good and all still valid. I haven't checked the internal mod resistance with mine lately, but was no working the last time I did check. Their default 0.004 works fine on mine BUT it is an Evolv mod, with their 510. 👍

Nichrome 80 is NOT TC wire, so if it's working, you lucked out. But I wouldn't bet on it. You'll have much better success as you've found by sticking with SS, or some other proper TC capable material.

Does it work in TC? I have not seen or heard of any limit really with Replay, and I've never tried it that high. Can you describe that coil. Material, wraps, spaced or contact. If your 0.4Ω coil works, maybe the other has hotspots. If you use Device Monitor and click the 2 Ω boxes (live and cold) you should see the 'live' value rise above the cold.

Now that escribe sees your mod, start escribe, run Device Monitor, and do a full Screenprint (of DM) and post it here. I wanna see the individual cell voltages among other things. Let me get this straight. You sent it back in again, knowing it was out of warranty and no boards anyway, expressly for them to diagnose their work done 2 years ago, and they didn't even reply/update the ticket with 'No fault found'? Many times the tech will write a comment or 'test fire' and put that in the board info. For that you can click the 'get info' button after starting up escribe. I didn't really buy that when you've said 'The only one that hasn't given me problems is my original DNA 75 HCigar VTC nano' or one of your more reliable $18 Chinese clones ......... but whatever

Man, I hear you, but WHY all caps❓ Unfortunately, there's just no easy change wallpaper option. Plus with the option of 3 different wallpapers per theme, many authors will use some pretty picture/logo for the lock screen, and some other more abstract image (if any) for the working screens. One author actually has/had a wallpaper zip file with his! But look at it this way. A brand new user with his brand new shiny mod just wants something new on his screen. Hell, he doesn't even need to sign up. So he comes here and downloads whatever, whenever .......... most without even leaving a comment or thanks. Or the other user I call 'Theme collector' who downloads 600+ themes and only leaves a few scant reviews or comments. My quoted words from before "It is clear that some registered users will just go around 'theme collecting' 4, 5, 6 at a time. There's nothing wrong with that." All these extras give them more to download, space to waste on their machine.

I take it your charger doesn't show cell voltages. Ideally, you could put each battery in your Odin 75C (if it shows battery % or voltage) and 10 puffs or so should bring the overcharged ones to lower than 4.20V (volts don't lie, and %'s usually don't understand anything over 4.20V) You're much safer charging in the mod which will bring them back into balance (slowly) until you clear up your charger issues.

Fantastic screenshot @Steve.W. On the left hand side, starting 6 itmes down, look at your 2 cell voltages. Cell 1 shows 4.440V. That's a problem. Disconnect the USB from your mod. Swap battery positions in your mod. Plug in and start escribe. Now look at cell voltages again in Device Monitor.. If that high voltage now appears as Cell 2. It's your battery at fault. How do/did you charge the batteries? Let us know.

Post an escribe 'Device Monitor' screenshot of one of them not working, while plugged in. Not firing or anything.

@GaryP Somehow I don't think you're running the latest firmware for your mod. Down in the bottom Right Hand corner it shows in Device Monitor. You should see SP45.1 <- that dot 1 is important. If you're not, install from this link. https://forum.evolvapor.com/topic/66731-early-firmware-and-escribe-suite/?do=findComment&comment=937912 If you're still having problems afterwards, post a screenshot of the profile (1-8) you're using.

No, not necessary at all Tina. Considering the Quest is their budget brand I wondered if that continued into their wiring as well 😮 You can use the DNA250C datasheet when it comes time to build your 100. 👍

The only boards that you can actually shut it off completely would be the 75, 75C and the 100C in the battery details, by enabling that '....... uses an external charger'

Welcome @Tina Eire 👋 Do you have a photo of the final swap to show? I'm not even remotely surprised by LV and the URSA quest fitment of the DNA board. Not even that the screen is swappable. 😎 Can you comment on the cabling gauges in the URSA?

What @BillW50 showed, does not survive a battery swap.
