Bottom plate screws? Edit: If you are referring to issue of the bottom pushing down when inserting certain 26650 cells (youtube), then no..haven't had that problem. I have only used the Ijoy & Green Efest cells...both of these cells are 65.11mm long...

You need to contact the vendor you bought it from...SMY warranties devices to dealers for 6 months...

What versions of the firmware is in your devices?

I don't know...seems like there could be an issue in 3 cell mode with the removable sled...extra set of contacts between the cell & the board...and with it being removable, seems there will be a lack of solid continuity through those contacts...just my opinion, of course...

In Escribe, 'Files>Open' and select the .ecig file

I've noticed that on other parameters as well...seems to round to a different value...... (dw corrected dw's spelling)

Usually, when you see a cell voltage above 4.2v, it is an indicator of a board problem/issue

??????? ???...

The factory settings are kinda set on the Skar 75. Seeing that not every device is identical, even of the same brand/model, it is always wise to run the analyzers & mod resistance test for oneself. If you want to look at the factory settings,download this .ecig file... Factory_Skar_75.ecig ...once you download Escribe, open the 'Evolv DNA 75' version...go to 'File>Open & load this file into the software....IMHO, the Skar 75 is a solid device...I have 3 (one of each color) & use them daily Factory_Skar_75.ecig

LG_HG2 (3)_18650_3000 mah_28.3 Wh.csv

Glad to hear you got it working...

Give a little more time...takes the system a little while before you can dl files...but you will eventually...

Hey, I checked out your images enlarged & the reason you are having these issues is because every where the images are being distorted, there is gray...almost like a shadow...the screen is monochrome

You can try this little program...works well & the images transfer well.... DNA200ThemeImageGenV1.1.02.zip

You don't want to connect them directly because that is protecting the batteries & board from short circuits...if you have enough room, you can wire in a mini automotive 25 amp fuse...and tuck it away somewhere inside the mod...

Glad you figured it out...

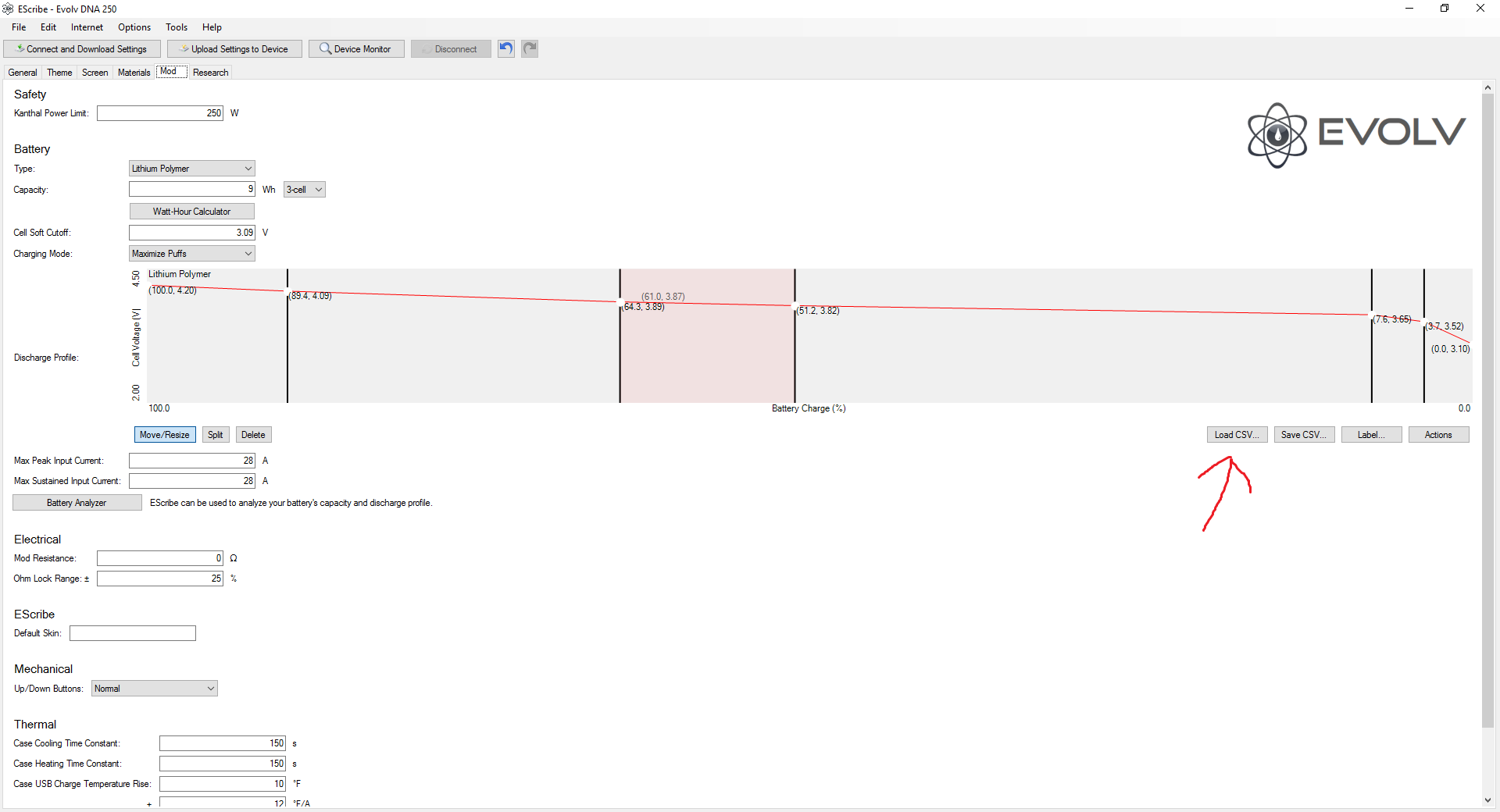

You need to load that .csv file for your battery settings...go to the 'Mod' tab, Load .csv & select the file you downloaded...

It can take a few hours until you can download files...here is the .csv file for 3 LG HG2's... LG_HG2 (3)_18650_3000 mah_28.3 Wh.csv ...and there is a really good interactive Escribe training course here...https://downloads.evolvapor.com/escribe/guide/story.html

Is it actually firing, or are you hearing the coil still sizzling?

Samsung_30Q (1)_18650_3000 mah_9.97 Wh.zip
