Grounding the chip.

Recommended Posts

Ok guys, I need your help. I am on another group where I gave a mod a bad review. Well along the discussion the subject that the chip on the mod is not grounded and these guys are telling me it does not need to be grounded, that it "earthens" (whatever that means) through the 510 pin....how can I explain this guy he is full of it and does not know what he is talking about? BTW the chip is not grounded to the 510 chip either.



Edited by Mexvape

Share this post


Link to post
Share on other sites

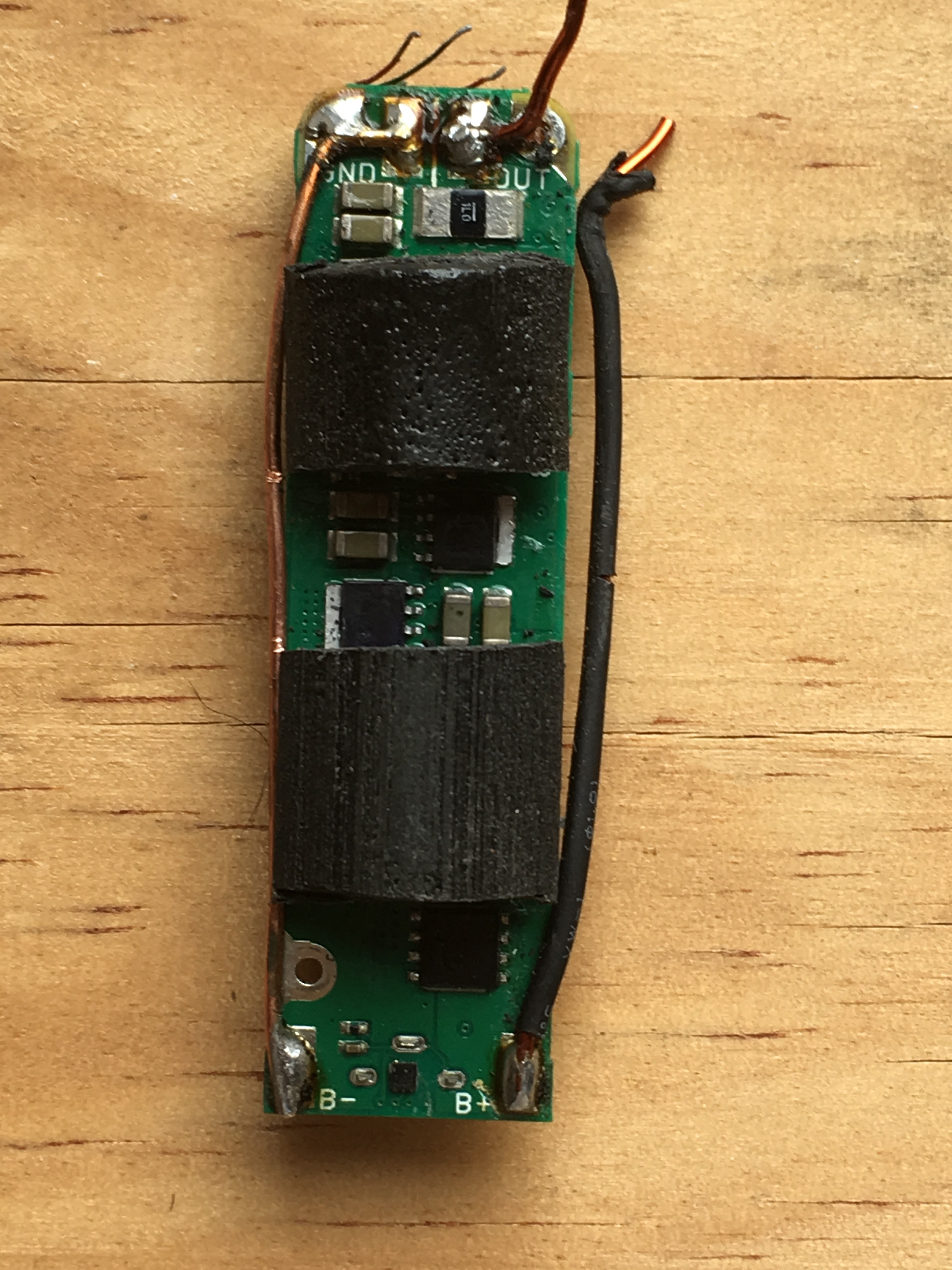

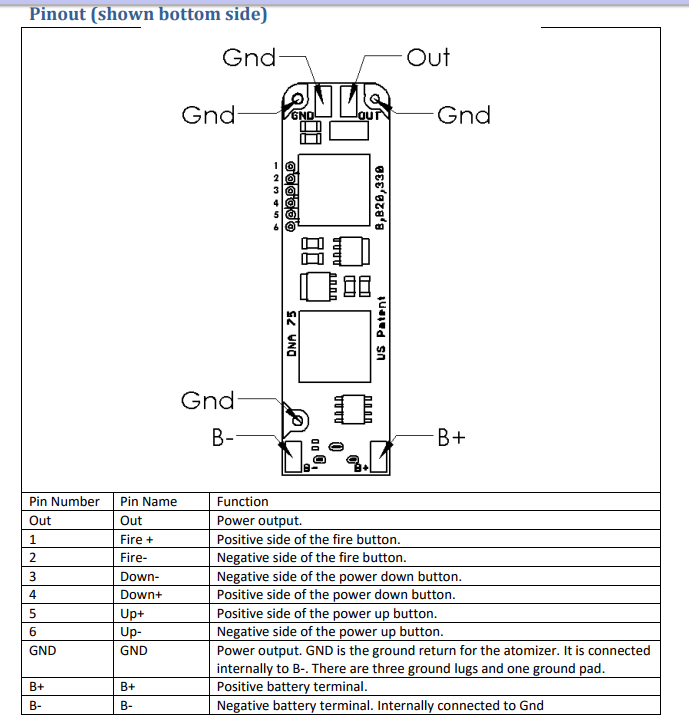

The B- SHOULD be connected to battery negative. The wire you have soldered from B- to the GND is unnecessary as the board has already connected these (and the ground points around the mounting holes) on the pcb. Also the OUT wire to atty looks like it is touching the grounded mounting hole next to it.

  • Like 1

Share this post


Link to post
Share on other sites

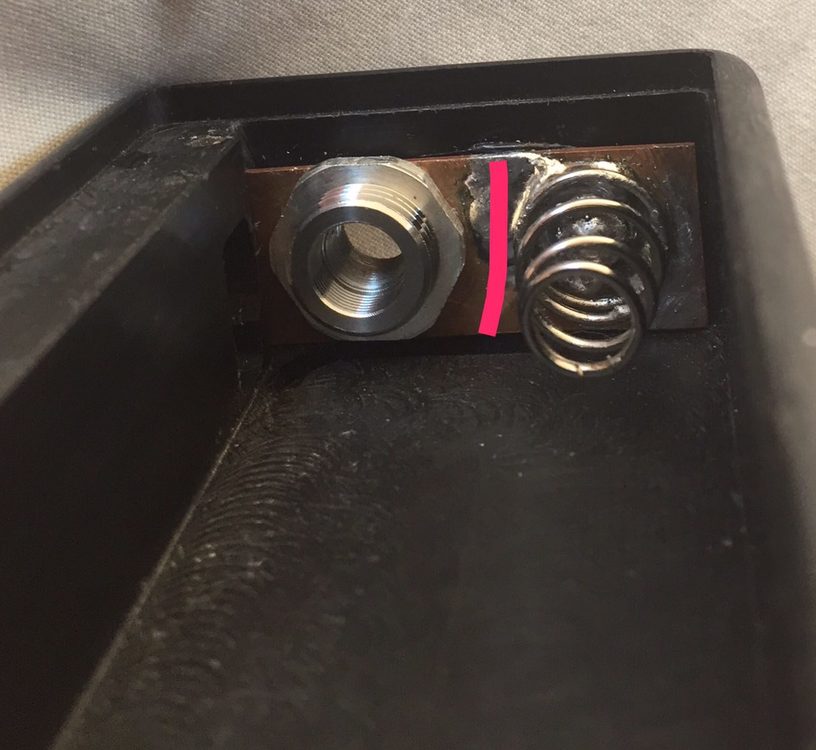

Can I just solder the GND to the chopper blade (red line) and be fine?

Then B+ to the battery (+ of course) and the OUT to the positive pin of the atom.

Am I doing something wrong, because I think it doesn't detect the atom because of this.



IMAGE 2017-06-26 15:11:01.jpg

Share this post


Link to post
Share on other sites

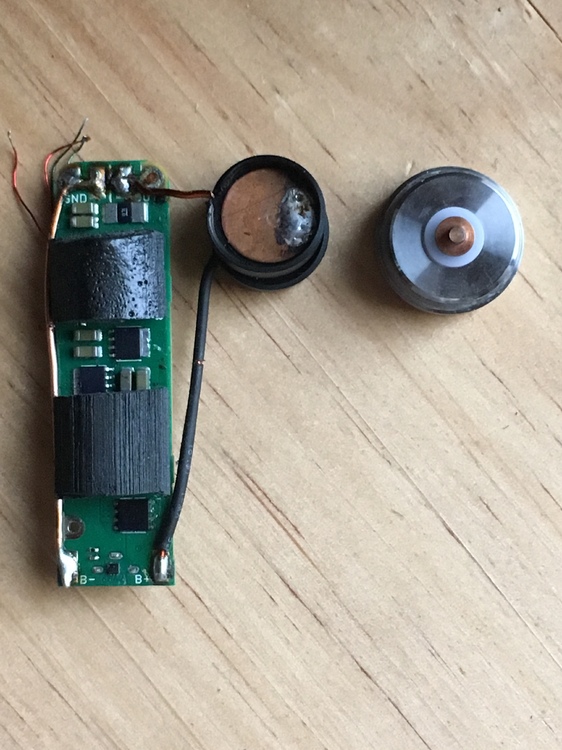

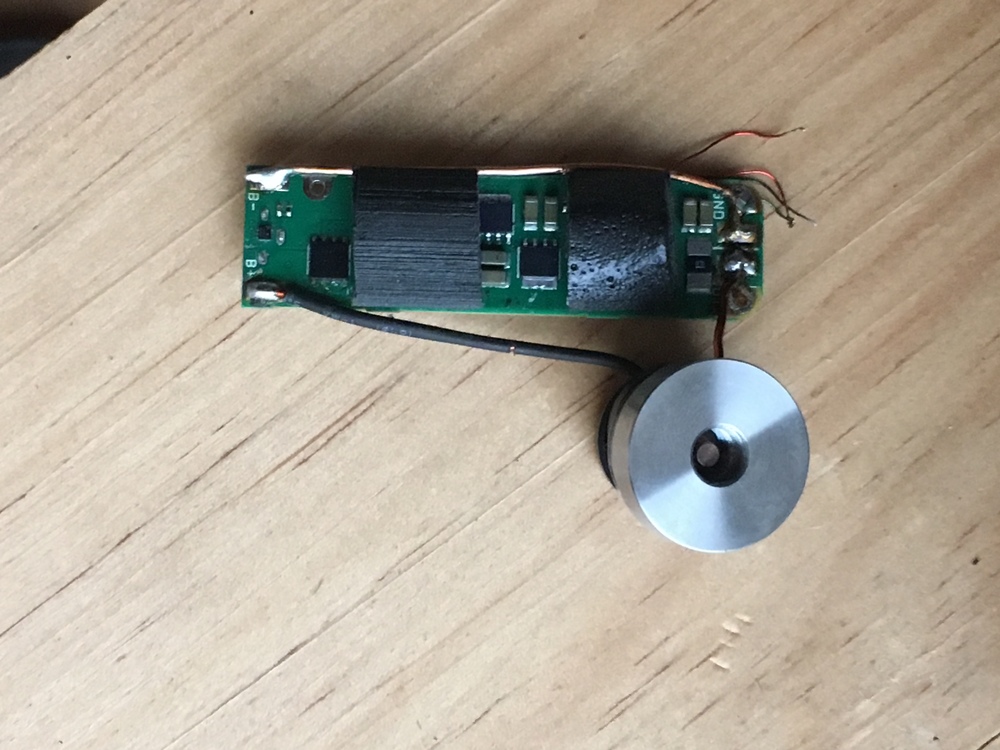

Buddy I did not make this board, took it out of a shit mod that cost me 480 pounds for a DIY project. The chip is glued to a plastic sled, does not touch anything and the only two cables are for the B+ to the positive terminal of the battery and the power to the 510 pin. Here are some pics, maybe it is clearer.




Share this post


Link to post
Share on other sites

Okay, fair enough - no blame here

but I still say -

The bare wire running from B- to the GND connection is unnecessary and potentially problematic

The bare wire connected to OUT is too close the the mounting hole for my comfort

A similar setup could work if the board is making grounded contact with a conductive case that acts as a battery negative as well

Share this post


Link to post
Share on other sites

I agree but since the chip is "floating" I guess this is why he did it this way. The OUT wire I cut to get it out of the mod it was longer and had insulation



Share this post


Link to post
Share on other sites

But that bare wire for ground does not assist (even considering the "floating" setup) - this connection is already made internally on the board - and only opens up the possibility for problems. If the OUT wire were insulated it would be better but I am still not a fan of the soldering job done here

For the "floating chip" setup you would need addl connection/s for battery negative and/or a GND connection

Share this post


Link to post
Share on other sites

That is exactly what I thought, but this guy's acolytes kept telling me I was wrong regarding the "floating" set up, IMO it is missing a wire that connects B- to the battery negative pole.

Share this post


Link to post
Share on other sites

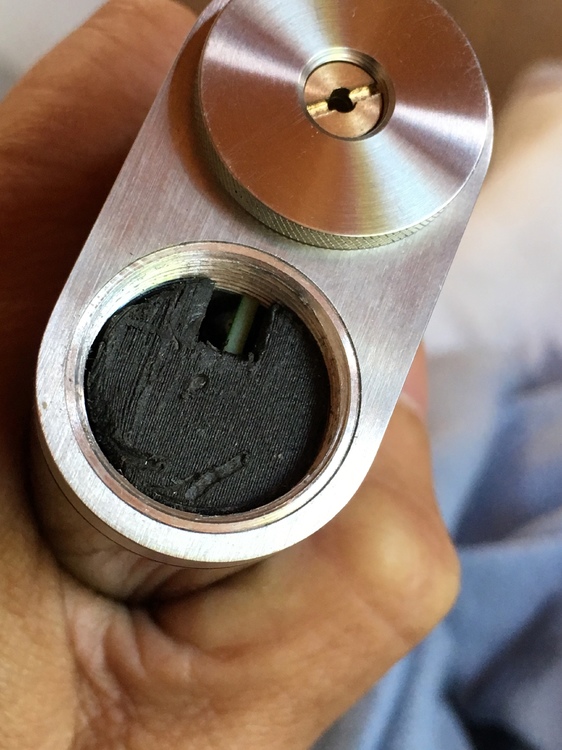

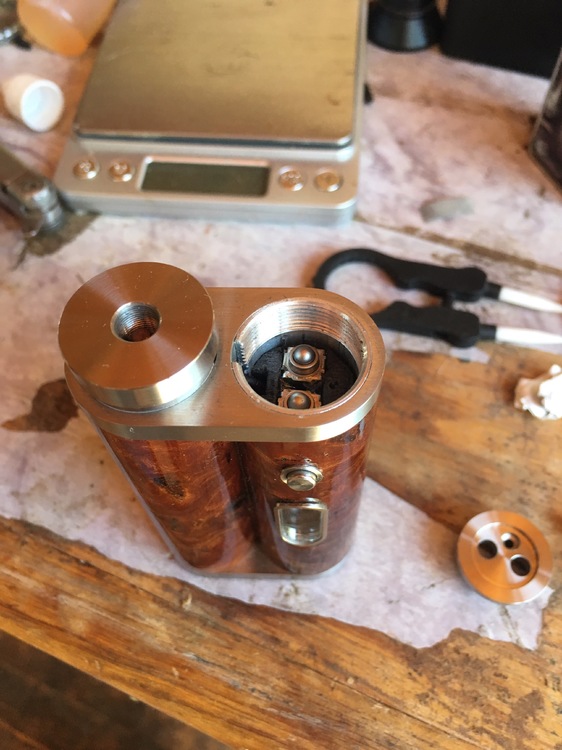

Nope, this is how the mod looks like from the top and bottom. As you can see there is no grounding wire to the battery negative pole. .

0



  • Like 1

Share this post


Link to post
Share on other sites
3 minutes ago, Asfanews said:

Can I wire a DNA75 with Rigid Copper Wire 20AWG? I mean all the connections

I'd follow the datasheet for wire sizes and type

  • Like 2

Share this post


Link to post
Share on other sites
12 minutes ago, Wayneo said:

I'd follow the datasheet for wire sizes and type

I do the same, but since it's a Rigid Copper Wire I think I can go with the 20 AWG, but I am not sure

Share this post


Link to post
Share on other sites
