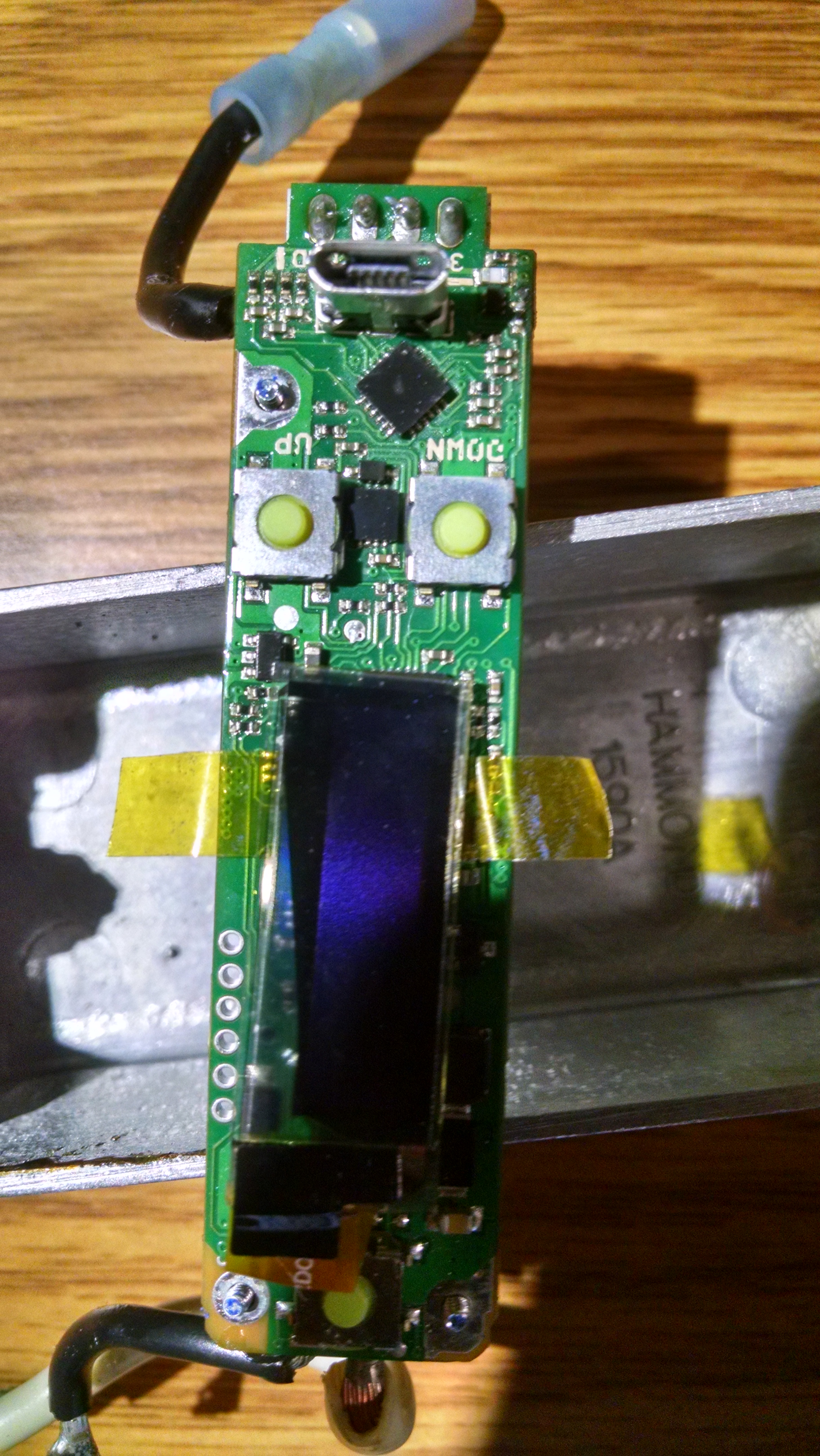

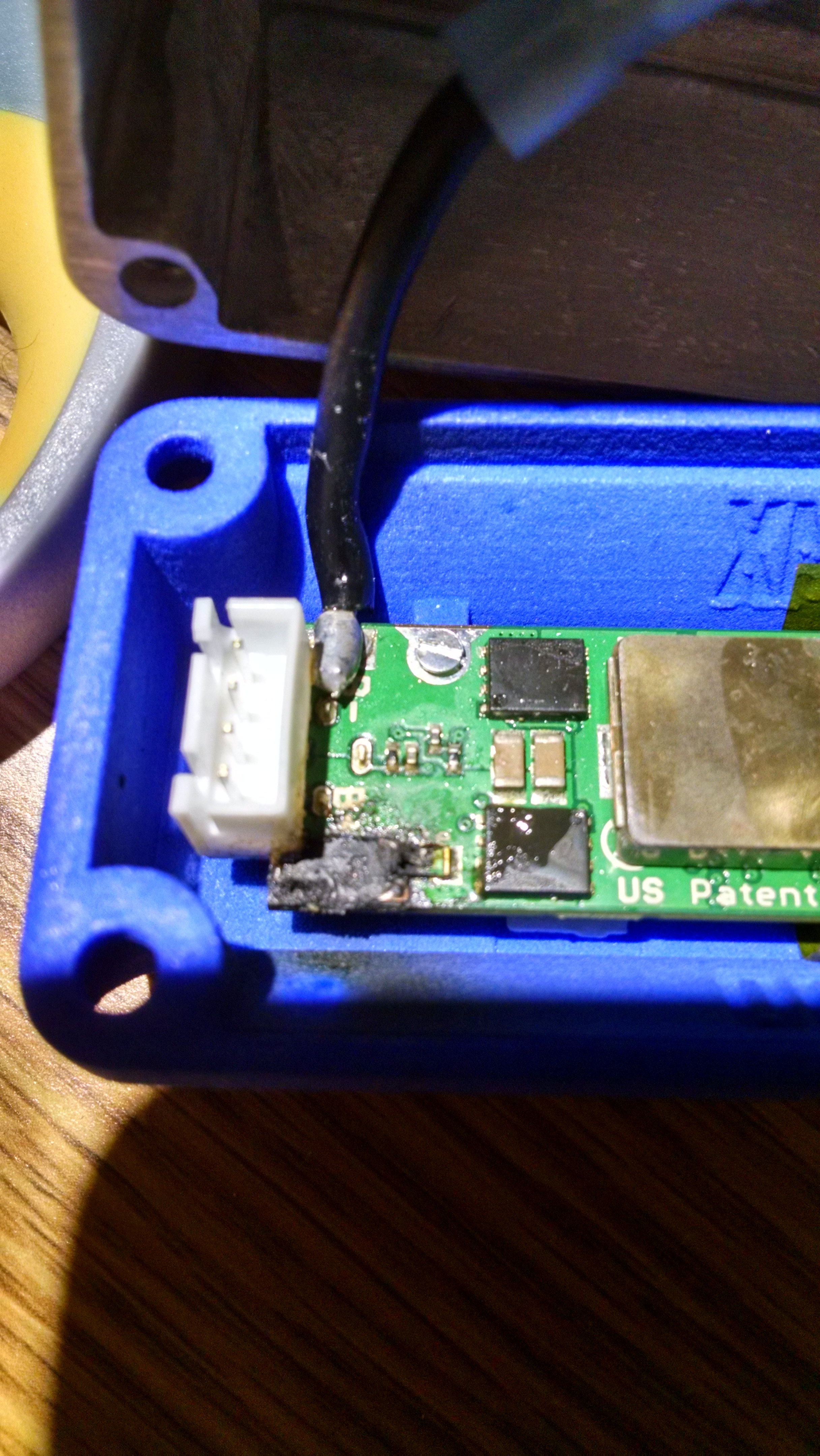

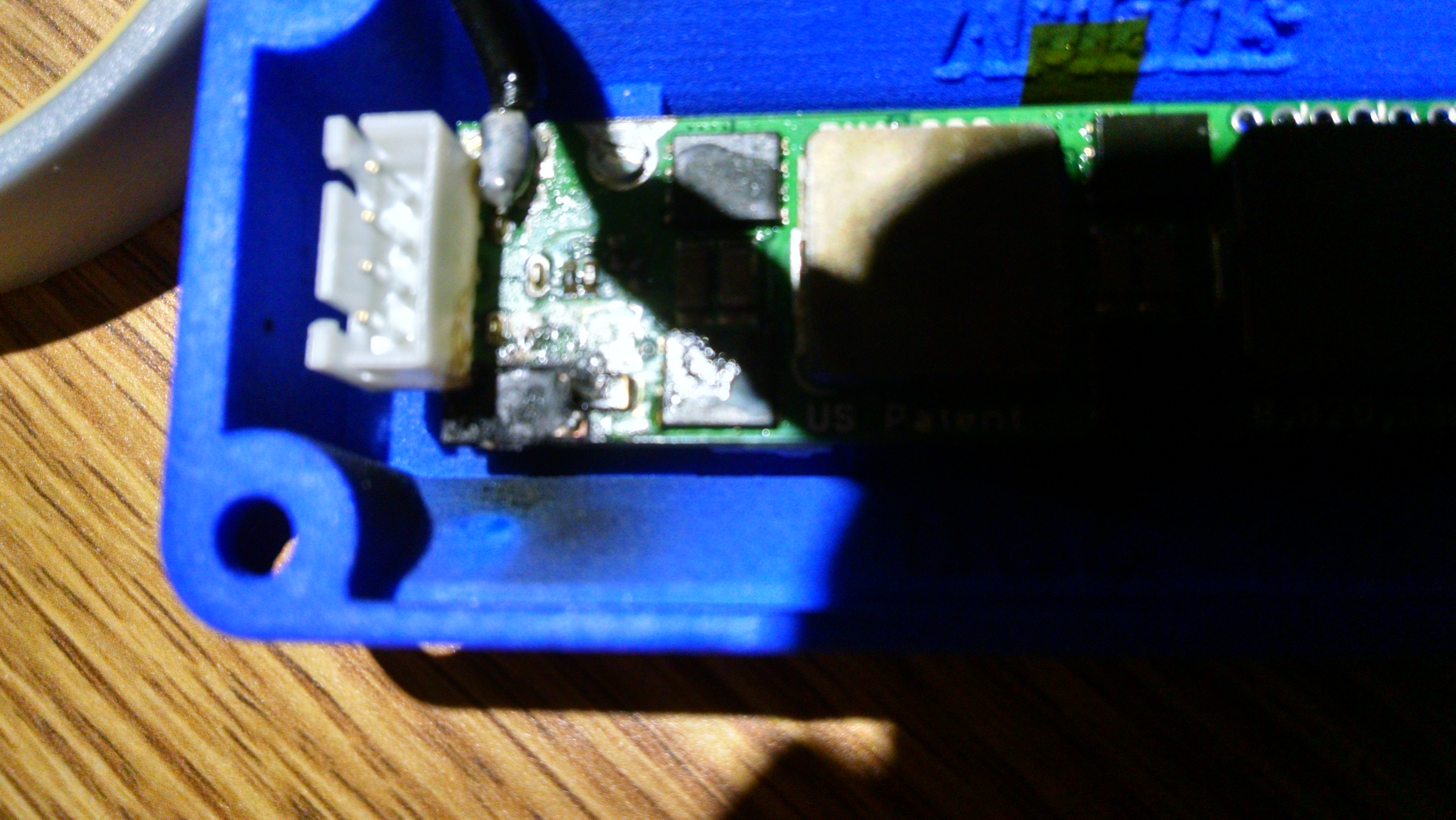

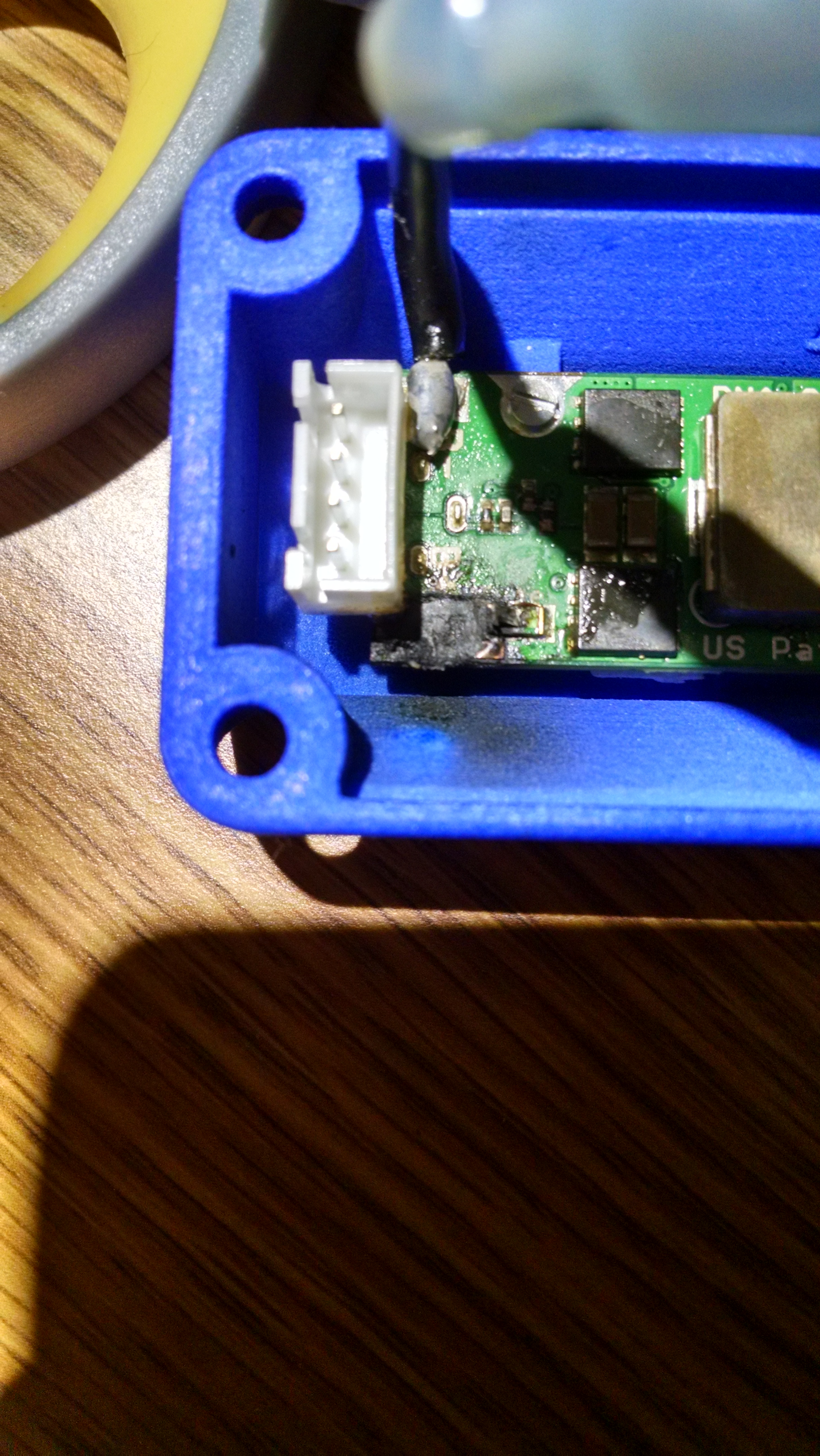

antyac2108 Posted July 10, 2015 Author Report Share Posted July 10, 2015 I just finished my DNA200. used it for a few hours worked great. i plugged it in to the charger to charge it woke up and went to go use it and this is what i found. Any help would be appreciated. Link to comment Share on other sites More sharing options...
retird Posted July 10, 2015 Report Share Posted July 10, 2015 How about a few more pictures of the whole board? May be helpful. Link to comment Share on other sites More sharing options...
antyac2108 Posted July 10, 2015 Author Report Share Posted July 10, 2015 This is all I have for now I had to go to work will post more later. It still works when plugged into USB. Link to comment Share on other sites More sharing options...
John Posted July 10, 2015 Report Share Posted July 10, 2015 Is this case metal or plastic? It looks like plastic, but that damage sure looks like the input battery lead shorting to a grounded case. I haven't seen an input pad burned away that severely without other damage on the board from other things. The negative battery lead soldered on at a right angle and almost touching the USB has me a bit concerned. Do you have a "before" picture? In any case, even if this turns out to be some sort of assembly error, send it back to us and we will send you a new one if it is dead. Pre-release I would like to analyze any board failures, regardless of cause. Thanks! Link to comment Share on other sites More sharing options...
antyac2108 Posted July 10, 2015 Author Report Share Posted July 10, 2015 It is both i have a hammond 1590A with a plastic lid replacement with a FDV 510. I dont have any before pictures sorry. Who do i send it to and what address Link to comment Share on other sites More sharing options...

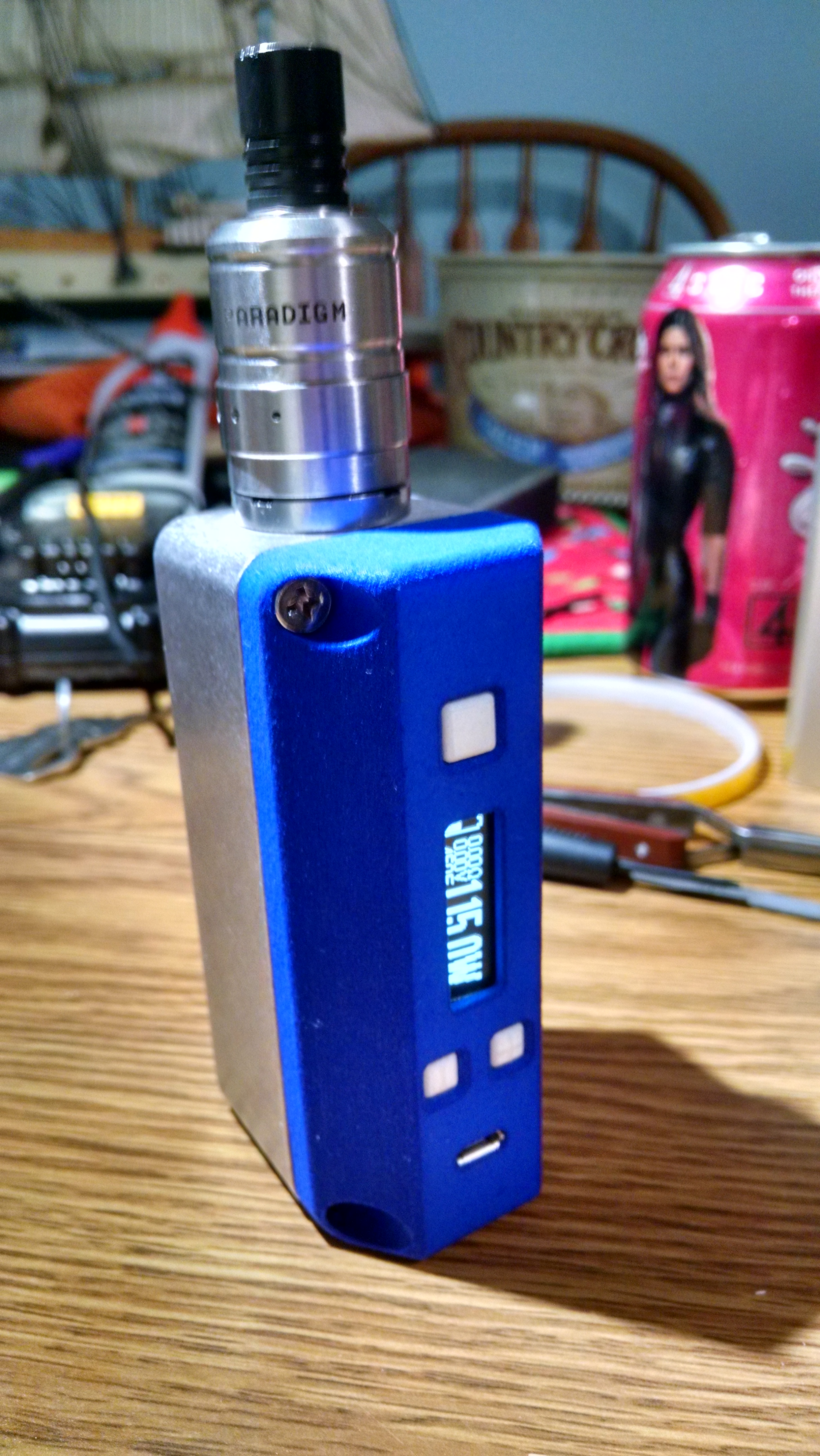

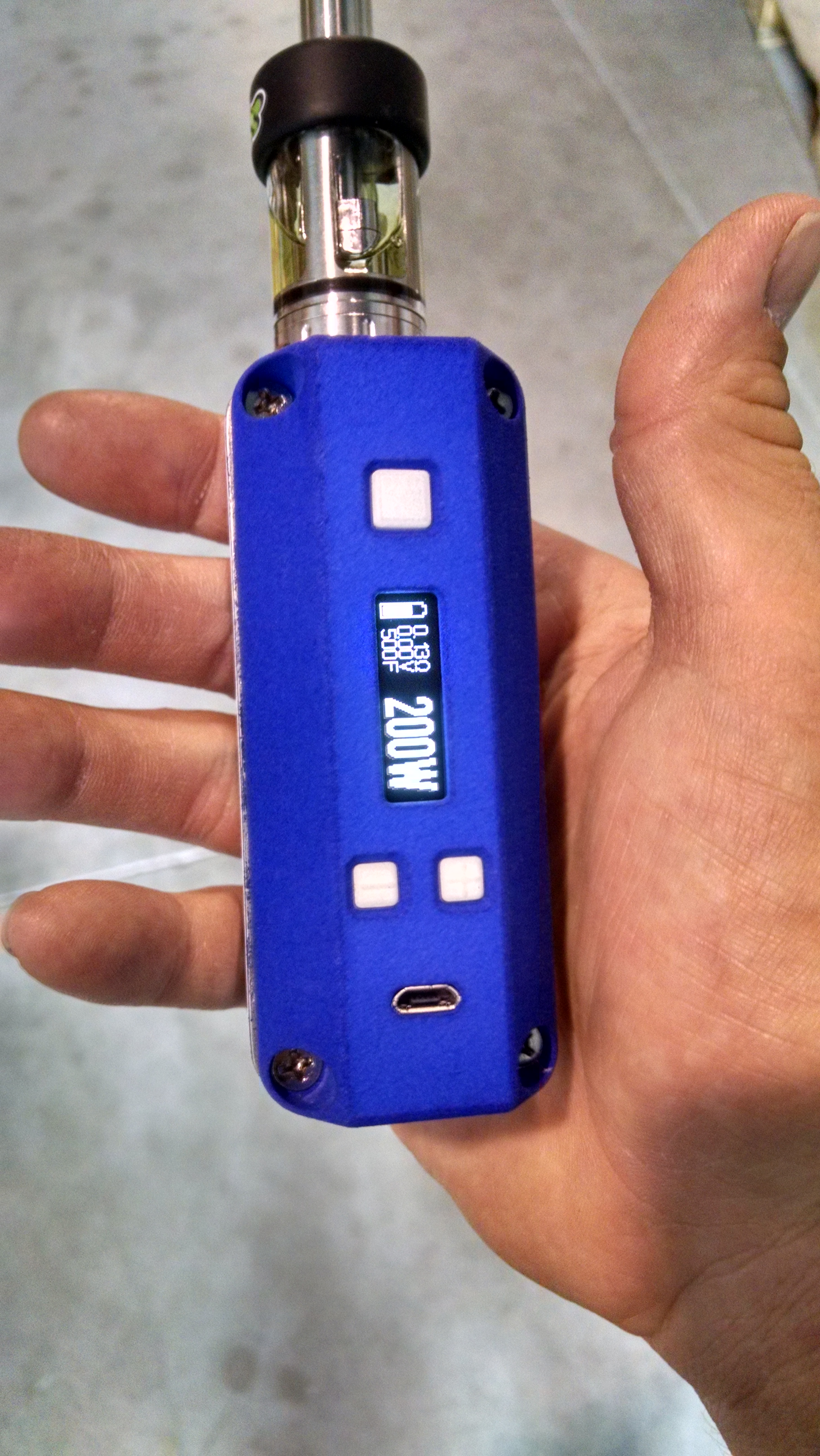

antyac2108 Posted July 10, 2015 Author Report Share Posted July 10, 2015 I really enjoy the DNA 40 and all the work you guy's do thank you for your time. This is what it looked like when I finished it Link to comment Share on other sites More sharing options...
macz Posted July 10, 2015 Report Share Posted July 10, 2015 antyac2108 said:It is both i have a hammond 1590A with a plastic lid replacement with a FDV 510. I dont have any before pictures sorry. Who do i send it to and what address I guess you need to go here for RMA http://www.evolvapor.com/warranty.php Link to comment Share on other sites More sharing options...
VapingBad Posted July 10, 2015 Report Share Posted July 10, 2015 Could it be the fire switch earthing, IIRC it has to be isolated as one side is battery +ve. Link to comment Share on other sites More sharing options...
Brandon Posted July 10, 2015 Report Share Posted July 10, 2015 @antyac I've Pm'd you with the information for the return. Link to comment Share on other sites More sharing options...
John Posted July 10, 2015 Report Share Posted July 10, 2015 My best guess from what I see is one of the three vias on board edge got soldered to the adjacent B+ pad due to the unusual edge-in soldering. They would have been directly below the b+ lead. Those three are part of the charger circuitry, so it would have worked fine until a charger was plugged in, then poof. I suspect if we get a picture of the front side of the board we will see damage to the charging electronics. But we are happy to replace the board, especially now while we look for bugs and collect information on potential trouble spots to warn against. Link to comment Share on other sites More sharing options...
antyac2108 Posted July 10, 2015 Author Report Share Posted July 10, 2015 I'll post pictures of the full bored when I get home from work today how do I get the board back to you John Link to comment Share on other sites More sharing options...
macz Posted July 10, 2015 Report Share Posted July 10, 2015 antyac2108 said:I'll post pictures of the full bored when I get home from work today how do I get the board back to you John Check your inbox, Brandon pm'd the info Link to comment Share on other sites More sharing options...
antyac2108 Posted July 10, 2015 Author Report Share Posted July 10, 2015 Yes he did thank you Link to comment Share on other sites More sharing options...
blueridgedog Posted July 10, 2015 Report Share Posted July 10, 2015 The solder looks cold...if the + side was the same, it could have heated up. Link to comment Share on other sites More sharing options...

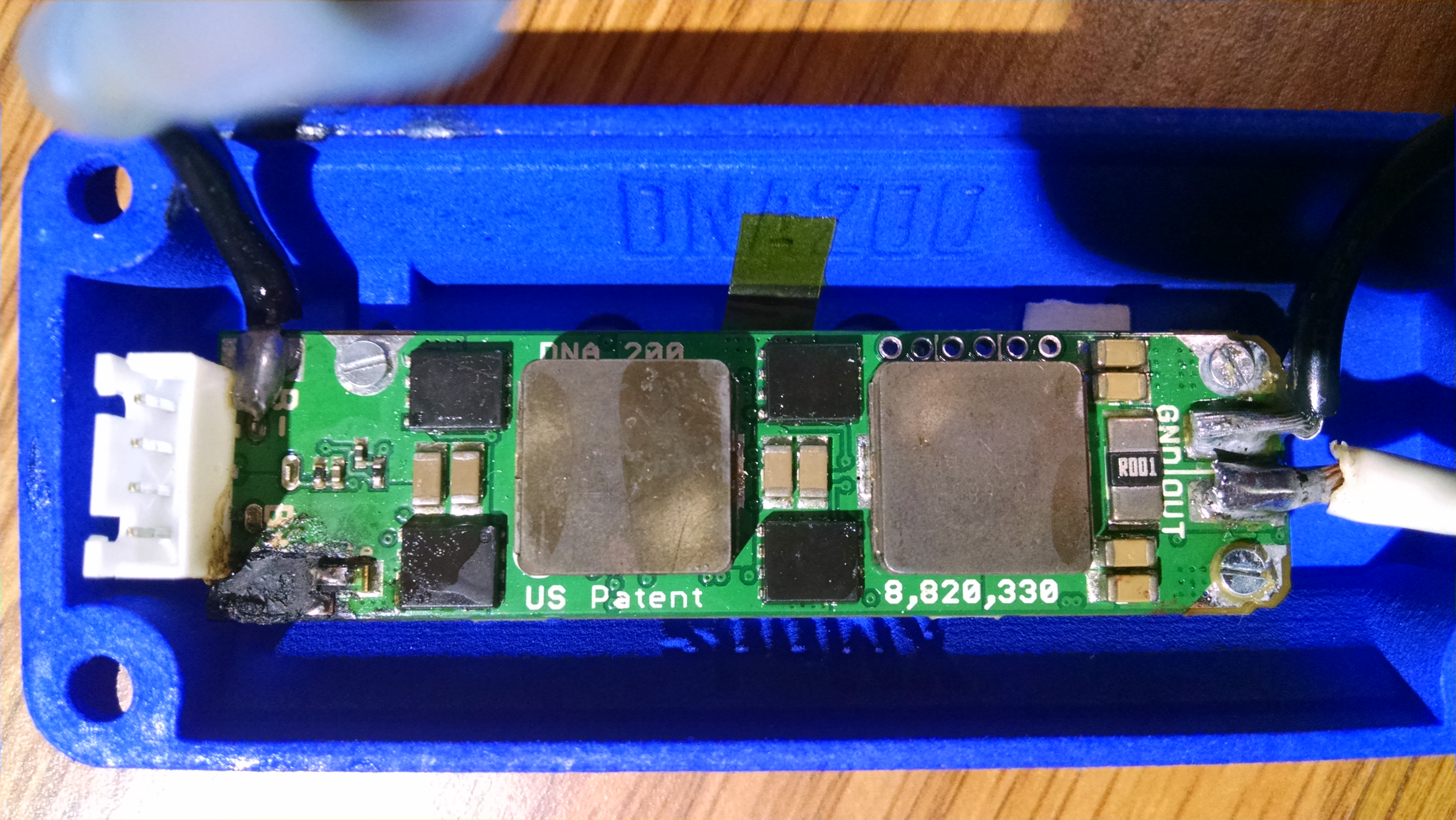

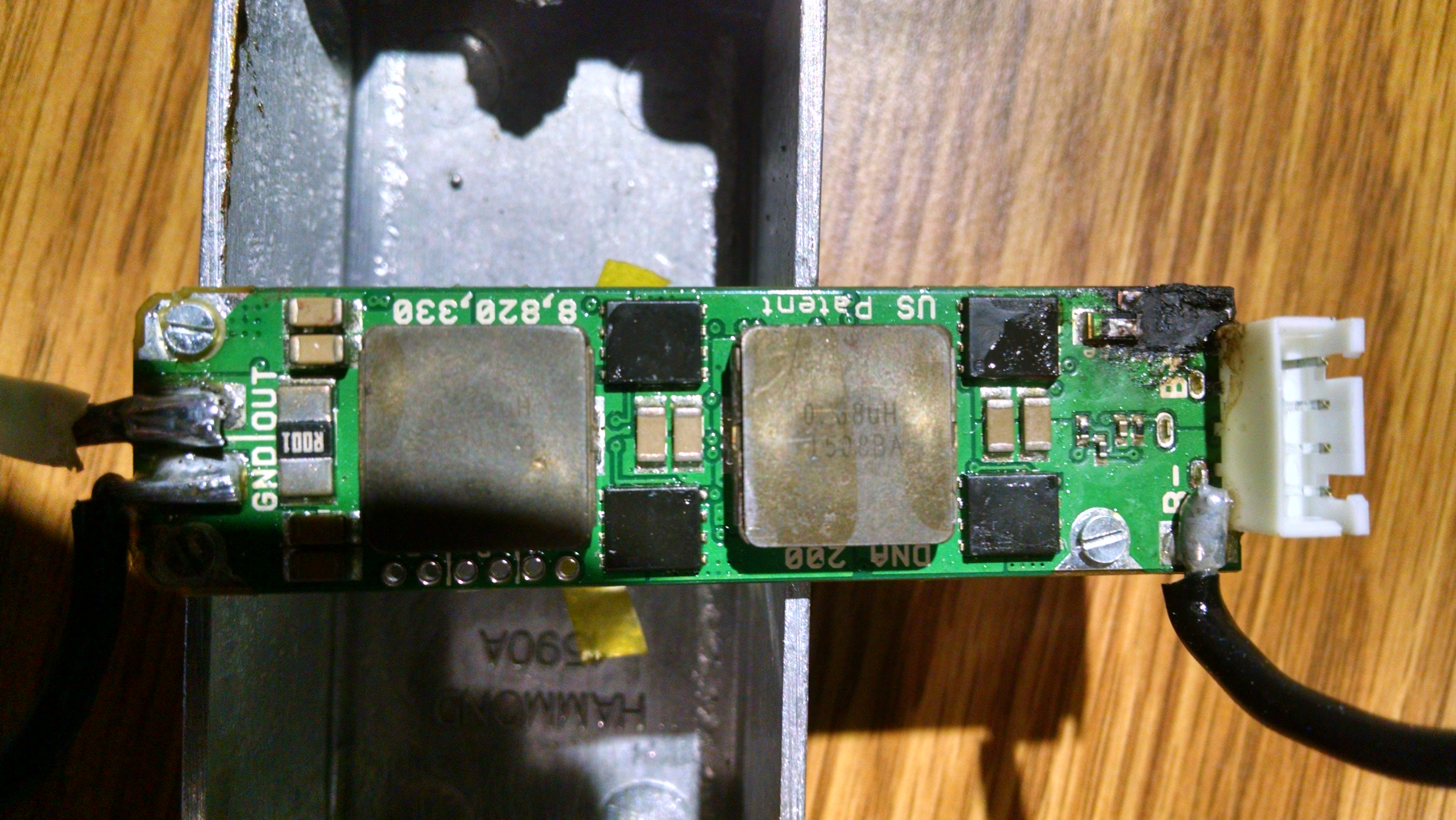

antyac2108 Posted July 11, 2015 Author Report Share Posted July 11, 2015 Here are are images of the of the whole board front and back. Link to comment Share on other sites More sharing options...
RickCain Posted July 11, 2015 Report Share Posted July 11, 2015 Looks like the fuse blew. Those solder joints have way too much solder on them both on the negative of the battery as well as the output pads.I'd say it experienced a hard short while in high watt mode.Sorry for your loss. Link to comment Share on other sites More sharing options...
VapingBad Posted July 11, 2015 Report Share Posted July 11, 2015 Soldering these thick wires is not class 101 stuff and before you get the new board I would have a good practice soldering them to get nice shiny clean slim joints, lots of info on the web, but practice makes perfect. We all have to start somewhere and top marks for going for it. Link to comment Share on other sites More sharing options...
antyac2108 Posted July 11, 2015 Author Report Share Posted July 11, 2015 I was already planning on it.I also ordered the proper wire and a new battery I am going to start practicing today and doing more research. Link to comment Share on other sites More sharing options...
Jcca1973 Posted July 13, 2015 Report Share Posted July 13, 2015 Hello my board stop working. Just use it for 3 days and now is dead I was using in power mod on a zephyrus tank at 35w and stop working I look and not see nothing burn. Link to comment Share on other sites More sharing options...
Bapgood Posted July 14, 2015 Report Share Posted July 14, 2015 Jcca1973 - Can you post more information and pics? Link to comment Share on other sites More sharing options...
James Posted July 15, 2015 Report Share Posted July 15, 2015 Jcca1973, what firmware version were you running? Link to comment Share on other sites More sharing options...

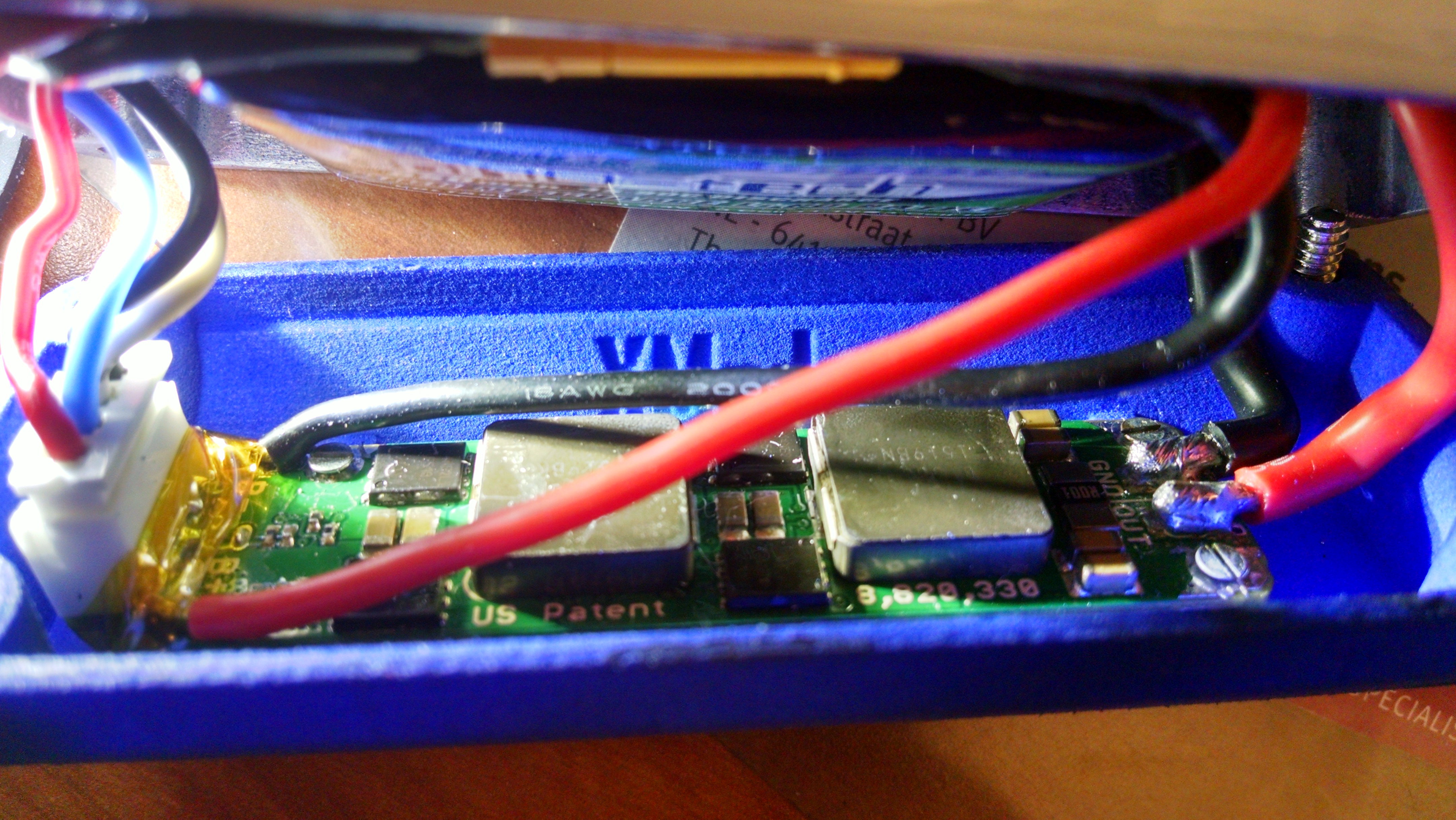

antyac2108 Posted July 21, 2015 Author Report Share Posted July 21, 2015 First off i want to say thank you all for the help. i got the new board in and running great finished it on saturday. Yesterday (Monday) it started to continue to fire after the button was pressed and it doesn't stop unless i press the up or down buttons. It first started to do it intermittently now its doing it everytime i press the fire button. I was extra careful this time on the install and it was working fine for two days until this started happening. Any suggestions would be greatly appreciated. Thank You. Link to comment Share on other sites More sharing options...
John Posted July 21, 2015 Report Share Posted July 21, 2015 Can you post a picture of how you have the board installed? Especially the connections for external buttons?Thanks! We'll get to the bottom of it. It isn't likely to be software, because software doesn't change after a couple days. Link to comment Share on other sites More sharing options...
antyac2108 Posted July 21, 2015 Author Report Share Posted July 21, 2015 I'm using the onboard buttons and i can hear it click on and off. Link to comment Share on other sites More sharing options...
antyac2108 Posted July 21, 2015 Author Report Share Posted July 21, 2015 It's a shapeway's case and buttons Link to comment Share on other sites More sharing options...
