Not in the near term. We have a number of beta testers using parallels, which works reasonably well. All our new products from here on out will have this sort of functionality, so maybe a native Mac version in q4 or 2016, but it isn't on our firm development schedule yet.

Link to comment
Share on other sites

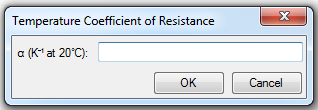

From a developers standpoint, what is the interfacing to this?  Is it JS in eclipse? or higher level?  I am interested in building discreet/custom wire profiles for our various wire products.  Is it going to be possible to build non-linear PTC scalars?  I.E. develop a TC scalar for each discreet product.  We have the necessary gear in our lab to test calibrations at various energy/heat levels.  I would like to give my customers a downloadable file for each of our wire compositions and sizes.  Thanks in advance.

Link to comment
Share on other sites

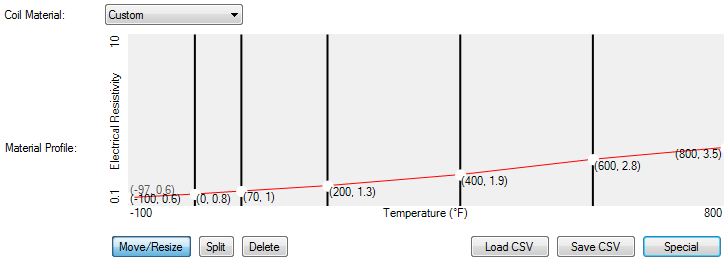

John so if I export thermocouple data, plus resistance data tend curves straight to .CSV (my equipment can lock to sample clock so the trends are time correlated) I can just bring that trend straight into eScribe?  No hard scripting necessary?  That would be very nice.  Also can the software/firmware handle non linear points in the trend curve?  Our wire has some unique properties at saturation.....it transitions from a linear PTC to a sawtooth when it hits temp saturation.  So in essence I would like to have a calibrated scalar for each discreet wire product, that conforms to a reasonable degree of sDev accuracy across the coil surface.  I am assuming this can easily be done with a traditional PTC scalar measurement method?  Thanks, this is very good news indeed.  :thumb:

Link to comment
Share on other sites

SSV, Maybe I am not understanding your post, but I don't see how a sawtooth could be implemented with simple resistance measurement TC. That would necessitate that the wire has a negative coefficient on the trailing edge of the sawtooth? How would the device know which side of the sawtooth it is on just by measuring resistance?

Link to comment
Share on other sites

Alexander, this is why I asked.  You could track the tail (low side) of the sawtooth with a param for a "decrease" in resistance.....and implement a corrective lockout to NOT throttle power when that waveform is seen over X time.  We do this quite often in other thermistors, when they reach saturation maximums and become non linear....I have a lot of experience with dc/dc controllers and we typically do this through hysteresis

EDIT : here is a reasonably good article that might peak your interests https://sensorsandtransducers.wordpress.com/2012/02/07/thermistors/

because of the quantization of a 10 or 12 bit a/d the pure sine will be interpenetrated as a sawtooth.....in a 24 or 32 bit system we can get scalars that are more analogous to actual input waveforms, but I doubt it would be practical to implement a 24/32 bit a/d and associated vRef with any kind of stability in response....so we are stuck with interpolation errors, that look like a sawtooth

thankfully most modern McU have a hysteresis object library, to correct for such "problems".....simply patching a hysteresis control algorithm into the DO loop can help "smooth" the curve

Link to comment
Share on other sites

I am fairly certain I read somewhere that it would only take increasing resistance values but I can't find the reference. I remember because I saw a curve one time that plateaued and went back down before increasing again and it made me think about what would happen in a closed loop system with simple resistance feedback.

Link to comment
Share on other sites

Alexander, have a look at the last post I made to you....I amended it with some more information on how we can solve these potential "issues".....this is a fairly common subject we encounter, when dealing with thermistors, thermo couples, and RTD controllers


hysteresis is the name of the game =)
