Too bad more than 2 months for a small screen, but I will wait because my xvostick needs escribe, as I switched to SS coils. I hope the buttons line up and everything because I wouldnt want to chop on it although its beat up anyhow. Has anyone done a xvostick replacement yet?

  • 1 month later...
Posted
Levivapes said:

Now I just gotta get a board in her...



Ive the same idea for my RDNA. Lots of de-soldering though from the daughter board but would be worth it for the Zip charging.
Posted

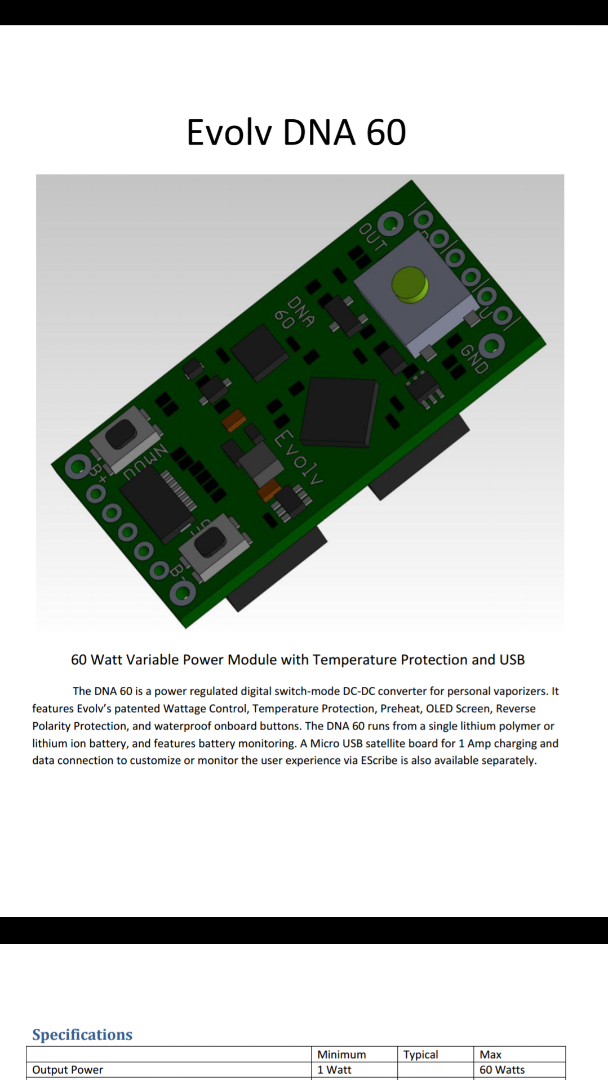

Still waiting for a small screen DNA60 to appear in a U.K retailer, all the webshops say "due october"... and were at the end of November now..

I'm in the middle of retro fitting my silver Hana V3, FDV v4 & Mitec button fitted. fingers crossed this comes out soon :-/

Posted

I'm waiting for some new mods to appear. I guess the board is not widely available yet.

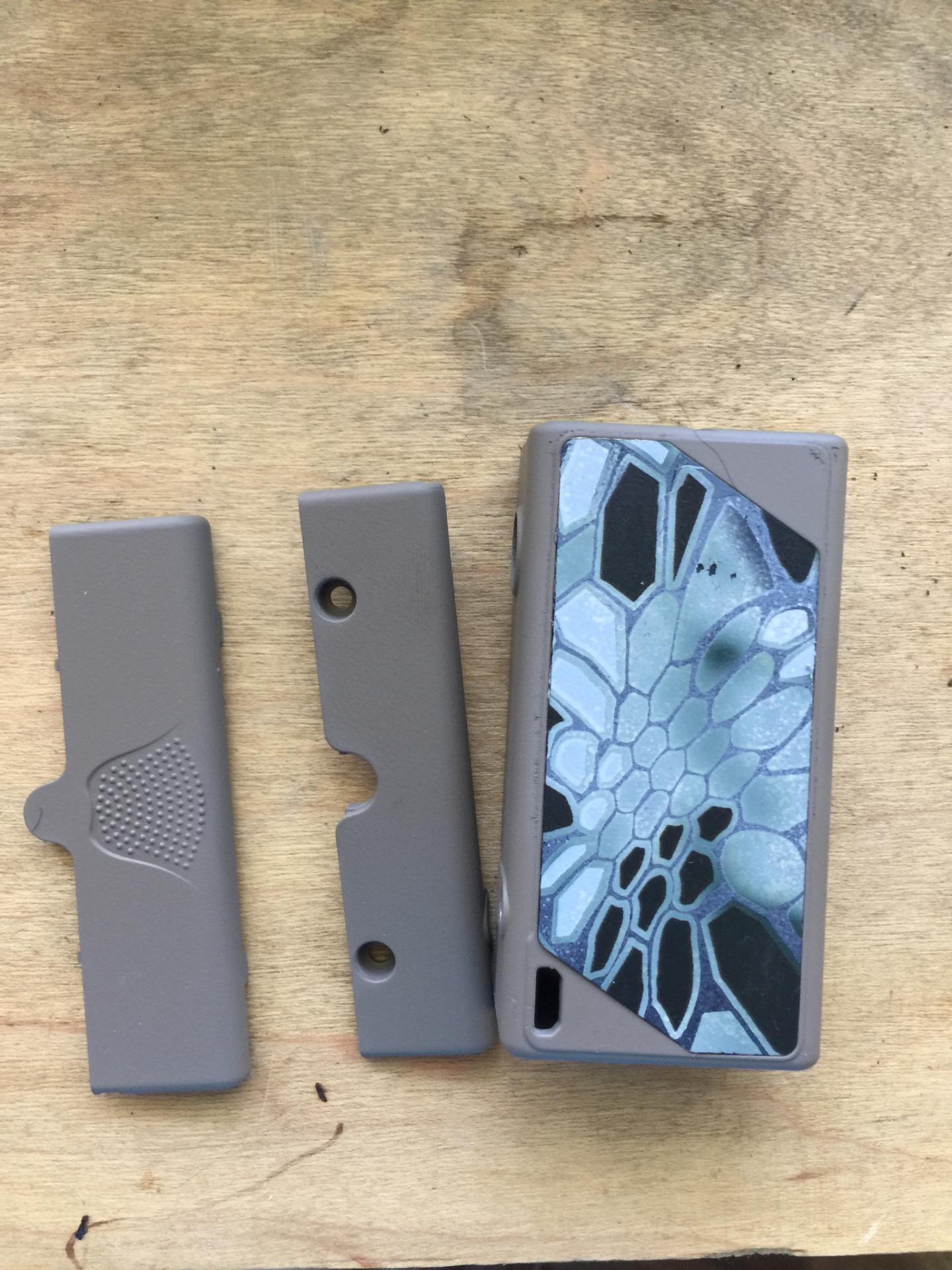

@turbocad6 - That is exactly what I want! Small DNA60 Squonk mod. That looks amazing.

  • 2 weeks later...
Posted

I have a couple of boards on the way to the UK, not too bothered about the USB for charging or themes.

Would it be possible to transplant this into a big screen DNA 40 squonker?

Posted
disk0 said:

I have a couple of boards on the way to the UK, not too bothered about the USB for charging or themes.

Would it be possible to transplant this into a big screen DNA 40 squonker?



Absolutely if you can get one lol
Posted

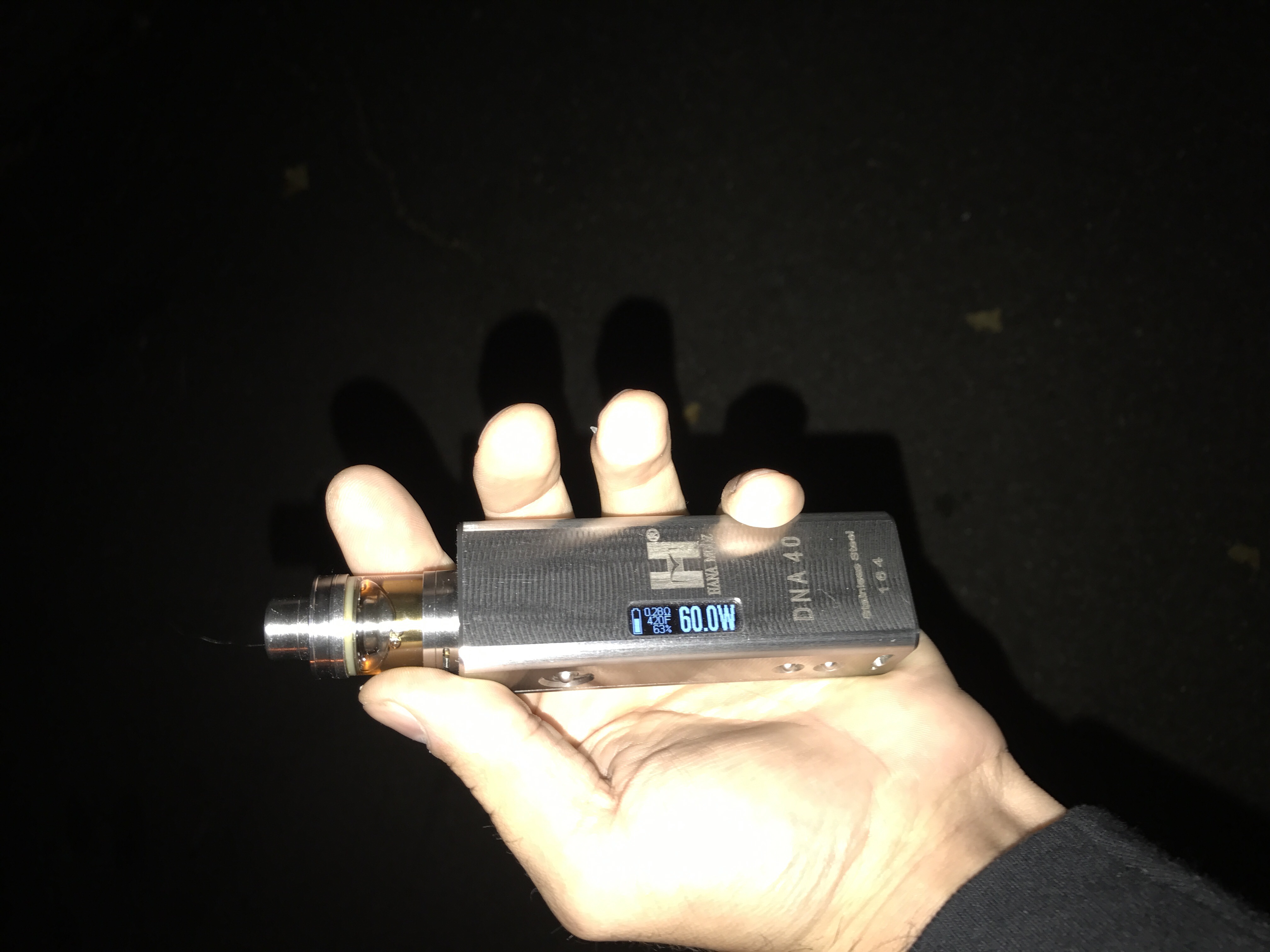

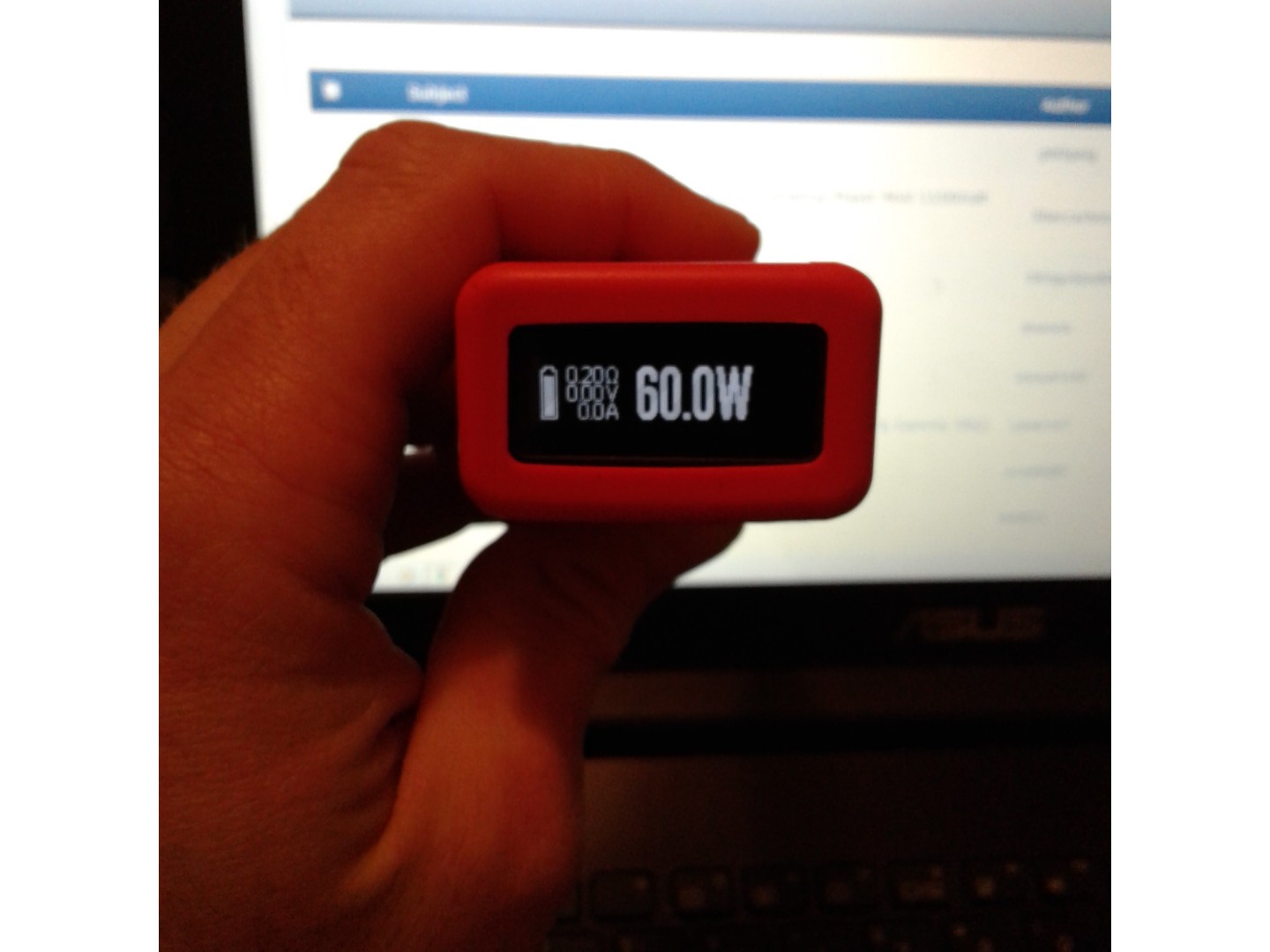

rDNA 40 with a DNA 60 stuffed inside. (this is not a simple direct transplant. there is moderate modding, repositioning of "stuff" and tedious soldering needed, especially if you want EScribe to work with Vaporshark's daughter board.)
20161210_233848.jpg  20161210_233859.jpg

Posted
greenj22 said:

How did you get EScribe to work through the daughter board? Are you using the VS USB and getting the 2 amp charging?

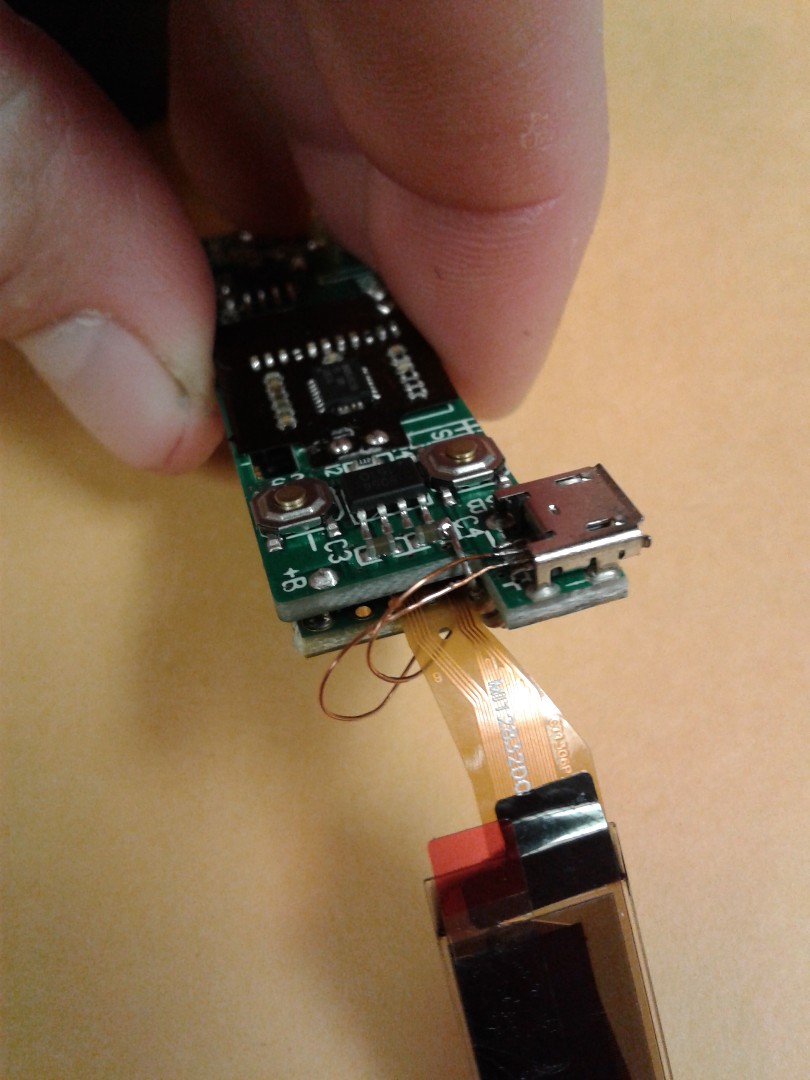

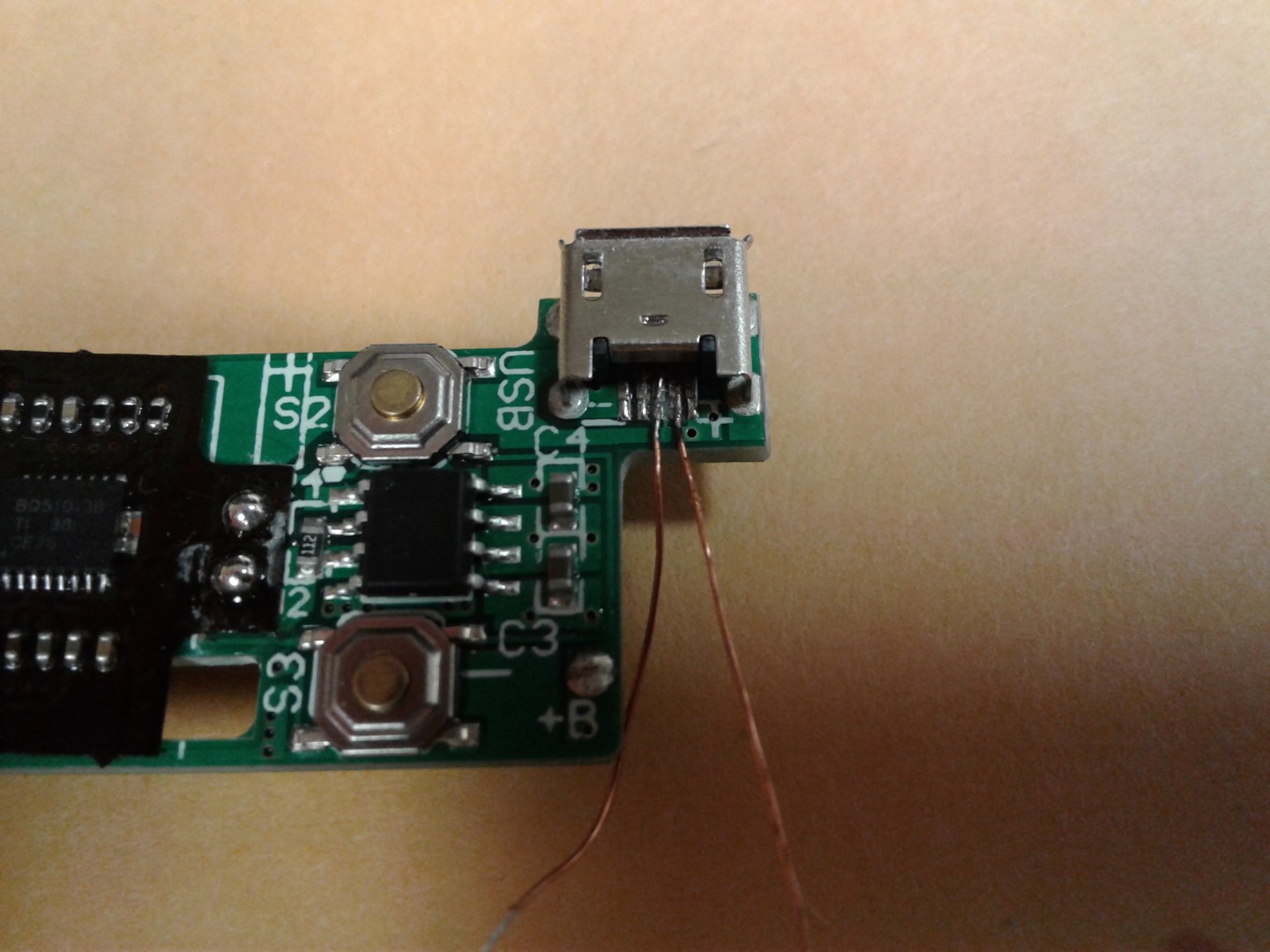

 i soldered very thin enamel coated copper wire directly to the usb data+ and data- pinouts. the 2 amp charging, QI wireless charging, reverse battery buzzer, etc. all work.20161208_213043.jpg  20161208_220515.jpg
Posted
ChunkyButt200 said:

 i soldered very thin enamel coated copper wire directly to the usb data+ and data- pinouts. the 2 amp charging, QI wireless charging, reverse battery buzzer, etc. all work.20161208_213043.jpg  20161208_220515.jpg



That is pretty brilliant!  Really nice work!!!
Posted
ChunkyButt200 said:

correct, USB VDetect -10k res - +5v USB.

Is the +5v another one of the pins right on the USB connector as well? Been thinking of doing the same, and haven't gotten everything desoldered to take a look at the daughter board itself.
Posted
joelhammonds said:

Is the +5v another one of the pins right on the USB connector as well? Been thinking of doing the same, and haven't gotten everything desoldered to take a look at the daughter board itself.

yes it is. it is the far right pin. you can do that but i found it easier to bend the leg of the 10k resistor over to the input capacitor of one the daughter board's charging chips.

i circled the place i connected the 10k res to in red (be sure to solder the resistor leg on the + side of the ceramic capacitor, the positive side has "C4" in white). it is USB (VBUS) +5v.
Posted
ChunkyButt200 said:

yes it is. it is the far right pin. you can do that but i found it easier to bend the leg of the 10k resistor over to the input capacitor of one the daughter board's charging chips.

i circled the place i connected the 10k res to in red (be sure to solder the resistor leg on the + side of the ceramic capacitor, the positive side has "C4" in white). it is USB (VBUS) +5v.

Sorry, if this is dumb. But solder it directly to the ceramic capacitor? Edit: Also meant to add, or to one of the pin holes next to the capacitor?
Posted

@joelhammonds - yes, the positive side of capacitor. those pin holes are vias don't concern yourself about those.

another option is this pin of the charging IC, it's all on the same circuit, whatever is easier.
TBH and don't get offended, if you're not that familiar with circuits or soldering this can end up being a very difficult modification and a big headache. i didn't mention this but i also had to grind away an aluminum post for the DNA 60 to fit.

Posted
ChunkyButt200 said:

TBH and don't get offended, if you're not that familiar with circuits or soldering this can end up being a very difficult modification and a big headache. i didn't mention this but i also had to grind away an aluminum post for the DNA 60 to fit.

No offense taken, cause honestly I'm not all that experienced, but I'm thinking I'm gonna give it a shot anyway. And I've opened it up and kind figured it would need some internal modification based on the specs of the new board. I'm going for a high risk learning experience. Haha.
Posted
ChunkyButt200 said:

@joelhammonds - yes, the positive side of capacitor. those pin holes are vias don't concern yourself about those.

another option is this pin of the charging IC, it's all on the same circuit, whatever is easier.
TBH and don't get offended, if you're not that familiar with circuits or soldering this can end up being a very difficult modification and a big headache. i didn't mention this but i also had to grind away an aluminum post for the DNA 60 to fit.



Thanks for the pics I am going to be doing the same this takes the guess work out of it.
Posted

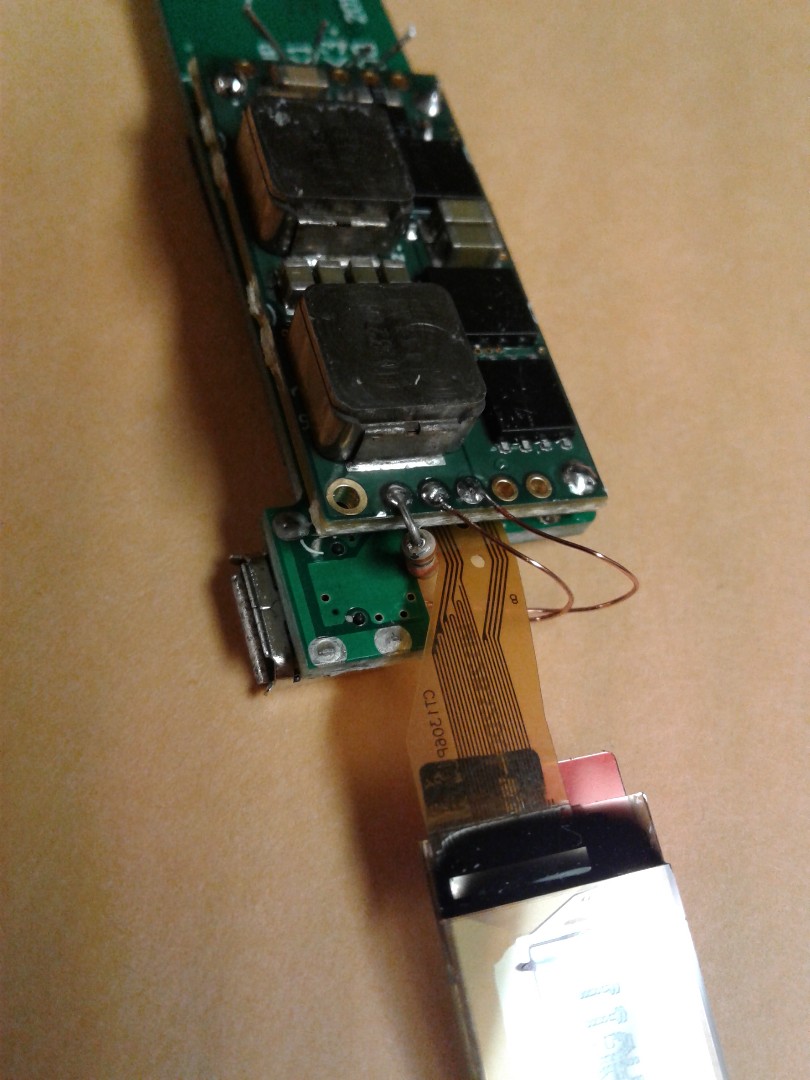

here's another pic of the install. you can sort of see where i connected the 10k res to on the daughter board. it may help some......
FYI, you need to install the screen ribbon to the DNA 60 before soldering mating the two boards. i also removed the DNA's up and down buttons (not the entire button, just unclipped the actuators).
