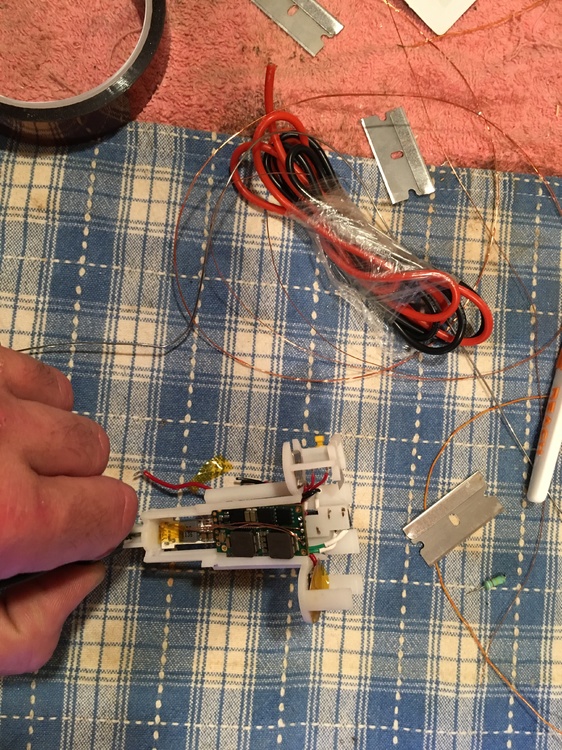

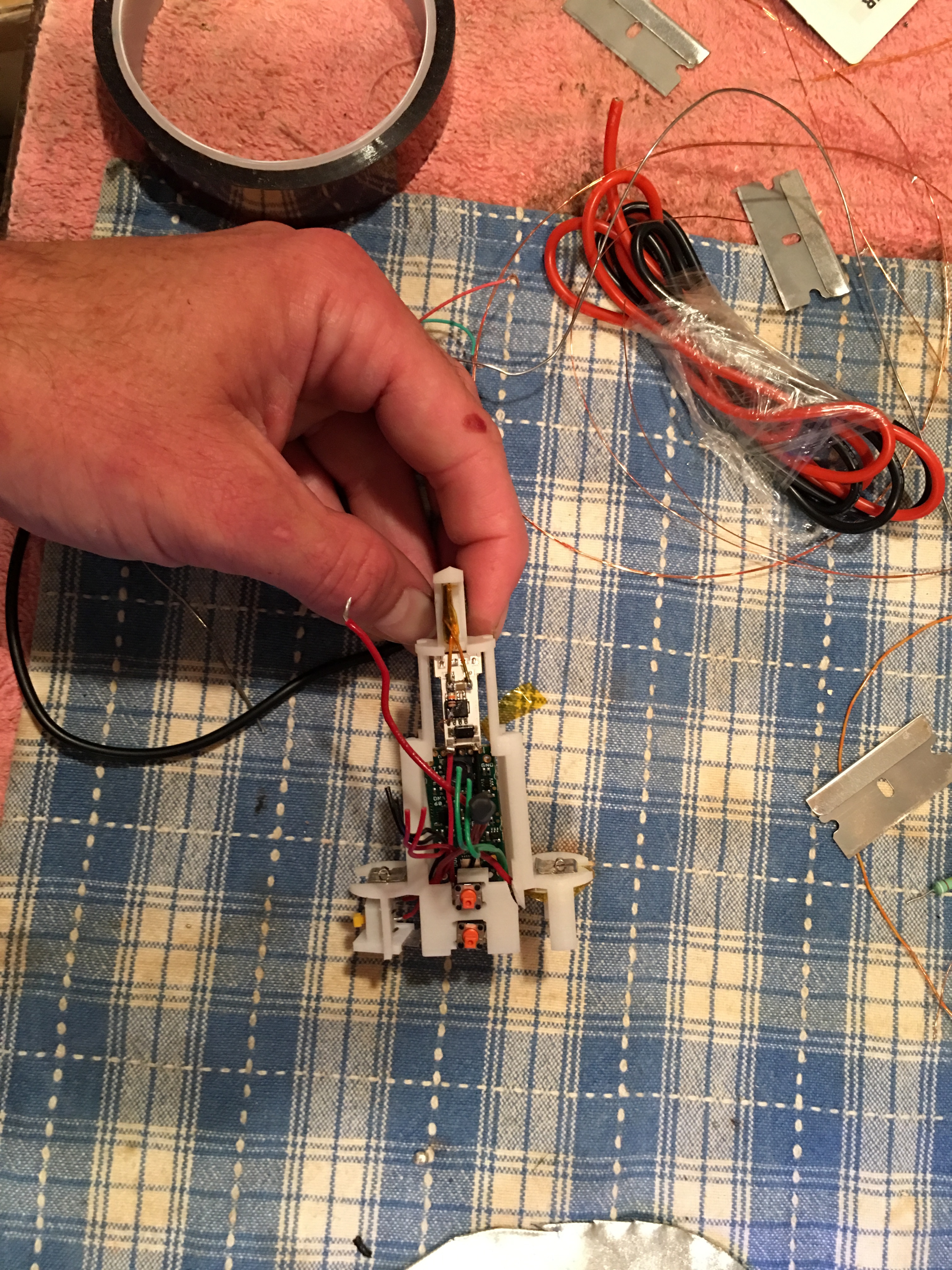

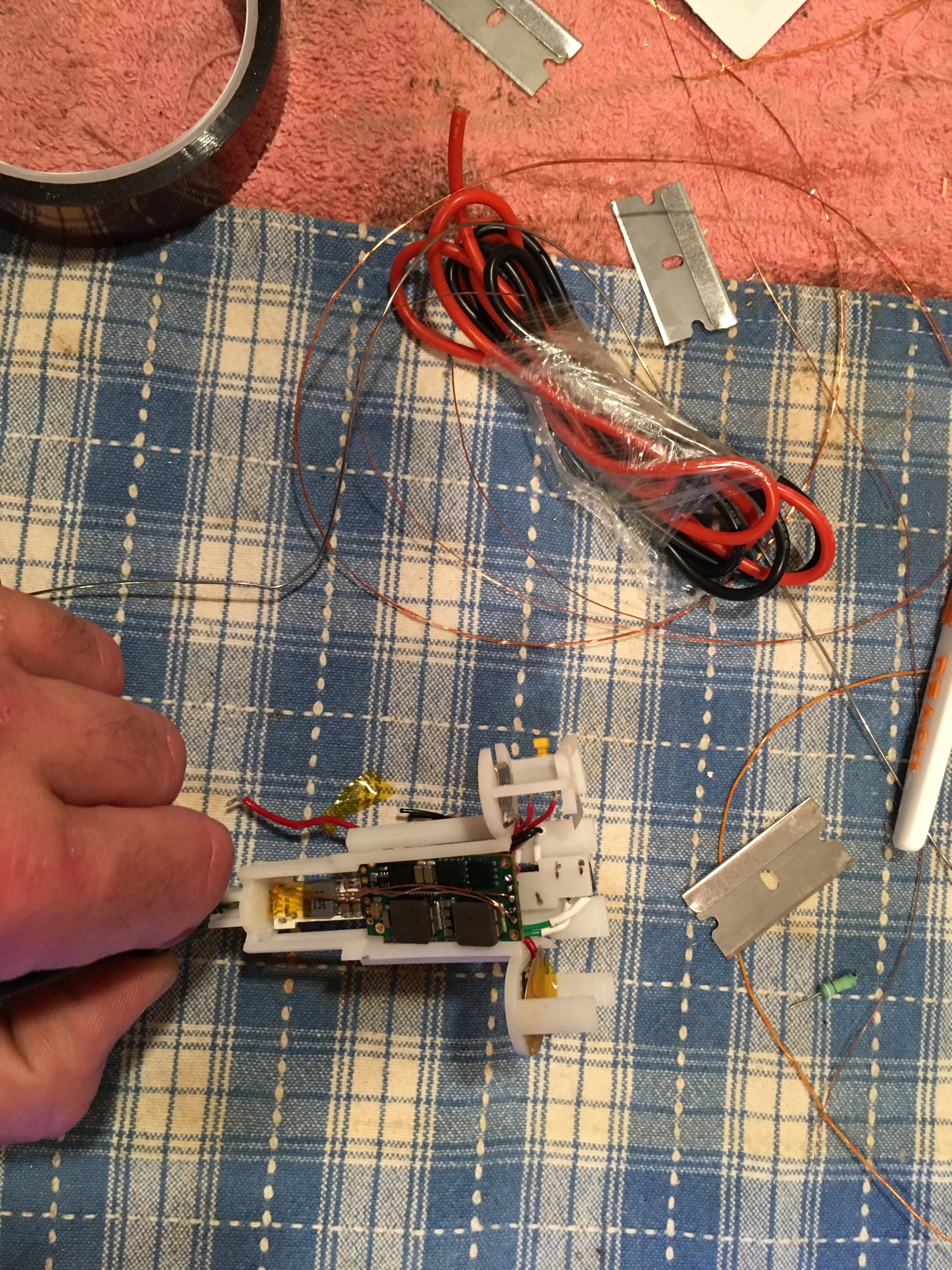

Spector NS5 RD Posted June 22, 2017 Report Share Posted June 22, 2017 So here's my go at a DNA 60 small screen. (this was kind of a pain to do but doable. the DNA 60's 2 inductors are taller than the DNA 40's single one and with the DNA 60's addition of EScribe/data lines puts the "aggravation cherry" on top!) Got myself a Vaporflask DNA 40, a while back, from the ECF classifieds at great price. I knew the DNA 60 small screen was eventually going to come out so i figured this would be a great housing for the new board. This flask still uses the 500mA charger board that came with it originally. The charging/data board that comes with the DNA 60 is way to big to retrofit inside the flask. So I "windshield wipered" all of the charging components off of the board, with a soldering iron, except the micro USB port. I soldered tiny enamel coated wires from the back of the micro USB pinout for the data lines and thicker enamel wires for USB +5v ~ -5v. Parts...... Vaporflask DNA 40 DNA 60 SS Separate 2 amp lithium ion charger http://www.ebay.com/itm/Mini-4-2V-2A-Micro-USB-18650-Lithium-Battery-Charging-Board-LED-Charger-Module-/182275780781?_trksid=p2385738.m2548.l4275 enamel wire (found from most any circuit board choke, transformer, speaker, etc) 10k resistor (also very common on most any PCB) 5 1 Link to comment Share on other sites More sharing options...
John la Posted June 29, 2017 Report Share Posted June 29, 2017 DNA 60 in a alpinetech p box a pain in the butt 4 Link to comment Share on other sites More sharing options...
67exec Posted July 5, 2017 Report Share Posted July 5, 2017 In a vaporflask clone with charge board and no daughter board 5 Link to comment Share on other sites More sharing options...
Eric DeCastro Posted August 22, 2017 Report Share Posted August 22, 2017 I like the dual 18650, I was going to buy a kit on ebay that has all the cut outs but I wanted to do parallel batteries. now I see it can be done. awesome. Link to comment Share on other sites More sharing options...
67exec Posted August 22, 2017 Report Share Posted August 22, 2017 This will becom a single battery squonker in the near future. Just trying to decide which 510 I want. Probably going modmaker 16mm with 18mm flat washer Link to comment Share on other sites More sharing options...
John la Posted April 20, 2018 Report Share Posted April 20, 2018 Who remembers hana modz 5 Link to comment Share on other sites More sharing options...
MikeyConti Posted October 4, 2018 Report Share Posted October 4, 2018 On 4/20/2018 at 4:40 AM, John la said: Who remembers hana modz A friend on ECF switched a Hana V4 to the DNA-60 which I plan on in the future.. I like a lot of Hana Modz cases such as that one! 2 Link to comment Share on other sites More sharing options...
Podunk Steam Posted November 22, 2018 Report Share Posted November 22, 2018 On 4/20/2018 at 2:40 AM, John la said: Who remembers hana modz I remember Hana Modz ;0) 1 Link to comment Share on other sites More sharing options...
West84 Posted May 10, 2019 Report Share Posted May 10, 2019 Well,as clean as possible. Only need to isolate up/down wires 3 Link to comment Share on other sites More sharing options...

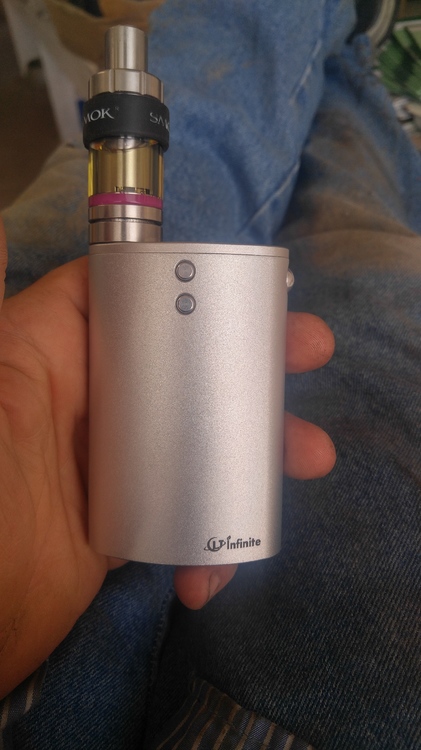

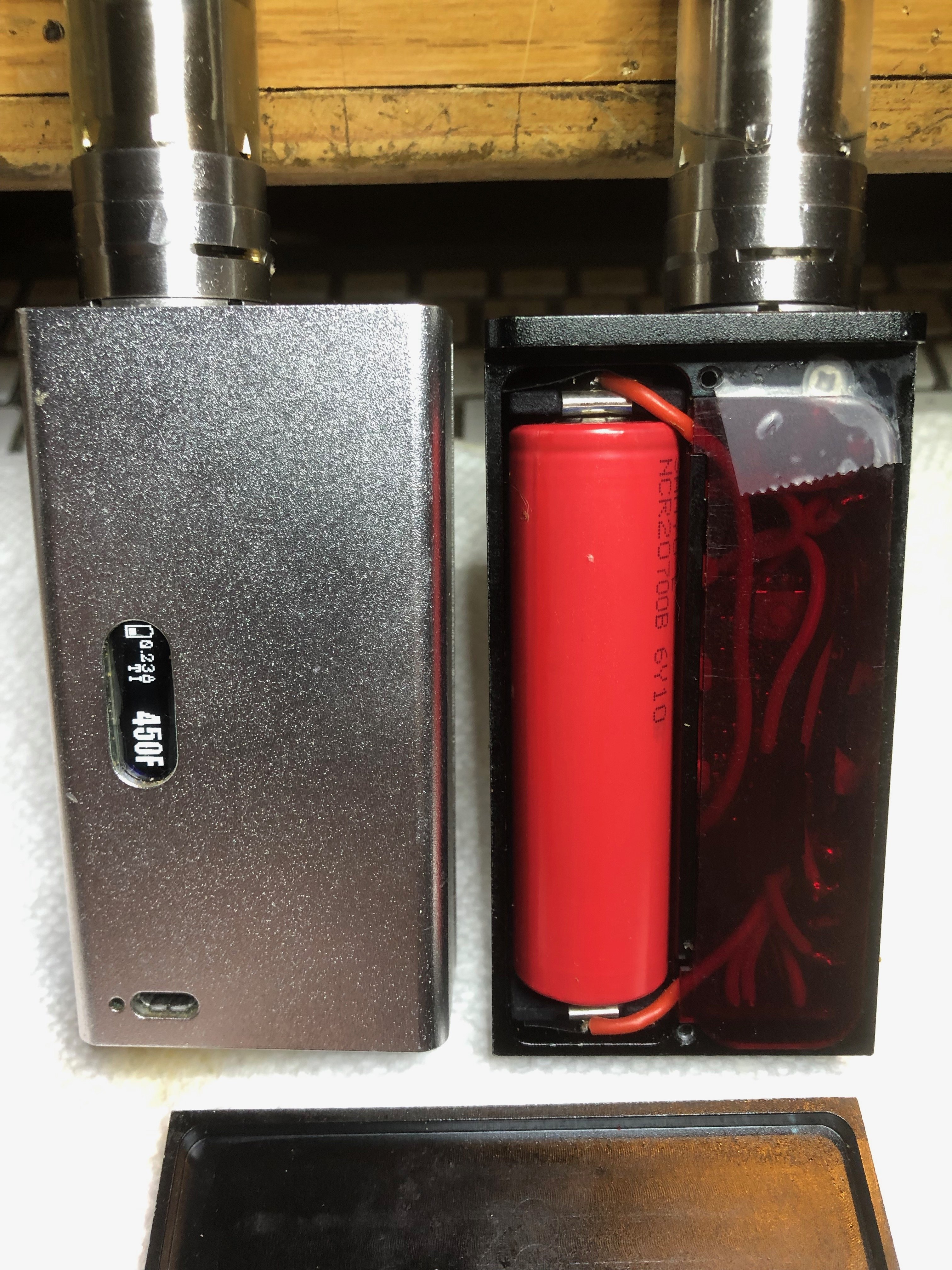

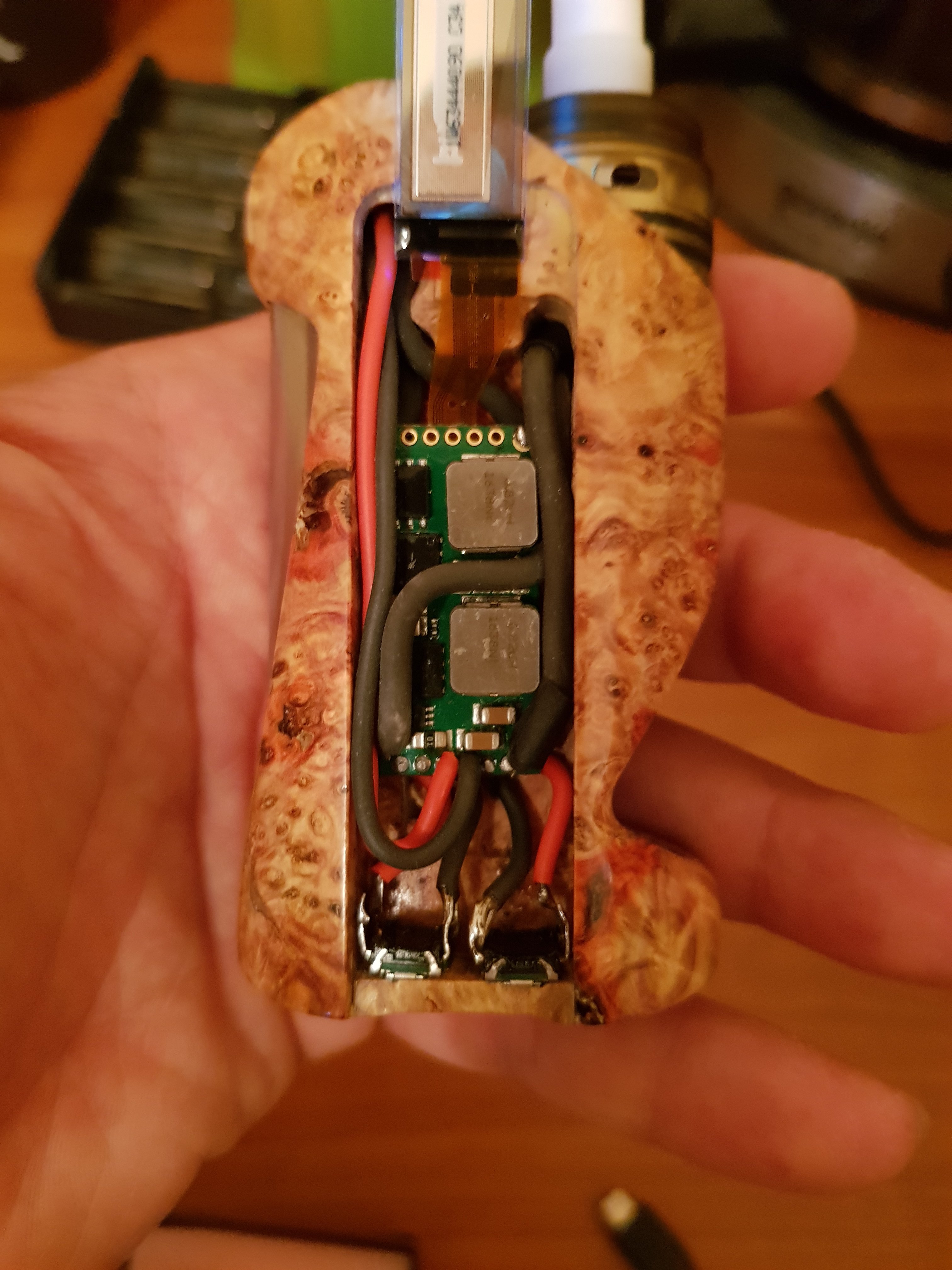

steamer861 Posted May 12, 2019 Report Share Posted May 12, 2019 I upgraded these old Hana box's. I found a 3D printed sled at Shapeways & fitted the box with a 20700! It fit perfect with no mods to the case at all! Battery life is great with the Sanyo B I wanted to upgrade the door from screws to magnets, but never got around to it 4 Link to comment Share on other sites More sharing options...

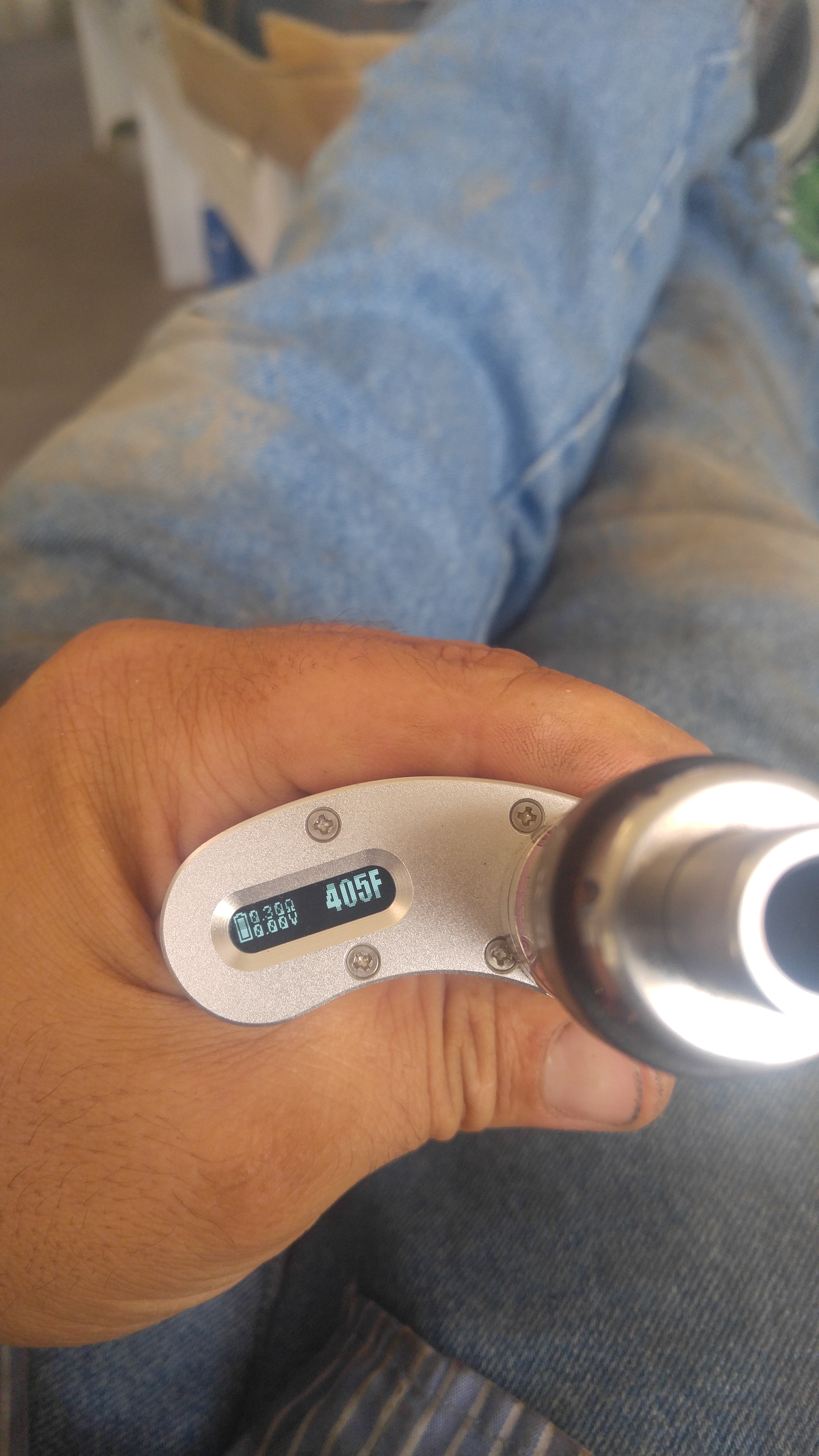

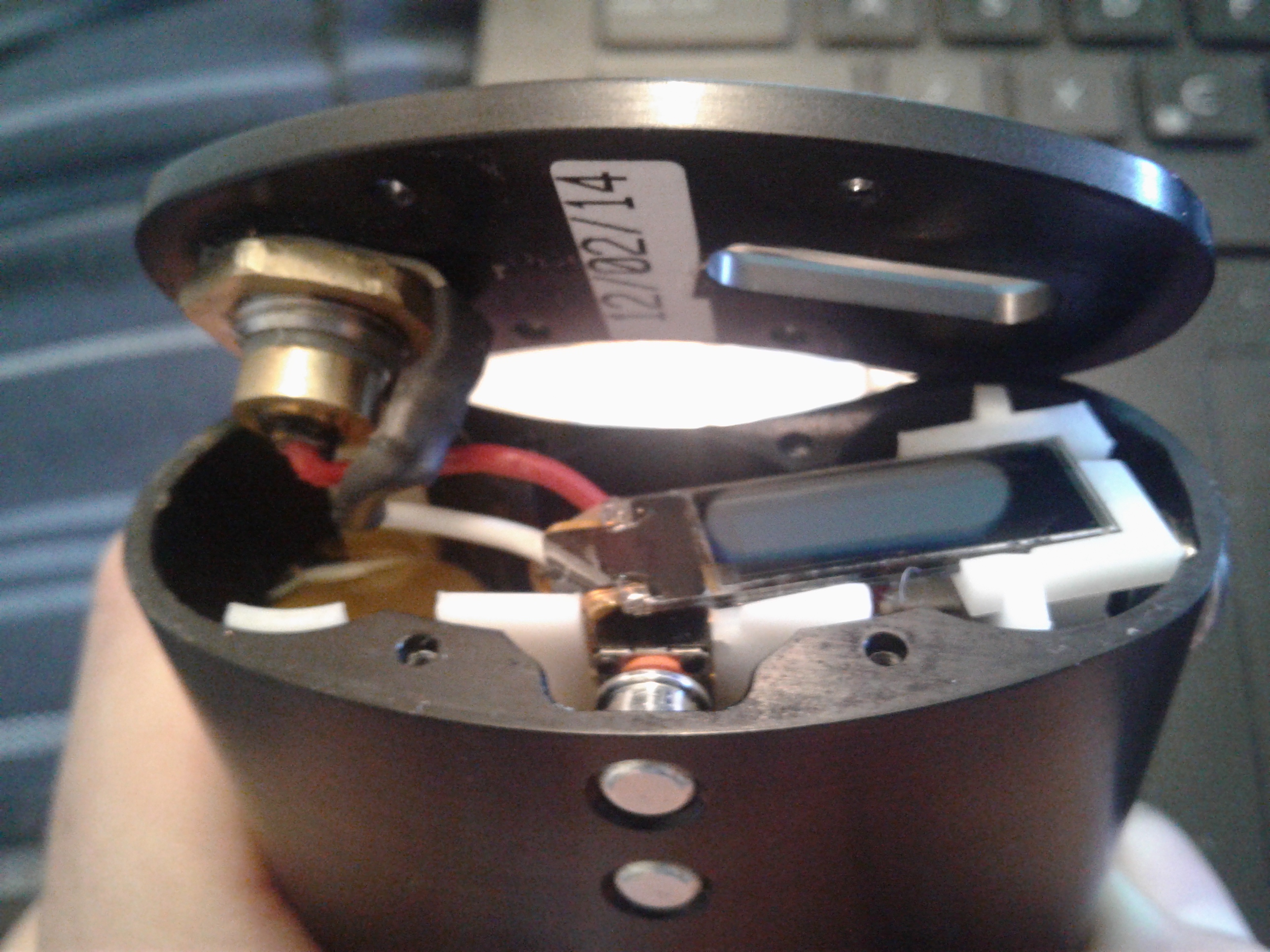

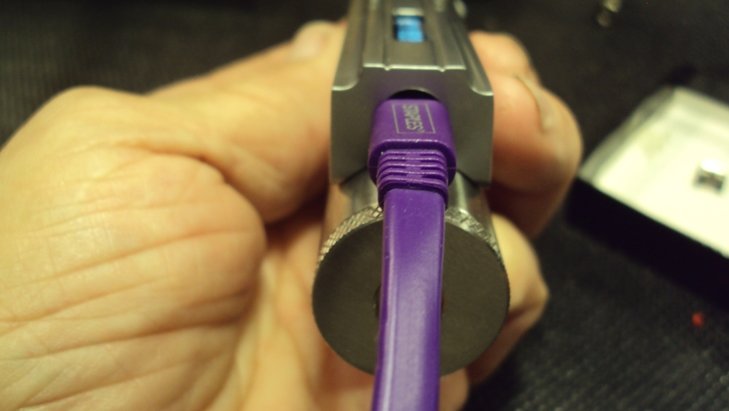

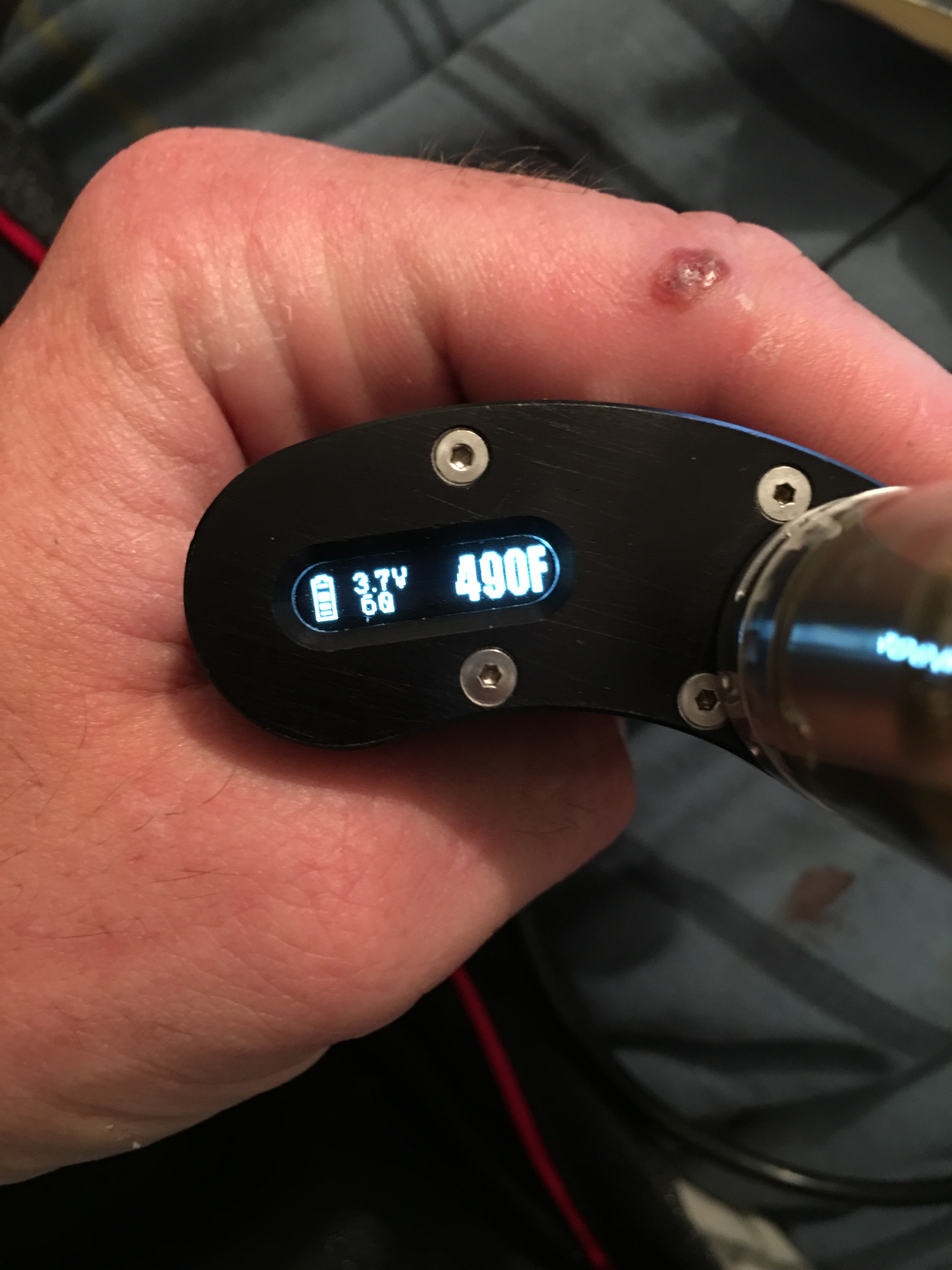

Willy Posted October 4, 2019 Report Share Posted October 4, 2019 (edited) How about a ZNA 60! Took a new old stock ZNA clone, installed the 60, drilled a hole in the bottom for a USB post, wired it up for Escribe access w/o charging. I also upgraded that darn crappy screw adjustable 510 by drilling out the top cap so I can drop the 510 in and lock it down with a set screw from the side, I used one of the VariTube V1 510's, they have always worked well for me. I have three more of these new old stock ZNA clones on my bench but I don't know if I want to build any more of them. I also put a 60 with the data/charge board in one of the Hana V4 mods. Don't have any pics of mine which is the same blue as John la's above, these pics are just some I grabbed off the net to give you and idea what the V4 looks like. I have one more of these waiting on my bench for another 60 build. Bought a pair of them that were new old stock, there was a fellow (zbbmods) on ebay who was selling left over stock from Hana after they closed their doors. I really like this tiny and light V4, and it really works well. Edited October 4, 2019 by Willy 5 Link to comment Share on other sites More sharing options...

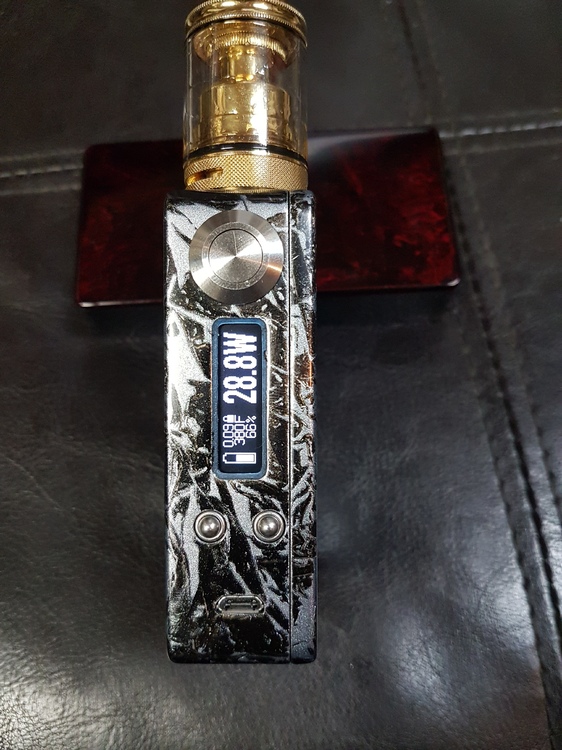

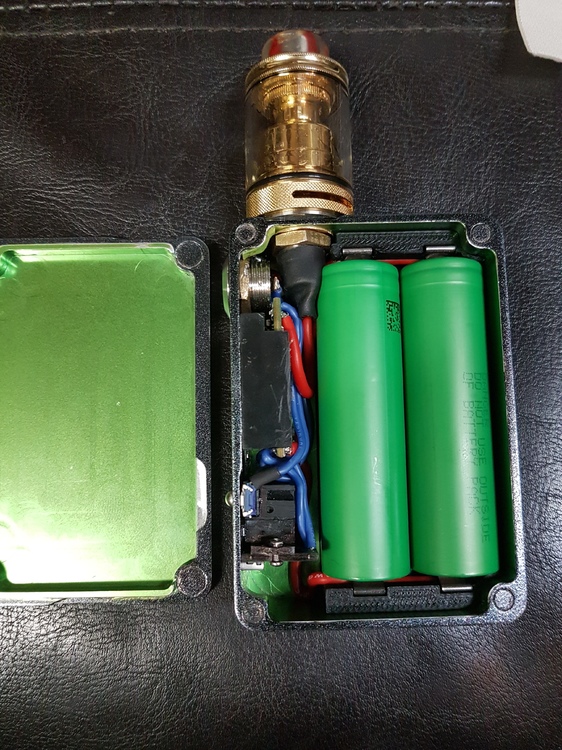

Austin Green Posted November 29, 2020 Report Share Posted November 29, 2020 OG (was green) V4 DNA60 with: Shapeways DNA40 Mounting sled (direct fitment) Modmaker v2 510 (U.K) (threaded case = no lock nut required) Mitec Fire Button Stealthvape data ribbon wire (U.K) Custom cerakote 'splat' design by SVB cerakote coating & servicing (U.K) 2 Link to comment Share on other sites More sharing options...
Drugoss Posted July 28, 2022 Report Share Posted July 28, 2022 Il 22/6/2017 in 05:17 , Spector NS5 RD ha scritto: So here's my go at a DNA 60 small screen. (this was kind of a pain to do but doable. the DNA 60's 2 inductors are taller than the DNA 40's single one and with the DNA 60's addition of EScribe/data lines puts the "aggravation cherry" on top!) Got myself a Vaporflask DNA 40, a while back, from the ECF classifieds at great price. I knew the DNA 60 small screen was eventually going to come out so i figured this would be a great housing for the new board. This flask still uses the 500mA charger board that came with it originally. The charging/data board that comes with the DNA 60 is way to big to retrofit inside the flask. So I "windshield wipered" all of the charging components off of the board, with a soldering iron, except the micro USB port. I soldered tiny enamel coated wires from the back of the micro USB pinout for the data lines and thicker enamel wires for USB +5v ~ -5v. Parts...... Vaporflask DNA 40 DNA 60 SS Separate 2 amp lithium ion charger http://www.ebay.com/itm/Mini-4-2V-2A-Micro-USB-18650-Lithium-Battery-Charging-Board-LED-Charger-Module-/182275780781?_trksid=p2385738.m2548.l4275 enamel wire (found from most any circuit board choke, transformer, speaker, etc) 10k resistor (also very common on most any PCB) hello to everybody, trying to replace screws on my vf, maybe u have the right measurements? mine are totally F**D up Link to comment Share on other sites More sharing options...
