scooby

Common ground

Recommended Posts

As the board has common ground am I correct in thinking I can connect the battery neg to the 510 and then on to the ground pad rather than going to the B-?

I won't be relying on the enclosure as a part of the path, there will be continuity between the battery neg and the ground pad. I'll still be grounding the board via the mounting lugs.

Share this post


Link to post
Share on other sites

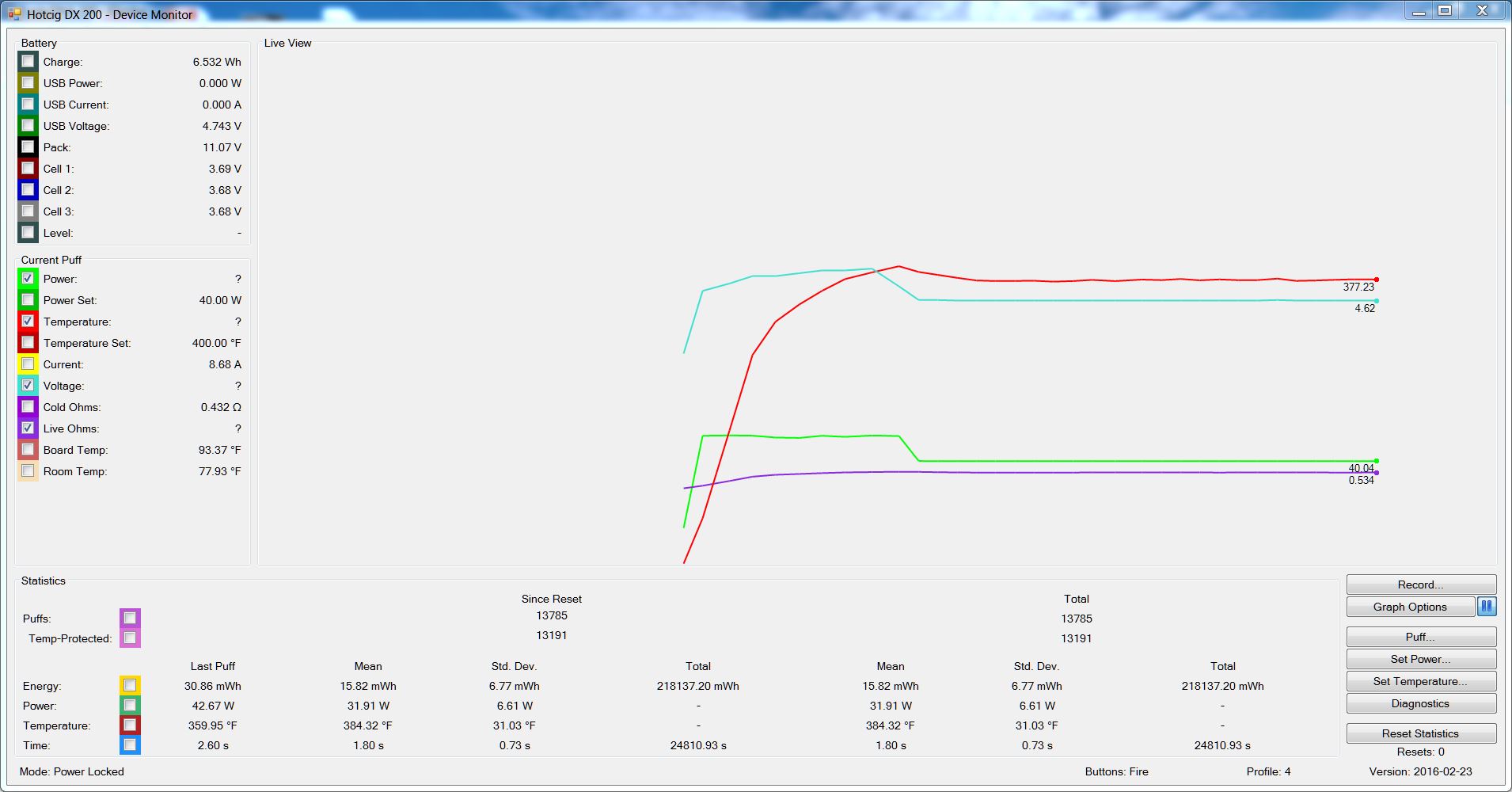

Check this out. Here is my Hotcig DX200 with a Subtank with a Ni200 0.09 ohm in the RBA Mini Plus.

[7Pv6lle]

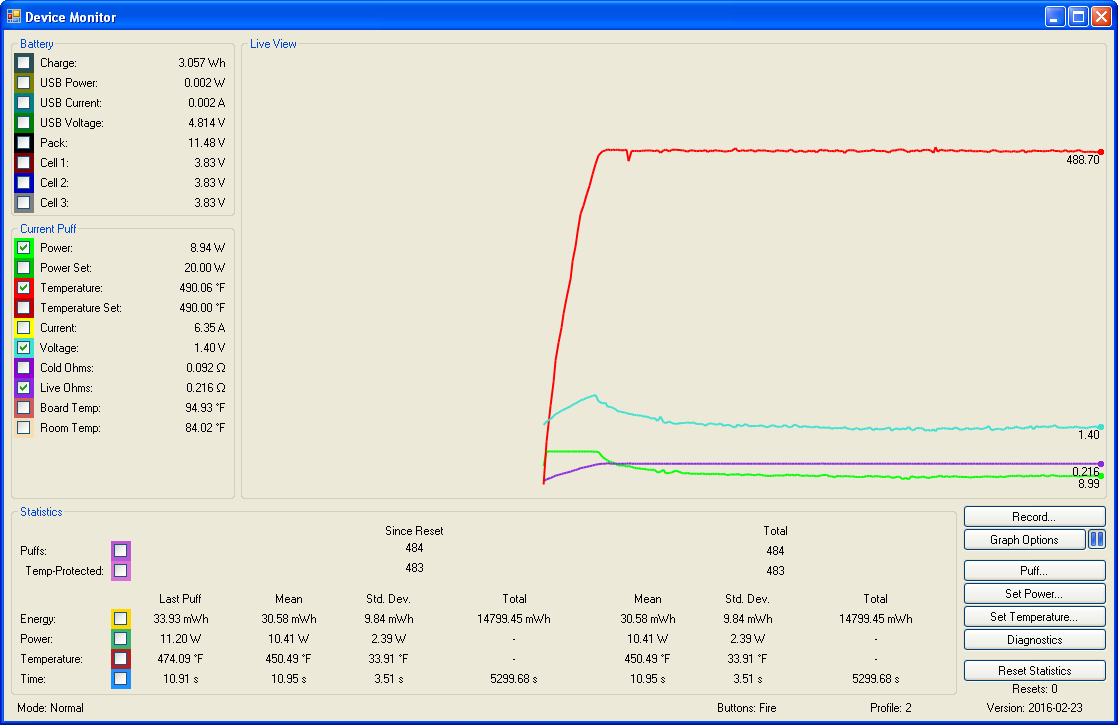

Here is the same Subtank running on a Lost Vape Triade.

[tlojhVR]


Noticed the Triade is far much smoother? What is the difference? Well Daniel (DJLsb Vapes) said his DX200 uses the aluminum box for the 510 ground and the board ground instead of ground for the 510.

All I can say is to try it and it doesn't work really smooth, it would be easy to add the correct ground, right?

UPDATE: CB was typing while I was too. So I didn't see it until later.

Share this post


Link to post
Share on other sites
billw50..........hes going to have a ground wire from the 510 to board. i think he wanted to know if he could ADD the battery negative wire to the 510's ground wire as well. so he should have proper grounding.

i agree though, having an actual 510 ground wire to the board is a plus and reassurance.

Share this post


Link to post
Share on other sites
I know CB, but you have to add in the changes to inductance and capacitance using the box as the battery ground. It might work fine, but it could get squirrelly. It should be fine what Hotcig did too, but look at the difference.

Share this post


Link to post
Share on other sites
@dwcraig1: As I stated, it is a Ni200 0.092 ohm coil. Same one on both mods.

Say I just saw your problem awhile back on one of mine. I solved it, but I don't recall what I did. I believe it was happening on a Crown RBA. What are you using for an atty?

Share this post


Link to post
Share on other sites
BillW50 said:

@dwcraig1: As I stated, it is a Ni200 0.092 ohm coil. Same one on both mods.

Say I just saw your problem awhile back on one of mine. I solved it, but I don't recall what I did. I believe it was happening on a Crown RBA. What are you using for an atty?


Not sure what problem, refresh my memory.

Share this post


Link to post
Share on other sites
Thanks for the comments guys.

To clarify I plan using the Cisco 510, the brass solder/capture ring has six holes, I plan on using 2 of them, one for the battery neg wire and one for the connection to ground pad. Heavy gauge wire will be used.
Although the enclosure is aluminium it's the ring that makes the connection. As I said I will still make sure the board is grounded via the 3 mounting lugs.

Share this post


Link to post
Share on other sites

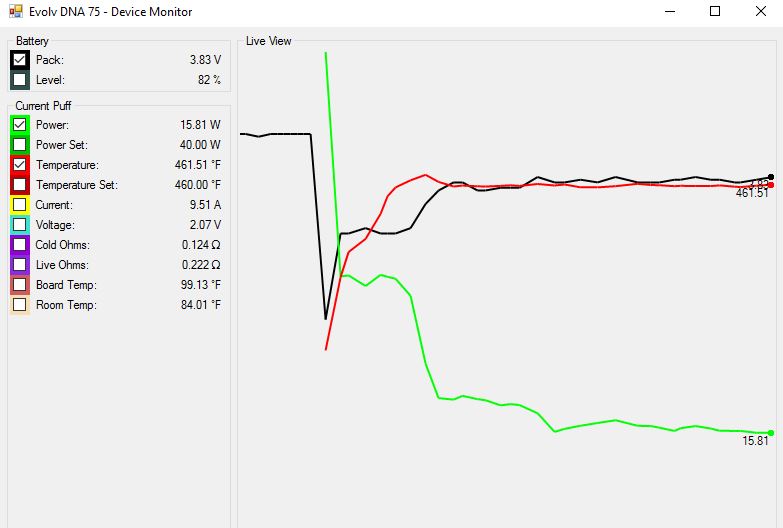

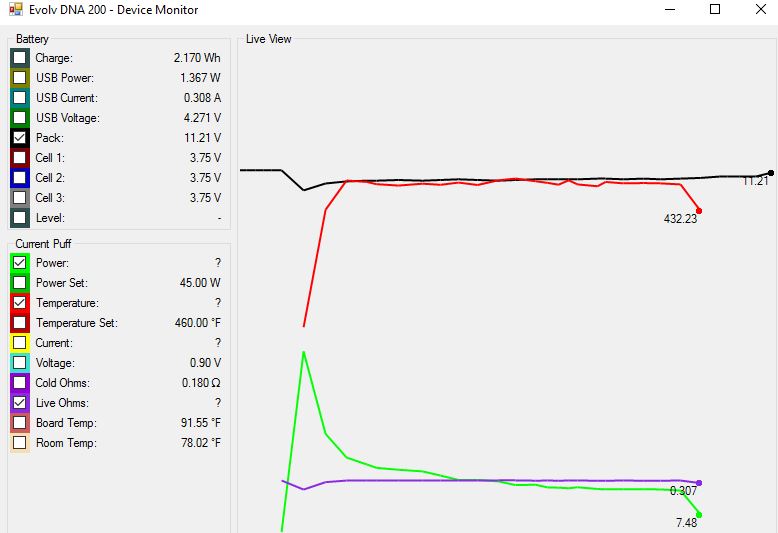

Bill, you made me look.  Granted these traces are from a DNA75 and a DNA200, but one, the DNA200, has the 510  connected to the board with a 12 gauge wire and the other, DNA75, get ground for the 510 from the body and gets board ground the same way.  Both traces show fairly smooth temperature regulation, no sharp peaks and valleys.

ERM-DNA75_trace.jpg  1590G-DNA200_trace.jpg

Share this post


Link to post
Share on other sites
awsum140 said:

Bill, you made me look.  Granted these traces are from a DNA75 and a DNA200, but one, the DNA200, has the 510  connected to the board with a 12 gauge wire and the other, DNA75, get ground for the 510 from the body and gets board ground the same way.  Both traces show fairly smooth temperature regulation, no sharp peaks and valleys.



Yes I see. Well I am planning on getting a second DX200 and see how that one pans out. Maybe there is a bad solder joint in mine.

Share this post


Link to post
Share on other sites
dwcraig1 said:

Still not sure what you mean, maybe the low temp?
Oh, it's a Serpent

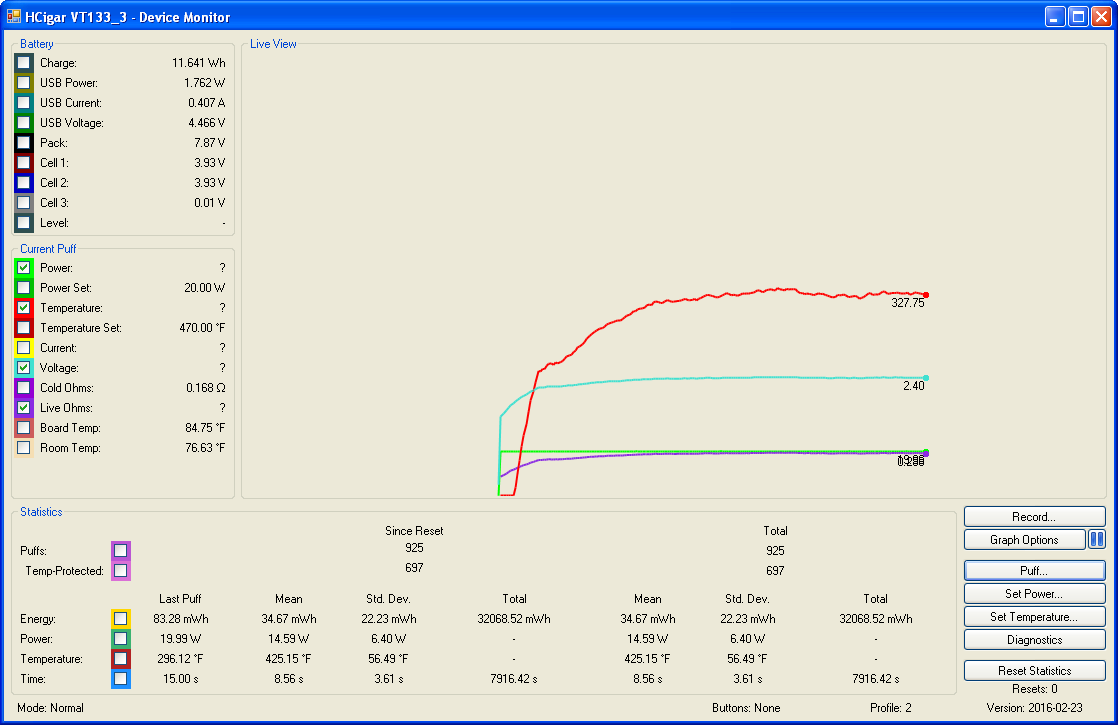

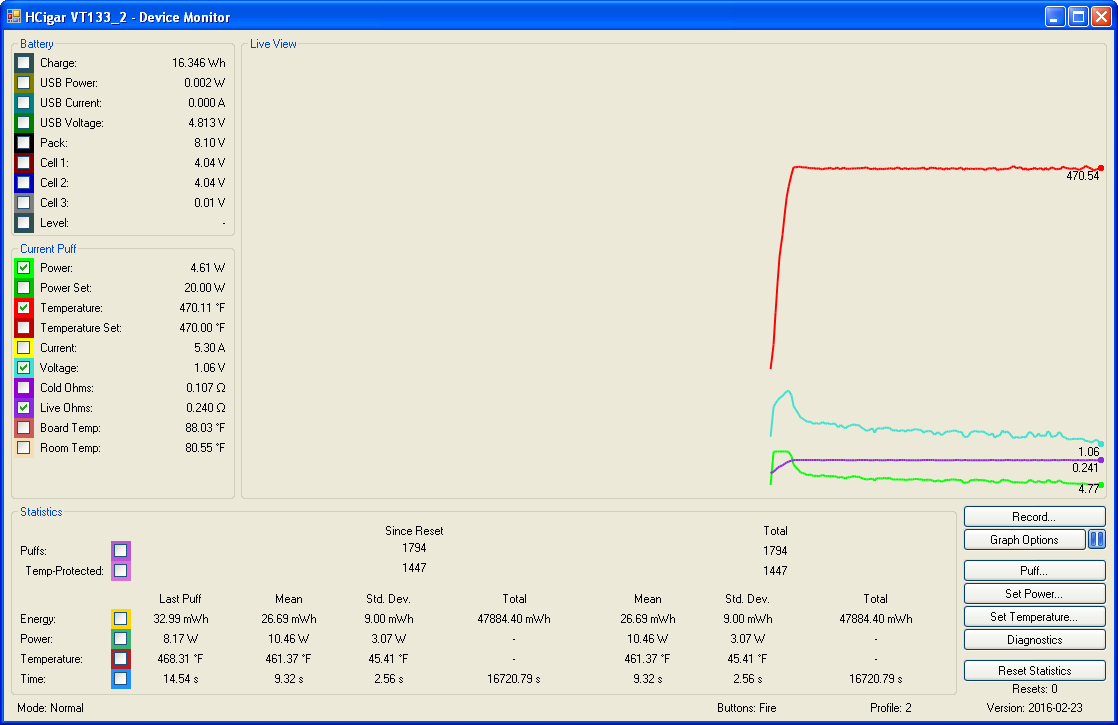

The temp is set at 470ºF, the coil is Ni200 0.107 ohm and it is throwing 20 watts at it and it is only hitting 327ish... The same build in another VT133 does this.


Share this post


Link to post
Share on other sites
BillW50 said:

@scooby: It is worth a shot and it should work, but if there is a problem you will find out. It is definitely worth a shot.



Thanks for that. All in the planning stage atm and plans seem to evolve as I gather the hardware, good to know it's probably ok.

Share this post


Link to post
Share on other sites
dwcraig1 said:

Same build....is it the same atty...not just same model atty?



Yes, same atty and build. On the one not hitting temperature, the coil reads a higher resistance. But those Crown RBAs have been known of not making the greatest connection sometimes.

Share this post


Link to post
Share on other sites
I always look at the low temp as a sign that the wick is saturated well and could take more power. This is providing the cold and live ohms show correctly.
If mine hit the temp set I make whatever changes to keep it below that temp. Generally see how many watts it can take before hitting temp and back it off some. 430 F is my usual setting.

Share this post


Link to post
Share on other sites
Oh yes, you vape by wattage dominance. While I vape by temperature dominance. And if I vape MTL with something like a Subtank or Crown, 20 watts is twice as much wattage you really need. But it also works like preheat being twice as high. Although moving to an RDA like a Mad Hatter v2, you need at least 25 watts to hit temperature so setting it to 50 watts works the same way.

Share this post


Link to post
Share on other sites
the output gnd and battery gnd are interconnected. so it shouldn't make a difference which pad the battery neg is soldered to. the battery neg is not being soldered to the box. what hotcig did and what this person is trying to do are two different things. 510 gnd stability is not in question, an alternative to where to solder the batt neg is. he wants to ADD the batt neg to his 510 gnd wire going to the board.

Share this post


Link to post
Share on other sites
ChunkyButt200 said:

the output gnd and battery gnd are interconnected. so it shouldn't make a difference which pad the battery neg is soldered to. the battery neg is not being soldered to the box. what hotcig did and what this person is trying to do are two different things. 510 gnd stability is not in question, an alternative to where to solder the batt neg is.


You are correct, the Hotcig is wired like the ERM. The poster wants to run the output ground to the 510's body as well as the batteries negative to the 510's body. At least that's what I got fromit after I read it a few times.

Share this post


Link to post
Share on other sites
And along the same lines of thought, the battery taps for the balance connection shouldn't really matter if one wire is a few CM longer or shorter than another. But Evolv recommends they all be exactly the same length. Pretty hard to do with 18650s in series in a sled.

Along the same logic as Evolv, I think the ground and the positive should also be the same length for the very same reasons. Sure you don't have to, but doing so should be less problematic. After all, any measurable resistance is going to have a measurable effect at 11.1v at 23A.

Newton's Third Law of Motion
For every action, there is an equal and opposite reaction.
