Could you check my build out?


gerax07
 Share

Recommended Posts

A friend and I got together and decided our next step from mech was to build our own boxes, and so we decided to buy the dna200 and make a great box out of it, one for each of us, and have an amazing time while doing so. I just wanted to check with y'all, since y'all seem to have a lot of experience when it comes to this particular subject.

This is my part list, do y'all think everything is good? Please feel free to tell me if any parts will conflict or if we're doing something wrong.

Battery:
http://www.hobbyking.com/hobbyking/store/uh_viewItem.asp?idProduct=8932

Enclosure:
http://www.ebay.com/itm/Alpinetech-1590B-MBK-CNC-Milled-Aluminum-Enclosure-Box-Hidden-Magnet-BLACK-/221838484690?hash=item33a69aa4d2

Fire switch:
http://www.ebay.com/itm/MB16F-W-ATI-16mm-Momentary-White-LED-2-8V-4-3V-PushButton-Switch-Flat-Top-Black-/321633536740?pt=LH_DefaultDomain_0&hash=item4ae2da4ae4

Up/Down switch:
http://www.mouser.com/ProductDetail/CK-Components/KSJ0M43180SHLFT/?qs=sGAEpiMZZMtn8lxF5bBjIcLvXe4ql53t

510 Connector/Cap:
http://www.fatdaddyvapes.com/shop.html
(What size do y'all recommend?)

Magnets:
http://www.ebay.com/itm/N52-Black-Magnets-for-Hammond-Box-Mod-4-1-4-x-1-8-Disc-4-1-8-x-1-4-Cylindr-/321780355551?pt=LH_DefaultDomain_0&hash=item4aeb9a91df

Resistors:
680:
http://www.mouser.com/ProductDetail/Vishay-Dale/CMF07680R00GKR6/?qs=sGAEpiMZZMsPqMdJzcrNwmyXKdlxrkSRaUdyGRk3zIU%3d

4k7:http://www.mouser.com/ProductDetail/Vishay-Dale/CMF604K7000FKEK/?qs=sGAEpiMZZMsPqMdJzcrNwmyXKdlxrkSR2Dvt3Ie3RX8%3d

10k:http://www.mouser.com/ProductDetail/Vishay-Dale/CMF6010K000FKEK/?qs=sGAEpiMZZMsPqMdJzcrNwohr4TA0SfZbzszyc8DC8m4%3d

20k:http://www.mouser.com/ProductDetail/Vishay-Dale/CMF6020K000FKEK/?qs=sGAEpiMZZMsPqMdJzcrNwohr4TA0SfZbQvpr%252bFn8STI%3d

PN2222A Transistor:
http://www.mouser.com/ProductDetail/Fairchild-Semiconductor/PN2222ABU/?qs=sGAEpiMZZMshyDBzk1%2fWi8oN7VHZ91Oksd99mJbzy1A%3d

Male XT60 Connector:
http://www.hobbyking.com/hobbyking/store/__43759__Male_XT60_connectors_5pcs_bag_GENUINE_USA_warehouse_.html

Wire:
http://www.hobbyking.com/hobbyking/store/__466__377__Hardware_Accessories-Silicon_Wire_Mesh_Guard.html

I really appreciate it, and any input or tips y'all have will be very welcomed. Thanks in advance!

Link to comment
Share on other sites

What are the transistors for? The fire button of the 200 goes straight to positive battery voltage (9-12V) and is active high, you can tap power straight off it (with an appropriate limit resistor) if you want.

Or if you are feeling especially adventurous, there are pads around the onboard fire button for LEDs, but that is a difficult solder job.

Link to comment
Share on other sites

John said:

What are the transistors for? The fire button of the 200 goes straight to positive battery voltage (9-12V) and is active high, you can tap power straight off it (with an appropriate limit resistor) if you want.

Or if you are feeling especially adventurous, there are pads around the onboard fire button for LEDs, but that is a difficult solder job.



Well, we want to wire in an LED fire button, and have it only light up when we fire the mod. Wouldn't wiring the LED straight to the board make it always be lit up?
Link to comment
Share on other sites

gerax07 said:

Well, we want to wire in an LED fire button, and have it only light up when we fire the mod. Wouldn't wiring the LED straight to the board make it always be lit up?

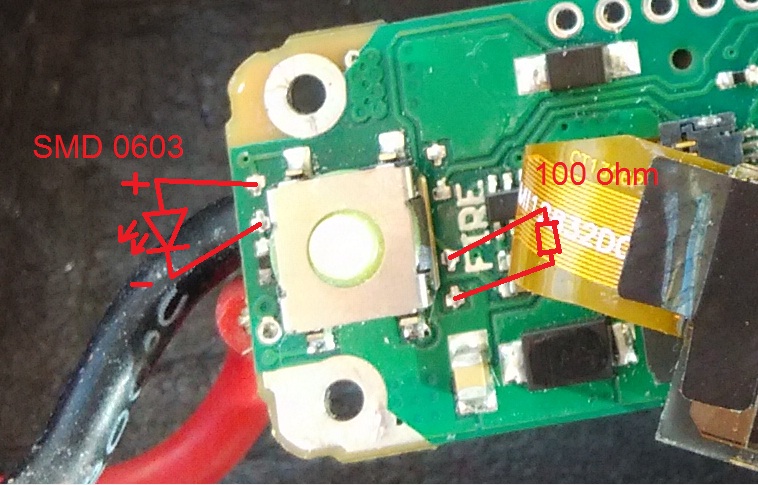

If you look below the fire button you will see 4 small solder pads. Attach a 100 ohm resistor between the 2 pads on the left above the screen-printed 'F'.  Resistor link

Above the fire button, near the board edge and slightly off to the right, you will see 2 identical small solder pads. Attach your LED there, cathode side toward the middle of the board.

That will give you what you want.
Link to comment
Share on other sites

Brandon said:

[QUOTE=gerax07]Well, we want to wire in an LED fire button, and have it only light up when we fire the mod. Wouldn't wiring the LED straight to the board make it always be lit up?



If you look below the fire button you will see 4 small solder pads. Attach a 100 ohm resistor between the 2 pads on the left above the screen-printed 'F'.  Resistor link

Above the fire button, near the board edge and slightly off to the right, you will see 2 identical small solder pads. Attach your LED there, cathode side toward the middle of the board.

That will give you what you want.[/QUOTE]

Could you show us in a schematic how to do so? We can't figure out where we would need to solder the resistor. And by doing so, do we not need any of the other resistors/transistor?
Link to comment
Share on other sites

  • 5 weeks later...
  • 4 weeks later...
  • 2 months later...
  • 1 month later...
  • 1 month later...
Ononewheel2 said:

Sorry but im new to the resistors but why are you using a 100 ohm resistor . Can someone explain that in detail . Can you use a smaller ohm or bigger ohm resistor in its place . What are you using to calculate this for the dna 200 chip to know which one to use?

you don't need a resistor for smd leds. that set up is for adding a push button with built in LED's here's a link if you want to add LED's.

https://forum.evolvapor.com/topic/67162-topic/?do=findComment&comment=904565
Link to comment
Share on other sites

Ononewheel2 said:

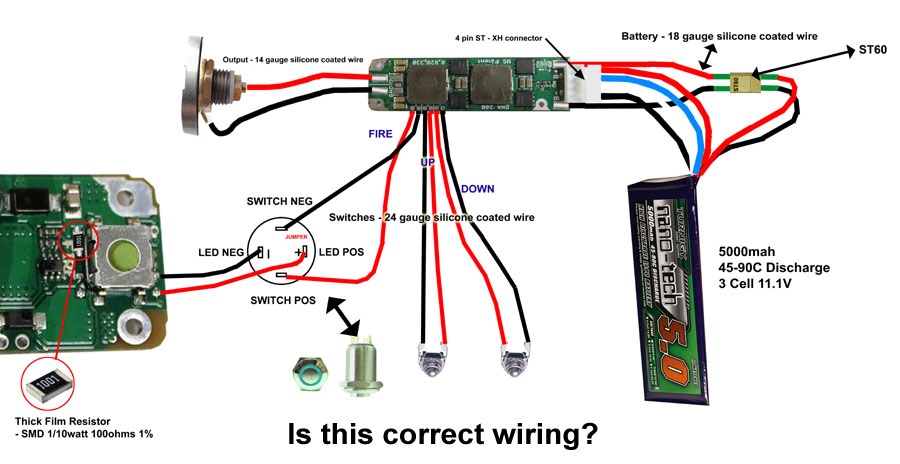

I don't want to use an smd led my plan was to wire a push button led directly to the board . It has 4 pins . 2 for the led pos neg 2 for the fire . I found this diagram that some said they are gonna use and this is how i want it . Is this possible? .

yes thats the correct diagram. i thought you wanted to use smd leds. sorry

TBH, i'm not 100% sure on the 100 ohm resistor. i think the LED voltage determines the resistor value.
Link to comment
Share on other sites

ChunkyButt200 said:

yes thats the correct diagram. i thought you wanted to use smd leds. sorry

TBH, i'm not 100% sure on the 100 ohm resistor. i think the LED voltage determines the resistor value.

Do you happen to know what info i would need to find what resistor i would need for it to work .
Link to comment
Share on other sites

Ononewheel2 said:

I found this online on a resistor calculator but what is the source voltage on the dna200 chip and where are you getting the info from. Source voltage diode forward voltage Help diode forward current (mA) Help

this what i found for a BLUE (same for WHITE) led mitec switch.     supply voltage (pack voltage)=12 diode forward voltage= 3.2 diode forward current=28mA.  i would open a ticket with evolv to make sure on what resistors you need, if any, for your led switch.

your post (#22) is the correct wiring diagram.
