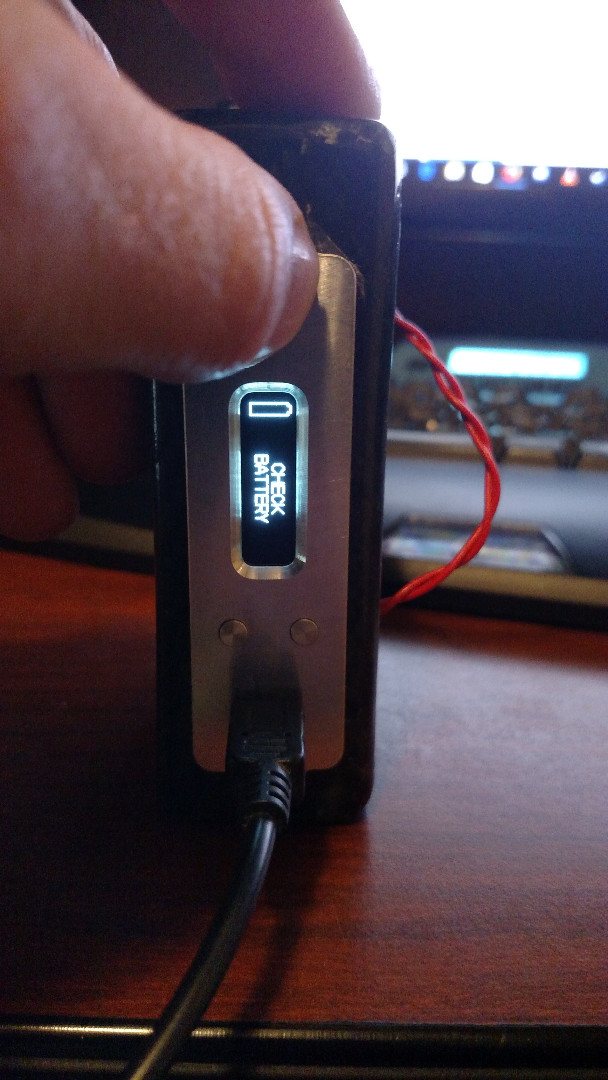

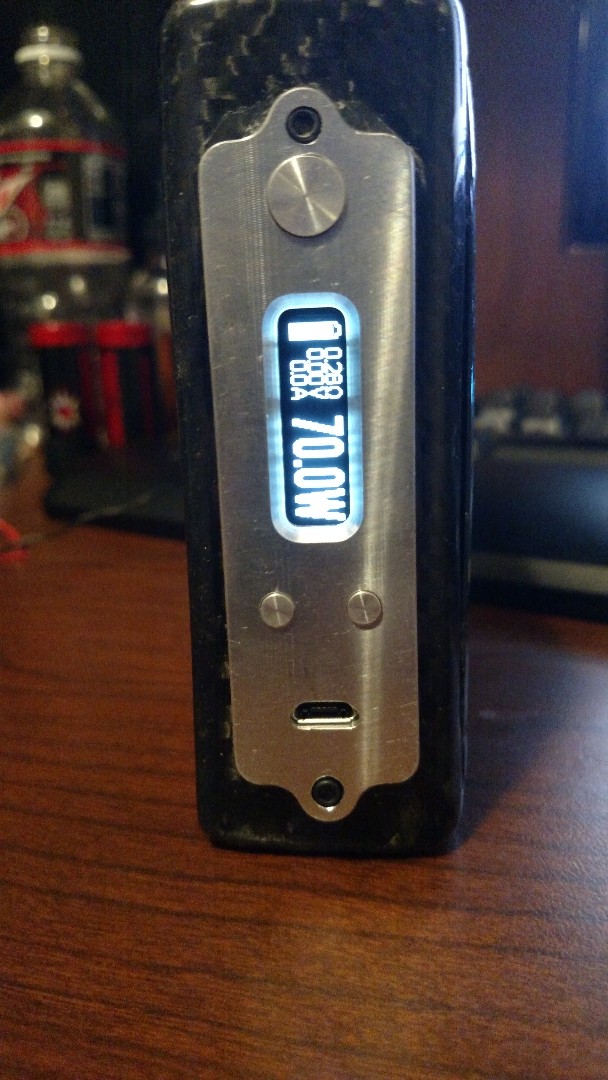

Strkr69 Posted February 4, 2017 Author Report Share Posted February 4, 2017 Hello all, hoping to get some help here. I'm running into issue with the board not staying fired up, with 2 fresh batteries installed and holding the fire button it will cycle through : Evolv DNA 250, Check Battery, Then display current wattage settings, the battery indicator "which reads empty" and the Ohms, Volts, Amps... all which read zero..I've checked my power coming into the board from the battery sled, reads 8.32 Volts.. I've gone in and set the configuration for 2 cell, Tried 2 other batteries that are also brand new, Pulled my board back out, checked all my connections and solder joints, reassembled and still same results. Any help would be greatly appreciated. Link to comment Share on other sites More sharing options...
Spector NS5 RD Posted February 4, 2017 Report Share Posted February 4, 2017 does the board connect to escribe? what are both cell voltages and pack volatge in device monitor? do you have the balance tap wired correctly for 2 cell config? Link to comment Share on other sites More sharing options...

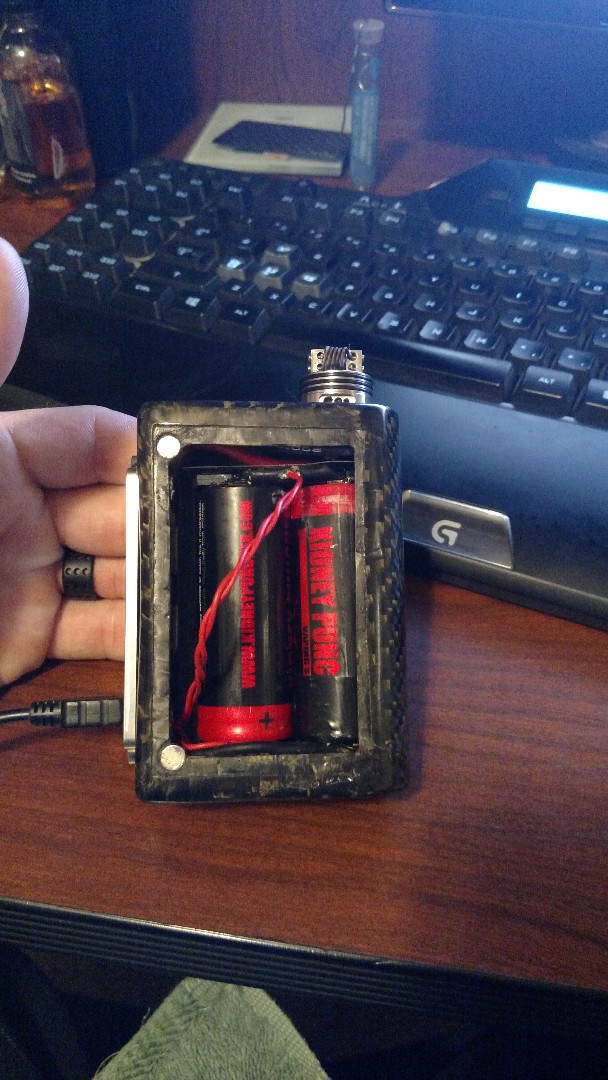

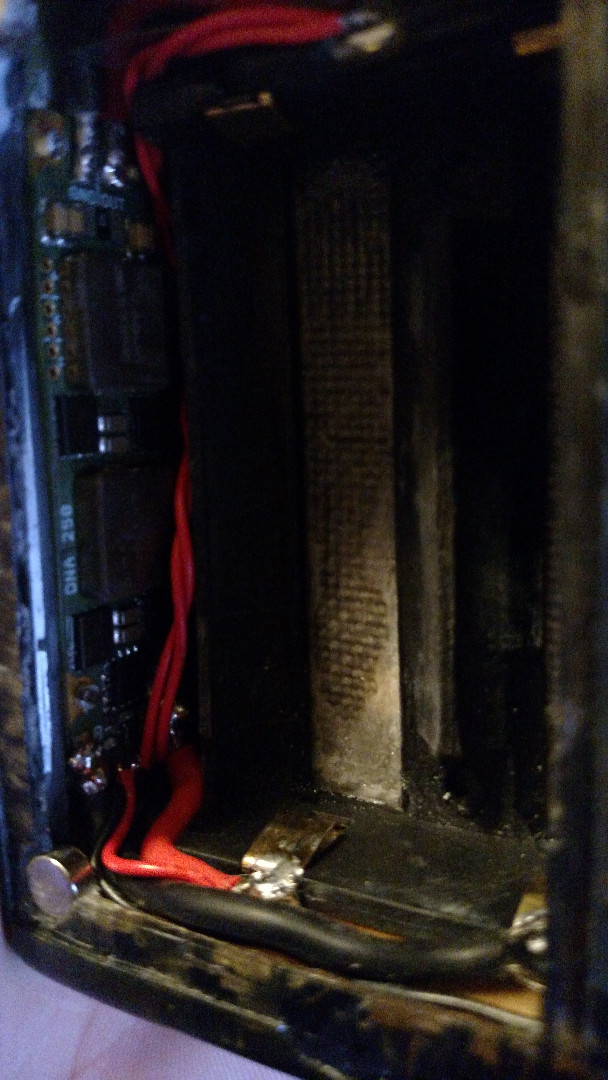

Strkr69 Posted February 4, 2017 Author Report Share Posted February 4, 2017 Connects to Escribe, Cell #1 4.62 volts, Cell #2 1.04 volts.. Pack voltage 5.66 volts, Probing both leads at the board with multimeter shows 8.35 volts. Settings have been uploaded for 2-cell, with appropriate Watt-hour Calculator adjustments made for the cells. Which are IMR 26650 3.7V 4000mAh. Ground lead for "Tap" goes to Negative side of Cell 1, "1" goes to positive side of cell 2, and "2&3" are tied together going to the bridge between cells 1&2. Link to comment Share on other sites More sharing options...

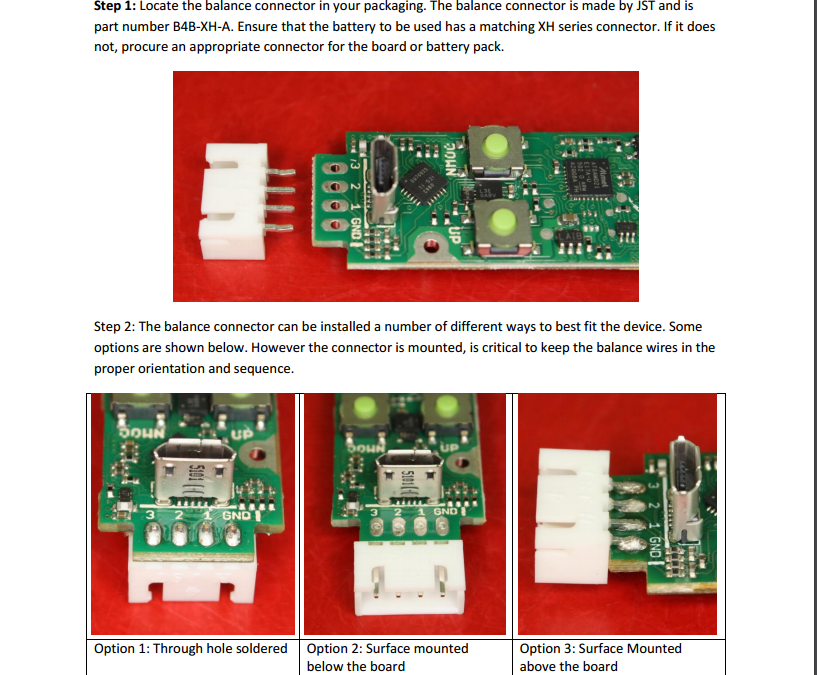

dwcraig1 Posted February 4, 2017 Report Share Posted February 4, 2017 From left to right 3,2,1, ground Link to comment Share on other sites More sharing options...
Strkr69 Posted February 4, 2017 Author Report Share Posted February 4, 2017 Link to comment Share on other sites More sharing options...
Strkr69 Posted February 4, 2017 Author Report Share Posted February 4, 2017 Link to comment Share on other sites More sharing options...

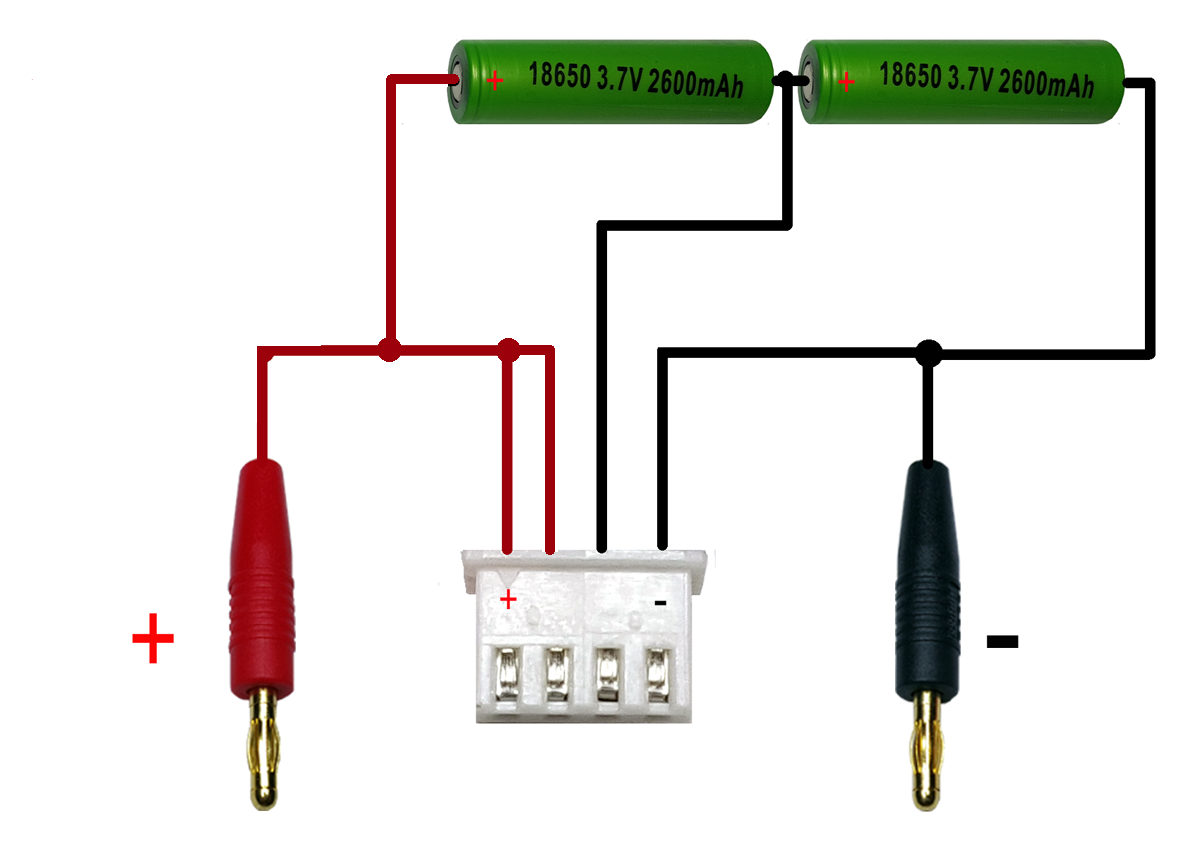

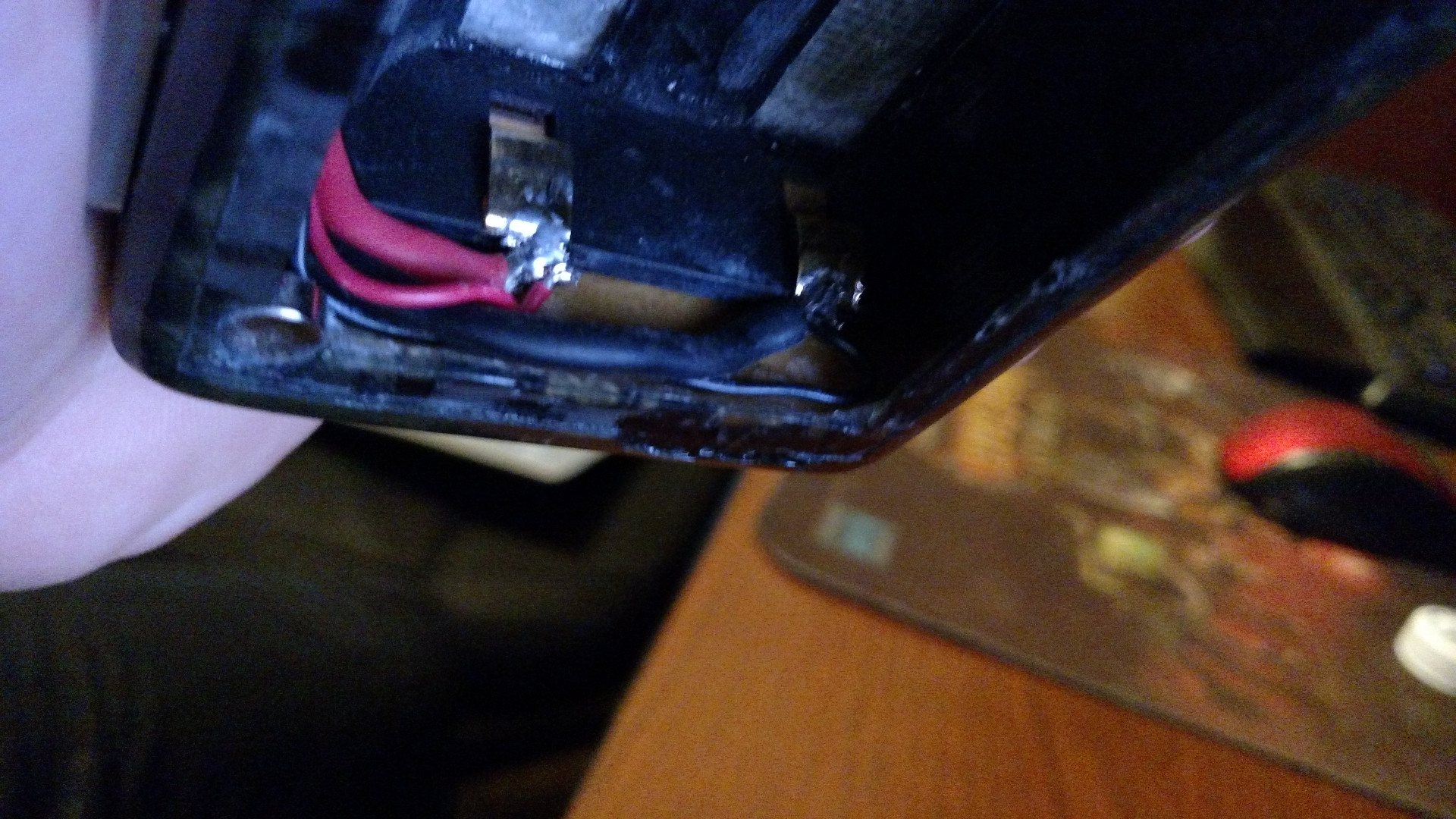

Strkr69 Posted February 4, 2017 Author Report Share Posted February 4, 2017 Got it !! Actually less wires in the case now, I looped 2&3 to the positive supply on the board, 1 wire to the bridge and 1 to the negative side of the board. Link to comment Share on other sites More sharing options...
retird Posted February 4, 2017 Report Share Posted February 4, 2017 From your first picture.....Are you sure you wired the balancing connections in the right order... looks to me that you wired them backwards... but you got it sorted out now??? Link to comment Share on other sites More sharing options...
Strkr69 Posted February 4, 2017 Author Report Share Posted February 4, 2017 Yes I looked at the diagram that Dwcraig1 posted and swapped a few wires. Mod works great now !!! Very happy, now to see how much longer it lasts compared to my Reuleaux RX200.. I built the case from 1 layer of fiberglass, followed by 3 layers of carbon fiber for strength and obvious cool looks. I really appreciate the response's and help. Nice to know this forum page has people paying attention and very helpful. Link to comment Share on other sites More sharing options...
