Vapedroid C1D2 Down Button not working !!!

[retird]

It may be beneficial to contact Vapedroid and explain what is going on with your device....  They may be able to guide you and/or address your issue.. Contact information given within this link......


https://www.vapedroid.com/product-page/531c96ba-5c27-51cc-a403-c2d736afd935

[giz_60]

Well, that at least that verifies that the wire was the cause of the down/left button to act like it did. It would appear, now this is pure speculation based on info available, that there was an issue in the past of the down/left button not working, so someone tried to remedy the issue by adding the wire to connect the switch direct instead of through the board circuitry, and soldered it to the wrong pin. If you have a meter, you check continuity between the switch...where the wire was soldered to...and the #4 pin.

[flo_46]

I guess you're right ! it really isn't my area of expertise...

If I could see how a "functionning" C1D2 Vapedroid is wired inside I might solve this issue !

Thanks for the update thought, I'll try and contact VapeDroid for more info.

[Spector NS5 RD]

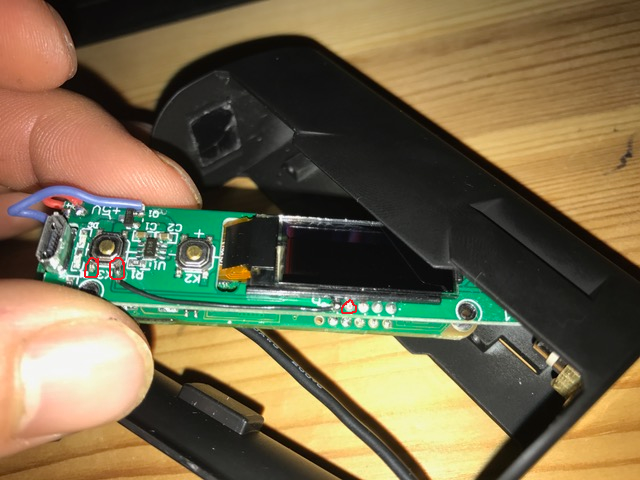

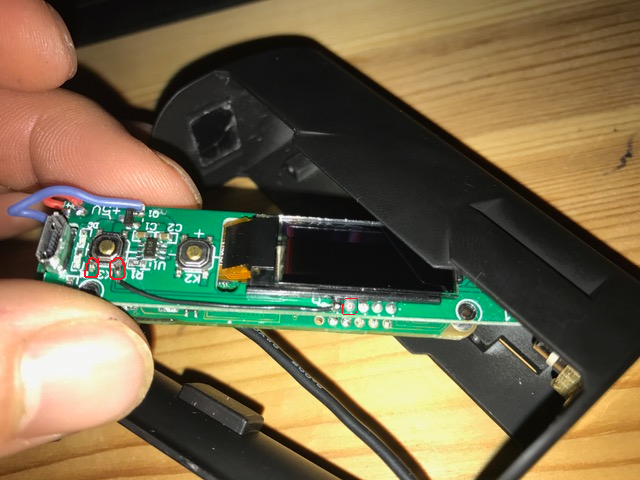

if you want to try something, solder that wire back where it was on the leg of the down button (make sure it's soldered on the SAME leg where it originally was!) and solder it to the 3rd pinout (circled in red). it was originally soldered in the wrong pinout .
THIS FIX WILL ONLY WORK ASSUMING THE ACTUAL BUTTON WORKS (which i'm guessing it does since it functioned as a second up button because of the incorrect placement)!


or wait and see what VD says. up to you. if i had the board in-hand i'd be able to fix it for you in 10-15 min. if the button is bad i have replacement SMD tact switches of that exact model. i mainly buy them for replacing vaporshark's faulty firing buttons.

[flo_46]

Hey,

i'll try that ! what you're saying makes sense ! it was connected to the up +,  and needs to be connected to the down +, I'm recieving a soldering iron in tomorow or the next day... I'll keep you posted !

[flo_46]

Hey,

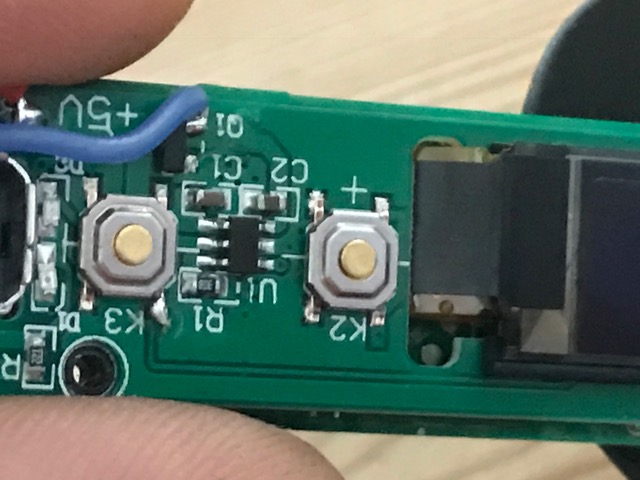

So I managed, asking around in my favorite vape shop, to take a peek inside a working C1D2 (if it ever existed ) and I took a picture ChunkyButt200, tell what you think before I start heating up the soldering iron...
so here's mine

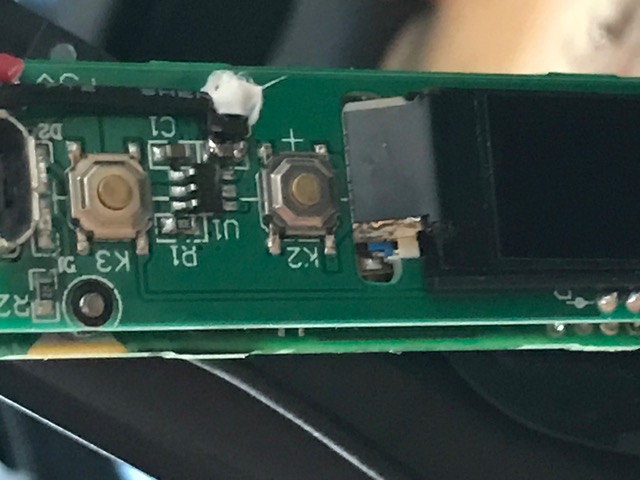

and here's my the (working) one I got my hands on, they're a slight difference at the C1-C2 area...



If this changes what you thought I should do, let me know !

Thanks a lot.

[retird]

I still don't understand why you don't contact VapeDroid... they can help you and may even fix it for you... You are spending a lot of time here and getting nowhere imo...

[Spector NS5 RD]

@flo_46 most likely just a different revision of the daughter board. i wouldn't get hung up on it.

EDIT....sent you a PM

[flo_46]

Hey guys,

So ChunckyButt200 had it right at post #29, the wire was soldered to the wrong pin, since I'm no expert, it took me a few tries but I finally got it right !

Thank you big time for the support !

See you around.

[Spector NS5 RD]

flo_46 said:

Hey guys,

So ChunckyButt200 had it right at post #29, the wire was soldered to the wrong pin, since I'm no expert, it took me a few tries but I finally got it right !

Thank you big time for the support !

See you around.

feels good when you fix something yourself, doesn't it?! Sweet deal man. Glad it's working for you.

[xian40]

hello to you, what is the hex key size do i need to unscrew the 3 screw on this dna75 c1d2 board? 1 screw is stripped down and i dont know the size i need to order spare screws. i need to open it to fix the same down button issue on mine. thanks xian

[flo_46]

hey,

I think it is 0.5 mm  torx. The 1 mm screw driver I tried first  was to big.

hope it helps, good luck to you

[xian40]

thank you. i will try this. i was thinking it was hex head for the screw. they are so small.
