king aries Posted November 3 Report Share Posted November 3 Can someone guide mo on installing typc c port on dna60c Link to comment Share on other sites More sharing options...

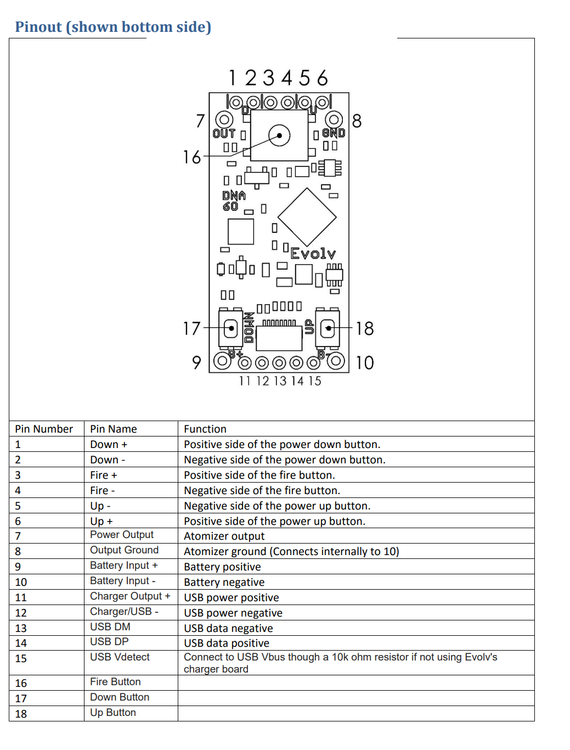

Wayneo Posted November 3 Report Share Posted November 3 Using this diagram, follow pins 11-15 *Take note of pin 15. 2 Link to comment Share on other sites More sharing options...
king aries Posted November 3 Author Report Share Posted November 3 isee so dna60 and dna60c are the same? Link to comment Share on other sites More sharing options...
Wayneo Posted November 3 Report Share Posted November 3 Yes Link to comment Share on other sites More sharing options...
king aries Posted November 6 Author Report Share Posted November 6 gonna ask about this one it says swd 10 swc confuse about how to connect Link to comment Share on other sites More sharing options...
Wayneo Posted November 6 Report Share Posted November 6 How can I help when that IS NOT an Evolv product? Find the pin layouts on line, or ask the manufacturer. This is now the third connector you are inquiring about, what happened with the connector from a few days ago? 1 Link to comment Share on other sites More sharing options...
king aries Posted November 6 Author Report Share Posted November 6 it's not fitted to the mod Link to comment Share on other sites More sharing options...
king aries Posted November 7 Author Report Share Posted November 7 habing a hard time Link to comment Share on other sites More sharing options...

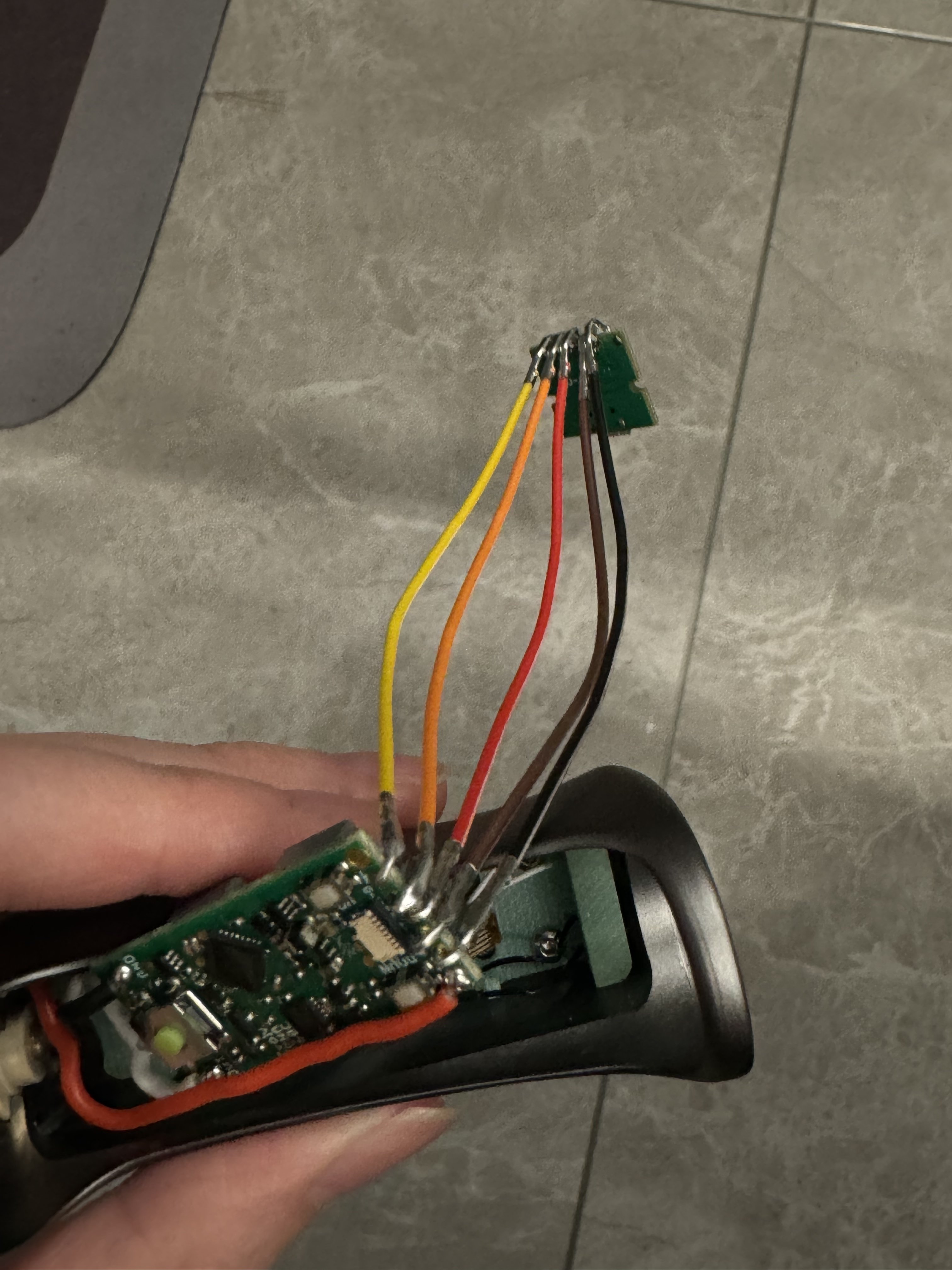

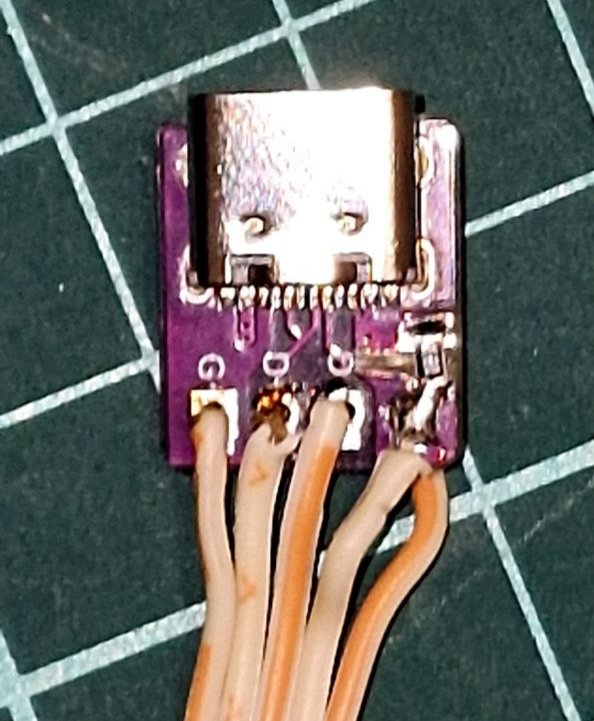

AuthorVapes Posted November 9 Report Share Posted November 9 Temporary solution: unstable, but usable 1 Link to comment Share on other sites More sharing options...
RicketyPumpkin Posted November 16 Report Share Posted November 16 On 11/9/2024 at 11:43 AM, AuthorVapes said: Temporary solution: unstable, but usable oh god. This burns my eyes to see. Please, nobody do this. how expensive is a replacement evolv charging board? I have a 250C so idk what they cost, however, I know it can't be that much that you should run janky as this pic. Not even any type of protective measure from shorting on the pins against each other? I wouldn't run something this janky and sketchy for money. No solder mask over the points of connection? Not even any electrical tape to spare? Whew, God bless you sir. 1 Link to comment Share on other sites More sharing options...
dwcraig1 Posted November 17 Report Share Posted November 17 Oh so that's how you hook up a charger board on a DNA60/60C that doesn't come with one or have room for one so that it can be connected to EScribe to make changes and/or update the firm ware.I was wondering how folks were doing it. 1 Link to comment Share on other sites More sharing options...
Biglion Posted November 17 Report Share Posted November 17 (edited) There is an USB-C dongle to buy, just for use or Connect it to your PC, it works very well, it is called DNA60 / DNA60C / Billet box Update Dongle by Stealthvape....if you want to try it like that...maybe this helps. Edited November 17 by Biglion Link to comment Share on other sites More sharing options...
AuthorVapes Posted November 18 Report Share Posted November 18 在 2024/11/17 在 AM3點54分, RicketyPumpkin說: oh god. This burns my eyes to see. Please, nobody do this. how expensive is a replacement evolv charging board? I have a 250C so idk what they cost, however, I know it can't be that much that you should run janky as this pic. Not even any type of protective measure from shorting on the pins against each other? I wouldn't run something this janky and sketchy for money. No solder mask over the points of connection? Not even any electrical tape to spare? Whew, God bless you sir. I used electrical tape in practice, but I still don't recommend emulating this connection method. Link to comment Share on other sites More sharing options...

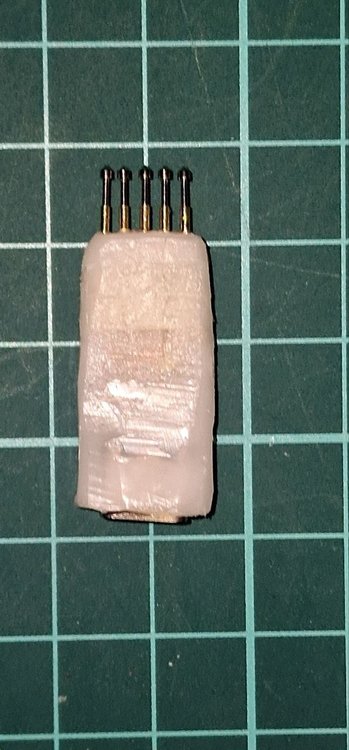

Thumper-77 Posted November 19 Report Share Posted November 19 (edited) Here is a schematic of a dongle that works with 60C. Only the 10K resistor is important, but a battery connection is required. I took a 3.5V stabilizer and assembled everything into a compact case. Spring-loaded contacts provide good contact with the board and do not require soldering. Edited November 19 by Thumper-77 Link to comment Share on other sites More sharing options...

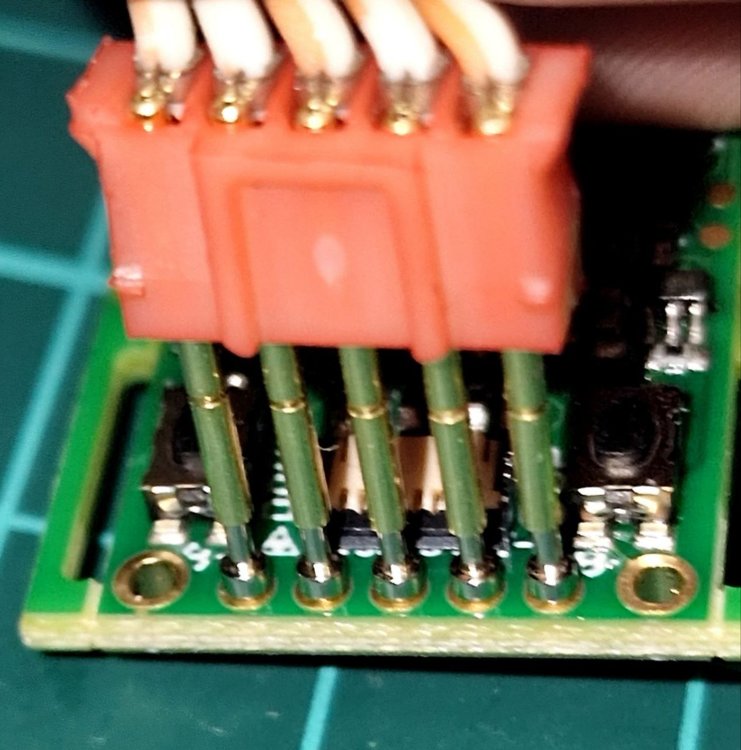

Biglion Posted November 19 Report Share Posted November 19 (edited) 2 versions you can get by Stealthvape, if you can't or won't solder. This is not an advertisement, for experienced ONLY. Do not try this at Home Edited November 19 by Biglion Link to comment Share on other sites More sharing options...
RicketyPumpkin Posted November 26 Report Share Posted November 26 On 11/17/2024 at 9:12 PM, AuthorVapes said: I used electrical tape in practice, but I still don't recommend emulating this connection method. Sorry buddy, I was having a laugh at your expense, that wasn't very mature of me. I know you know what your doing, I've seen you around these forums,I just hope this guy that can't get as simple as a type c PCB doesn't emulate you. It requires skill to be sketchy and not blow up! Link to comment Share on other sites More sharing options...
king aries Posted November 26 Author Report Share Posted November 26 I already have done my customers problem they buy other typc pcb boardsand solve the problem Link to comment Share on other sites More sharing options...
