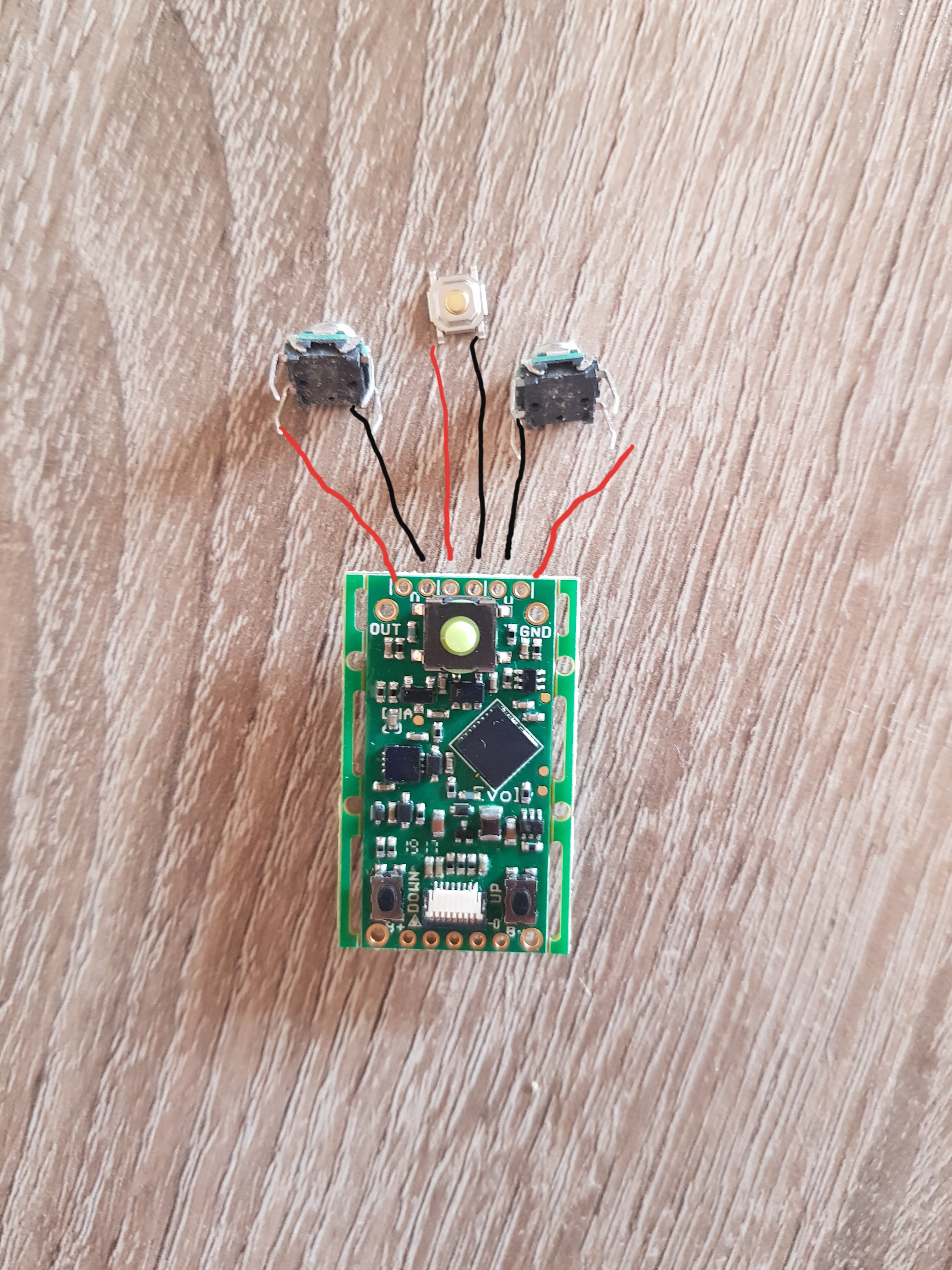

West84 Posted May 6, 2019 Report Share Posted May 6, 2019 Please,I need help with wiring external buttons. Is this ok as shown on picture? I just want to be sure. Thank you Link to comment Share on other sites More sharing options...
Wayneo Posted May 6, 2019 Report Share Posted May 6, 2019 On 5/6/2019 at 1:59 PM, West84 said: Is this ok as shown on picture? I just want to be sure. Expand I sure do believe you are correct. But I'm old. For a guaranteed correct answer, the pinouts are also shown in the datasheet for the 60. Link to comment Share on other sites More sharing options...
West84 Posted May 6, 2019 Author Report Share Posted May 6, 2019 On 5/6/2019 at 2:54 PM, Wayneo said: I sure do believe you are correct. But I'm old. For a guaranteed correct answer, the pinouts are also shown in the datasheet for the 60. Expand Yes,I know that,pinout is ok. I just wondered is there need for every button to connect the negative because I've seen somewhere that negative is internally connected Link to comment Share on other sites More sharing options...
retird Posted May 6, 2019 Report Share Posted May 6, 2019 Wire per the Data Sheet. Link to comment Share on other sites More sharing options...
