I recently replaced the 250 DNA motherboard on LostVape Triade DNA 250. I respected all electrical connections. I installed a new display. The circuit does not turn on and the display remains black with batteries or a USB connection. The Escribe software detects the motherboard.

Share this post


Link to post
Share on other sites

I measured the solderings on the board where the battery cables arrive.
Between Gnd and 1 I have a value of 4.20 volts.
Between Gnd and 2 I have a value of 4.20 volts.
Between Gnd and 3 I have a value of 4.20 volts.
Between Gnd and B + I have a value of 12.6 volts.

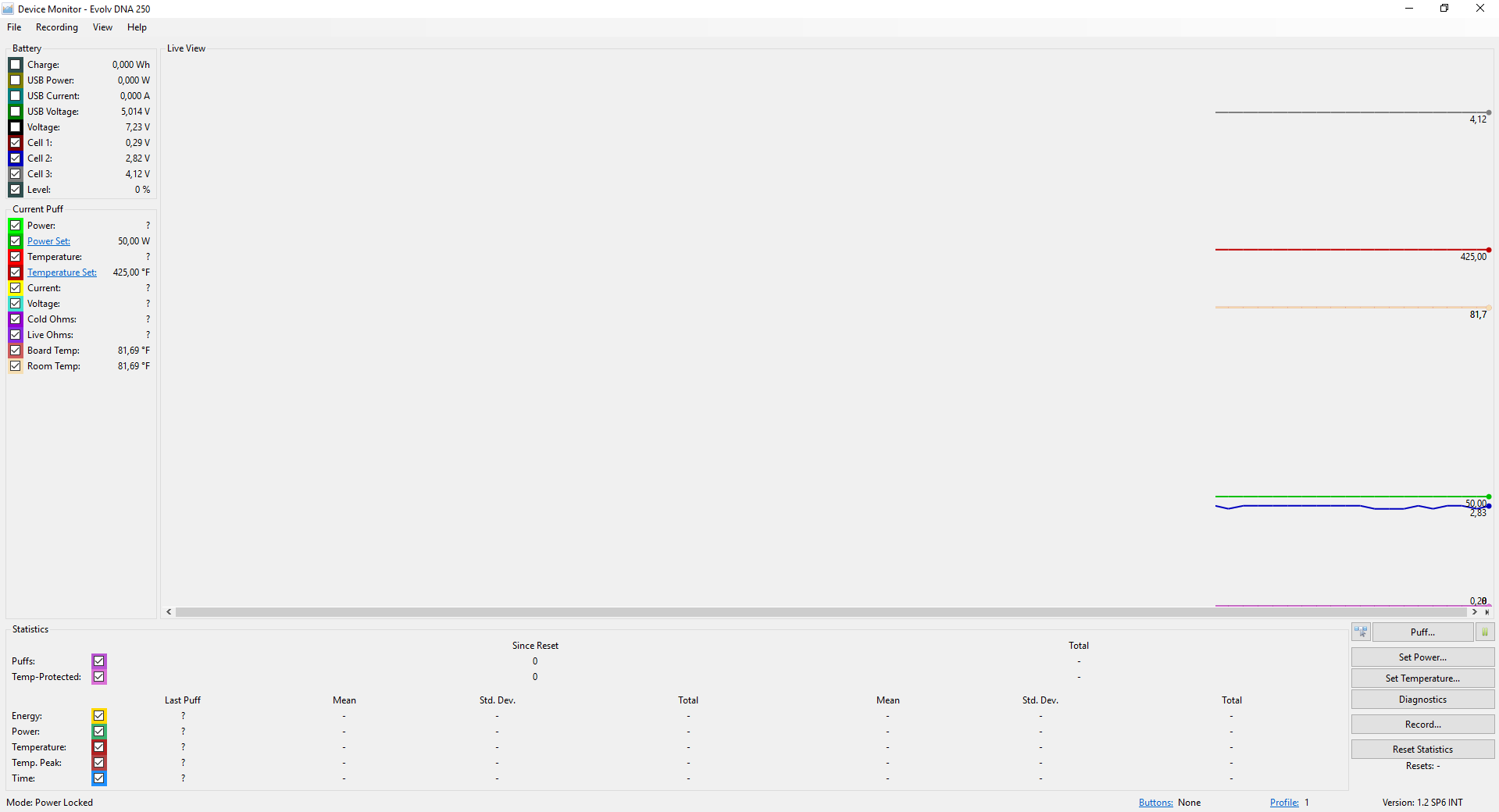

I attach the values of Escribe.
I sent the original motherboard because she did not read the atomizer after 2 months of use ..
Now this new motherboard replaced in warranty gives me this problem.
All disassembled and assembled by an electronic engineer.
I am disappointed by the Evolv.
I paid the LostVape Triad DNA 250 € 200.00 a year and a half ago.

Screenshot (15).png

Share this post


Link to post
Share on other sites

The device remains on only if connected via USB and batteries inserted.
Only with USB but without batteries the display does not light up but Escribe detects it.
Only with batteries does not give any sign of life.
If I hold down the fire button, the display will appear in sequence: check the battery, check the atomizer.

Share this post


Link to post
Share on other sites

@AntonioDNA250 Are your settings in EScribe correct? Battery settings..... 3 Cell, Lithium Polymer, Watt Hour, Cell Soft Cutoff?

How about posting some good resolution pictures of your soldering. The battery wires, The Balance tap soldering

Share this post


Link to post
Share on other sites

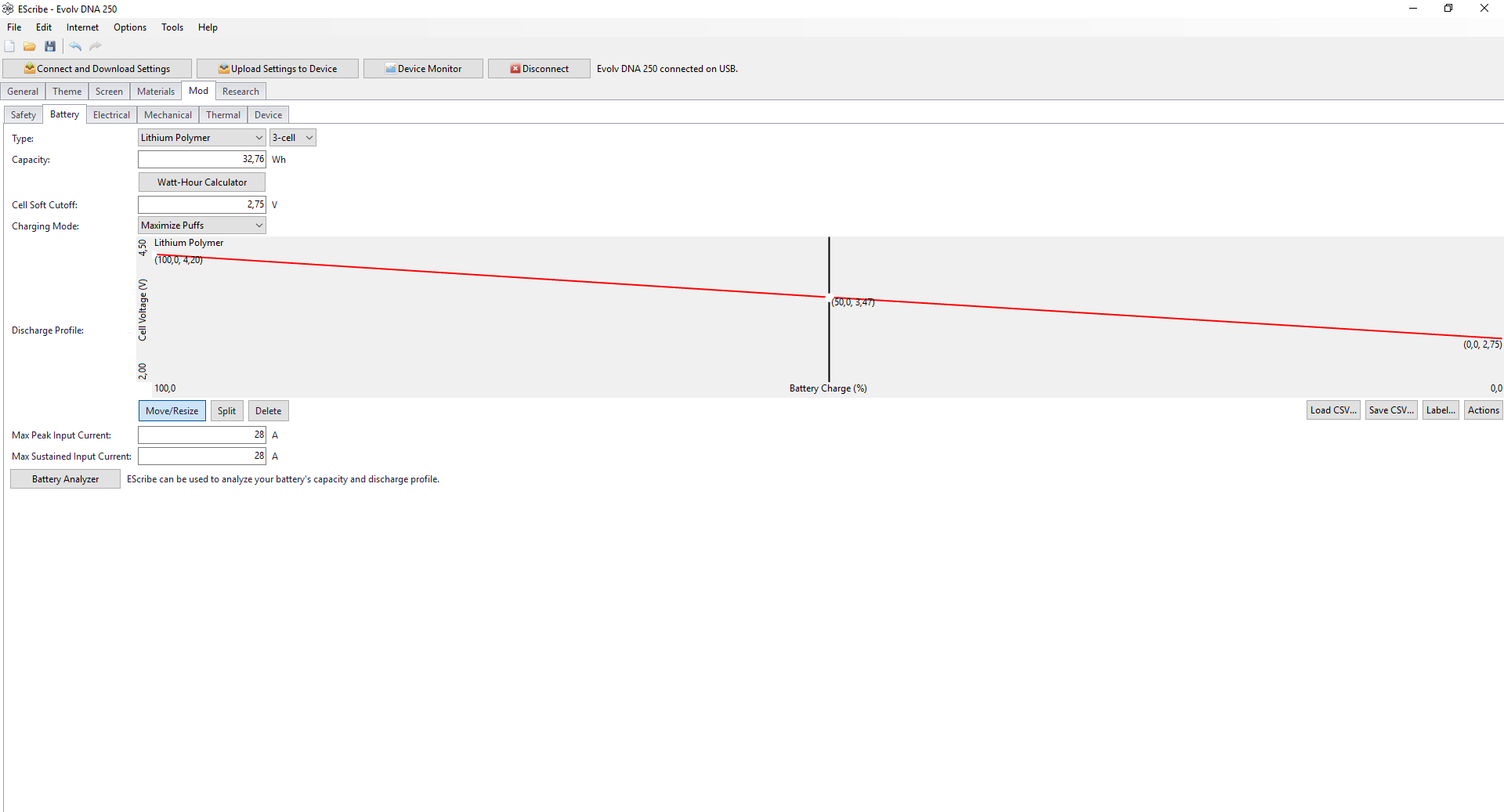

Hello. Escribe is fine. I have also updated the firmware. The connection is the same as the original one. The cables in the box are original. I have already done the measurements and the tension arrives.1653168711_Screenshot(17).thumb.png.ee047825f686160b7ec1237b067b2b31.png424627892_WhatsAppImage2018-10-22at23_07_44.thumb.jpeg.339e05a99040fc20078654bfbc0c71f2.jpeg

Share this post


Link to post
Share on other sites

I measured the voltage between 1 and 2, between 2 and 3, between 1 and 3.
Always 4.2 volts.
Then I tried between Gnd and 1 = 4.2 volts, between Gnd and 2 = 8.4 volts, between gnd and 3 12.6 volts.

Share this post


Link to post
Share on other sites

@AntonioDNA250 It looks as if you soldered the main positive and negative leads from the lipo ONLY to the balance tap area. You also need run the main positive and negative lipo leads to the back -board main B+ and B- pads........ Do you have jumpers, from the tap to the main batt input pads, your picture isn't showing?

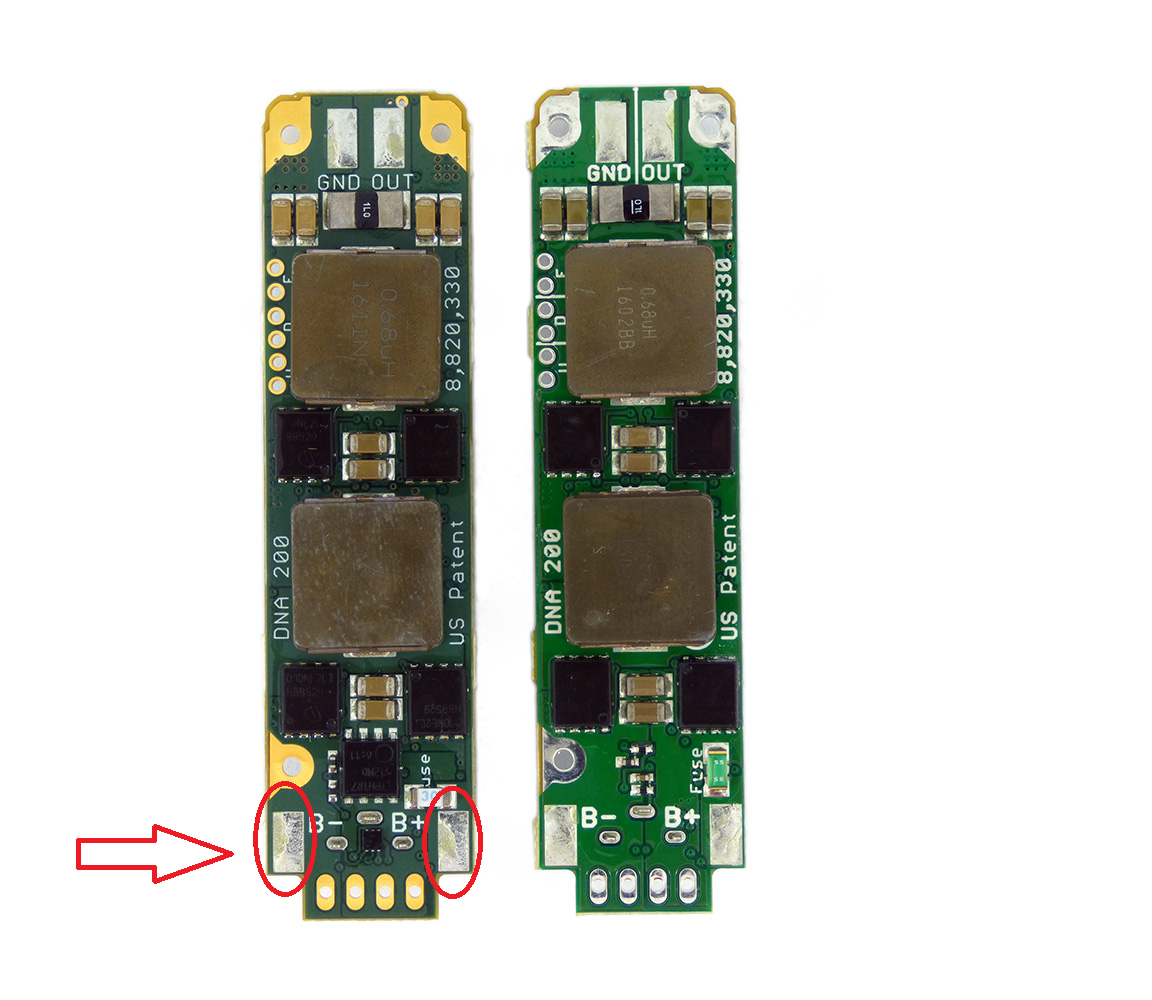

These 2 pads need to be connected to the battery >>>>>>>>>>>>>
