Morphoys Posted December 9, 2015 Author Report Share Posted December 9, 2015 Hi Guys, Ihave Probs to get my Mod started. In Escribe I can see that the pack has 0,00V and the same is with each cell. When I connect the Battery and press Fire Button with an atty attached the DNA said check Battery. That is clear, because there is no Battery to see in Escribe. I have messured at the Board and there is definetly Volt and also I can Messure each cell at the balancer connection and they are fine. The second thing is, when I connect it with USB then it spents ten seconds and the Display switch to Loading screen where I can see the three cells, because I choose it that way in Escribe. But there is the same in the Display, each cell 0,00V and no Loading Bar and no Flash-sign. I can adjust and choose everything you can find in Escribe, so the Chip works but the Power supply is the Problem. Has someone any Ideas ? Link to comment Share on other sites More sharing options...
retird Posted December 9, 2015 Report Share Posted December 9, 2015 What device do you have or is it one you built? Can you post pictures of the internals of the device? Link to comment Share on other sites More sharing options...
Morphoys Posted December 9, 2015 Author Report Share Posted December 9, 2015 At the Moment it looks like that. I have dismantelt it a little bit for better work with. Link to comment Share on other sites More sharing options...
justchil Posted December 9, 2015 Report Share Posted December 9, 2015 Looks like you have the balance connector on backwards Link to comment Share on other sites More sharing options...
retird Posted December 9, 2015 Report Share Posted December 9, 2015 First look and it may be that you have lost a solder pad at the fuse (closest to the B+ pad) due to heating the B+ pad during soldering. Link to comment Share on other sites More sharing options...
Morphoys Posted December 9, 2015 Author Report Share Posted December 9, 2015 I just followed the colours of the Lipo-Pack. There is one Red and Three Black ones. When I messure between the Red and the last Black one, I have the full 3S power. Link to comment Share on other sites More sharing options...
Morphoys Posted December 9, 2015 Author Report Share Posted December 9, 2015 dc601 said:First look and it may be that you have lost a solder pad at the fuse (closest to the B+ pad) due to heating the B+ pad during soldering. The solderPad of the Fuse is OK. Or did I understand wrong? Link to comment Share on other sites More sharing options...
Morphoys Posted December 9, 2015 Author Report Share Posted December 9, 2015 I think that there is something I´m not able to see. I controlled everything and Doubleckecked it. Seems to be more complicated. Link to comment Share on other sites More sharing options...

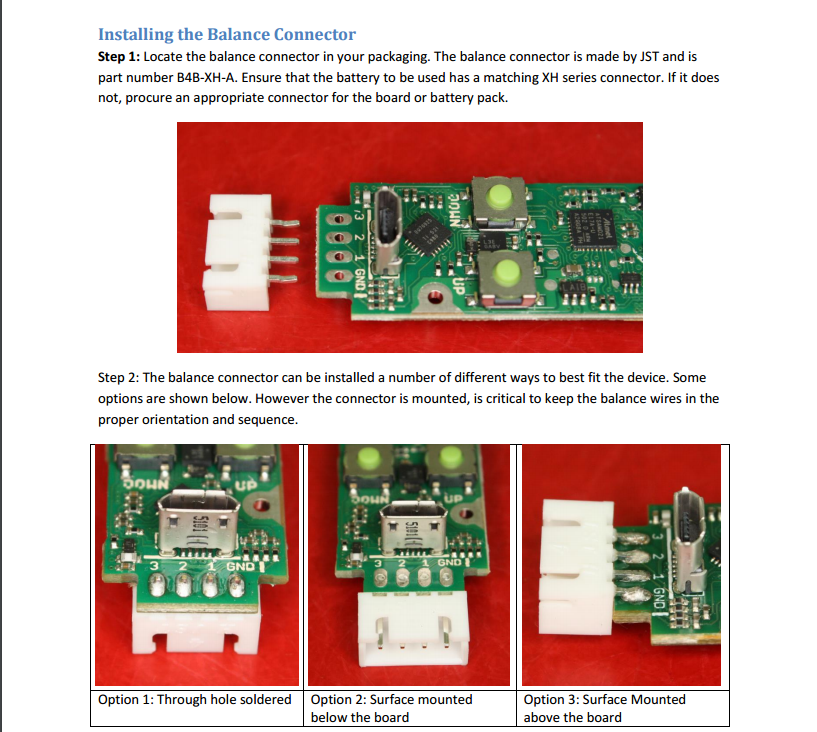

justchil Posted December 9, 2015 Report Share Posted December 9, 2015 Test your balance plug with a multimeter. That red wire should be your battery positive. The neg wire is on the opposite side. Why would a company use a red wire for a negative side?Unless if that brand of lipo manufacture doesn't follow standards you have it hooked up backwards. My money is on your balance plug backwards. Does nobody else see it?? Link to comment Share on other sites More sharing options...
justchil Posted December 9, 2015 Report Share Posted December 9, 2015 Link to comment Share on other sites More sharing options...
Morphoys Posted December 9, 2015 Author Report Share Posted December 9, 2015 I think you are Right. I will try to turn the Balancer connector to 180 degrees and solder it new. I tell you what happened. Damn, when you are right , I´m such a noob. Hit me . Link to comment Share on other sites More sharing options...
justchil Posted December 9, 2015 Report Share Posted December 9, 2015 It happens That's how you learn. I had to keep looking at your setup to be sure it was backwards. Link to comment Share on other sites More sharing options...
Morphoys Posted December 9, 2015 Author Report Share Posted December 9, 2015 Thank you so much for your Eagle Eye I switched it in 5 Minutes and it works. You saved my Day.Damn, that is really newbie faillure. Great, Now I have to put all together. Link to comment Share on other sites More sharing options...
Morphoys Posted December 9, 2015 Author Report Share Posted December 9, 2015 Yeah, that was successfull.Thanks to justchil for support, you are a great Guy.By the Way , we created a good Toturial. Link to comment Share on other sites More sharing options...
