Stanislau Posted November 8, 2021 Report Share Posted November 8, 2021 Hi guys! how to connect Type-c to DNA 60 board? with charging! I know without charging, but how to make it so that you can charge ?! Link to comment Share on other sites More sharing options...
Stanislau Posted November 8, 2021 Author Report Share Posted November 8, 2021 most likely need an extra charge board, but which one? and how to connect it to dna 60 board? Link to comment Share on other sites More sharing options...
Wayneo Posted November 8, 2021 Report Share Posted November 8, 2021 Here's the datasheet pinout, and you should NOT need any extra board. 1 1 Link to comment Share on other sites More sharing options...
Stanislau Posted November 8, 2021 Author Report Share Posted November 8, 2021 (edited) 24 минуты назад, Wayneo сказал: Here's the datasheet pinout, and you should NOT need any extra board. Seriously? so simple? 😳 and I get type-c on DNA 60 and 1 amp charge? Edited November 8, 2021 by Stanislau 1 Link to comment Share on other sites More sharing options...
Wayneo Posted November 8, 2021 Report Share Posted November 8, 2021 1 hour ago, Stanislau said: and I get type-c on DNA 60 and 1 amp charge? Yes and yes. 1 1 Link to comment Share on other sites More sharing options...
Stanislau Posted November 9, 2021 Author Report Share Posted November 9, 2021 8 часов назад, Wayneo сказал: Yes and yes. But how does the board know that the charge is over without a charge controller? Link to comment Share on other sites More sharing options...
Wayneo Posted November 9, 2021 Report Share Posted November 9, 2021 6 hours ago, Stanislau said: But how does the board know that the charge is over without a charge controller? That all depends on the USB-C data and charging board you purchase to use which can be all in/on one board. The initial picture you showed was just a copy/paste 😋 Link to comment Share on other sites More sharing options...
Stanislau Posted November 9, 2021 Author Report Share Posted November 9, 2021 1 час назад, Wayneo сказал: That all depends on the USB-C data and charging board you purchase to use which can be all in/on one board. The initial picture you showed was just a copy/paste 😋 now I understand) thanks bro😁🤝 Link to comment Share on other sites More sharing options...

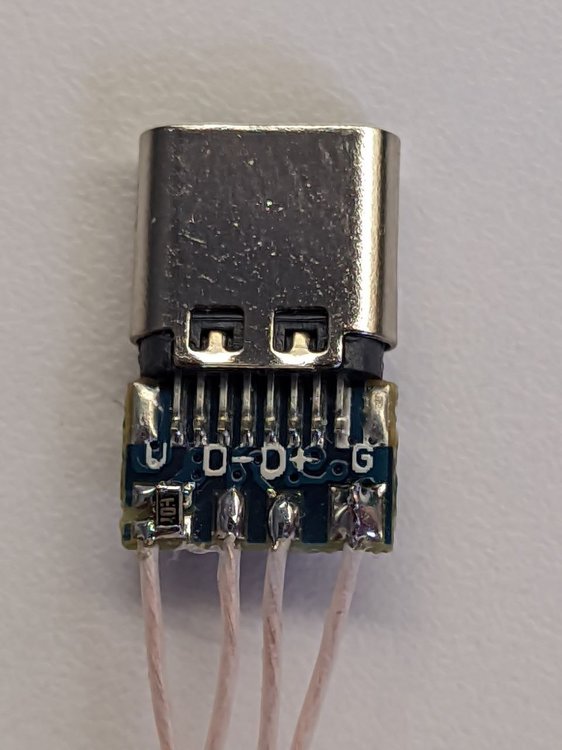

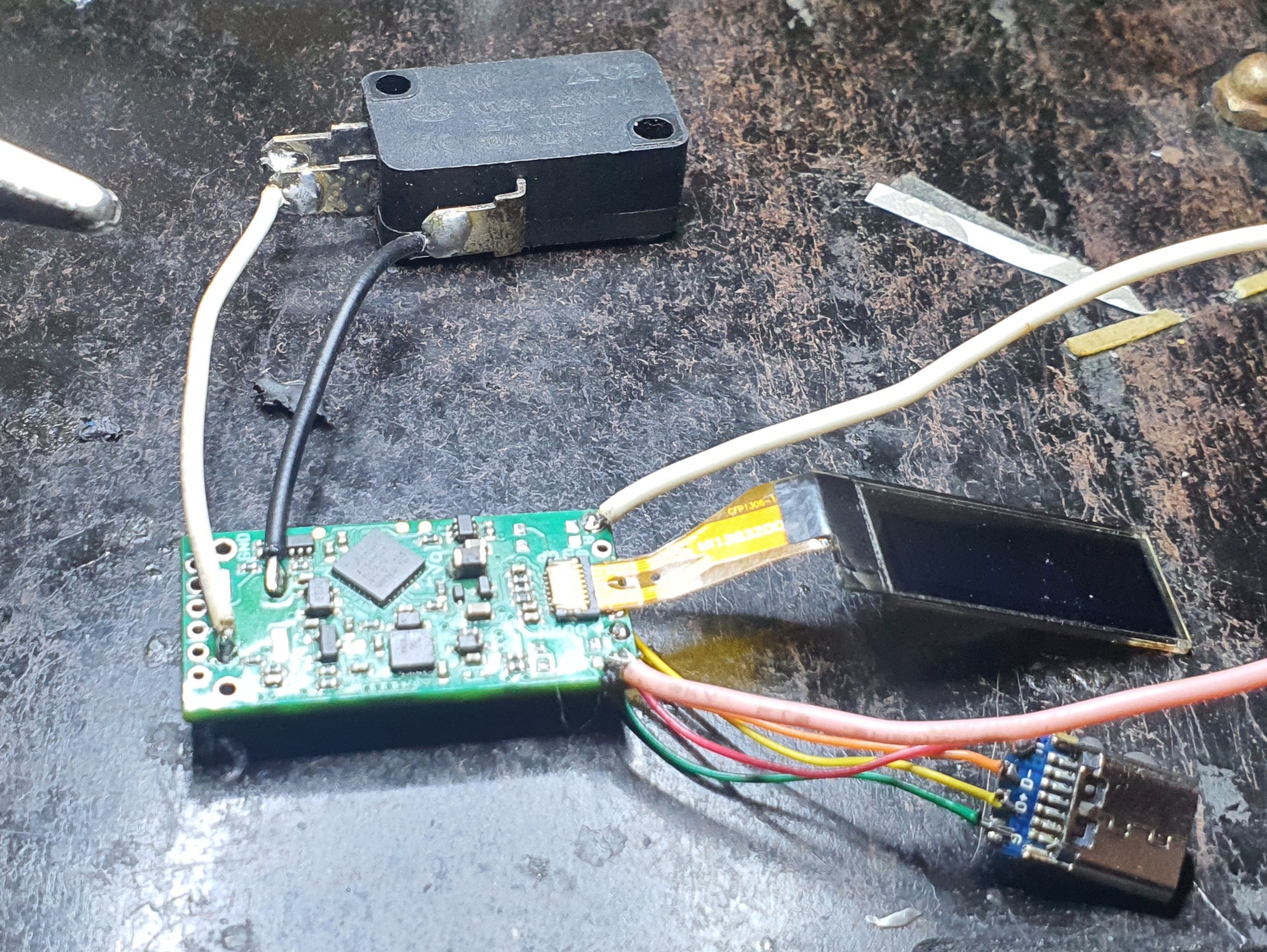

gendengruwo Posted August 24, 2023 Report Share Posted August 24, 2023 anybody have tried to change with this type of type c board? I've tried to connect, but there was no connection to PC. please help... This pictture below was my second attempt to try.. Link to comment Share on other sites More sharing options...
Stanislau Posted August 24, 2023 Author Report Share Posted August 24, 2023 3 минуты назад, gendengruwo сказал: anybody have tried to change with this type of type c board? %7BfileStore.core_Attachment%7Dmonthly_2023_08/1304773702_typecboard.jpeg.7e27fd6471aca56b79d804d604d7b256.jpeg I've tried to connect, but there was no connection to PC. please help... This pictture below was my second attempt to try.. Link to comment Share on other sites More sharing options...
Stanislau Posted August 24, 2023 Author Report Share Posted August 24, 2023 4 минуты назад, gendengruwo сказал: anybody have tried to change with this type of type c board? %7BfileStore.core_Attachment%7Dmonthly_2023_08/1304773702_typecboard.jpeg.7e27fd6471aca56b79d804d604d7b256.jpeg I've tried to connect, but there was no connection to PC. please help... This pictture below was my second attempt to try.. you have to use a 10к resistor Link to comment Share on other sites More sharing options...

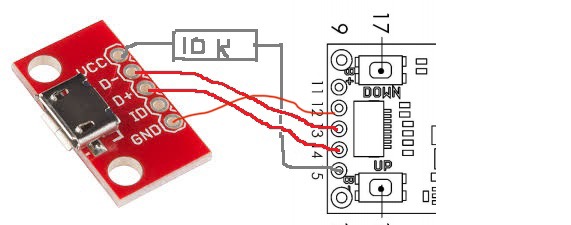

gendengruwo Posted August 24, 2023 Report Share Posted August 24, 2023 (edited) 1 hour ago, Stanislau said: you have to use a 10к resistor do u mean like this below?%7BfileStore.core_Attachment%7Dmonthly_2023_08/Picsart_23-08-24_17-27-28-906.jpg.bbafe8deba7b8a9ddebfe045d6d6dac4.jpg Edited August 24, 2023 by gendengruwo the picture cant display Link to comment Share on other sites More sharing options...
Wayneo Posted August 24, 2023 Report Share Posted August 24, 2023 @gendengruwo look at my 1st post. 2 questions. What do you read/see for pin 11? Where's yours? 2 Link to comment Share on other sites More sharing options...
gendengruwo Posted August 24, 2023 Report Share Posted August 24, 2023 11 minutes ago, Wayneo said: @gendengruwo look at my 1st post. 2 questions. What do you read/see for pin 11? Where's yours? I just need to connect to PC with this kind of Type-c board bro.. I'm new with this.. Pin 11 is for charging right? Link to comment Share on other sites More sharing options...
Wayneo Posted August 24, 2023 Report Share Posted August 24, 2023 That's what it said. "Charger output +" 2 Link to comment Share on other sites More sharing options...
