acardboardllama Posted May 2, 2017 Author Report Share Posted May 2, 2017 I wired up 2 dna200 boards in two cell configuration. Changed them both to two cells in escribe. But they will only power on as long as I'm holding the power button.. I checked the voltage of the battery sled and it's at 8.4v at the board. The tap is 4.2v at the board. I've double and quadruple checked for shorts or anything out of the ordinary and nothing. I've asked for help all over Reddit and acetone is suggesting to just buy a new board.. But I have two already. One brand new and one from a Realoux.. That's spelled wrong. Any help would be great.. I just want my build to work properly.. Thank you! Link to comment Share on other sites More sharing options...
dwcraig1 Posted May 2, 2017 Report Share Posted May 2, 2017 Well the first thing to check is what the cell voltages show in EScribe/ Device Monitor, also make sure it's set to 2 cells and not 3.............to start with.Maybe post a screen on Device Monitor.The tap should be reading pack voltage between 3 and ground. 2 Link to comment Share on other sites More sharing options...

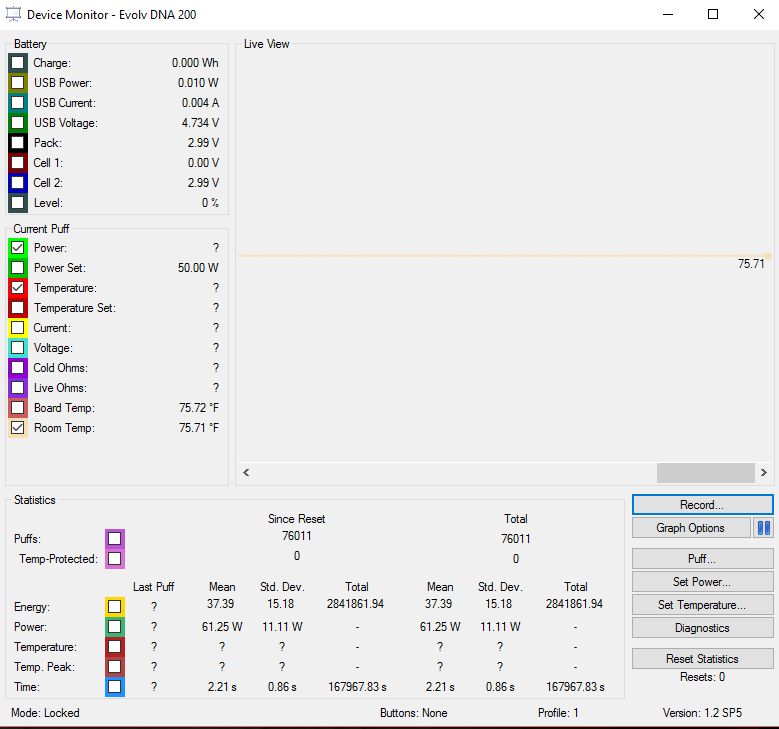

acardboardllama Posted May 2, 2017 Author Report Share Posted May 2, 2017 This is without batteries installed and the attached picture is with batteries installed.. Link to comment Share on other sites More sharing options...

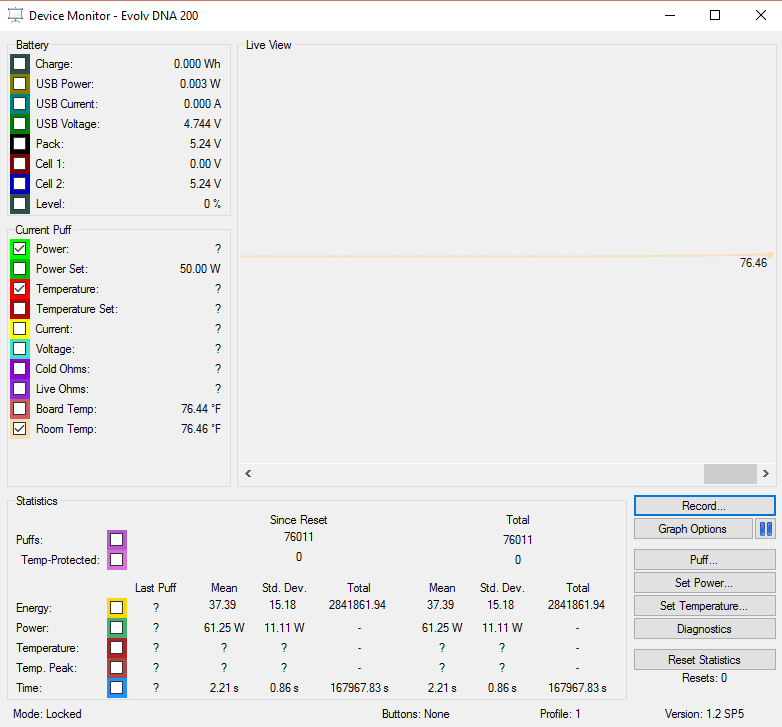

dwcraig1 Posted May 2, 2017 Report Share Posted May 2, 2017 Voltage of cell 2 (5.24v) in 2nd picture indicates that the battery management chip on the board has gone bad.This is providing that the tap is configured as in the diagram posted above.Voltages measured off the JST plug would be:Cell #1's voltage between ground and pin 1Cell #2's voltage between pin #1 and pin(s) 3 or 2Voltage between pins 3/2 and ground should be the sum of both cells 2 Link to comment Share on other sites More sharing options...
