Squonk version now built and running

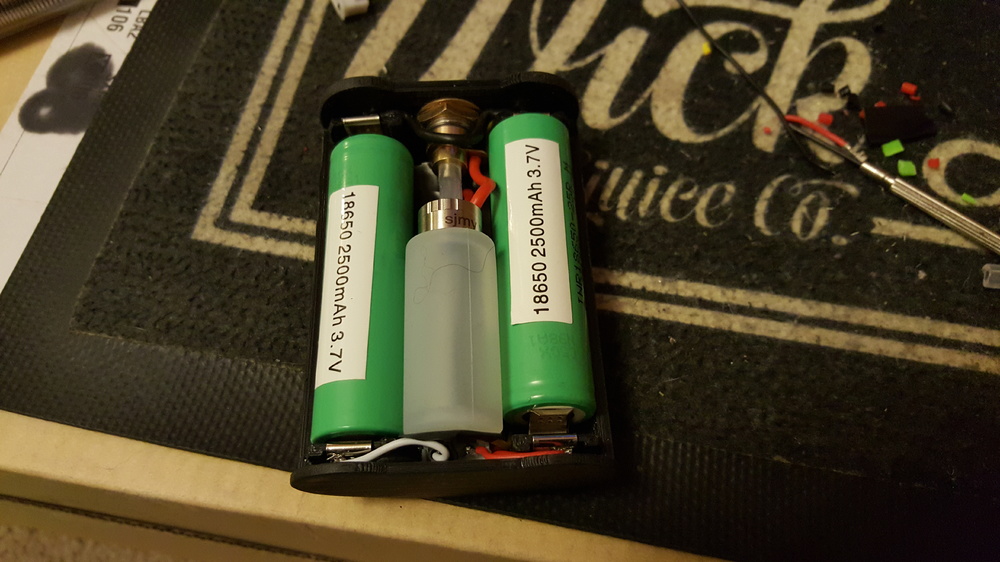

Squonker version of my DNA Flask... this will be a dual 18650, DNA167 mod with a 7ml juice bottle and Modmaker MM510.

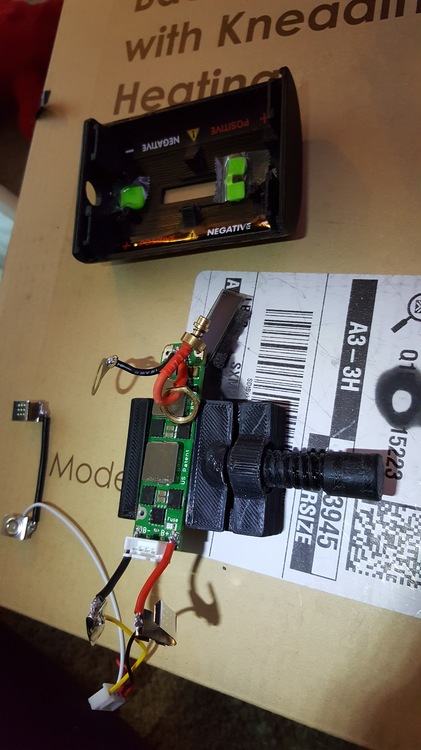

Stripped the board from an older 3D printed model and transplanted it into the flask, all working well so far.

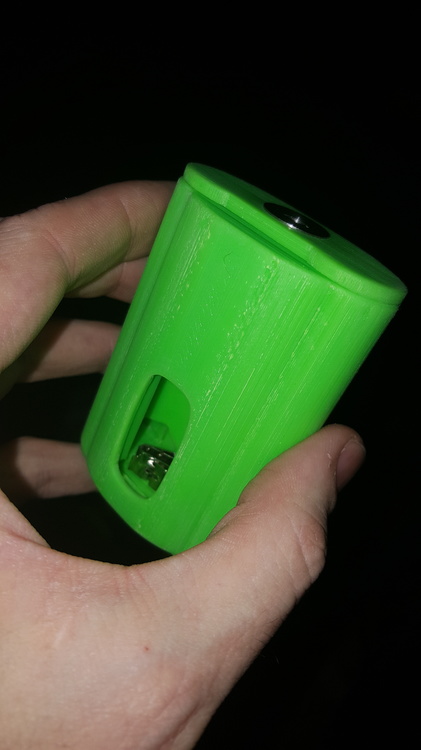

My latest 3D printed design, a flask style, not got a board for it yet... but model is printed and ready...

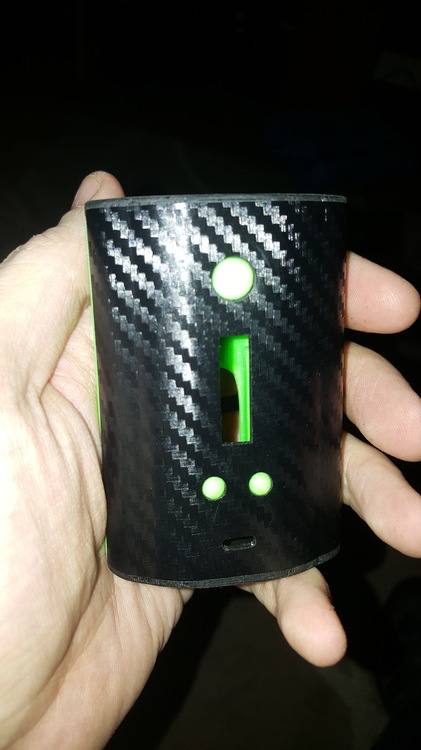

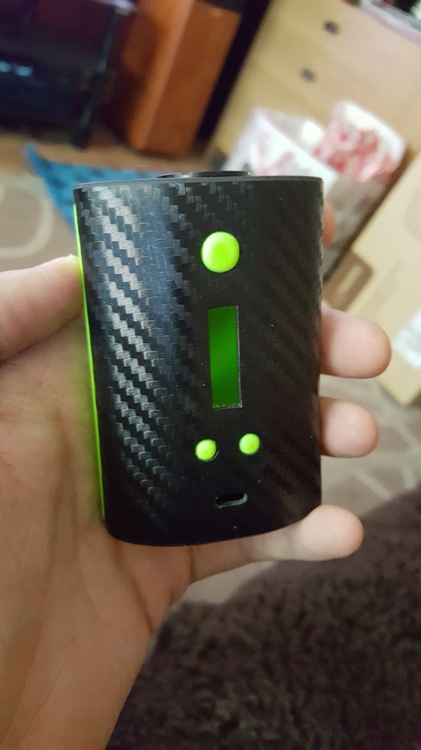

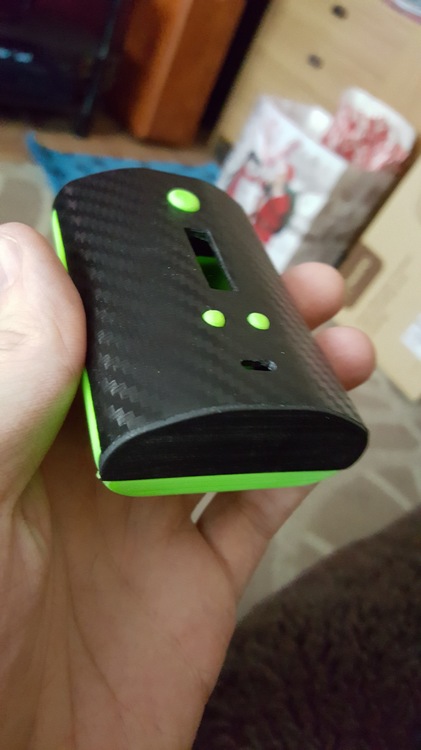

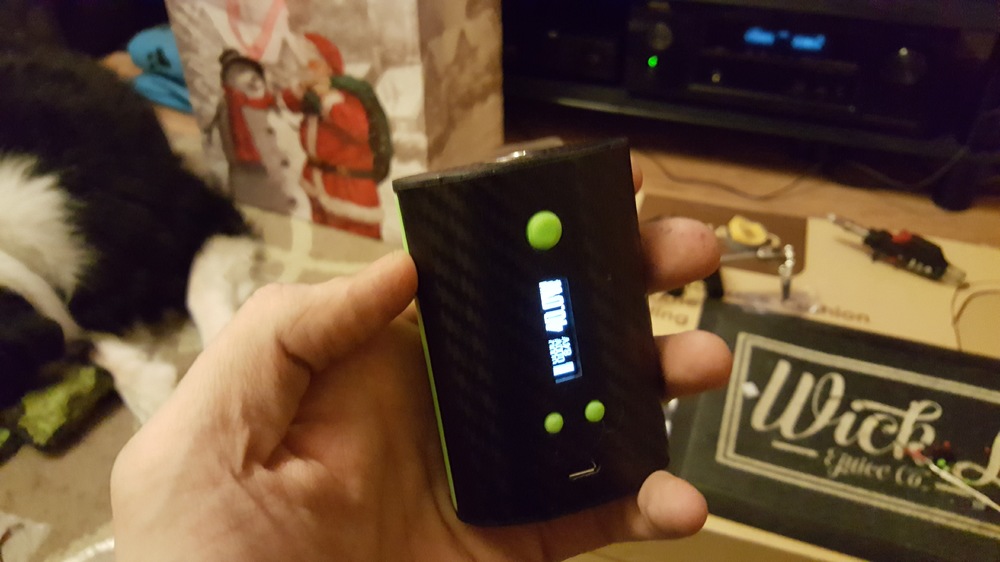

My V5 Boxer Style, slightly bigger screen window and rounded buttons and reworked the internals a wee bit for the door. This one i spent a lot of time on sanding and polishing to get silky smooth... then added some carbon wrap to the front panel just to be different. Currently fitted with the dual 18650 sled but can easily be changed to a lipo.

Cheers EDMKEV, ive since printed a new back door with better clips and support, the only screws are the 3 holding the board to the front of the box and 4 screws holding the front and back halves together, the door is just clipped in, no magnets.

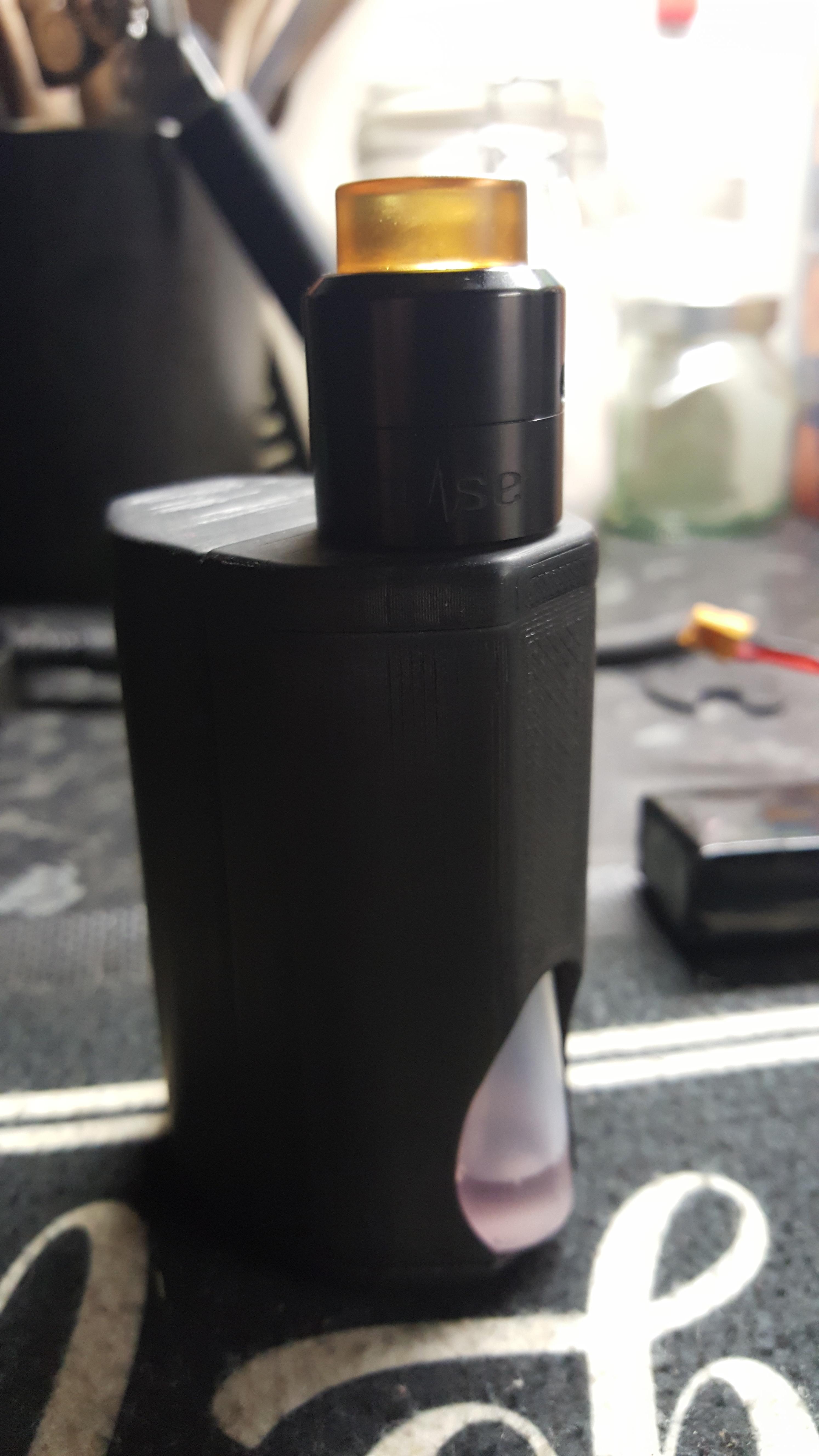

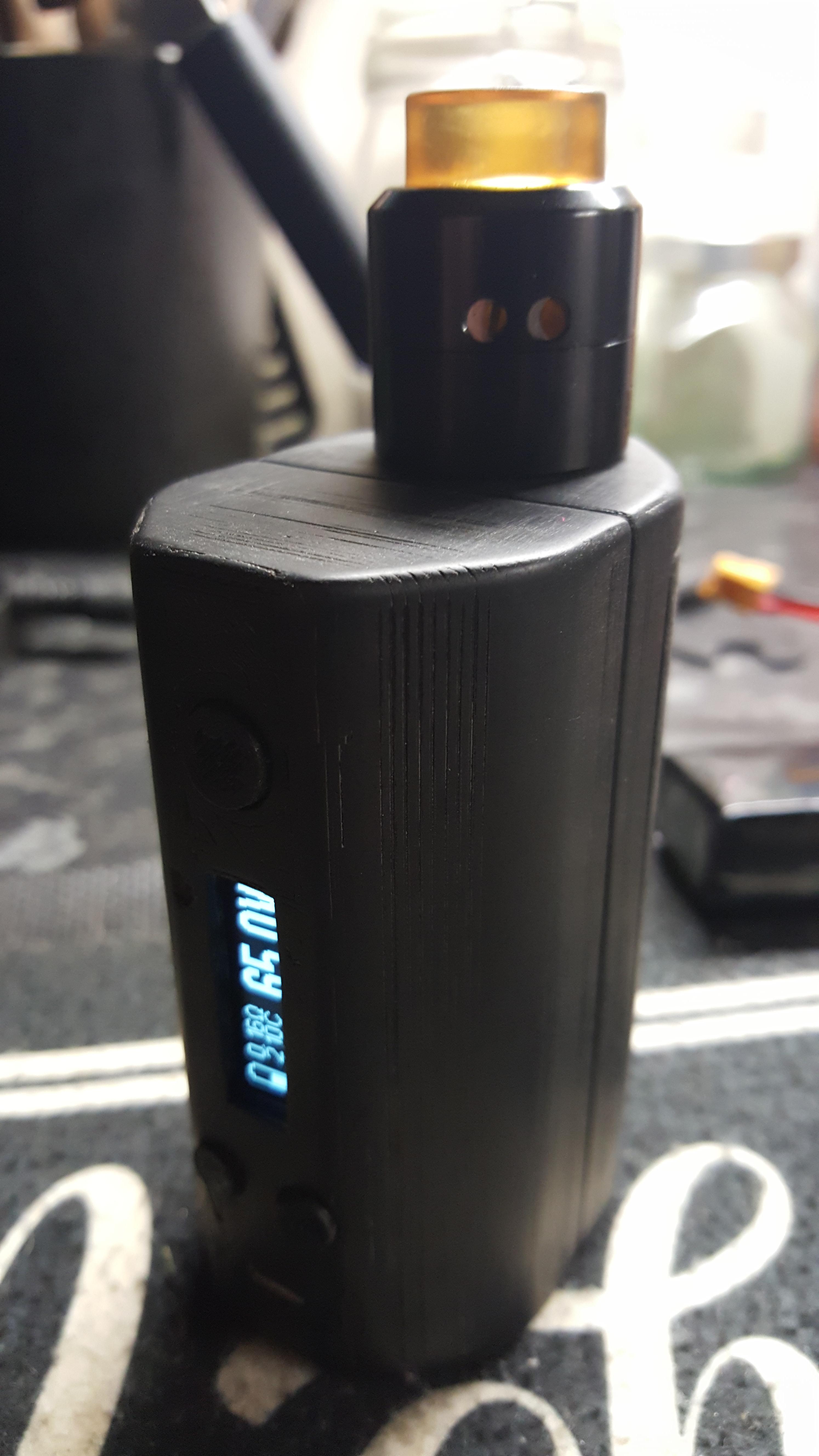

Based off my custom Boxer Style DNA250, 3D printed mod, i have now made a Squonker version, 1300mAh lipo installed with a 7.5ml bottle.

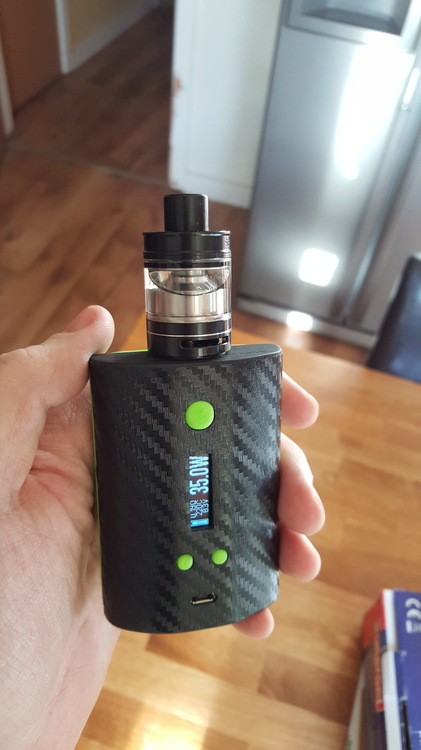

Custom 3D printed DNA250, 1300mAh lipo, matching drip tip for the Aromamizer

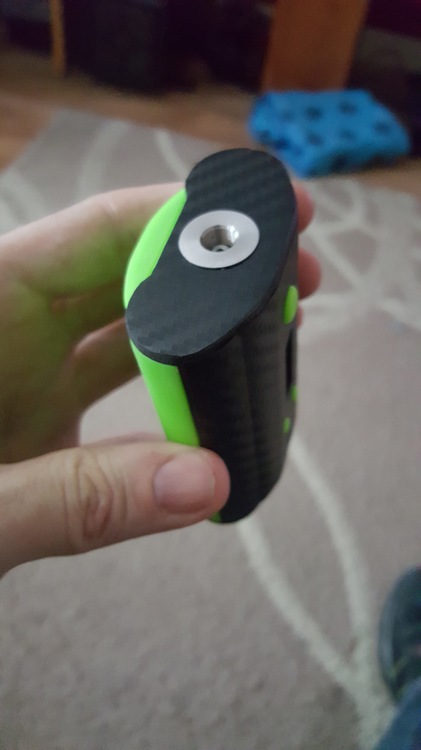

Oni wrapped with a little Carbon Fibre...

<a href="http://imgur.com/biO6a5h"><img src="http://i.imgur.com/biO6a5h.jpg?1" title="source: imgur.com" /></a>

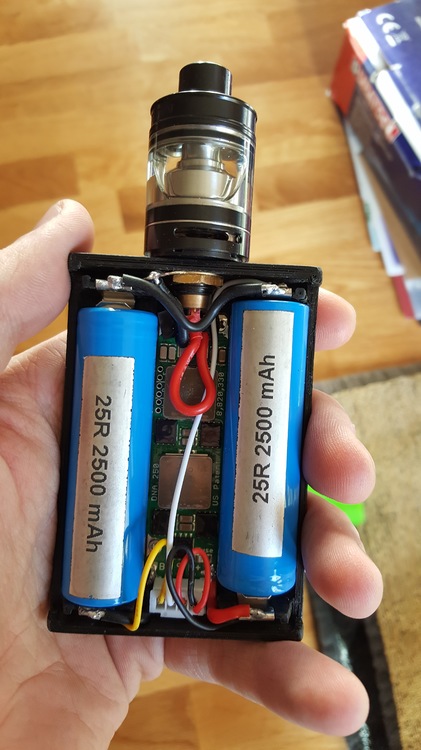

Third Boxer Style, this one fitted with a dual 18650 sled. Linky...

Another print of my Boxer Style, V3, cleaner and roomier inside for dual 18650 or Lipo.

Got my 3D Mod built, set for dual 18650 but should fit a 1000mAh lipo too.

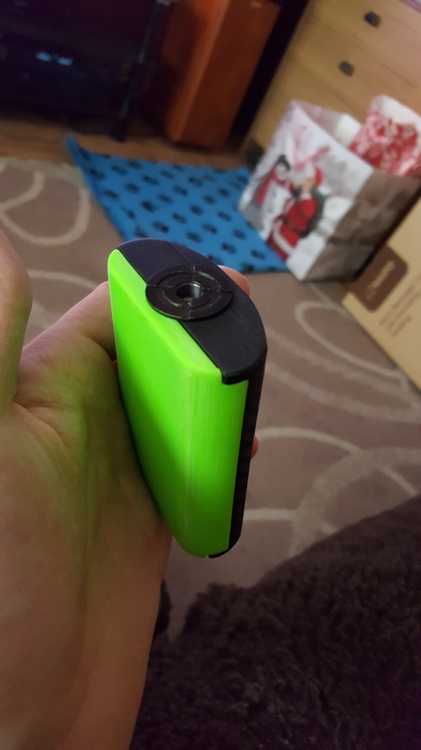

Recently got myself a 3D printer, have already build three DNA mods, all the typical rectangular box shapes, but now i have designed and printed my own take on teh Boxer, just waiting for the board to arrive so i can build it, all press fit bar the board screws and 510 nut...

I see there is a 3D model of the DNA75C board, but its in Solidworks format, is there anyone with the model in .STL or .3MF format, i dont have solidworks and all converters seem to require purchase, I have searched on google and cannot find anything useful, i would appreciate it if somebody could share a file in either of the two formats above, thanks
