usy219

What to do is roughly layout your Dna parts (battery, board, switches, 510 connector etc) and take some measurements i.e LXWXH in (mm) then go onto Hammond manufacturing website and they have a full list of sizes for all there enclosures, Check the Data sheet and make sure the screw poles don't come in the way and if you will have enough space to fit everything in the enclosure, then you should know what you need

Thanks Turbocad6 !!!

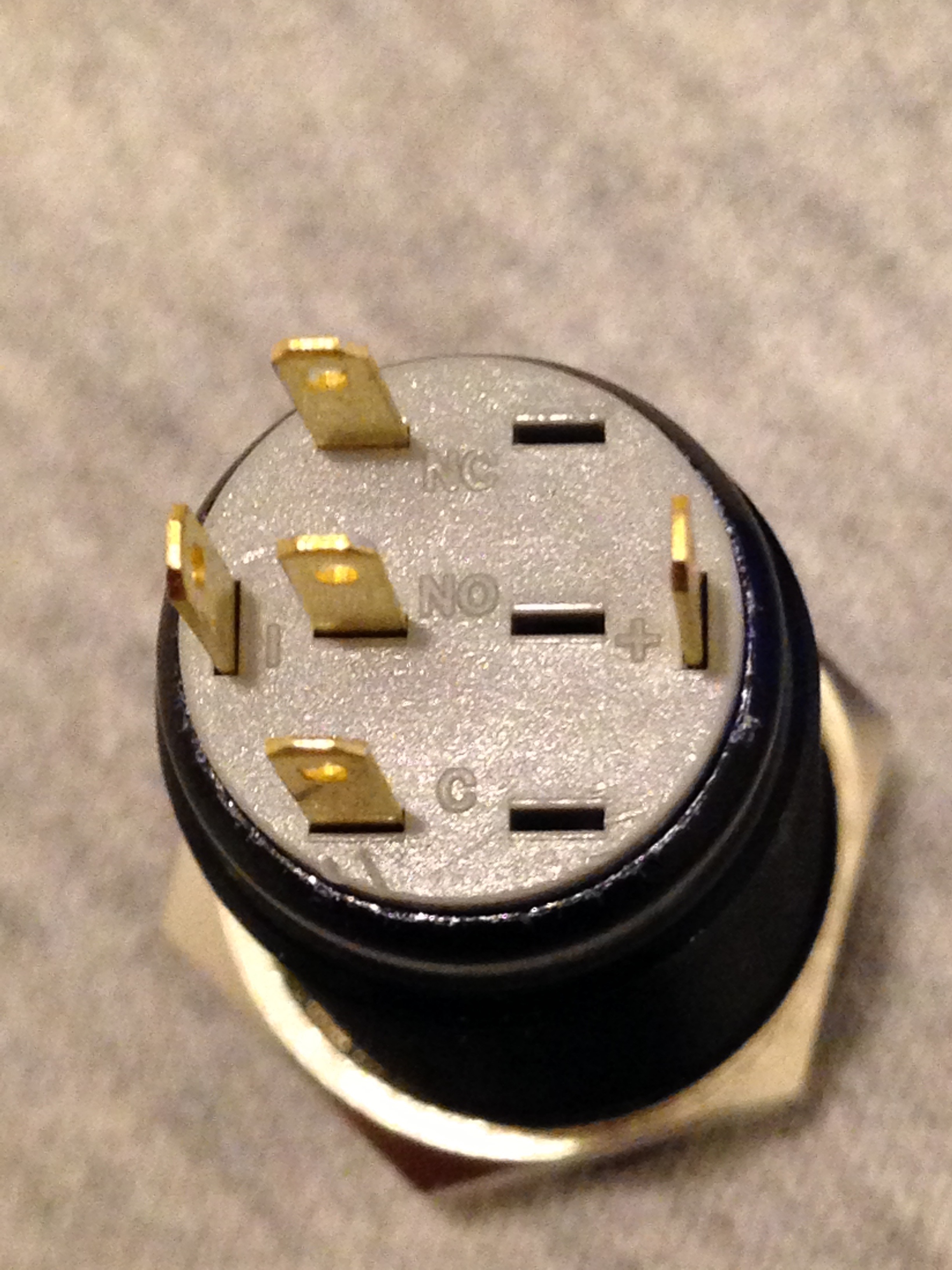

Finally got the switch But I have no idea on how to wire it, I know i need a 470 Ohm resistor, Could someone make a quick diagram or such Please?

From what I know the dna 200 board has a prefitted fuse just above the battery solder terminals and a bulit in charger so I dont see you needing a fuse but if you have any space you can go ahead and fit them on although I wouldnt know how to wire them in

yes i have the 14 AWG and will be using it for the 510 connect, ive also got some XT60 connectors and will be using it for them and the battery thanks for the heads up scoopy

Nice! Will be looking forward to it, Received some of the parts DNA200, Low Profile Connector 18AWG AND 24AWG have arrived now just waiting for the battery so I can do some measurements

Im two minds with the buttons but as you said its better to leave them on for future use much appreciated blueridgedog

Thanks scoopy & tomr1088, going to go with 14 awg wire, also do i soilder the battery straight on to the board?

Hi guys new to the forum just after some help and advice. Total novice to building box mods and this is going to be my first, although do have a some amount of electronics experience. I Have been looking around and want to build a DNA200 Box with a huge battery something I don't have to charge for days (hopefully weeks ), something similar to vaping pixels Thor's brick or maybe slightly smaller in size although I'm not to concerned about the size of the build (https://www.youtube.com/watch?v=pVeGTAaTJ8k) The case I have chosen (for now) is the 1590P1BK Hammond enclosure http://www.tme.eu/en/details/hm-1590p1bk/multipurpose-enclosures/hammond/1590p1bk/ The Battery I have chosen is the Turing Nano - Tech 5000mah 3S Lipo pack 45-90C http://www.hobbyking.co.uk/hobbyking/store/__11956__Turnigy_nano_tech_5000mah_3S_45_90C_Lipo_Pack.html The 510 Connecters is by FatDaddyVapes (v4) with the 30mm Cap http://www.fatdaddyvapes.com/shop.html I want to use a led switch the comes on when the fire button is pressed so I am thinking of going with the 12V Black Aluminum Metal SwitchMomentary 19mm http://www.ebay.co.uk/itm/12V-Black-Aluminum-Metal-Switch-Push-On-Start-Button-Latching-Momentary-16-19mm-/281131170886?var=580207455106&hash=item4174b93c46 Going to be using 18AWG SILICONE WIRE from Stealth Vapes After some advice about the switch and how would I wire it, would I need to remove the old switches or should I leave them in there, also some advice on the battery would I need to add anymore protection? Also I have not ordered anything atm going to start of with the battery so I can make some measurements then I can go ahead and order the enclosed case and then the rest of it. Any other suggestions, maybe other battery that i could consider etc would like some feedback or someone to point me in a direction of where i should be going LOL Thanks guys much appreciated
