DrDitto

The main problem is the battery sled, is pain in the ass. ther is no space to use the recomended wire gauge. Let me figure out a solution as soon as i get i will post it

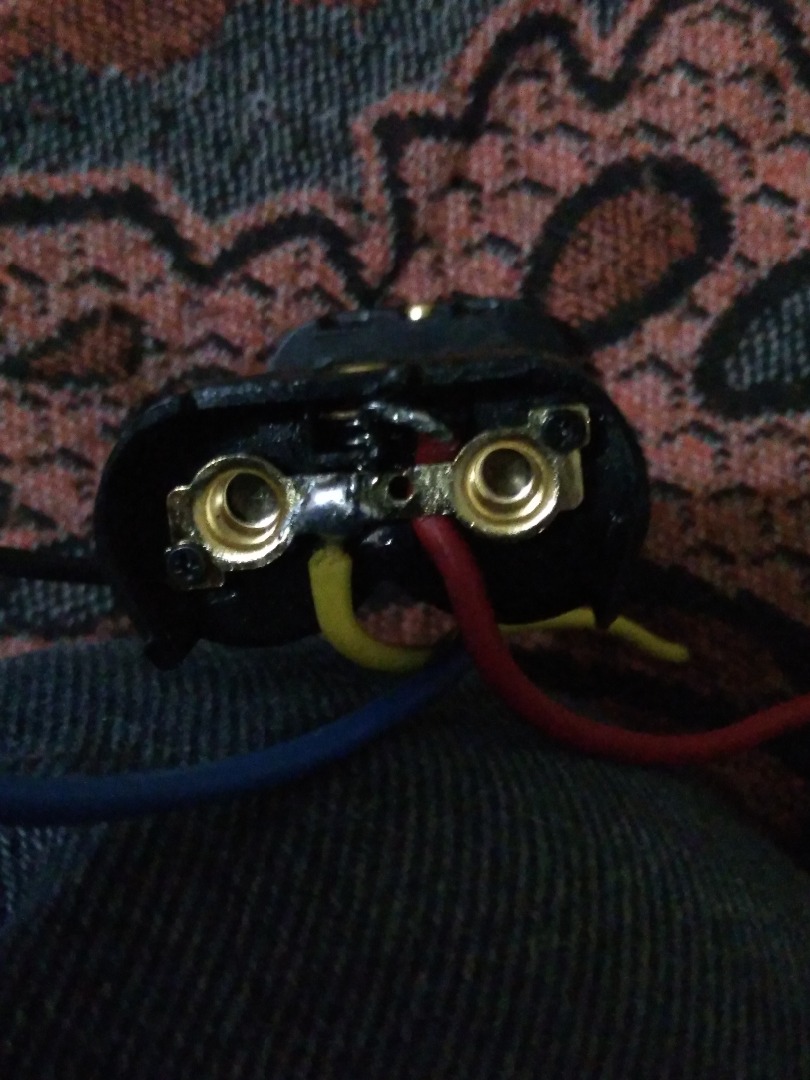

There is a lot of work, yes, the main problem is that original battery sled does not allow the use of propper gauge cables.

First First. The button does not work the fire switch requires that the button will be filled with epoxy or solder in my case Second the recomended wire gauge requires tweaks. Mi solderin skills are not the best, but no bidged solders. Battery sled requires hacks

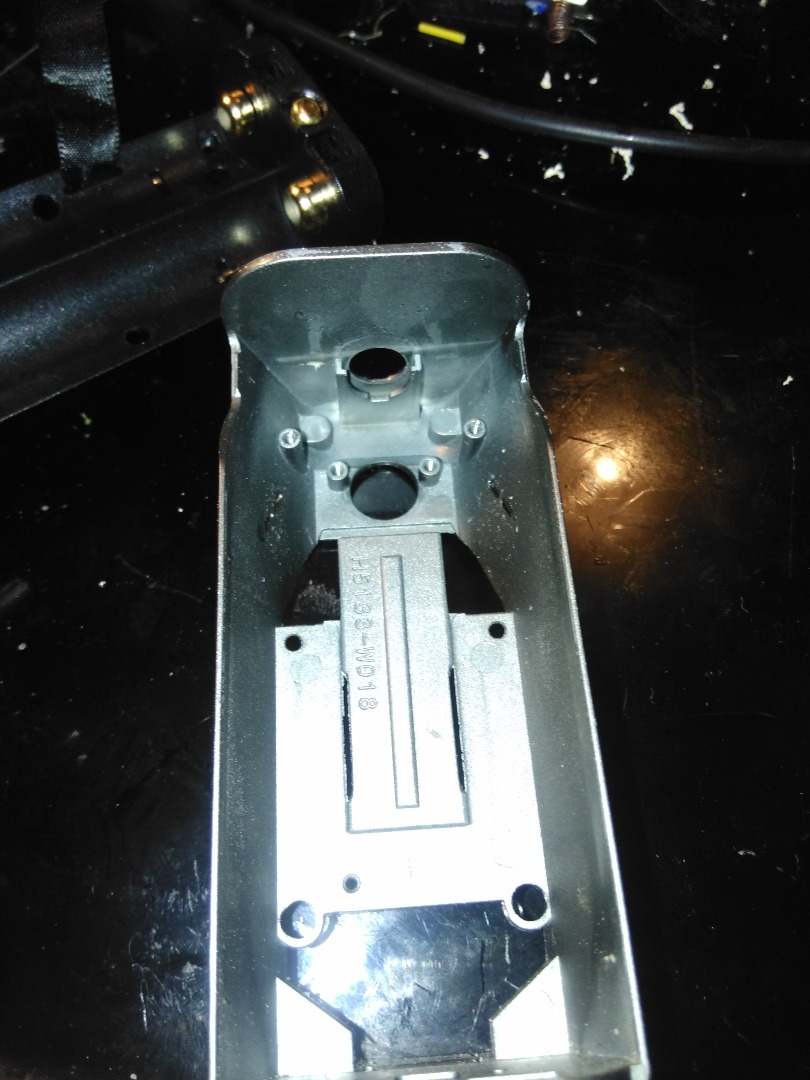

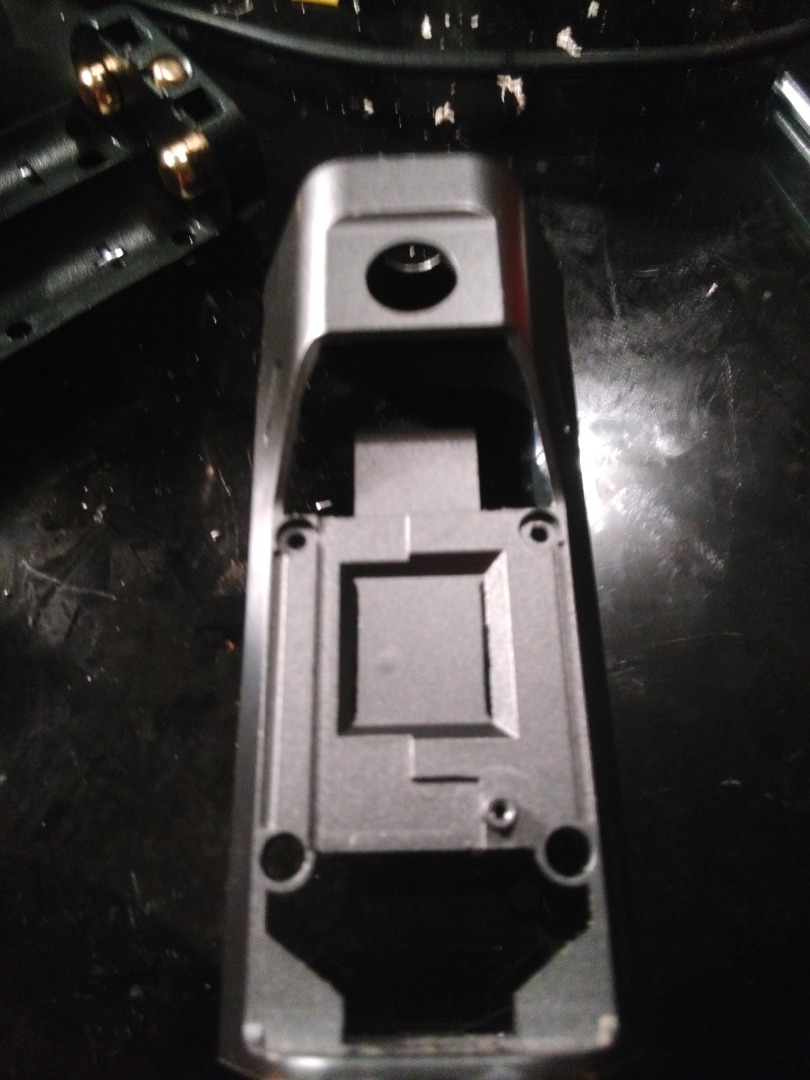

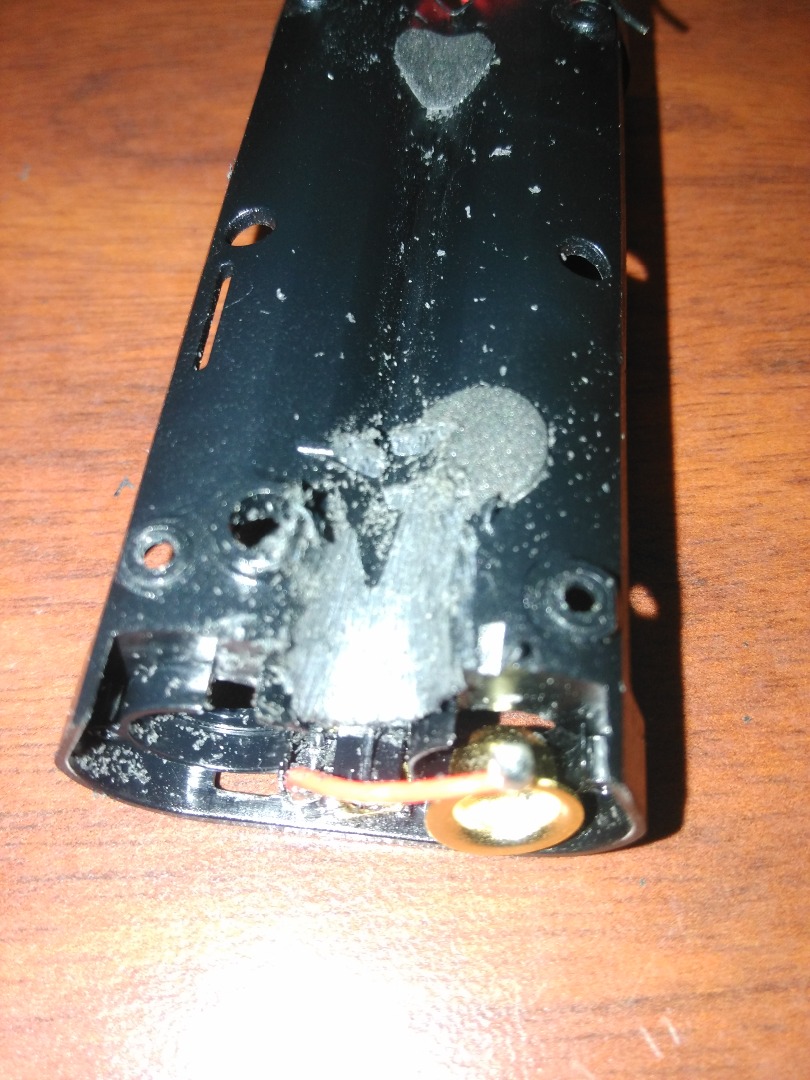

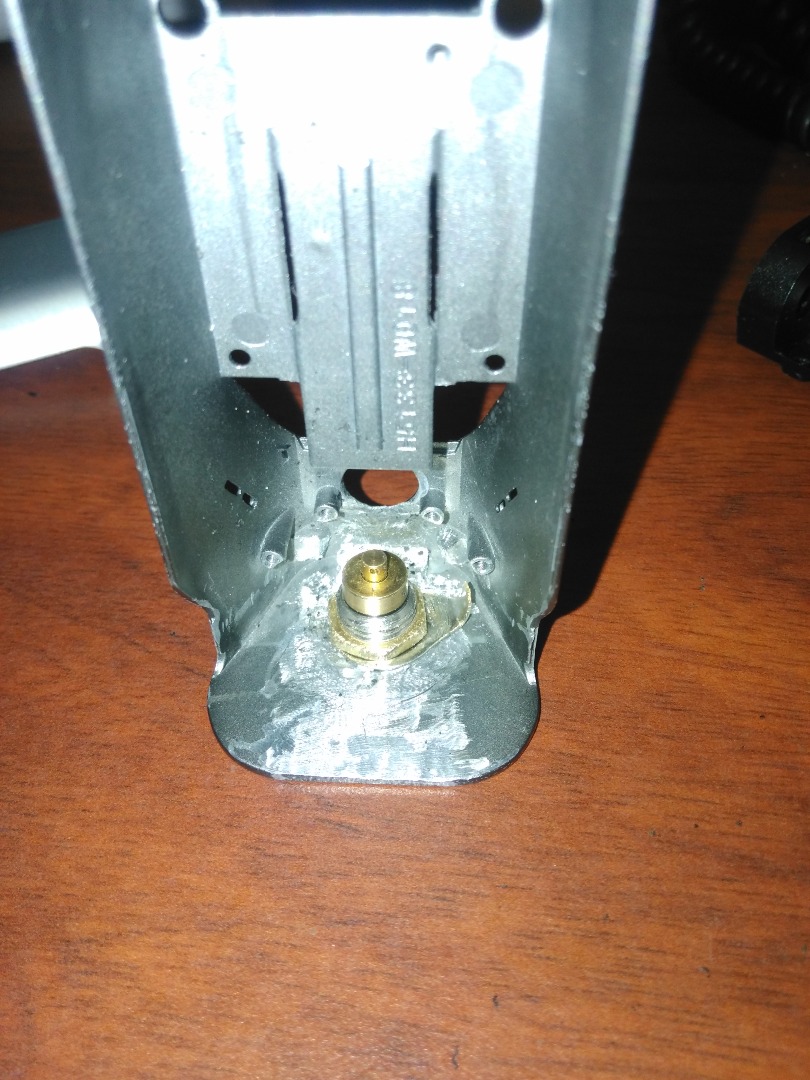

Actual status 510 replaced battery sled work in progess, it requires re wiring

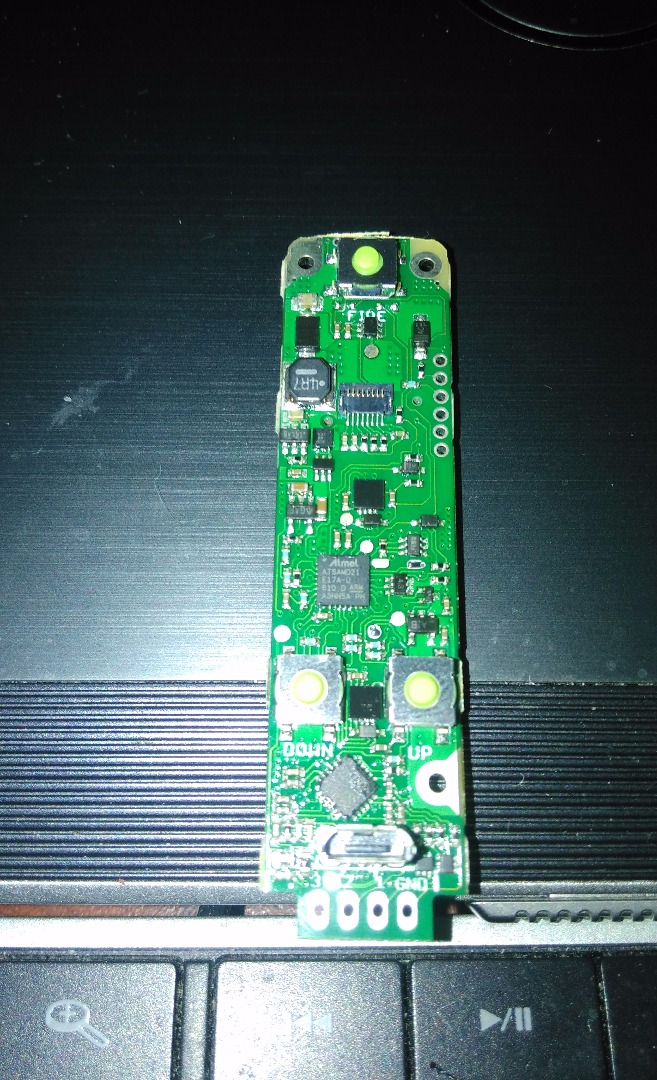

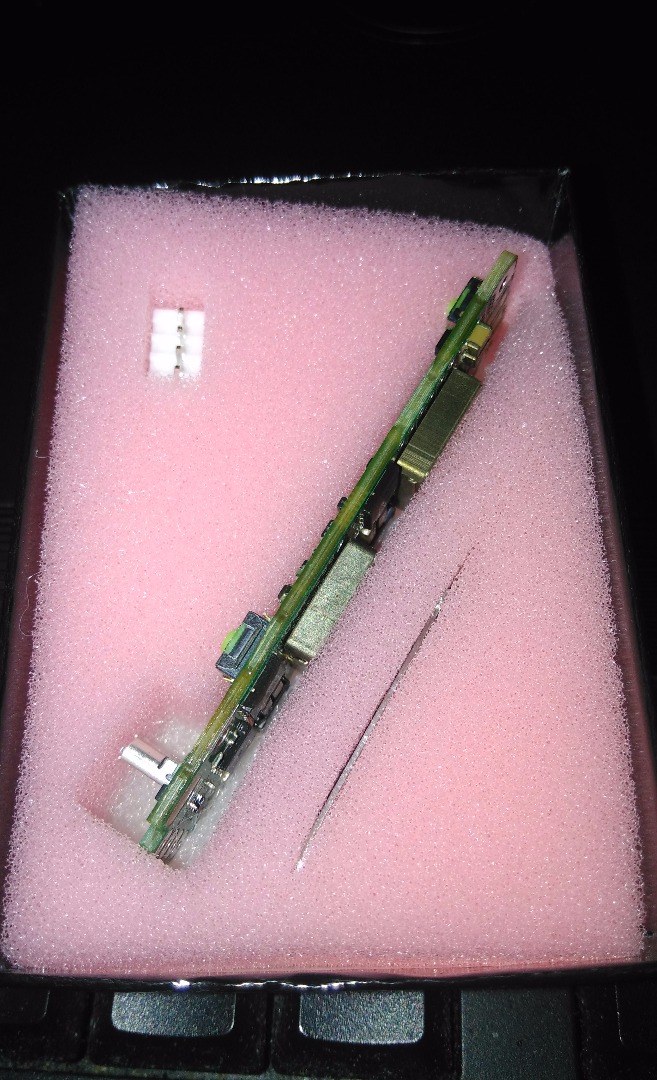

The board arrives todat

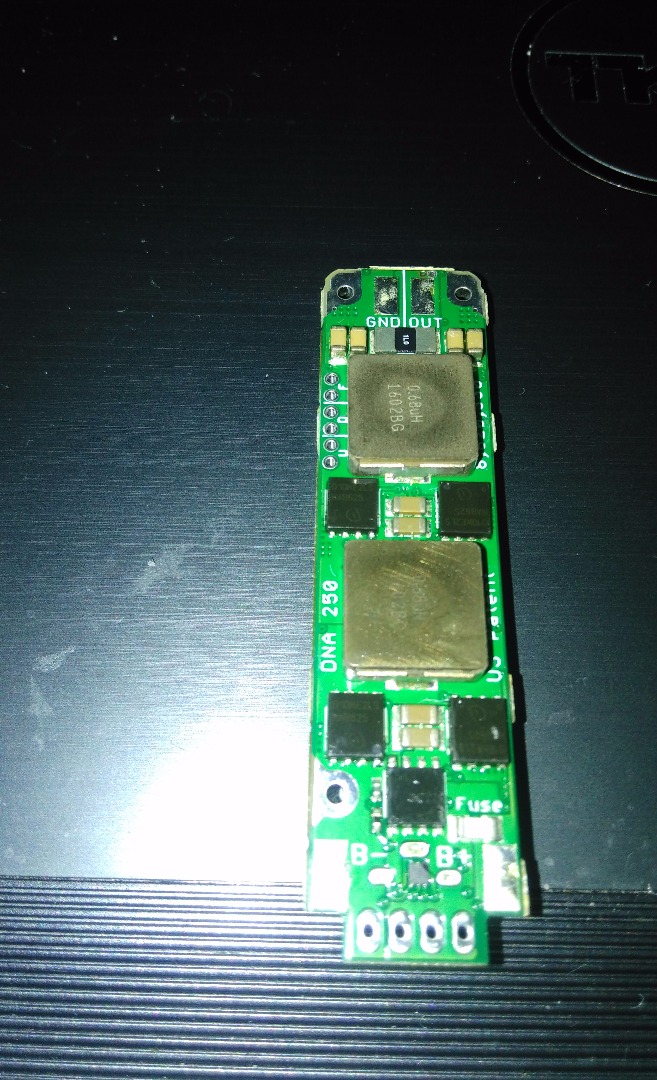

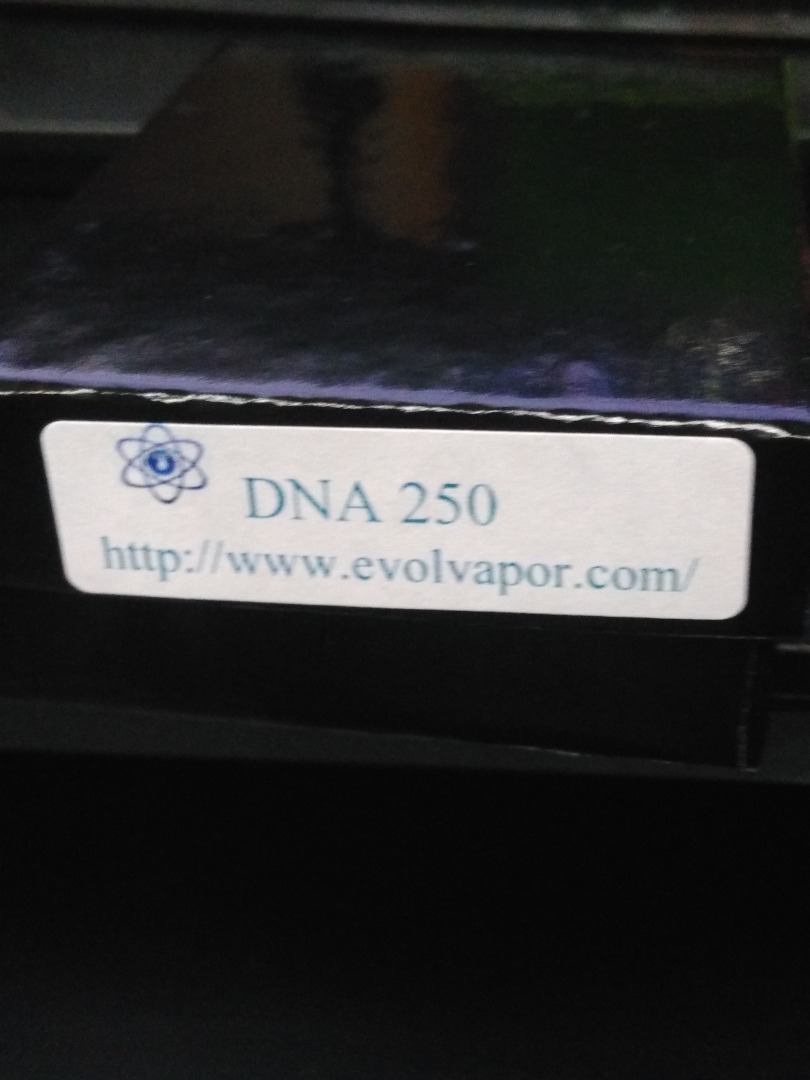

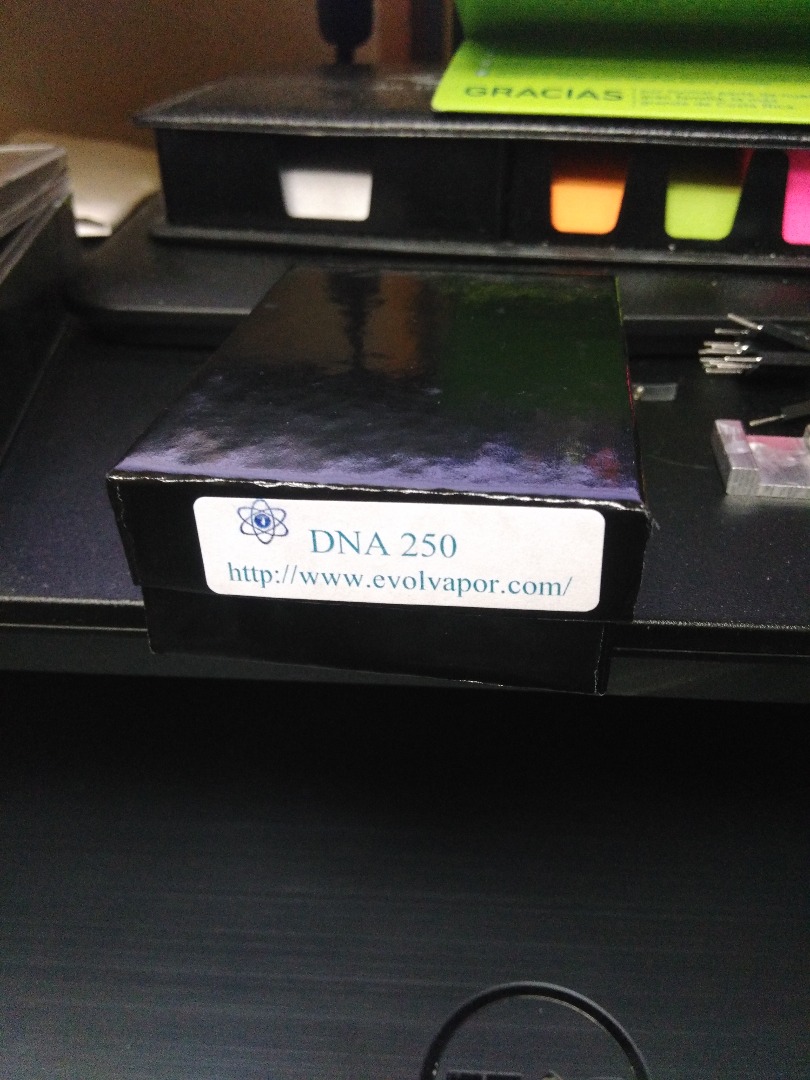

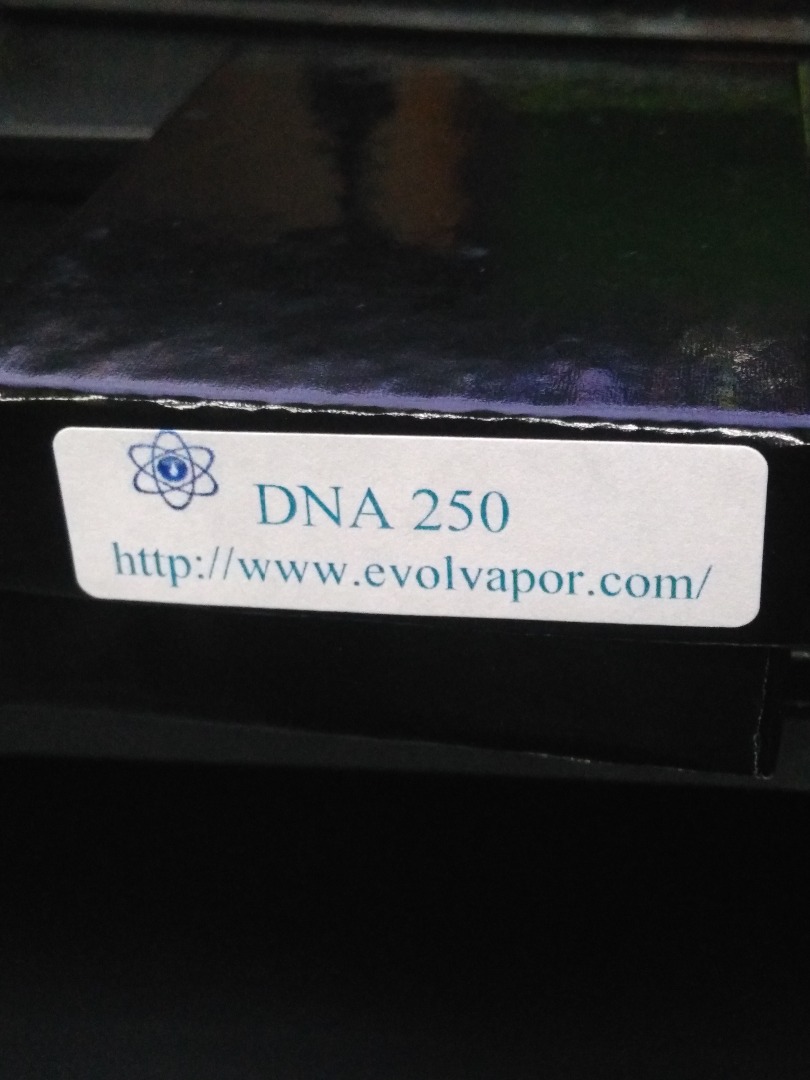

I order a dna250 board from protovapor last thuesday, I live at Costa Rica. As soon as I get it, I wiil document the complete process: Disassembly510 changebattery tray wire changebalance tab wiringRe assembly

Board Incomming!! As soon as I get I will take the pictures of all process. Step by step

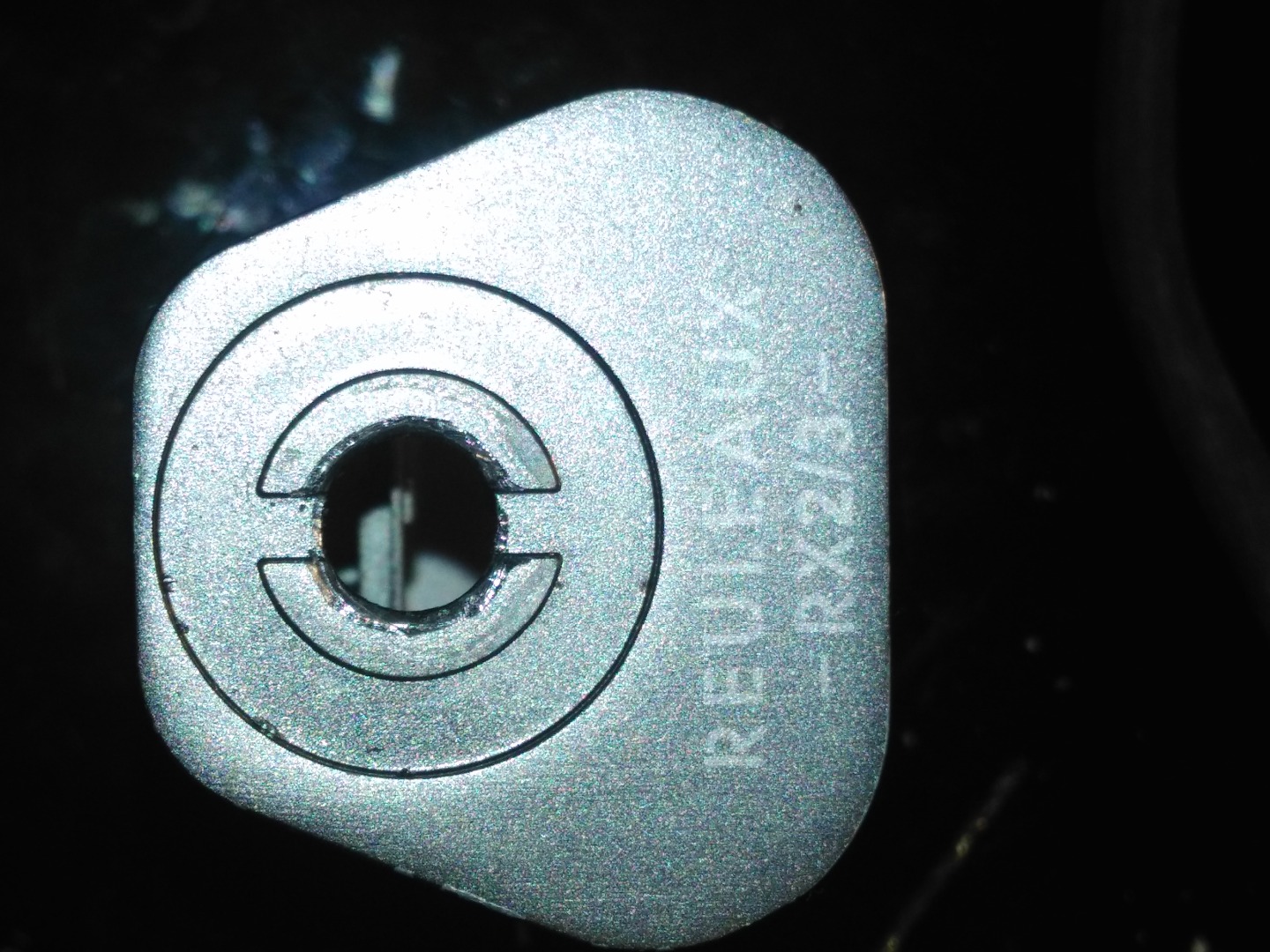

The main problem with rx 2/3 ismael the 510 And the small gauge cables. The only way to fix that crappy construction ismael relación the 510 Android use the proponer wires suggested bytes evolv

The rx2/3 screen has a diferent connector

Thanks a alot VapingBad for the feedback on this convertion

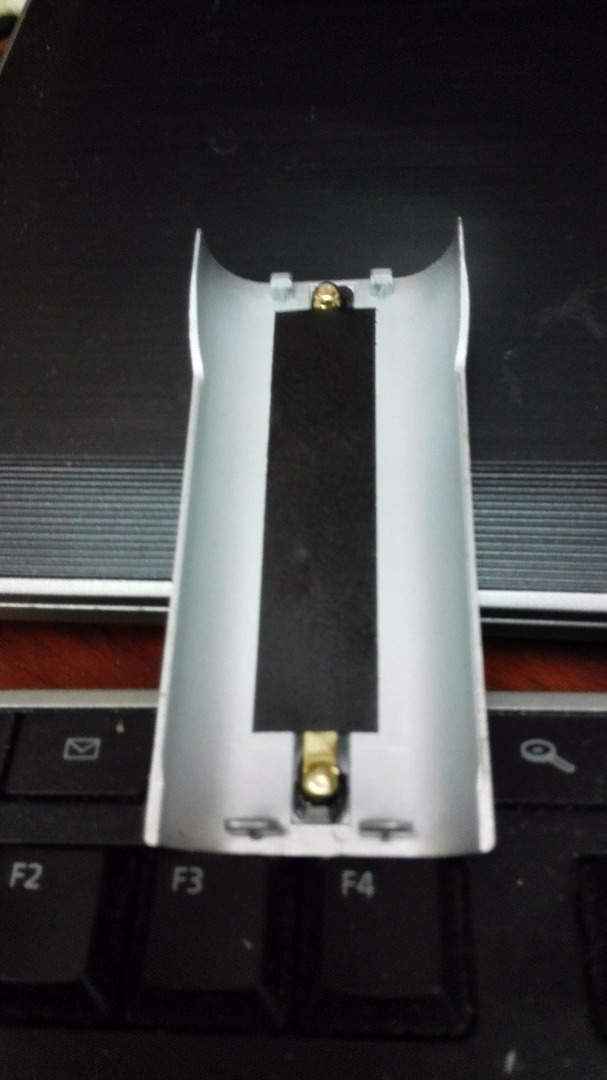

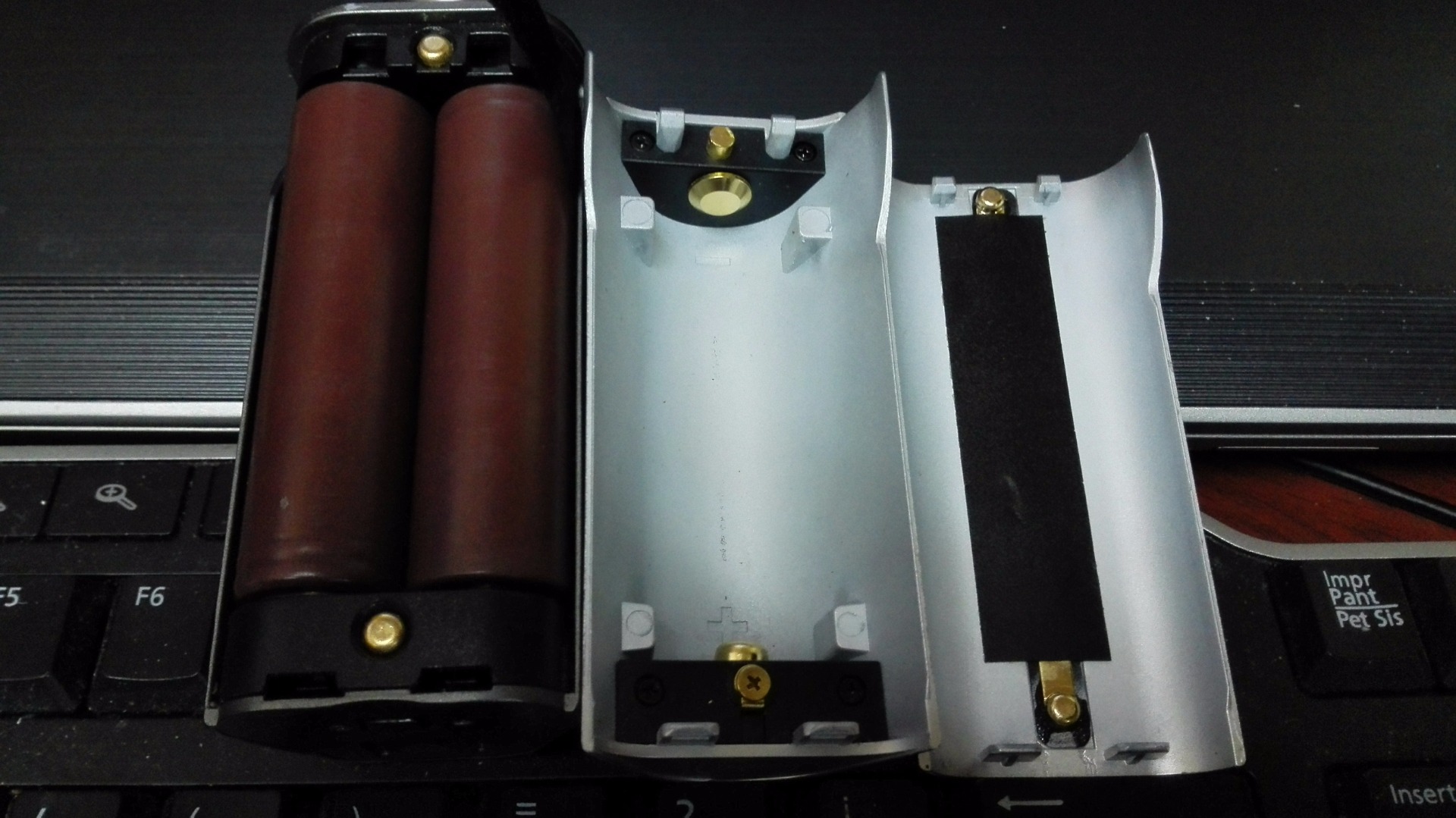

Whe user (me) jajajaj switch from the 2 battery backcover to the three ones, the blue line dissapper and the batery located at the otger cover, represented by the green lines takes part into the circuit and rise the voltage to 11.1v tara!!!! full 200/250w after changes the battery at escribe

The rx200s or rx2/3 will not work at all the conectors are so differents

the Other change than must be applied is to use proper gauge cables in order to avoid the loose of voltage/current that the actual ones induce in the circuit. This is the main reason why rx/3 has this poorly batery life.

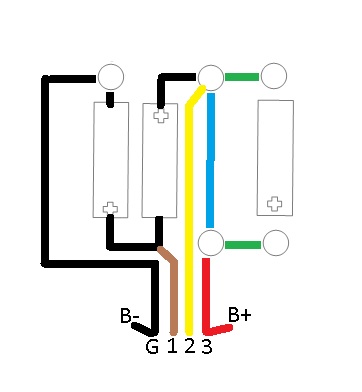

Ok I figure out the connection using both configurations When the two battery cover is installed the cover represented blue the blue line acts as a jumper between tap 3-2 at the balancer connector when the tripple 18650 cover is installed it will use the releaux config. there is no blue jumper. Can anynbody please check this connections? The gnd is jumped to b- and the tap 3 jumped to b+

Ok at the moment I am makinfg the plans to swap the board. I will make a screen suppor in order to center the dna200 screen over the rx2/3 front panel
